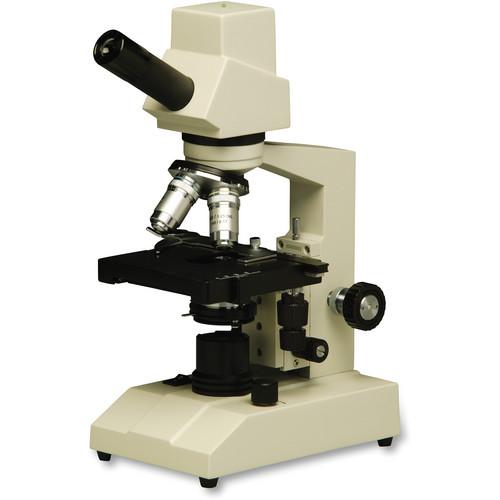

Product description Make discoveries and capture your data using the National DC-128 Biological Monocular Microscope. This microscope features a 45° inclined monocular eyepiece, a 3.0 MP CCD internal imaging sensor, a precision mechanical stage, and fine and coarse focusing. To provide quality images for viewing and storage, this optic offers four color-coded DIN parfocalled and parcentered objectives: 4x, 10x, 40xR, and 100xR. All of these objectives deliver achromatic performance, which means they generate clear, crisp, and vivid images with reduced color distortion and high contrast. The 100xR objective ought to be used with special immersion oil in order to achieve maximum resolution and to prevent lens damage; it comes very close to your slide when reaching a maximum focus. In addition, the objectives can be seamlessly interchanged with other DIN objectives of your preference. The nosepiece houses a 4-hole ball-bearing turret that allows smooth and precise switching of objectives.
Also noteworthy is the 4.75 x 4.75" mechanical stage with a lockable specimen bracket, Vernier controls (for positioning your samples with high precision), and tension adjustments to prevent drift. To ensure that the images of your samples are always bright and clear, located under the stage is the LED illuminator with a 1.25 NA Abbe condenser. The illuminator is controlled by a dedicated master on/off switch located on the base and has a rheostat intensity control knob for brightness control. For cordless operation, the device's base houses three rechargeable AA batteries that can be charged with the included wall charger. For achieving the highest results possible, the low-position focusing offers coarse and fine controls with rack and pinion mechanics. The housing is made of cast metal and will serve reliably for years to come. It offers a wide and stable base and an arched back that can be used as a carry handle. - Optics, Imager, Focusing & Illumination
-
- 45° inclined monocular viewing head
- 4x, 10x, 40xR, 100xR DIN color-coded objectives
- Achromatic, parcentered, and parfocalled
- 100xR is an oil immersion objective
- Wide field 10x eyepiece with pointer
- 1.25 NA Abbe condenser
- Filter wheel with iris diaphragm
- 3.0 MP built-in CCD imager
- Captures still images and videos
- Capable of streaming 800 x 600 videos
- Separate fine and coarse focusing
- Bottom LED illumination with rheostat
- Use and Handling
-
- Powered by three nickel-metal hydride AA batteries
- Charging time of 8 hours delivers runtime of up to 50 hours
- Rheostat with separate on/off switch
- USB port for connection to a computer
- Included software allows for easy capturing, labeling, and saving images
- Provides capability for making measurements and emailing of images
- Stage
-
- 4.75 x 4.75" mechanical stage
- X-Y Vernier position controls
- Lockable metal sample bracket
- Built-in tension adjustment removes drift
- Construction Details
-
- Cast metal frame provides stability and ruggedness
- Arched back can be used as a carry handle
- Knurled focusing and positioning knobs provide a better grip
In the Box National DC-128 Biological Monocular Microscope with 3.0MP Camera (Gray) - USB Cable
- Specimen Holder
- Motic Images Software CD
- Wall Charger
- 3 x Nickel-Metal Hydride AA Batteries
- Dustcover
- 0.9mm Hex Wrench
- Calibration Slide
- Limited 5-Year Warranty on Microscope
- Limited 3-Year Warranty on Electrical Components except LED Lamp, Fuse, and Cord
- Limited 1-Year Warranty on Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the National DC-128 Biological Monocular Microscope with 3.0MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational DC-128 Specs | Microscope Type | Compound | | Nosepiece | 4-hole ball-bearing turret | | Imaging Sensor | 3.0 MP, interline CCD | | Objectives | DIN, parfocalled and parcentered
4x: 0.10 NA
10x: 0.25 NA
40xR: 0.65 NA
100xR: 1.25 NA | | Magnification | 40x, 100x, 400x, 1000x | | Eyepiece | 10x, wide field | | Light Source | LED lamp | | Compatibility | Windows 7 or later
Mac OS X | | Battery / Runtime | 3 x nickel-metal hydride AA batteries / 50 hours | | Dimensions | Scope Height: 13.4" / 340 mm
Stage: 4.75 x 4.75" / 120 x 120 mm | | Weight | 8.4 lb / 3.8 kg | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 19.1 x 14.5 x 9.3" |
