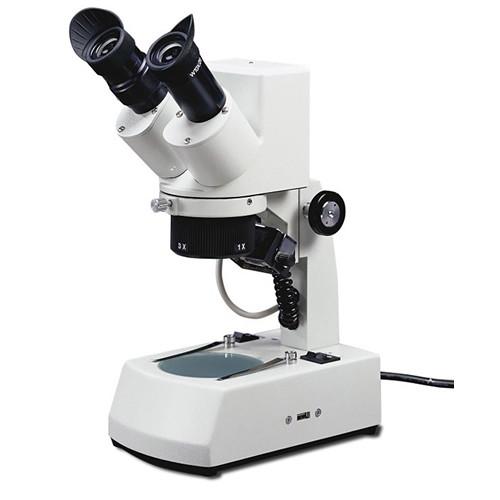

User Manual for National DC4-456H Digital Stereo Microscope with 3.0MP Camera Click to enlarge the picture
Contents of the user manual for the National DC4-456H Digital Stereo Microscope with
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National DC4-456H Digital Stereo Microscope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description Make your discoveries using the National DC4-456H Digital Stereo Microscope. Well-suited for both professionals and hobbyists, the microscope features stereoscopic binocular viewing, a 55-75mm adjustable interpupillary distance, and a built-in 3.0MP digital camera, which allows you to view and save your data on your computer. It has a high-sensitivity CMOS sensor and delivers data to your PC via a built-in USB port. With the help of the included Motic Images software you can easily view and save captured content. The optical system offers a 10x and 30x magnification using its adjustable 1x and 3x objective lens and two 10x wide field eyepieces. The elements are achromatic and will dramatically reduce color distortion to deliver clear, crisp, and vivid images of your coins, gems, plants, or insects.To enhance your viewing experience, the microscope offers a 3" long working distance and will accommodate samples up to 1.4" in height. It also has a built-in rack and pinion focusing mechanism for precision, repeatability, and strength. Regardless of the lighting conditions in your work environment, this scope will help you to get the brightest and clearest views possible with the two 10W illumination lamps: a halogen lamp on top and a tungsten lamp on the bottom. For strength and durability, the frame is made of cast metal and treated with a gray enamel finish. - Optics & Illumination
-
- Stereoscopic 45° inclined viewing
- Achromatic optics
- Objective magnification settings: 1x and 3x
- Two 10x, 20mm eyepieces
- 10x and 30x total magnification
- 55 - 75mm interpupillary adjustment
- 3.0" working distance
- 10W halogen top lamp
- 10W tungsten bottom lamp
- Imager
-
- Built-in 3.0MP CMOS sensor
- Captures still images and videos
- Motic Imaging software CD included
- Use and Handling
-
- 12 VDC power requirements for illumination
- Two dedicated on/off illumination switches
- USB digital data output port
- Base
-
- Flat, stationary base stage
- Two built-in metal clips
- 3.2" frosted glass specimen plate
- 3.2" reversible black & white plastic contrast specimen plate
- Construction
-
- Cast metal frame
- Gray enamel finish
- Rack and pinion focusing with a slip clutch
- Winged rubber eyecups on eyepieces
In the Box National DC4-456H Digital Stereo Microscope with 3.0MP Camera (Gray) - USB 2.0 Cable
- Calibration Slide
- 12 VDC Power Supply
- AC Power Cord
- Motic Images Software CD
- Black & White Plastic Contrast Plate
- Frosted Glass Plate
- Hex Wrench
- Pin Spanner Wrench
- Dustcover
- 2 x Rubber Eyecups
- Limited Lifetime Warranty on Microscope
- Limited 3-Year Warranty on Electronics
- Limited 1-Year Warranty on Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the National DC4-456H Digital Stereo Microscope with 3.0MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational DC4-456H Specs | Microscope Type | Stereo microscope | | Head | Rotating 360° | | Imaging Sensor | 3.0 MP CMOS sensor | | Objective Lens | 1x, 3x | | Eyepiece | Two 10x, 20mm | | Magnification | 10x, 30x | | Working Distance | 3.0" / 75.0 mm | | Interpupillary Adjustment | 55 - 75 mm | | Focusing | Coarse, rack and pinion | | Stage | Plate Diameter: 3.2" / 80.0 mm | | Illumination | Top: 10 W halogen lamp
Bottom: 10 W tungsten lamp | | Power Supply | Power Output: 12 VDC
Power Input: 100 - 240 V, 50 / 60 Hz | | Dimensions | Height: 13.63 - 12.25 " / 345.0 - 310.0 mm
Base Width: 4.5" / 115.0 mm
Base Depth: 7.75" / 197.0 mm | | Weight | 5.5 lb / 2.5 kg |
