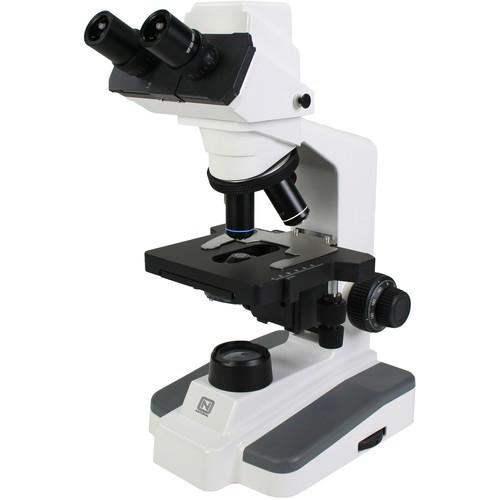

User Manual for National DC5-169-SP Trinocular Microscope with 3.0MP Camera Click to enlarge the picture
Contents of the user manual for the National DC5-169-SP Trinocular Microscope with 3.0MP
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National DC5-169-SP Trinocular Microscope with 3.0MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description Explore the microscopic world with the compound DC5-169-SP Trinocular Microscope with 3.0MP Camera from National. This microscope provides a 45° inclined binocular viewing and a built-in 3.0MP camera for documenting your discoveries. For sharing the views with your colleagues or classmates, the head can rotate 360°. The ball-bearing nosepiece has four receptacles for the included 4x, 10x, 40xR, and 100xR DIN achromatic (parfocalled and parcentered) objectives. The 40xR and 100xR objective lenses are retractable to prevent lens damage while focusing, and the 100xR objective lens is designed to be used with immersion oil to achieve maximum resolution. This microscope adheres to the DIN standard and allows you to use any commercially available DIN objective of your choice. While the parfocalled and parcentered feature allows you to use objectives of different magnifying powers without disturbing your focus or re-aligning your specimen, the semi-plan achromatic optics reduce image, color, and field distortion, and deliver a field flatness of 80 - 85%.To generate images with proper brightness and contrast, the illumination system provides a 3W bottom LED illuminator with adjustable brightness and a 1.25 NA Abbe condenser. For more control of illumination and contrast, the scope also has an iris diaphragm and a filter holder.
Beyond superior optical performance, the 5.5 x 5.3" mechanical stage offers excellent precision with a scale in 0.004" graduations. With the 2.8 x 2.0" movement range, a lockable sample holder, and low-position coaxial motion control you will have enough room to maneuver your specimens and secure them at your desired position. For stability, durability, and precision for years to come, the frame is made of cast aluminum alloy. It has an arched back that can serve as a handle in case you need to carry the microscope from place to place. For convenience and to provide ergonomics, the microscope provides a generous 54 - 76mm sliding interpupillary adjustment and knurled focusing and position knobs. Among numerous included items is a Motic Images software CD for viewing, editing, and saving your data on your computer. - Optical System and Focusing
-
- Eyepieces: 10x, 18mm, wide field
- DIN 4x, 10x, 40xR, 100xR objectives
- 40xR and 100xR objectives are retractable
- The 100xR objective ought to be used with immersion oil
- Total magnification: 40x, 100x, 400x, 1000x
- Semi-plan achromatic optics offer field flatness from 80 to 85%
- Interpupillary range: 54 - 76 mm
- Binocular viewing is 45° inclined
- Diopter adjustment
- Separate fine and coarse focusing
- Fine focusing has graduation
- Imaging Sensor and Illumination
-
- Built-in 3.0MP CMOS sensor
- 3W LED illuminator with a rheostat intensity control
- 1.25 NA Abbe condenser lens with focusing mount
- Iris diaphragm and filter holder
- Stage
-
- 5.5 x 5.3" mechanical stage
- X-Y low-position coaxial motion control
- 2.8 x 2.0" movement range with 0.004" graduation
- Lockable slide holder
- Use and Handling
-
- Power switch in the back
- USB port for connection to a computer
- 12V power port for connection to the included power supply
- Construction Details
-
- 45° inclined viewing
- Head rotates 360°
- Sliding interpupillary adjustment with two grips
- Revolving nosepiece in reverse position
- Head accommodates four objectives
- Nosepiece mount has ball bearings
- Cast aluminum frame with an arched back
- Gray enamel finish
- Weight: 14 lb
In the Box National DC5-169-SP Trinocular Microscope with 3.0MP Camera (Gray) - 2 x 10x WF Eyepieces
- 2 x Rubber Eyecups
- 110 -240V Switching Power Supply
- Power Cord
- Motic Images Software CD
- USB Cable
- Dustcover
- Calibration Slide
- Limited Lifetime Warranty
- Limited 1-Year Warranty on Camera
User Manual PDF 709.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the National DC5-169-SP Trinocular Microscope with 3.0MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational DC5-169-SP Specs | Microscope Type | Compound | | Viewing | 45° inclined | | Image Sensor | 3.0MP CMOS | | Eyepiece | 10x, 18 mm | | Nosepiece | Reverse | | Objectives | DIN 4x (0.10 NA), 10x (0.25 NA), 40xR (0.65 NA), and 100xR (1.25 NA)
Semi-Plan achromatic, 85% field flatness | | Head | 45° inclined binocular, rotates 360° | | Focuser | Coarse and fine | | Interpupillary Adjustment | 54 - 76 mm | | Light Source | LED lamp
Power: 3 W | | Light Control | Rheostat | | Specimen Stage | Mechanical Stage: Ball-bearing specimen holder and low-position coaxial controls
Movement Range: 2.8 x 2.0" / 70 x 50 mm
Graduation: 0.004" / 0.1 mm | | Power | 110 - 220 V auto-switching power supply | | Certificates | CE | | Dimensions | Microscope: 16 x 9.25 x 7.25" / 40.6 x 23.5 x 18.4 cm
Stage: 5.5 x 5.3" / 14.0 x 13.5 cm | | Weight | 14 lb / 6.35 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
