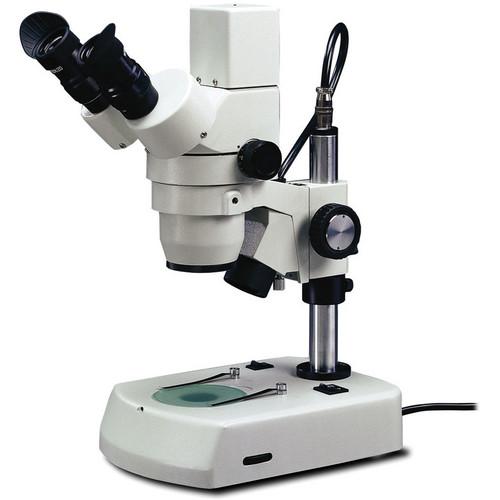

Product description Make your discoveries using the National DC5-420TH Stereo Zoom Microscope with 3.0MP Camera. Well-suited for both professionals and hobbyists, the microscope features stereoscopic binocular viewing, a 55 - 75mm adjustable interpupillary distance, and a built-in 3.0MP digital camera that allows you to view or save your imagery on your computer. The camera has a high-sensitivity CMOS sensor and delivers data to your PC via a built-in USB port. With the help of the included Motic Images software, you can easily view and save the captured content. Its optical system offers a 10 - 40x magnification using a combination of an adjustable 1 - 4x objective lens and two 10x wide field eyepieces. With the achromatic optical elements, any color distortion will be dramatically reduced to deliver clear, crisp, and vivid images of your coins, gems, plants, or insects. To enhance your viewing experience, the microscope also offers a 3.1"-long working distance and will accommodate samples up to 3.7" in height. It also has a built-in rack and pinion focusing mechanism for precision, repeatability, and strength. Regardless of the lighting conditions in your work environment, you will get the brightest and the clearest views possible with the two halogen lamps, a 15W top lamp and a 10W bottom lamp. For strength and durability, the frame is made of metal and treated with a gray enamel finish. - Optics & Illumination
-
- Stereoscopic inclined viewing
- 1 - 4x objective achromatic lens
- Two 10x wide field eyepieces
- 10 - 40x total magnification
- 55 - 75mm interpupillary adjustment
- 3.1" working distance
- 15W top halogen lamp
- 10W bottom halogen lamp
- 4-position control: top only, bottom only, top and bottom, off
- Built-in rheostat for adjusting brightness
- Blue filter for transmitted illumination
- Imager
-
- Built-in 3.0MP CMOS sensor
- Captures still images and videos
- Use and Handling
-
- 12 VDC power requirements
- Two dedicated on/off illumination switches
- USB digital data/power output ports
- Rack and pinion focusing with a slip clutch
- Motic Images software included
- Base
-
- 8.7 x 6.5" Stage
- Two built-in metal clips
- 3.2" frosted glass specimen plate
- 3.2" black & white reversible plastic contrast specimen plate
- Construction
-
- Metal frame
- Gray enamel finish
- Wide base for stability
- Pillar support allows adjusting height and horizontal position
- Winged rubber eyecups on eyepieces
In the Box National DC5-420TH Stereo Zoom Microscope with 3.0MP Camera (Gray) - USB 2.0 Cable
- Calibration Slide
- 12 VDC Power Supply
- AC Power Cord
- Motic Images Software CD
- Black & White Plastic Contrast Plate
- Frosted Glass Plate
- Frosted Blue Filter
- Hex Wrench
- Dustcover
- 2 x Rubber Eyecups
- Limited Lifetime Warranty on Microscope
- Limited 3-Year Warranty on Electronics
- Limited 1-Year Warranty on Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the National DC5-420TH Stereo Zoom Microscope with 3.0MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational DC5-420TH Specs | Microscope Type | Stereo | | Head | Binocular, 45° inclined | | Imager | 1600 x 1200 CMOS | | Objective(s) | 1 - 4x | | Magnification | 10 - 40x | | Eyepiece | 10x, wide field | | Working Distance | 3.1" / 79 mm | | Maximum Specimen Height | 3.7" / 93 mm | | Illumination | Top: 15 W halogen lamp
Bottom: 10 W halogen lamp | | Power | USB 2.0 port | | Fuse | 2.5 A time delay fuse | | Dimensions | Scope: 13.0 x 17.0" / 330.0 x 433.0 mm
Base: 8.7 x 6.5" / 220.0 x 165.0 mm | | Weight | 11.2 lb / 5.1 kg | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 18.4 x 17.4 x 10.4" |
