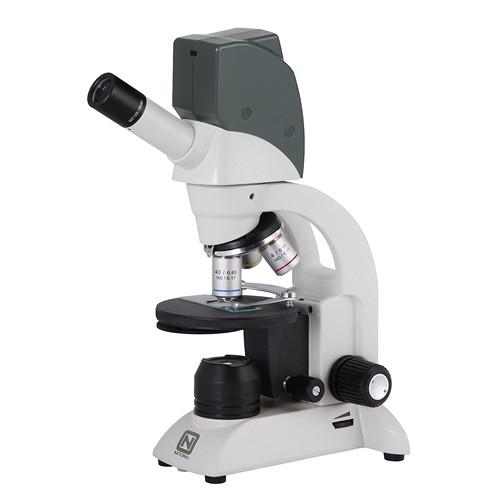

User Manual for National DCX-205-RLED Wi-Fi Microscope with 1.3MP Camera Click to enlarge the picture
Contents of the user manual for the National DCX-205-RLED Wi-Fi Microscope with 1.3MP
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National DCX-205-RLED Wi-Fi Microscope with 1.3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description Make your discoveries using the National DCX-205-RLED Wi-Fi Microscope with 1.3MP Camera. This scope provides a 30° inclined monocular viewing for comfort and ergonomics, three color-coded achromatic objectives for obtaining a desirable magnification, and a built-in Wi-Fi digital camera for capturing images or videos and transmitting them wirelessly to your computer or mobile device. The optical system offers an achromatic design, which reduces color distortions and delivers better resolution, contrast, and vivid colors. Additionally, the parfocalled and parcentered construction of the opto-mechanics ensures precise optical alignment when you change between the objectives with different magnifications, which eliminates the need for realignment and refocusing your specimen. For getting a sharp focus on your slides, the device has both fine and coarse focusing adjustments. To help you obtain adequate image brightness in any lighting conditions, this microscope offers a bottom illumination LED with adjustable brightness. For properly shaping the cone of light, the illuminator is also outfitted with a 0.65 NA Abbe condenser lens. Once you have obtained a proper position, focus, and illumination, you can take advantage of the built-in 1.3MP camera and its Wi-Fi capability that allows you and your audience to view images and videos on an external monitor or to transfer data to your computer or a smart device. You can connect to iOS or Android mobile devices via a free MotiConnect app or to your computer through its browser.
The microscope also features a rotating stage with a floating platform. It has two linked single-control slide clips. The frame of the microscope is made of cast aluminum with a gray enamel finish. - Optical System
-
- 30° inclined monocular viewing
- Achromatic 4x, 10x, 40xR objectives
- Objective 40xR is retractable
- Total magnification: 40x, 100x, 400x
- 10x wide field eyepieces have a pointer
- Parfocalled and parcentered
- Head rotates 360°
- Focusing
-
- Separate fine and coarse focusing
- Slip clutch prevents damage to focusing system
- Tension adjustment eliminates stage drift
- Safety rack stop prevents damage to slides and objective lenses
- Illumination
-
- LED illumination system
- 0.65 NA Abbe condenser lens with spiral focusing mount
- Rheostat intensity control
- Camera & Software
-
- 1.3MP CMOS imaging sensor
- Built-in Wi-Fi transmitter
- Free MotiConnect app for iOS or Android mobile devices
- Compatible with Windows 7 or Mac OS X or later using optional Motic software
- Stage
-
- Strong and durable rotating stage with a floating platform
- Disk diaphragm with apertures
- Coupled spring-loaded slide clips
- Construction Details
-
- Objective turret in reverse position
- Cast aluminum frame with enamel finish
- Arched slotted back servers as a carry handle
- Safety rack stop
In the Box National DCX-205-RLED Wi-Fi Microscope with 1.3MP Camera (Gray) - 3 x AA NiMH Rechargeable Batteries
- Wall Power Adapter
- USB Power Adapter
- USB Cable
- Calibration Slide
- 2 x Allen Wrenches
- Limited 5-Year Warranty on Microscope
- Limited 3-Year Warranty on Electrical Components
- Limited 1-Year Warranty on Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the National DCX-205-RLED Wi-Fi Microscope with 1.3MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational DCX-205-RLED Specs | Microscope Type | Compound | | Imager | 1.3 MP CMOS
Resolution: 1280 x 1024 | | Objective(s) | 4x, 10x, 40xR
Achromatic, parfocalled, parcentered | | Eyepiece | 10x, wide field | | Nosepiece | Reverse | | Head | Rotating 360° | | Focuser | Fine and coarse | | Light Source | LED | | Light Control | Rheostat | | Specimen Stage | Yes | | Battery / Runtime | 3 x AA NiMH rechargeable batteries / 50 hours | | Charging Time | 8 hours | | Compatibility | Android or iOS devices via free MotiConnect app
Windows 7 and Mac OS X or later via optional downloadable Motic software | | Dimensions | 13.5" / 34.3 cm | | Weight | 8.0 lb / 3.6 kg |
