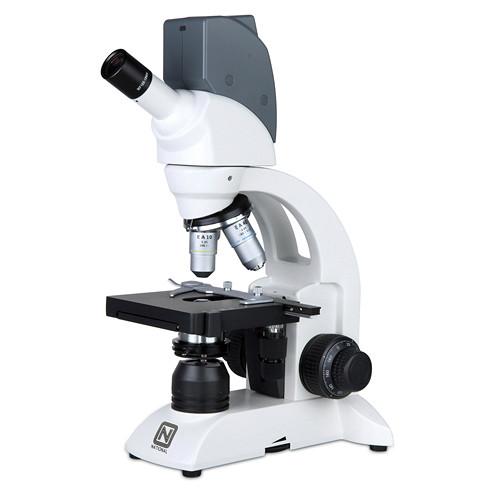

User Manual for National DCX-213-RLED Wi-Fi Microscope with 1.3MP Camera Click to enlarge the picture
Contents of the user manual for the National DCX-213-RLED Wi-Fi Microscope with 1.3MP
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National DCX-213-RLED Wi-Fi Microscope with 1.3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description Conduct your explorations using the National DCX-213-RLED Wi-Fi Microscope with 1.3MP Camera. This microscope offers a 30° inclined monocular viewing and 360° rotating head. Its objectives (4x, 10x, and 40xR) are located on a rotating turret with a ball bearing mount and feature achromatic lenses which reduce color distortion and deliver images with higher sharpness and true color. The parfocalled and parcentered opto-mechanical design allows for switching objectives without having to realign or refocus your samples. Both the turret and the included objectives adhere to the DIN microscope objective standard, which means that any additional DIN-compatible objective will fit your microscope seamlessly. For comfort and ergonomics, the scope offers a coaxial focusing system with fine and coarse adjustment knobs. Another highlight of this optic is a built-in 1.3MP digital camera with an integrated Wi-Fi transmitter. The Wi-Fi capability allows you to make observations and to transmit images and videos to your devices instantly and without the need of messy cables. The link could be established through your computer's browser or using Apple or Android devices via the free MotiConnect app. To provide bright, high-contrast images regardless of external lighting conditions, the device has an LED illumination system with adjustable brightness and a built-in 1.25 NA Abbe condenser. Using the iris diaphragm, located underneath the stage, you will be able to tune image contrast while using different magnifying powers.
To provide enough room for holding your samples, the microscope has a 5.25 x 5.25" mechanical stage with adjustable height, a lockable slide bracket, and a precision X-Y motion. For strength and precision, the frame of the microscope is made of cast metal with a gray enamel finish. - Optical System
-
- 30° inclined monocular viewing
- Head rotates 360°
- 4x, 10x, and 40xR DIN objectives
- Achromatic, parfocalled, and parcentered
- 40xR objective is retractable
- 10x wide field eyepiece with a pointer
- Camera & Software
-
- Motic X-Type 1.3MP CMOS camera
- Built-in Wi-Fi transmitter for wireless connection to your computer
- Free downloadable MotiConnect app for iOS or Android
- Accessible through IP address using a web browser
- Focusing
-
- Coaxial fine and coarse focusing
- Slip clutch prevents damage to focusing system
- Tension adjustment eliminates stage drift
- Safety rack stop prevents damage to slides and objective lenses
- Illumination
-
- Dimmable LED illumination
- 1.25 NA Abbe condenser lens with spiral focusing mount
- Rheostat intensity control
- Stage
-
- 5.25 x 5.25" mechanical stage with adjustable height
- Iris diaphragm, swing-out filter holder, neutral density filter
- Construction Details
-
- 4-hole reverse position objective turret
- Ball-bearing turret mount
- Cast metal frame with handles
- Gray enamel finish
In the Box National DCX-213-RLED Wi-Fi Microscope with 1.3MP Camera (Gray) - 3 x AA NiMH Rechargeable Batteries
- Wall Power Adapter
- USB Power Adapter
- USB Cable
- Calibration Slide
- Dustcover
- 2 x Allen Wrenches
- Limited Lifetime Warranty on Microscope
- Limited 1-Year Warranty on Camera
- Limited 3-Year Warranty on Electrical Components Excluding LED, Fuse, and Cord
Table of Contents
|
Upload User Manual
Have you got an user manual for the National DCX-213-RLED Wi-Fi Microscope with 1.3MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational DCX-213-RLED Specs | Microscope Type | Compound | | Imaging Sensor | 1.3 MP CMOS Motic X-Type | | Objective(s) | 4x, 10x, and 40xR DIN | | Eyepiece | 10x, wide field | | Nosepiece | Reverse | | Head | Rotating 360° | | Focuser | Fine and coarse | | Light Source | LED | | Light Control | Rheostat | | Wi-Fi | Yes | | Compatibility | iOS or Android devices
Windows and Mac computers | | Battery / Runtime | 3 x AA NiMH, rechargeable / 50 hours | | Charging Time | 8 hours | | Dimensions | Height: 15.0" / 380.0 mm
Stage: 5.25 x 5.25" / 135 x 135 mm | | Weight | 10.0 lb / 4.6 kg |
