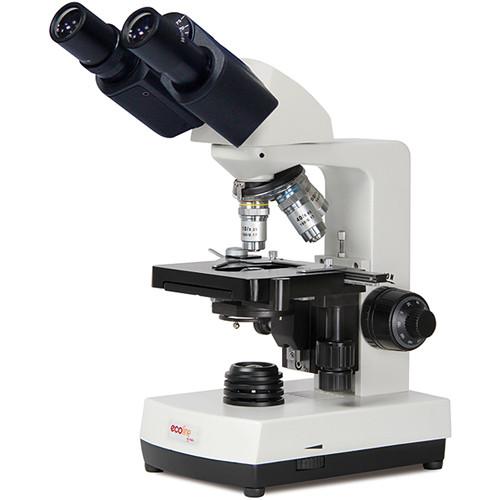

Product description The Ecoline Inclined Binocular Compound Microscope from National Optical is a four-objective optical instrument designed for university students and laboratory use. This microscope is equipped with achromatic objectives that minimize distortions and enhance clarity. The 100xR magnification objective can be oil-immersed for improved light transmission.This microscope is designed for multiple users and has several features to make its use easy. The 360° rotating binocular viewing head enables the 30° inclined eyepiece to be shared with multiple viewers without having to move the microscope. Interpupillary and dual diopter adjustments allow different users to set the microscope for comfortable use.The focusing and illumination systems have been configured to make viewing specimens fast and easy. The Ecoline microscope has separate fine and coarse focus adjustment dials. The course focus has tension adjustment to prevent focus drift. The microscope also features a rheostat-controlled dimmer for the 0.06 watt LED light source. The mechanical stage has low-position x-y specimen adjustment controls to accurately center slides. - Optical System
-
- Achromatic lenses with color-coded objectives
- 10x, 18mm eyepiece with pointer
- Interpupillary adjustment 50mm to 75mm
- 4x,10x,40xR, 100xR DIN objectives
- 40x,100x, 400x, 1000x magnifications
- 100xR enables oil immersion techniques
- 360° rotating inclined head for easier eyepiece sharing
- Focusing
-
- Dual diopters
- Coaxial low-position fine and coarse focusing controls
- Course focus has tension adjustment which prevents focus drift
- Fine focus is graduated for precise image clarity
- Rack stop prevents damage to slides and protects lenses
- Lighting
-
- 0.06-watt LED with variable rheostat dimmer
- Swing-out frosted filter holder
- Iris diaphragm
- Base mounted On/off switch with 4.5V DC auto switch power adapter (110V to 220V)
- Construction Details
-
- Low-position built-in, low profile, ball-bearing mounted mechanical specimen holder
- Mechanical stage with x-y specimen controls
- Cast aluminum body with gray enamel finish
- Ball-bearing mounted 4-objective turret
In the Box National Ecoline Inclined Binocular Compound Microscope Vinyl Dustcover Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National Ecoline Inclined Binocular Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational D-ELB Specs | Microscope Type | Compound | | Body Type | Inclined binocular | | Eyepiece | 10x Widefield with pointer | | Nosepiece | 4-hole | | Objective(s) | DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) | | Focuser | Coaxial coarse and fine focus | | Light Source | 3.4V 0.06-watt LED with dimmer | | Light Control | On/off switch with 4.5V DC auto switch power adapter (110V to 220V) | | Lens (Condenser) | 1.25 NA Abbe with rack-and-pinion focus | | Specimen Stage | 4.5 in. x 5.0" (115 x 125 mm) | | Overall Dimensions (H x W x D) | 13.75 x 5.50 x 8.25" (35 x 14 x 21 cm) | | Weight | 9.0 lb (4.1 kg) | | | | Package Weight | 12.45 lb | | Box Dimensions (LxWxH) | 18.3 x 13.2 x 10.5" |
