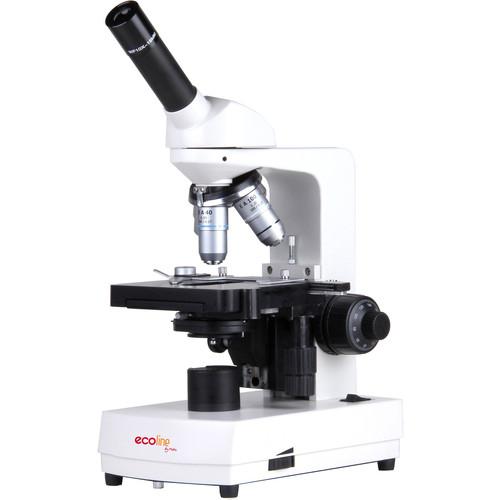

User Manual for National Ecoline Inclined Monocular Compound Microscope Click to enlarge the picture
Contents of the user manual for the National Ecoline Inclined Monocular Compound Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National Ecoline Inclined Monocular Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The Ecoline Inclined Monocular Compound Microscope from National Optical is a four-objective optical instrument designed for university students and laboratory use. This microscope is equipped with achromatic objectives that minimize distortions and enhance clarity. The 100xR magnification objective can be oil-immersed for improved light transmission.This Ecoline microscope offers several features to make its use easy. The viewing head rotates 360° allowing the 30° inclined eyepiece to be shared with multiple viewers without having to move the microscope. The separate fine and course focus adjustment dials enables users to focus quickly. The course focus has tension adjustment to prevent focus drift, while the fine is graduated to bring specimens into tight focus. The microscope also features a 3.4V, energy efficient 0.06 watt LED light source. The mechanical stage has low-position x-y specimen adjustment controls to accurately center slides under the optics. - Optical System
-
- Achromatic lenses with color-coded objectives
- 10x, 18mm eyepiece with pointer
- 4x,10x,40xR, 100xR DIN objectives
- 40x,100x, 400x, 1000x magnifications
- 100xR enables oil immersion techniques
- 360° rotating inclined head for easier eyepiece sharing
- Focusing
-
- Dual diopters
- Coaxial low-position fine and coarse focusing controls
- Course focus has tension adjustment which prevents focus drift
- Fine focus is graduated for precise image clarity
- Rack stop prevents damage to slides and protects lenses
- Lighting
-
- 3.4V 0.06-watt
- Swing-out frosted filter holder
- Iris diaphragm
- Base mounted On/off switch with 4.5V DC auto switch power adapter (110V to 220V)
- Construction Details
-
- Low-position built-in, low profile, ball-bearing mounted mechanical specimen holder
- Mechanical stage with x-y specimen controls
- Cast aluminum body with gray enamel finish
- Ball-bearing mounted 4-objective turret
In the Box National Ecoline Inclined Monocular Compound Microscope Vinyl Dustcover Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National Ecoline Inclined Monocular Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational D-ELM Specs | Microscope Type | Compound | | Body Type | Inclined monocular | | Eyepiece | 10x Widefield with pointer | | Nosepiece | 4-hole | | Objective(s) | DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) | | Focuser | Coaxial coarse and fine focus | | Light Source | 3.4V 0.06-watt LED | | Light Control | On/off switch with 4.5V DC auto switch power adapter (110V to 220V) | | Lens (Condenser) | 1.25 NA Abbe with rack-and-pinion focus | | Specimen Stage | 4.5 in. x 5.0" (115 x 125 mm) | | Overall Dimensions (H x W x D) | 13.75 x 5.50 x 8.25" (35 x 14 x 21 cm) | | Weight | 8.0 lb (3.6 kg) |
