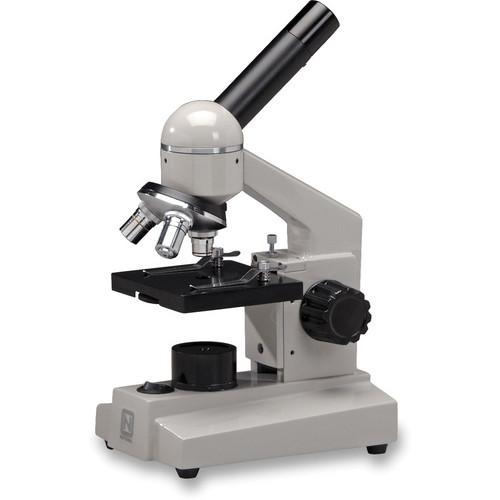

User Manual for National Model 104-CLED Compound Microscope Click to enlarge the picture
Contents of the user manual for the National Model 104-CLED Compound Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National Model 104-CLED Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical and Scientific Instruments Model 104-CLED Compound Microscope is a budget-friendly microscope for elementary students. The 104-CLED features oversized focusing knobs and a slip clutch to prevent damage to the device, along with a rack stop to protect specimen slides and objectives, making it designed for children. When it comes to optics the 104-CLED provides 40x, 100x, and 400x magnification, and three achromatic, color-coded objectives at 4x, 10x, and 40xR. The widefield 10x eyepiece has a revolving pointer and is inclined to 45° for easy viewing. It also rotates 360°. The microscope uses LED light with a 50,000 hour life for cool burning illumination. The cord wraps around the microscope for easy storage and an on/off switch on the base allows for easy operation by students. The light is also safe, featuring a 3-wire grounded cord and plug. - Optical System
-
- Widefield 10x eyepiece with revolving pointer, 45° inclined for viewing ease when seated
- Head rotates 360°
- Achromatic, color-coded 4x, 10x, 40xR objectives mounted on precision revolving objective turret, 40x, 100x, and 400x magnification
- Illumination
-
- LED light rated up to 50,000 hours life, cool burning illumination equal to a 20 watt tungsten bulb. Base-mounted on/off switch and heavy duty 3-wire cord. Convenient "grabber" clip on plug lets you wrap the cord around microscope and secure in place by pushing cord into clip for easy storage. No bulky cord hanger needed
- On/off switch on top of base
- Heavy-duty 3-wire grounded cord and plug
- Focusing
-
- Oversized focusing knobs provide mid-range focusing between normal coarse fine focus range
- Slip clutch prevents damage to focus mechanism
- Rack stop protects objectives and specimen slides
- Stage
-
- 3.5 x 3.25" / 88 x 82mm
- Locked-on, spring activated stage clips
- Substage disc diaphragm
- Frame
-
- Rugged cast metal frame, gray enamel finish
- Height: 11" / 278mm; Net Weight: 3.7 lb / 1.7kg
In the Box National Model 104-CLED Compound Microscope Vinyl Dustcover Instruction Brochure Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National Model 104-CLED Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 104-CLED Specs | Microscope Type | Compound | | Magnification | 40x, 100x, 400x | | Objectives | 4x, 10x, 40xR | | Eyepiece | Widefield 10x | | Light Source | LED | | Overall Dimensions | Height: 11" / 278mm | | Weight | 3.7lb / 1.7kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
