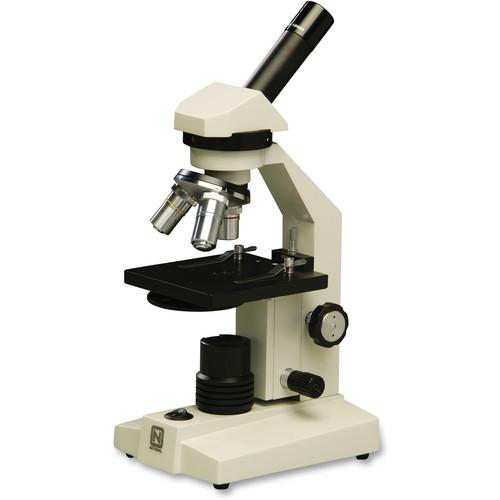

User Manual for National Model 131-CLED Compound Microscope Click to enlarge the picture
Contents of the user manual for the National Model 131-CLED Compound Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National Model 131-CLED Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical & Scientific Instruments Model 131-CLED Compound Microscope is a budget-friendly model designed for high school students. Featuring cool-running, long-life LED illumination and safety considerations, the 131-CLED is both easy-going and tough. The LED light is rated at up to 50,000 hours, and its cool burning illumination is equal to that of a 20 watt tungsten bulb. Safety features ensure the longevity of the microscope. The slip clutch prevents damage to the focus system, from over turning, while the safety rack prevents damage to slides and objective lenses. The tension adjustment eliminates stage drift, while the low position coarse and fine focusing controls allow students to get an accurate view with ease. The widefield 10x eyepiece features a revolving pointer and sits on a 45° inclined viewing head. The head also rotates 360° for sharing by multiple students. The 131-CLED has three objectives for optimal viewing: 4x, 10x, and 40xR. Additionally, the specimen stage moves up and down, while the eyepiece and body remain fixed. Locked-on, spring mounted stage slips ensure that specimens stay on the stage. - Optical System
-
- Widefield 10x eyepiece with revolving pointer. Accepts optional #965-160 eyepiece reticle
- 45° inclined viewing head rotates 360° for easy repositioning of eyepiece and sharing by more than one student
- DIN 4x, 10x, and 40xR objectives are achromatic, parfocalled, parcentered, color coded
- 3-hole nosepiece is ball-bearing mounted for more precise alignment, has positive click stops
- Illumination
- LED light rated up to 50,000 hours life, cool burning illumination equal to a 20 watt tungsten bulb. Base-mounted on/off switch and heavy duty 3-wire cord. Convenient "grabber" clip on plug lets you wrap the cord around microscope and secure in place by pushing cord into clip for easy storage. No bulky cord hanger needed
- Focusing
-
- Low position coarse and fine focusing controls
- Stage moves up or down, eyepiece and body remain fixed
- Slip clutch prevents damage to focusing system
- Tension adjustment eliminates stage drift
- Safety rack stop prevents damage to slides and objective lenses
- Stage
-
- Large 4.3 x 4.7" / 110 x 120mm stage, with locked-on, spring mounted stage slips, drilled and tapped to accept optional mechanical stage
- Built-in 0.65NA condenser lens
- Calibrated 5-hole disc diaphragm
- Frame
-
- Rugged cast metal, gray enamel finish
- Base: 5.25 x 7" / 133 x 175mm
- Height: 14.2" / 360mm; Net weight: 6.8 lb / 3.1kg
In the Box National Model 131-CLED Compound Microscope Vinyl Dustcover Instruction Brochure Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National Model 131-CLED Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 131-CLED Specs | Microscope Type | Compound | | Magnification | Not specified by manufacturer | | Objectives | 4x, 10x, 40xR | | Eyepiece | Widefield 10x | | Light Source | LED | | Overall Dimensions | Base: 5.25 x 7" / 133 x 175mm Height: 14.2" / 360mm | | Weight | 6.8 lb / 3.1Kg | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 17.3 x 11.6 x 6.8" |
