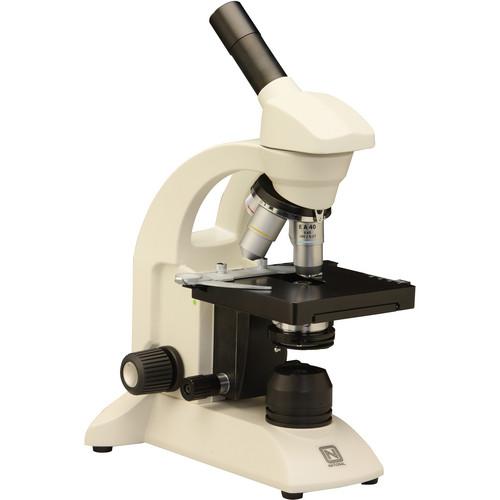

User Manual for National Model 210 Compound Microscope Click to enlarge the picture
Contents of the user manual for the National Model 210 Compound Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National Model 210 Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical & Scientific Instruments Model 210 Compound Microscope is a cost-effective microscope, designed for use in schools. The 210's defining feature is the 45° inclined monocular, which sits on a viewing head that rotates 360°. Backing up this monocular would be its widefield 10x eyepiece and the DIN standard 4x, 10x, and 40xR objectives which supply 40x, 100x, and 400x magnification. In addition to the rotating head the Model 210 also features cool running LED illumination. This light produces virtually no heat and has a life rate at 50,000 hours. A base mounted on/off switch controls the light as well. Along with these helpful features the 210 also has focusing precautions, designed to protect the microscope from over focusing or other rough treatment. The slip clutch prevents damage from too much turning of the focusing knobs, while the safety rack stop prevents damage to specimen slides and objective lenses. Additionally, the tension adjustment eliminates stage drift. - Optical System
-
- Widefield 10x eyepiece with pointer. Accepts optional #965-160 eyepiece reticle
- 45° inclined monocular viewing head rotates 360° for easy sharing by more than one student
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) objectives are supplied for 40x, 100x and 400x magnification. All are achromatic, parfocalled, parcentered and color-coded
- 3-hole objective turret, reverse position, ball-bearing mounted for smooth, precise changes in magnification
- Illumination
-
- Built-in corded LED illumination, delivers greater light and longer life than standard 20 watt tungsten bulb. Virtually no base heat. 50,000 hour rated bulb
- Base mounted on/off switch, heavy-duty 3-wire grounded electrical system and plug
- 0.5A time delay fuse
- Focusing
-
- Separate low position coarse and fine focusing controls
- Slip clutch prevents damage to focusing system
- Tension adjustment eliminates stage drift
- Safety rack stop prevents damage to slides and objective lenses
- Stage
- 4.75 x 5" / 120 x 125mm stage, with locked-on spring loaded stage clips, drilled and tapped to accept optional mechanical stage
In the Box National Model 210 Compound Microscope Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National Model 210 Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 210 Specs | Microscope Type | Compound | | Magnification | 40x, 100x, 400x | | Objectives | 4x, 10x, 40xR | | Eyepiece | Widefield 10x/18mm | | Light Source | LED illumination | | Overall Dimensions | Height: 15" / 380mm | | Weight | 9 lb / 4kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
