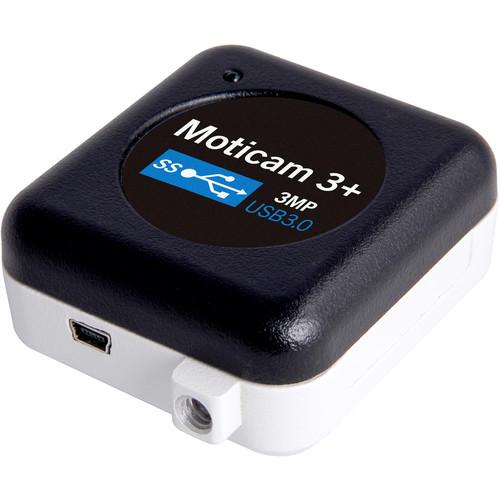

User Manual for National MOTICAM 3 Digital 3MP USB 3.0 Microscope Camera Click to enlarge the picture
Contents of the user manual for the National MOTICAM 3 Digital 3MP USB
- Product category: Microscope Accessories National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscope Accessories
|
User manual for the National MOTICAM 3 Digital 3MP USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description View and document your discoveries using the MOTICAM 3+ Digital 3MP USB 3.0 Microscope Camera from National Optical. At the heart of this camera is a 3MP 1/2" CMOS imaging sensor that offers a maximum resolution of 2048 x 1536 pixels at 12 frames per second. If your task requires higher frame rates, the camera is capable of generating 30 and 50 frames per second at lower resolutions. It can be easily connected to your Windows or Mac laptop or computer via the included USB 3.0 cable.
The included Motic Images Plus 3.0 software makes it a plug-and-play digital camera that allows you to view and to save images and videos on your computer. It also allows you to enhance, label, and print images. The device is compatible with most compound and stereo microscopes using the included CS ring adapter and two included adapters for the eyepieces. While the CS ring adapter allows you to connect the Motic to a body of your microscope, the other two adapters attach to eyepieces with 30mm and 38mm outside diameters. Also included are a 16mm focusable lens, calibration slide, and macro tube. - Sensor and Lens
-
- 3MP 1/2" CMOS sensor
- Resolutions and frame rates:
- 2048x1536 at 12 fps
- 1024x768 at 30 fps
- 512x384 at 50 fps
- 16mm focusable lens included
- Use and Handling
-
- Allows viewing and taking photos and videos of your slides
- Two included adapters provide compatibility with 30mm and 38mm OD eyepieces
- Included CS ring adapter offers additional compatibility with microscope's body
- USB 3.0 cable included
- Motic Images Plus 3.0 Software
-
- Allows easy plug-and-play configuration
- Enables you to enhance, label, measure, print, and store images
- Compatible with Microsoft Windows XP, Vista, 7, 8, and MAC OS X
In the Box National MOTICAM 3+ Digital 3MP USB 3.0 Microscope Camera - CS Ring Adapter
- 2 x 30mm and 38mm Eyepiece Adapters
- USB 3.0 Cable
- Calibration Slide
- 16mm Focusable Lens
- Macro Tube
- Motic Images Plus 3.0 Software
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the National MOTICAM 3 Digital 3MP USB 3.0 Microscope Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational D-MOTICAM 3+ Specs | Sensor | 3 MP 1/2" CMOS sensor
0.26 x 0.17" / 6.6 x 4.9 mm | | Sensor Resolution | 2048x1536 @ 12 fps
1024x768 @ 30 fps
512x384 @ 50 fps | | Pixel Size | 3.2x3.2 µm | | Scan | Progressive | | Exposure | 0.11 ms to 7 s | | SNR | 43 dB | | Dynamic Range | 61 dB | | Sensitivity | 1 V/Lux-sec at 550 nm | | Lens | 16mm, focusable | | Supported Operating System | Microsoft Windows: XP, Vista, 7, 8
MAC: OSX | | Minimum Computer Requirements | 2 GHz multi-core
2 GB RAM
512 MB video memory
USB 2.0 | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 2.5 x 2.5 x 1.5" / 63.5 x 63.5 x 38.1 mm | | Weight | 5.6 oz / 159 g |
