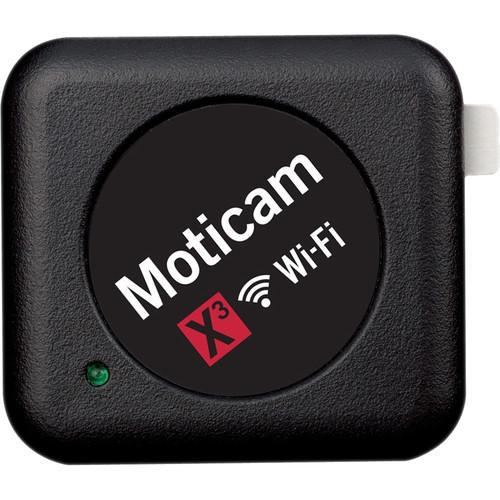

User Manual for National Moticam X3 Wireless 4MP WiFi Microscope Camera Click to enlarge the picture
Contents of the user manual for the National Moticam X3 Wireless 4MP WiFi
- Product category: Microscope Accessories National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscope Accessories
|
User manual for the National Moticam X3 Wireless 4MP WiFi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description Use the National Moticam X3 Wireless 4MP WiFi Microscope Camera to view your microscope specimens on a computer or tablet, or attach the included focusable lens and tube and convert it to a macro camera.The Moticam X3 generates its own WiFi signal to connect to your devices so you can live-stream and capture images using the iOS or Android app for tablets, computers running the included Motic Images Plus software, or any other device using a web browser (but with limited functionality).Whether you're a teacher who wants to display their microscopy to a class, a jeweler who needs to show a client a gemstone, or an enthusiast who is interested in posting and sharing on social media, the Moticam X3 is the ideal tool for the job. - Applications
-
- Use one of the two included eyepiece adapters to view images through a microscope eyepiece. The 30mm and 38mm outside-diameter adapters fit the most popular size eyepieces
- Attach the camera to a C-mount adapter on trinocular-style microscopes. The included C-ring may be required for proper mounting depending on the type of adapter and microscope
- Use as a self-contained macro camera by installing the included focusable lens and macro tube
- WiFi Connectivity
-
- Generates its own WiFi signal to wirelessly connect to tablets and computers
- WiFi standard of IEEE802.11b/g/n/ac at either 2.4Ghz (default) or 5Ghz (fast mode)
- Connect to Android/iOS devices or WiFi-enabled computers via web browser or included software
- Capture still images or live feed with app and software
- Use on devices with screens 7" or larger; iOS 5 or higher/Android 4.0 or higher recommended
- Max range 10' line of sight
- Performance
-
- 4MP 1/3" CMOS sensor
- Live Image: 1920x1080 or 1280x720
- Up to 30fps with 5Ghz-compatible device
- Auto white balance or user configured
- 38.1dB signal-to-noise ratio
- 70.1dB dynamic range
In the Box National Moticam X3 Wireless 4MP WiFi Microscope Camera 30mm Eyepiece Adapter 38mm Eyepiece Adapter Calibration Slide Dust Cap C-Ring Focusable Lens Macro Tube USB Cable and Charger Motic Images CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National Moticam X3 Wireless 4MP WiFi Microscope Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational Moticam X3 Specs | Sensor Size | 1/3" CMOS | | Pixel Size | 2.0 x 2.0 µm | | Resolution | Still Mode - MotiConnect, Browser, and Software
2592 x 1520
Live Mode - MotiConnect
1920 x 1080 (Maximum Resolution), 1280 x 720
Live Mode - Browser and Software
1920 x 1080, 1280 x 720, 640 x 360 | | Frame Rate | Up to 9fps @ 2.4Ghz
15 - 30fps @ 5Ghz | | Signal to Noise | 38.1dB | | Dynamic Range | 70.1dB | | WiFi Connectivity | IEEE802.11b/g/n/ac
5dB Power Output | | Power Requirement | 5 VDC | | Power Consumption | ≤5.0W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 3.0 x 3.0 x 2.0" / 7.6 x 7.6 x 5.1 cm | | Weight | 3.2 oz / 90.7 g |
