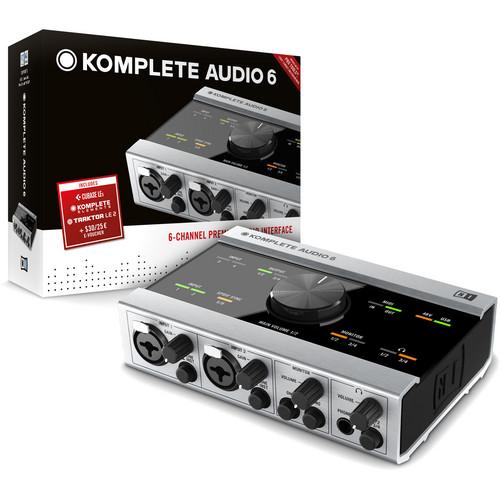

Product description KOMPLETE AUDIO 6 from Native Instruments is a 6-input / 6-output USB 2.0 audio interface that provides everything needed to record, play and perform music. The interface is housed in a rugged metal casing and includes four analog inputs and outputs, S/PDIF digital I/O, MIDI I/O and features low-latency performance. Two high-end microphone preamps are complemented by Cirrus Logic converters that deliver pristine, transparent sound.
The direct monitoring option provides 100% latency-free monitoring while recording guitars, vocals, or other live sources and the package includes KOMPLETE ELEMENTS, with over 1000 sounds and effects, plus software for recording, sequencing and DJing. The later include Cubase LE sequencing and recording software, TRAKTOR LE DJ software, along with an E-Voucher for purchasing additional instruments or effects from Native Instruments. - Hardware
-
- 6-input / 6-output portable audio/MIDI interface with sturdy metal casing, USB 2.0 bus powered
- 24-bit / 96 kHz Cirrus Logic AD/DA converters deliver premium sound quality
- Low latency via newly developed chip technology and driver architecture
- Two balanced microphone/line/instrument inputs with individual gain controls
- 48V phantom power for using condenser microphones and active DI boxes

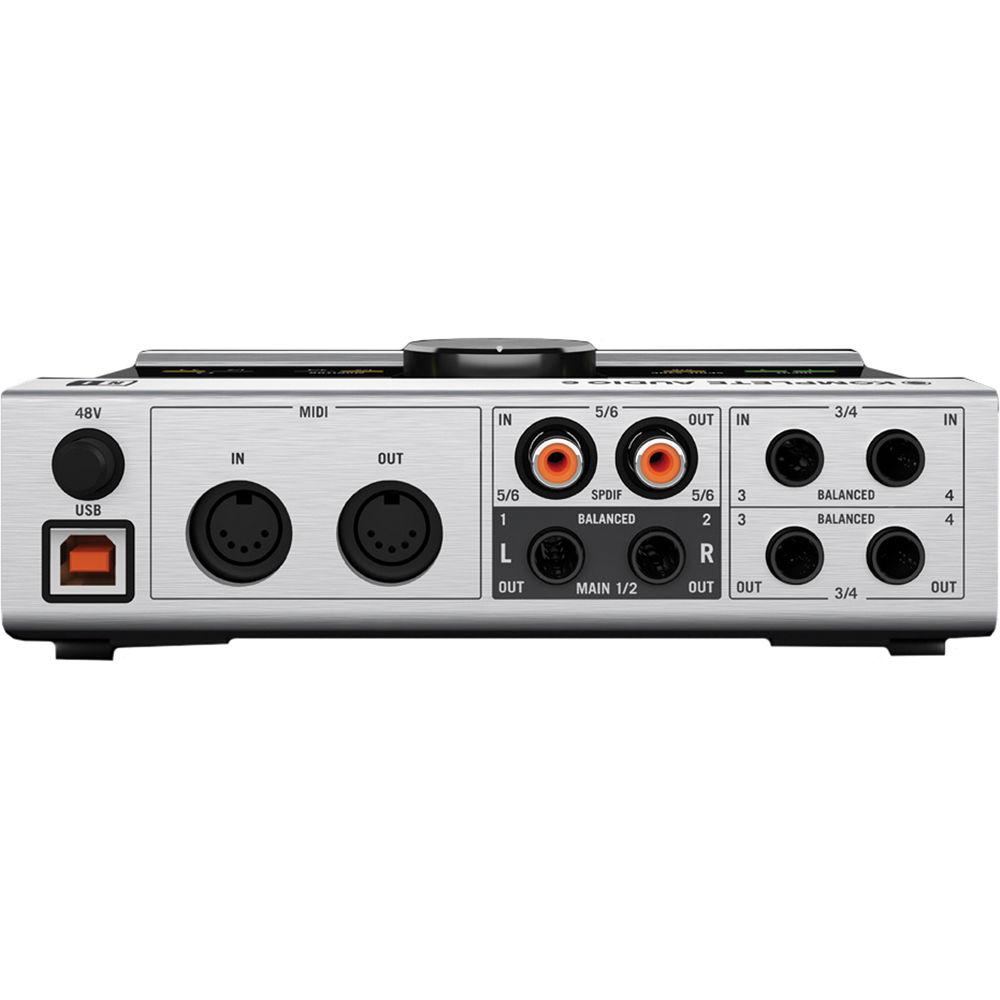

- Two balanced line inputs (1/4" TRS) with activity and clip LEDs plus digital stereo input (S/PDIF) on RCA connector
- Four balanced analog outputs (1/4" TRS) plus digital stereo output (S/PDIF) on RCA connector
- Headphone output with level control and source switching between channels 1/2 and channels 3/4
- MIDI in/out for master keyboard, MASCHINE or any third-party MIDI controller
- Direct monitoring with zero latency including mix control knob and mono switch
- Mono input switch for recording vocals, guitar or other mono sources
- Large volume control knob and 15 status LEDs for full visual monitoring of the signal chain
- Headphone output with independent level control and source switch
- High performance drivers for Mac and PC (ASIO/Core Audio/DirectSound/WASAPI)
- Custom-built USB port for extra-solid connection
- Included Software
-

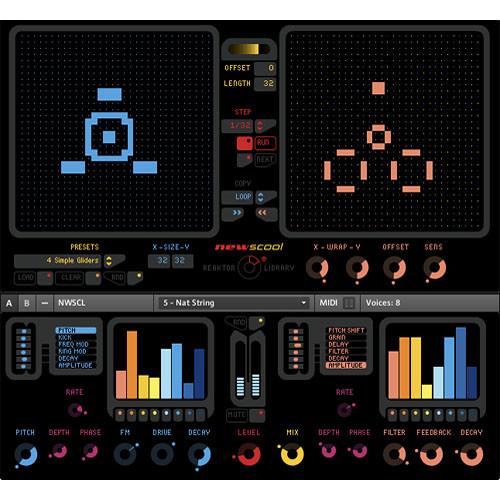

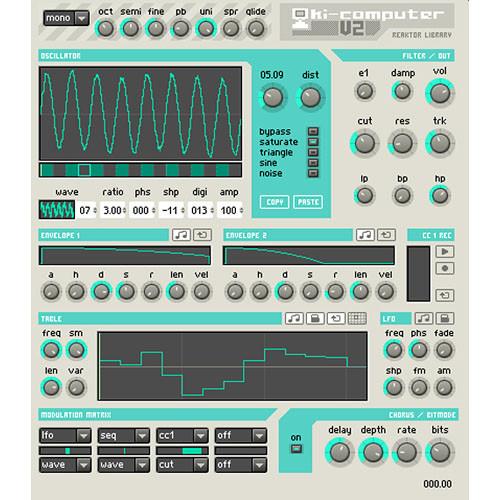

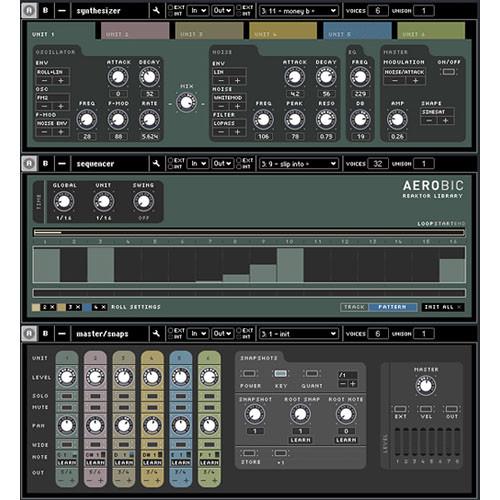

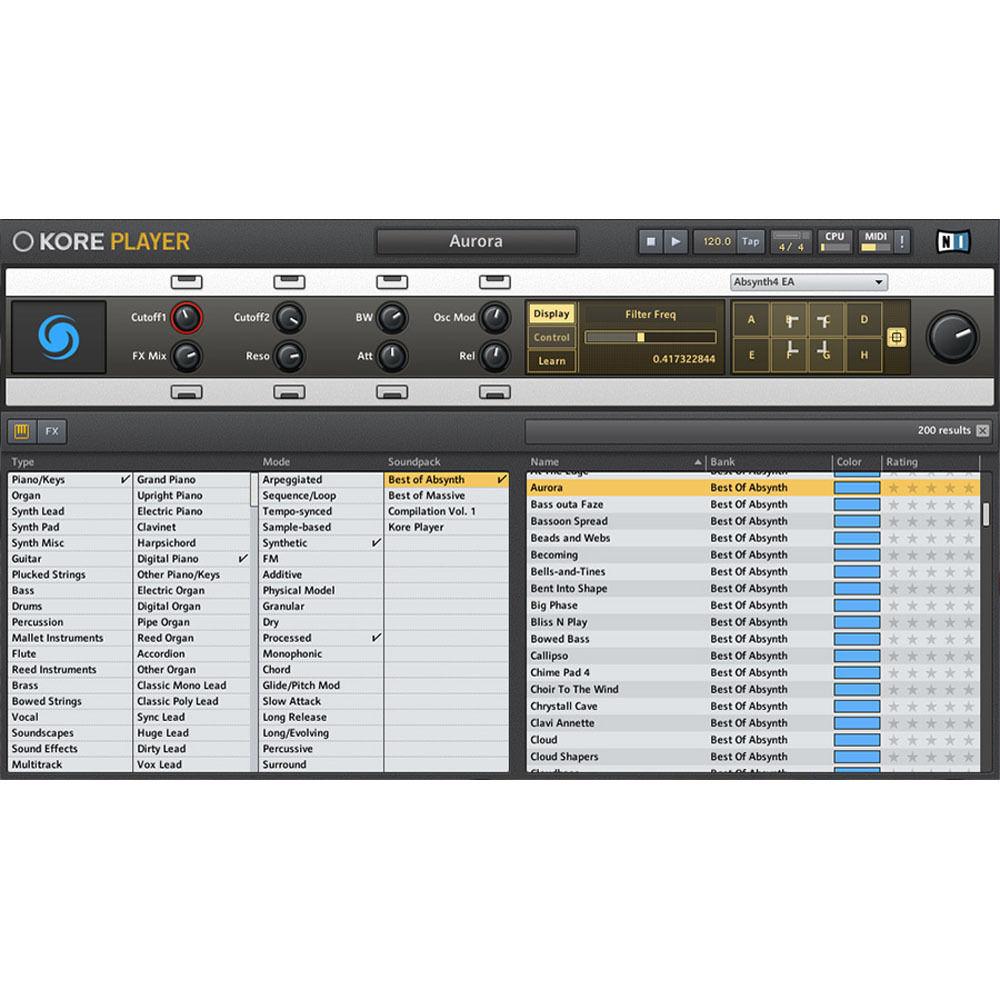

KOMPLETE ELEMENTS- 2GB distilled version of KOMPLETE 7 with over 1,000 production-ready sounds and effects

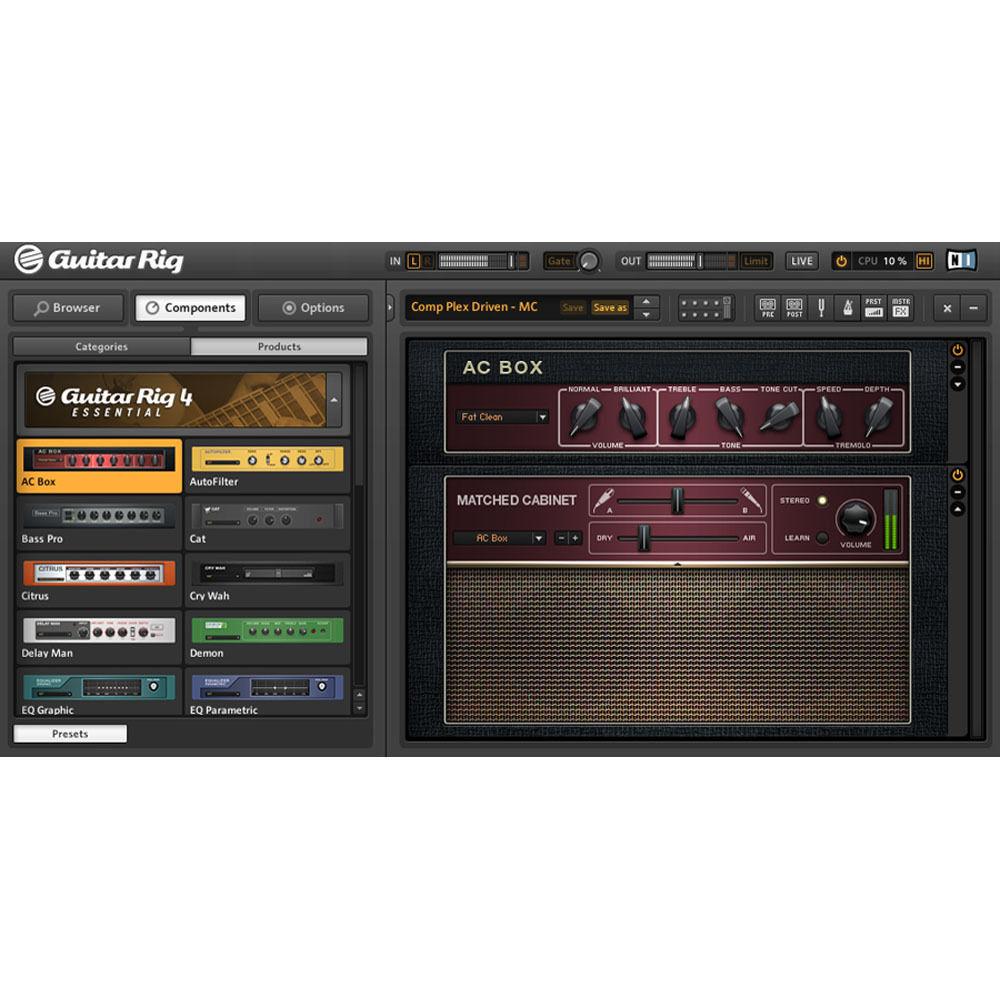

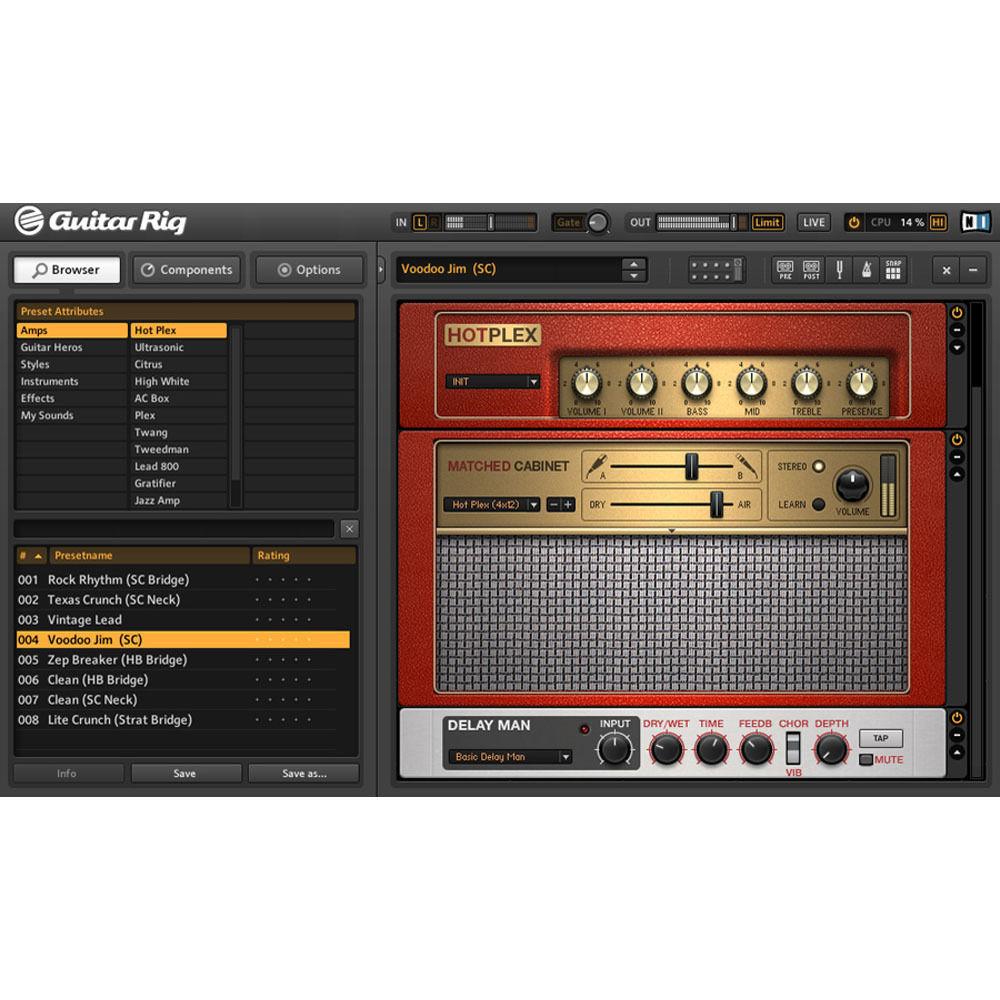

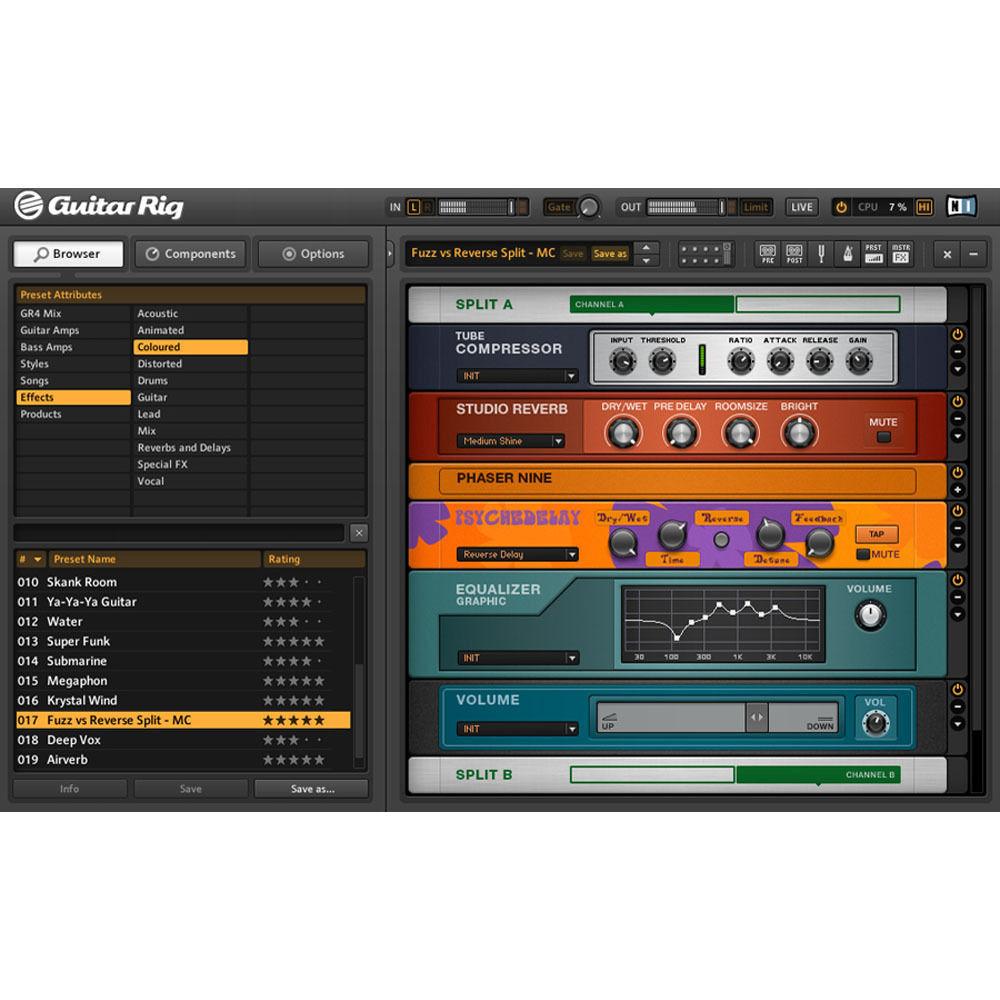

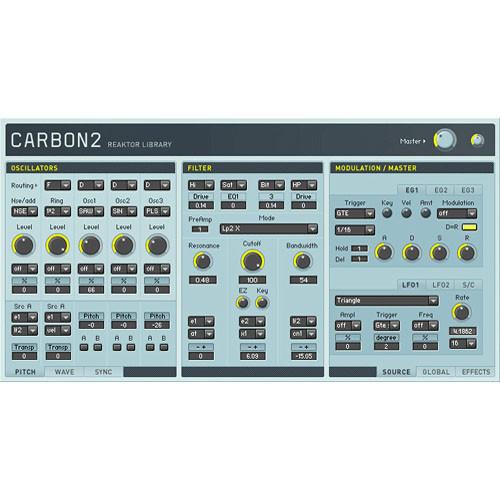

- Instruments for all styles of music are included - vintage drums from ABBEY ROAD, orchestral instruments from the Vienna Symphonic Library, band and world instruments, REAKTOR synthesizers plus 8 powerful guitar amplifier models, matching cabinets and 27 stomp-box effects
TRAKTOR LE- DJ software provides two playback decks to spin tracks directly from a hard drive, with full iTunes integration and iPod compatibility
- High-resolution colored waveforms and automatic beat-sync functions make it simple to use the looping, cueing and effects
- Upgradable to TRAKTOR PRO 2
Cubase LE- Digital audio workstation software for composing, recording and mixing music on a Mac and PC computer
- Provides up to 48 audio tracks, up to 64 MIDI tracks and plenty of scope for recording and arranging songs
In the Box Native Instruments KOMPLETE AUDIO 6 - USB 2.0 Digital Audio Interface USB Cable KOMPLETE ELEMENTS TRAKTOR LE Cubase LE E-Voucher One (1) Year Warranty on Hardware User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Native Instruments KOMPLETE AUDIO 6 - USB 2.0 Digital Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNative Instruments 21066 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 1.0) | | Analog I/O | 2 x Combo XLR / 1/4" Mic Input
2 x 1/4" (6.3 mm) TRS Line Input
4 x 1/4" (6.3 mm) TRS Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Headphone Outputs:
9 Hz to 45 kHz -1 dB (at 96 kHz)
Hi-Z Inputs:
12 Hz to 42 kHz -1 dB (at 96 kHz)
Inputs:
12 Hz to 43 kHz -1 dB (at 96 kHz)
Line Inputs:
13 Hz to 42 kHz +0/-1 dB (at 96 kHz)
Mic Inputs:
13 Hz to 45 kHz +0/-1 dB (at 96 kHz)
Outputs:
10 Hz to 45 kHz -1 dB (at 96 kHz) | | Gain Range | Hi-Z Inputs:
Up to +21 dB
Line Inputs:
Up to +15 dB
Mic Inputs:
Up to +47 dB | | Max Input Level | Hi-Z Inputs:
+8.4 dBu
Line Inputs:
+14.3 dBu
Line Inputs:
+12 dBu Max Input Level for Inputs 1/2 and 3/4 respectively. | | Max Output Level | Line Outputs:
+11 dBu | | Headphone Output Power | 20 mW into 100 Ohms
11 mW into 33 Ohms | | Dynamic Range | Outputs:
102 dBA
Inputs:
98.5 dBA
Line/Hi-Z Inputs:
98.3 dBA
Mic Inputs:
98 dBA
Outputs:
102 dBA | | Impedance | Hi-Z Inputs:
1 MOhm
Line Inputs:
44 kOhms
Mic Inputs:
3.4 kOhm | | THD+N | Headphone Outputs:
0.014%
Inputs:
0.013%
0.02%
Outputs:
0.01%
0.02% THD+N (Value)s are for Inputs 1/2, 3/4, and Outputs 1/2, 3/4 respectively. | | EIN | Mic Inputs:
-127.5 dBu (A-Weighted) | | | | Sample Rates | 44.1, 48, 88.2, and 96 kHz | | Bit Depth | 16 and 24-Bit | | | | OS Compatibility | macOS 10.8
macOS 10.9
macOS 10.10 or Later
Windows 7
Windows 8 | | Processor Requirement | Mac:
Intel Core 2 Duo
PC:
Intel Core 2 Duo | | RAM Requirements | 4 GB (6 GB Recommended) | | Minimum Display Resolution | 1024 x 768 | | Required Hardware | Available DVD-ROM Drive, USB 2.0 Port | | | | Power Requirements | USB Bus-Power | | | | Dimensions | 6.3 x 4.8 x 2" / 159 x 122 x 52 mm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 2.265 lb | | Box Dimensions (LxWxH) | 9.1 x 6.25 x 2.3" |
