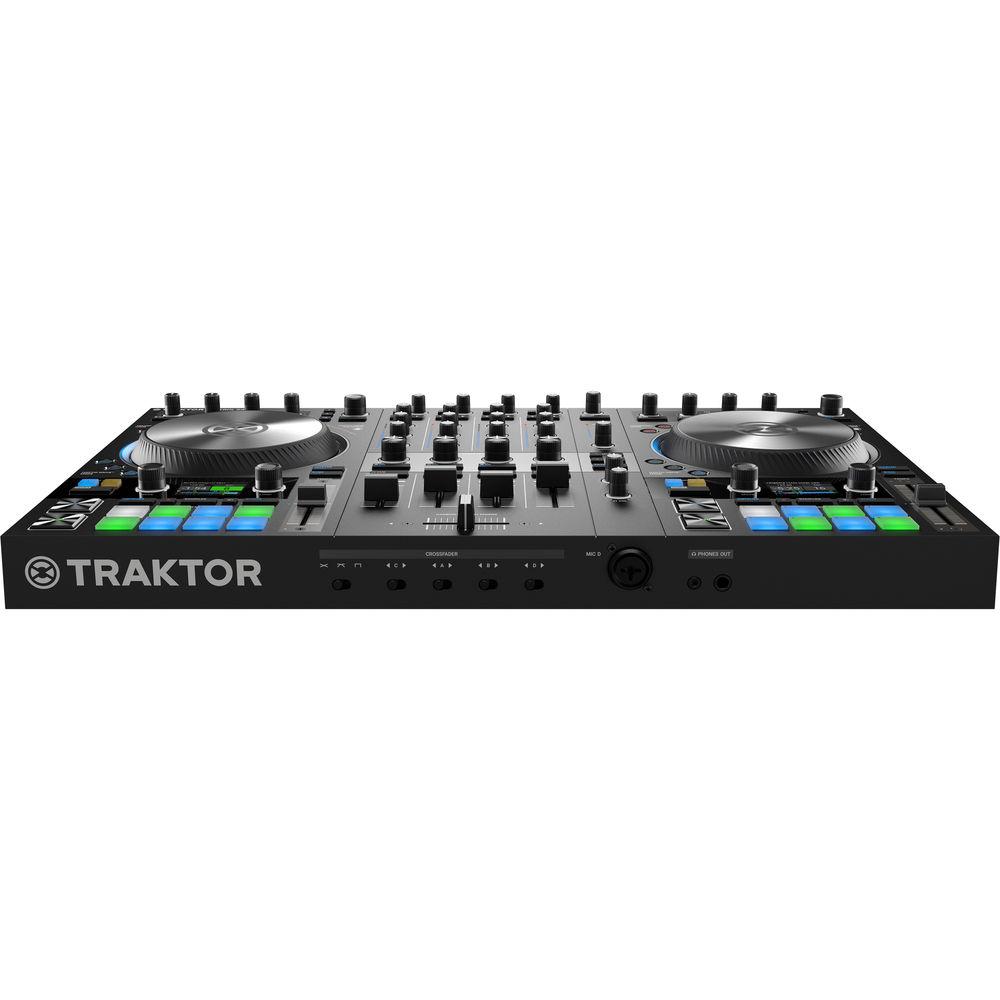

User Manual for Native Instruments TRAKTOR KONTROL S4 MK3 Click to enlarge the picture
Contents of the user manual for the Native Instruments TRAKTOR KONTROL S4 MK3
- Product category: DJ Controllers Native Instruments
- Brand: Native Instruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Native Instruments DJ Controllers
 |
User manual for the Native Instruments TRAKTOR KONTROL S4 MK3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Native Instruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Native Instruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Native Instruments product will considerably shorten its lifespan!
|

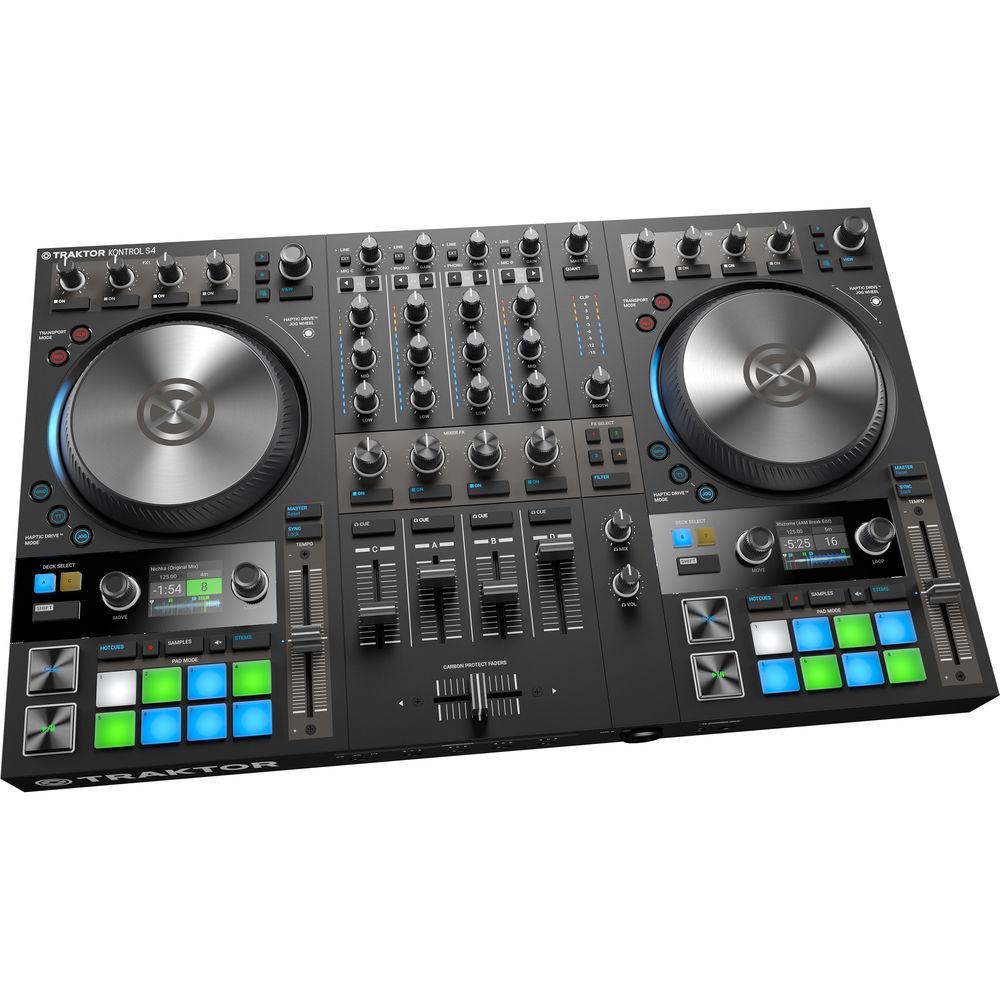

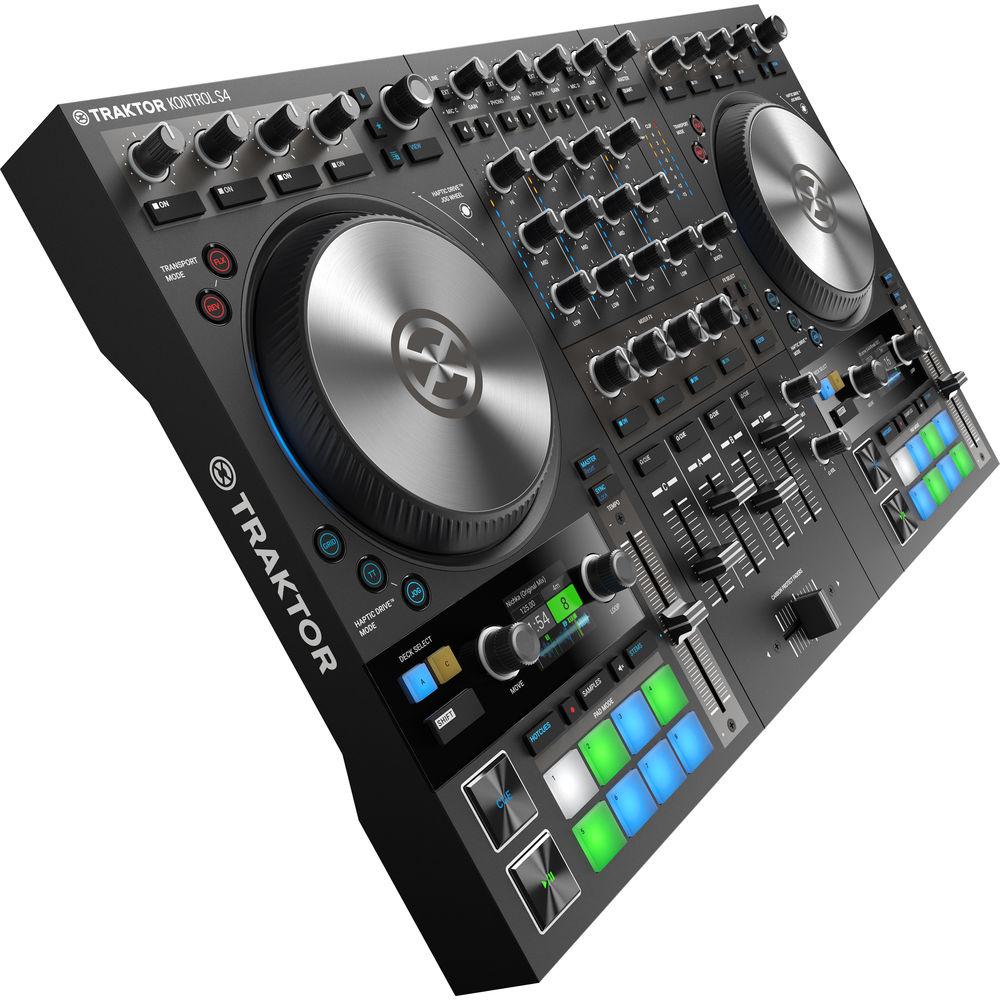

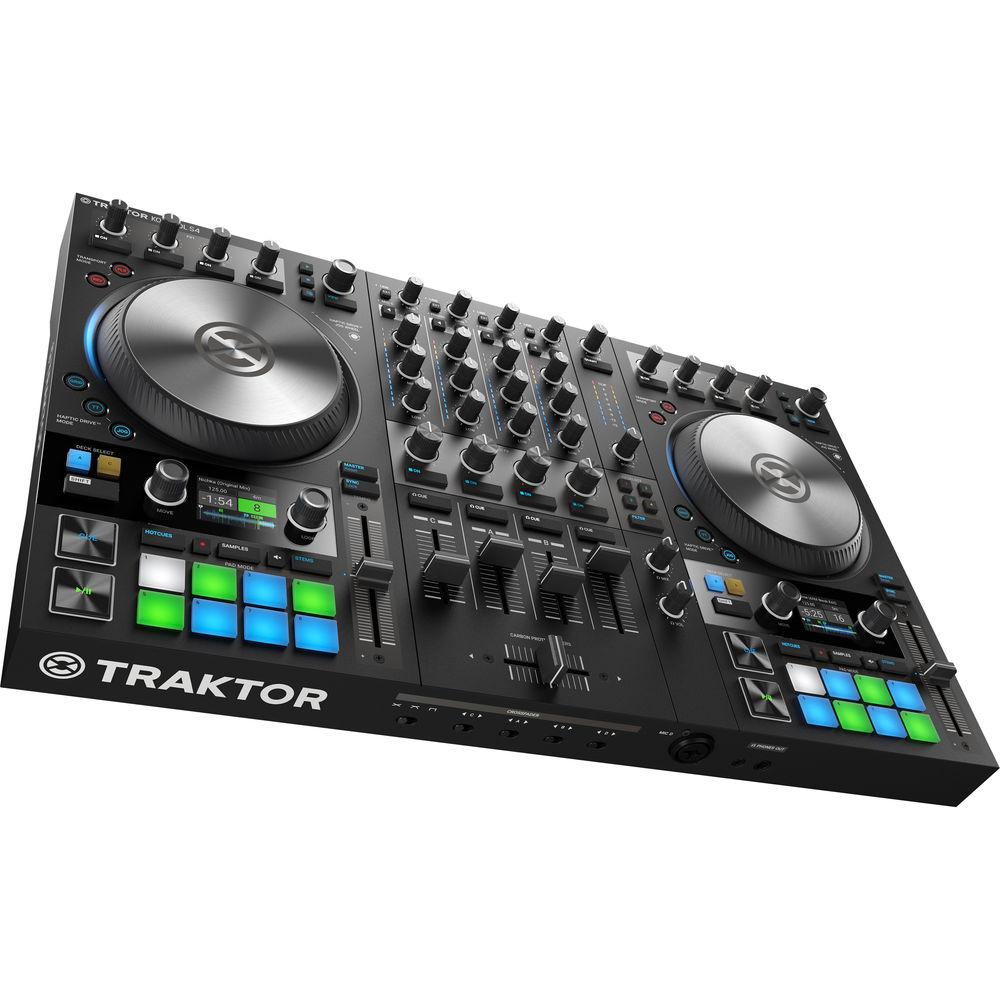

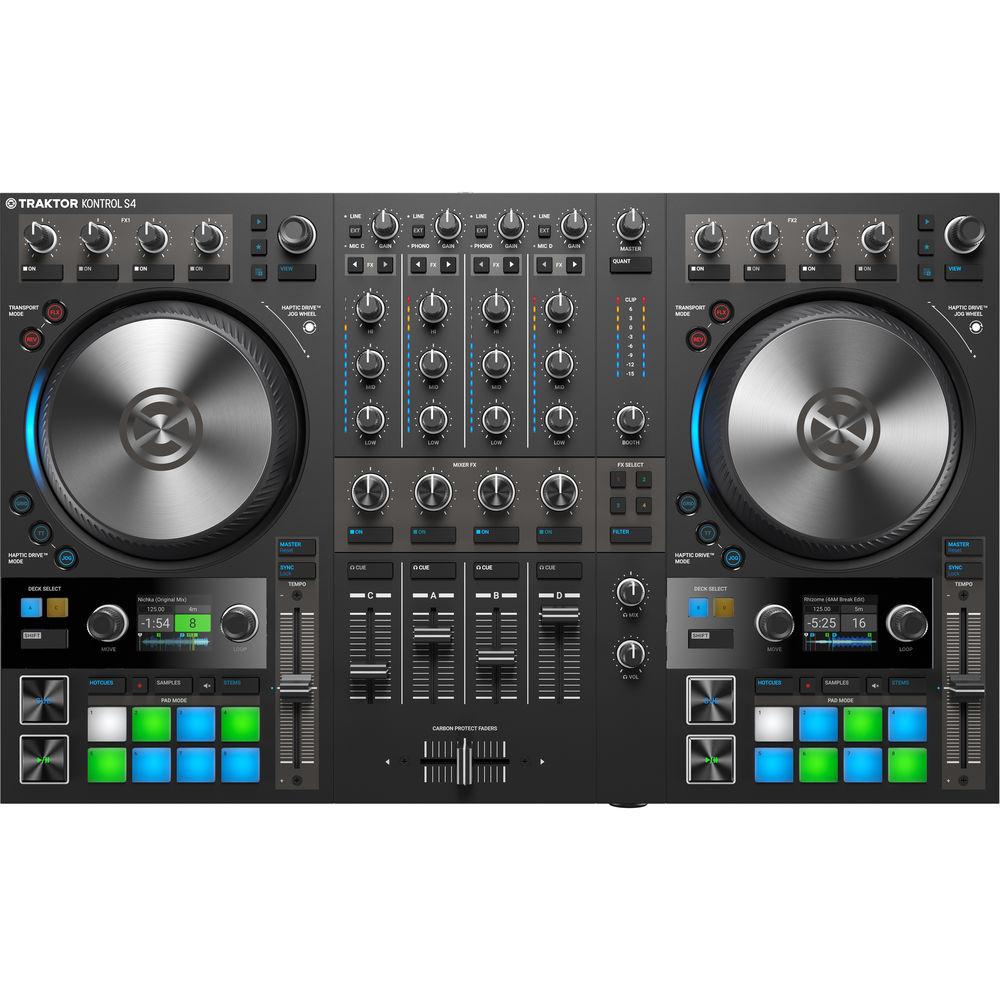

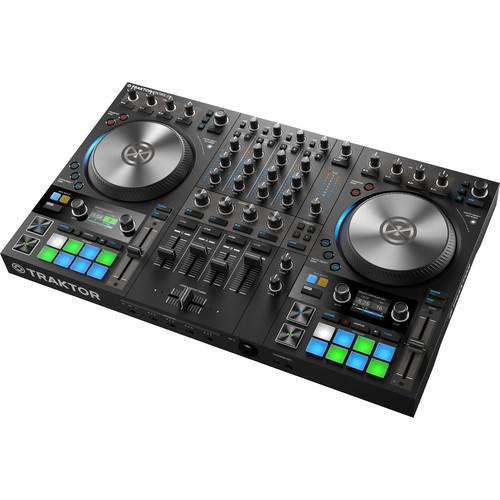

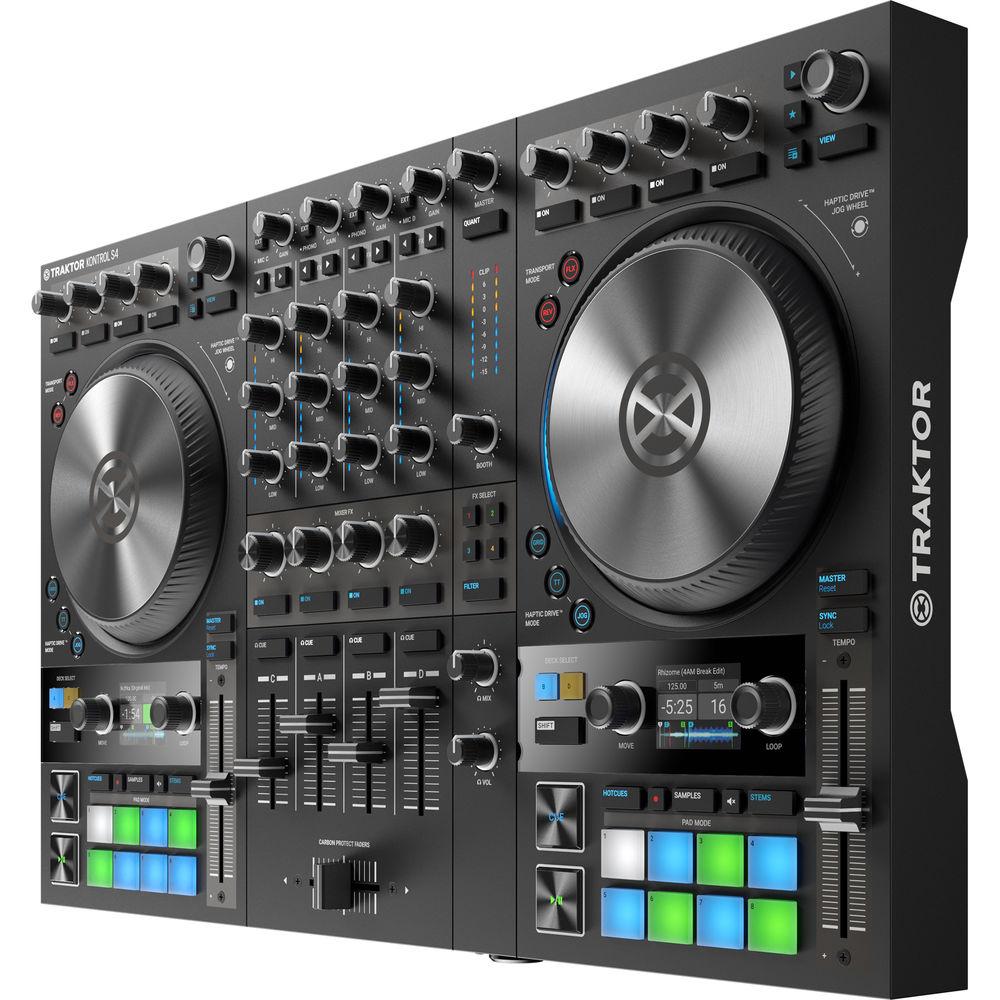

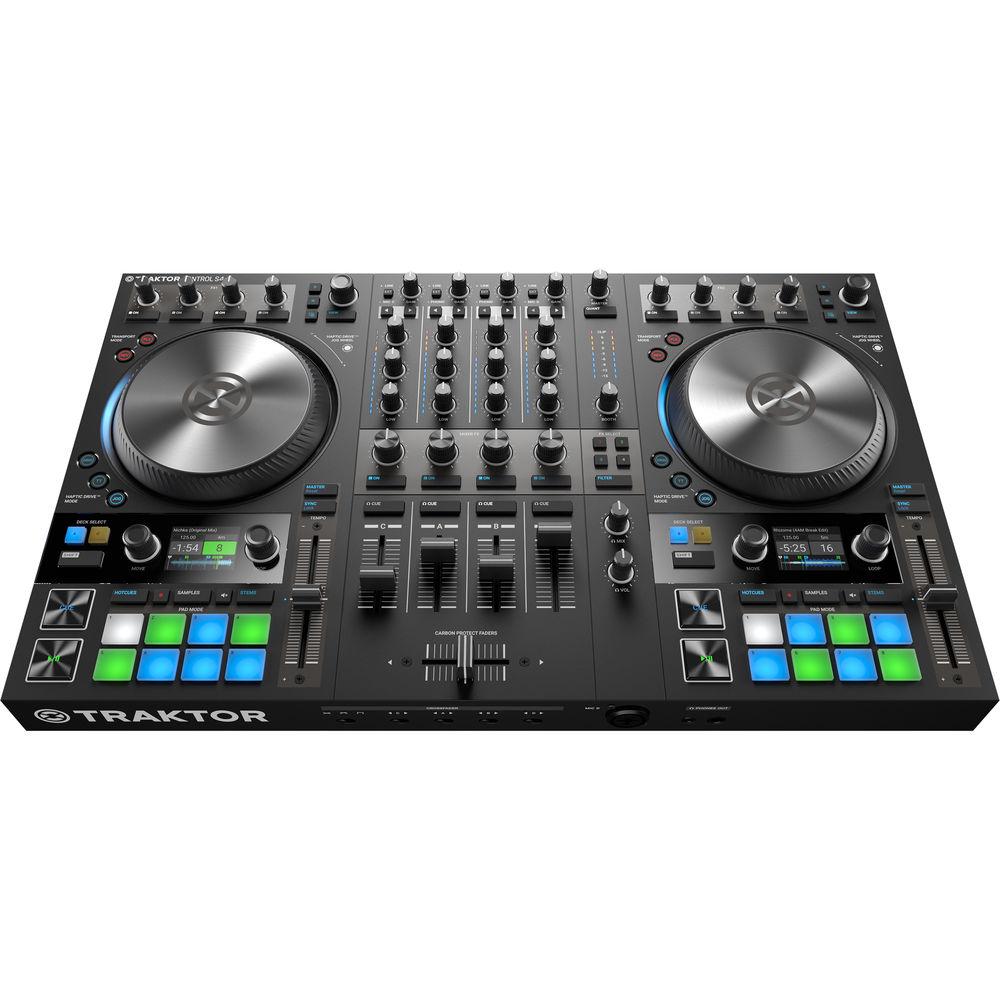

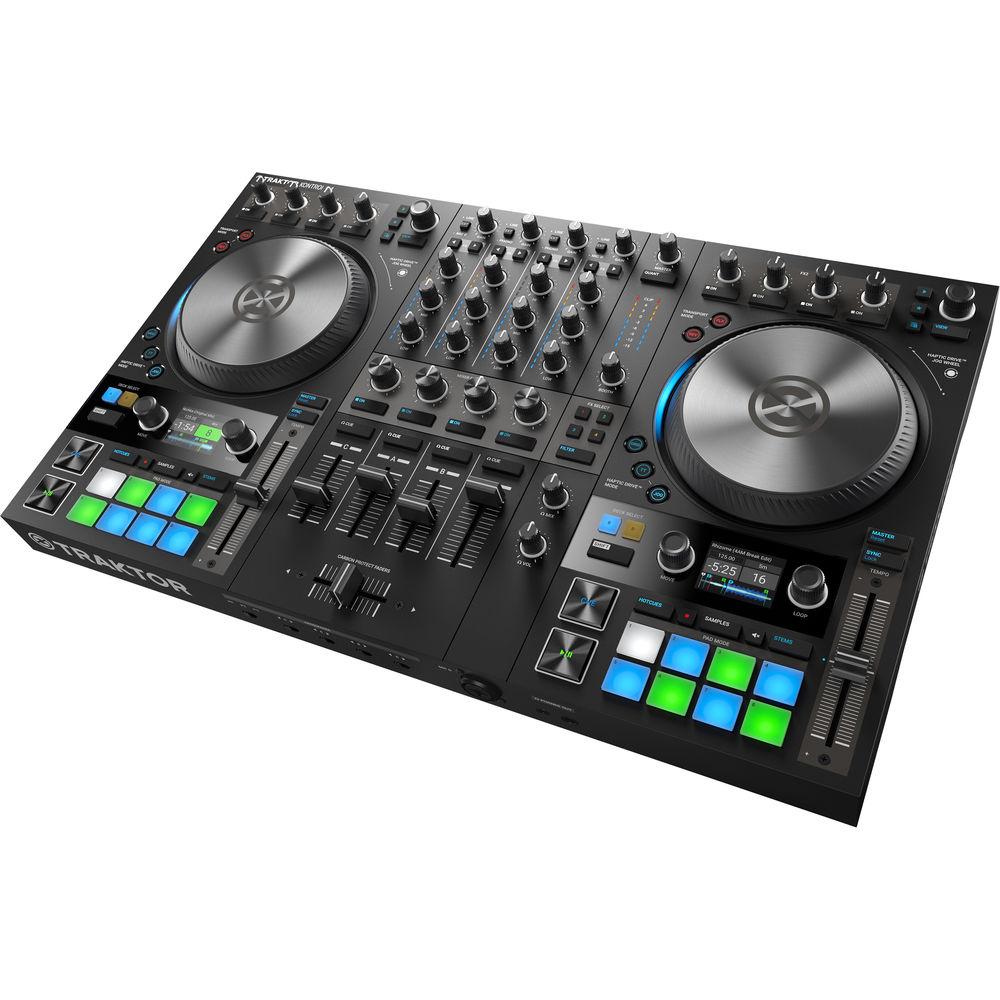

Product description The Native Instruments TRAKTOR KONTROL S4 MK3 is designed for DJs and electronic music performers that use TRAKTOR PRO 3 software. The updated controller now features large motorized jog wheels with haptic feedback and three modes of operation: Turntable, Jog, and Beatgrid. An RGB LED ring surrounds each jog wheel to visualize deck rotation in jog and turntable modes, track tempo, and deck selection (A and B in blue, C and D in orange).
Other improvements include two high-resolution color displays for each deck, which show track ID, key and tempo, transport data, waveform strip with track position, phase meter, loop length and state, as well as Remix and Stem decks control. The mixer layout is designed after popular club DJ mixers and features long-life carbon faders, a dedicated cue section, and an adjustable crossfader curve. The 16 RGB pads are used for triggering Hotcues, loops, or samples. The mixer FX now include instant one-knob effects and filters on each channel. Choose from 8 FX and 3 filter types in addition to TRAKTOR deck effects. - Key Features
-
- Large motorized jog wheels with haptic feedback in three modes:
- Turntable mode
- Jog mode
- Beatgrid mode
- RGB LED Ring surrounding each jog wheel visualizes deck rotation in jog and turntable modes, track tempo, and deck selection (A and B in blue, C and D in orange)
- High-resolution color displays show track ID, key and tempo, transport data, waveform strip with track position, phase meter, loop length and state, as well as Remix and Stem decks control
- New Mixer FX for instant one-knob effects and filters on each channel – choose from 8 FX and 3 filter types in addition to TRAKTOR deck effects
- Pro Mixer Layout with long-life Carbon Protect faders, dedicated cue section on top plate, and adjustable crossfader curve. 16 RGB pads for triggering Hotcues, loops, or samples
- Included Software
-
- Includes the full version of TRAKTOR PRO 3
- Mix across four decks with the industry’s tightest and most reliable looping and beatjump functions
- Scratch, sample, and re-edit tracks with Stems, Remix decks and over 40 deck effects
- New user interface with club-situation simplified layout
- Enhanced audio quality with Mixer bypass mode and Elastique 3 time-stretching
- New dedicated Mixer FX
- Improved browser section
In the Box Native Instruments TRAKTOR KONTROL S4 MK3 Software License for TRAKTOR PRO 3 USB Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Native Instruments TRAKTOR KONTROL S4 MK3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

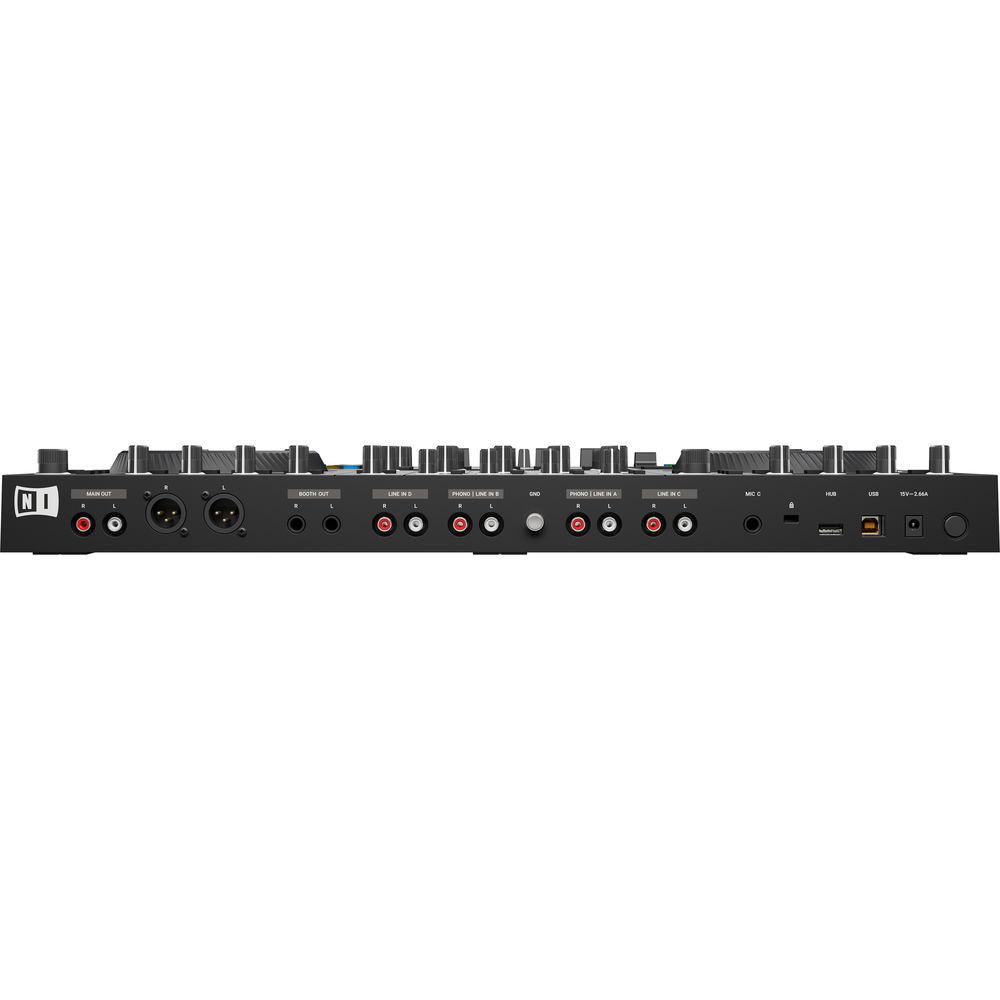

Technical parametersNative Instruments Kontrol S4 MK3 Specs | Inputs | Channels A-D: 4 x stereo RCA (channels A & B switchable between line and phono)
Mic C: 1/4" / 6.35 mm
Mic D: Combo XLR-1/4" / 6.35 mm | | Output | Main Output: Stereo XLR
Main Output: Stereo RCA
Booth Output: 1/4" / 6.35 mm
Headphone: 1 x 1/4" / 6.35 mm, and 1 x 1/8" / 3.5 mm | | Other Connectors | USB Type-B: For computer
USB Type-B: For USB hub
Power: 15 VDC
Kensington security slot | | Digital Resolution | 24-bit / 96 kHz | | Windows System Requirements | Windows 10 (latest update, 64-bit)
Intel Core i5 or equivalent CPU
4 GB RAM
USB 2.0 or faster (cable included)
Graphics card which supports OpenGL 3.3 or later | | Mac System Requirements | Mac OS X 10.12 or 10.13 (latest update)
Intel Core i5 or equivalent CPU
4 GB RAM
USB 2.0 or faster (cable included)
Graphics card which supports OpenGL 3.3 or later | | Dimension (DxWxH) | 13.3 x 21.3 x 2.4" / 339.0 x 542.0 x 60.5 mm | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 13.9 lb | | Box Dimensions (LxWxH) | 25.5 x 17.5 x 6.0" |
