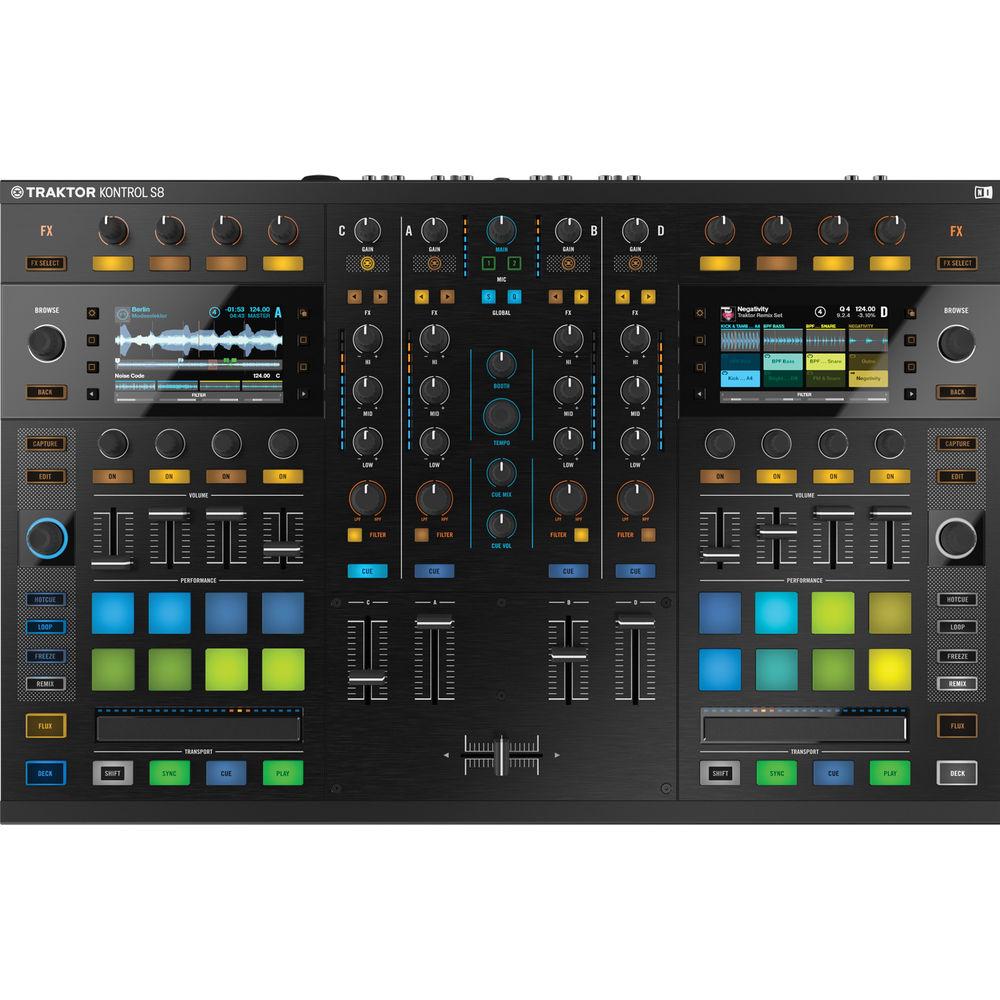

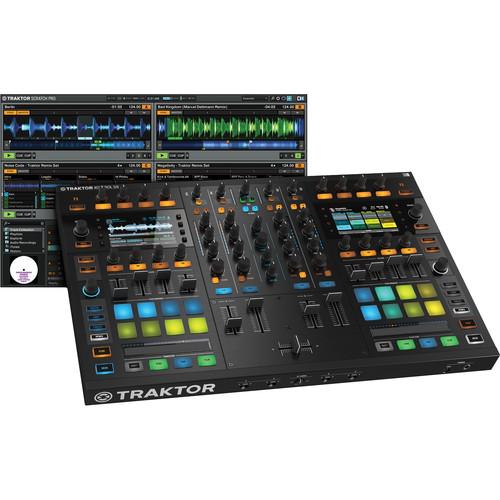

Product description The Native Instruments TRAKTOR KONTROL S8 is an all-in-one combination 4-channel stand-alone mixer, professional audio interface, and DJ controller for TRAKTOR SCRATCH PRO software. It improves upon the original with a streamlined workflow using the controller's dual built-in high-res displays, knobs, faders, and LED guided touch-sensitive strip controls.

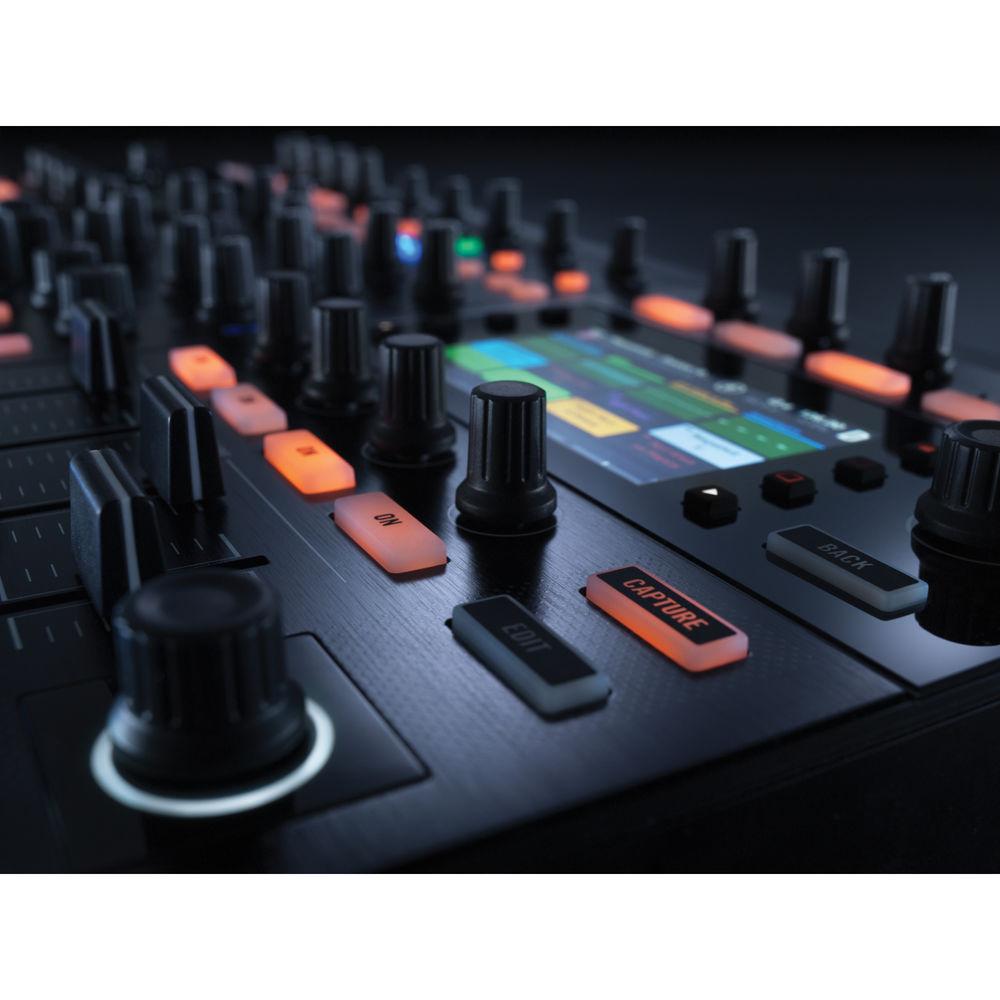

The high-resolution displays allow you to browse tracks, see track info, see the track's vector waveform, access remix decks, as well as effect and filter values. The controller has 4+4 channel remix deck faders for live capture and triggering of your own samples and loops using the device's 16 color-coded performance pads.
The integrated audio interface provides 24-bit 48 kHz resolution and enables connection to turntables, CDJs, and other musical equipment for operation in TRAKTOR SCRATCH PRO and stand-alone modes. Master outputs are provided on RCA and XLR connectors and 1/4" booth outputs enable connecting the controller to a club sound system. - High-Resolution Displays
- Allows you to browse track info, vector waveforms, effect values, filter values, and the Remix decks directly from the controller
- Remix In the Moment
- Create your signature sound using the 4+4 channel Remix deck faders and capture and trigger samples or loops using the 16 color-coded performance pads
- Wear-Resistant Faders
- Provides durable reliability
- TRAKTOR Mode Buttons
- Allows you to switch between TRAKTOR and stand-alone mode
- Designed For TRAKTOR PRO Software
- Provides in-depth control of your music with up to four software decks, customizable interface, timecode media, and advanced track library management
- Touch Sensitive Controls
- Provides touch sensitive knobs for the browse view, plus filter, pitch, and effect parameters without shifting the focus to the laptop
- Smart Views
- Deliver dynamic visual feedback for browsing your library, monitoring effects, and improvising on the fly
- Beatgrid View
- Allows you to keep tracks ready to mix in advance or on the fly
- Color-Coded Pads
- Triggers cue points and loops with color coordination for easy recognition
- Live Capturing
- Allows you to capture loops from a running track in sync and then layer them for advanced track edits on the fly
- Freeze Button
- Enables taking a snapshot from a running track so that a loop appears on the deck display ready to be sliced up and assigned to the performance pads
- Enhanced Remix Decks Control
- Activate Remix decks directly from the controller, trigger sounds using the performance pads, and mix them in with the deck faders
- Touch Sensitive Strip Controls
- Allow for pitch bending, track seeking, and vinyl scratch emulation

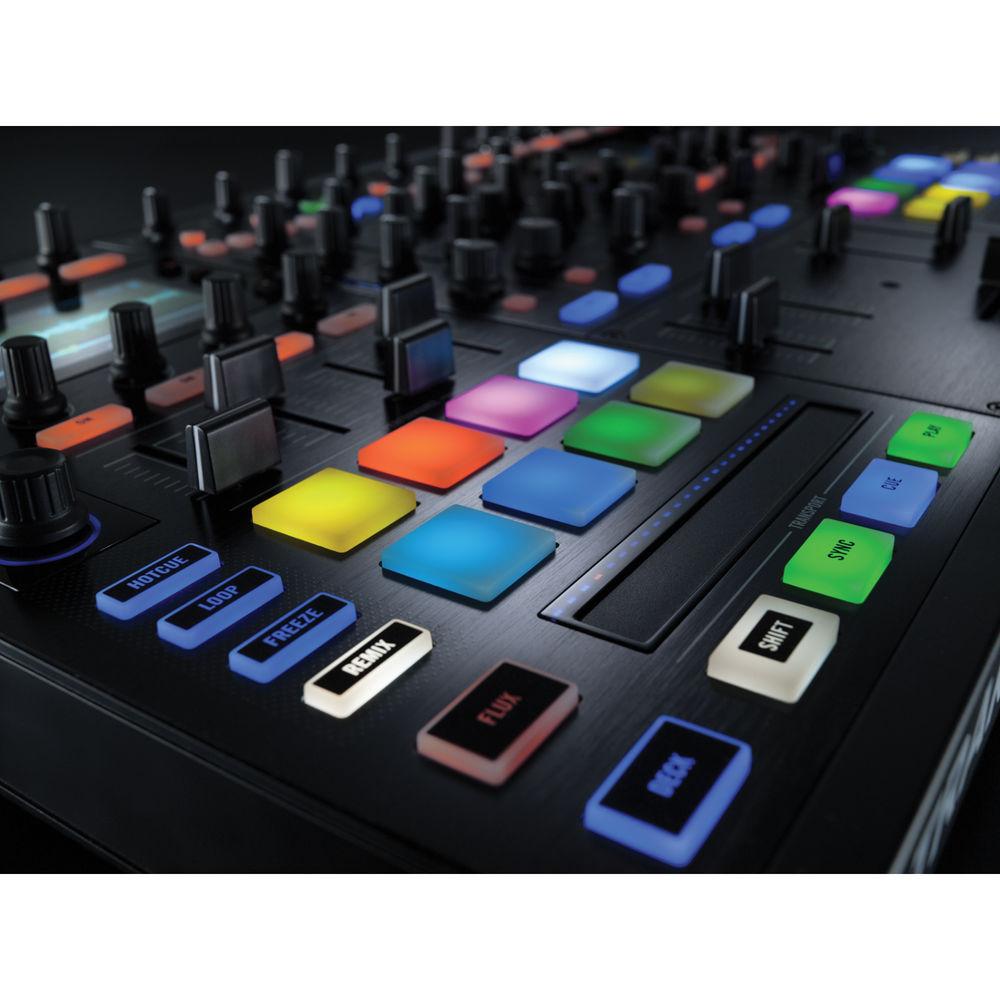

- Sixteen Color-Coded Performance Pads
- Trigger remix set cells, slice up and rearrange in freeze mode, tweak your loops, or improvise using hotcues
- Audio Interface
- Provides Four analog inputs with phono and mic preamps for connecting turntables, CDJs and other gear. XLR and RCA master outputs and 1/4" booth outputs enable connecting the device to most sound systems
- Conversion
- Provides 24-bit 48 kHz audio resolution
- MIDI I/O
- Lets you sync TRAKTOR with synthesizer, drum computers, MASCHINE, or external effects

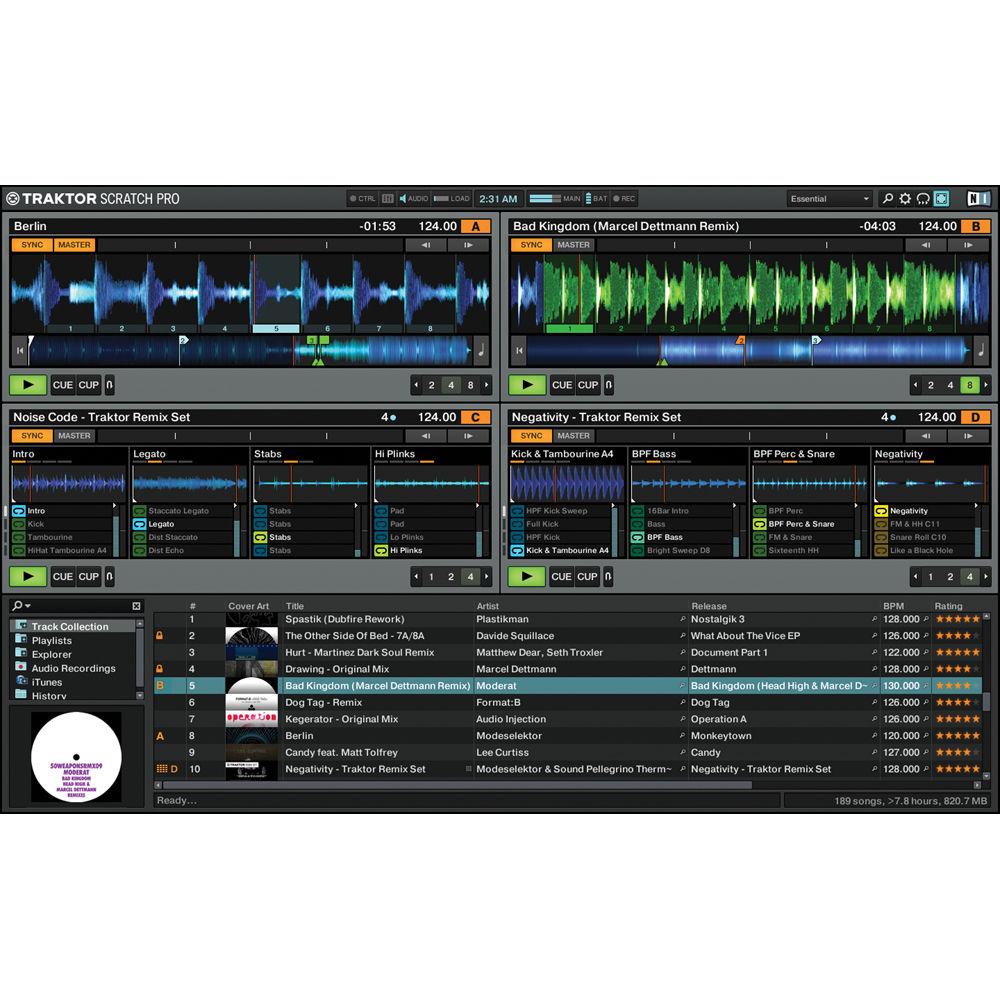

TRAKTOR SCRATCH PRO - Track Preparation
- Allows you to browse and find favorite tracks in seconds with full iTunes integration
- Sync
- Track BPM, beatgrids, and key automatically on import
- Software Mixer
- Provides customized features such as different EQ and filter types modeled after industry favorites
- Looping and Cueing
- Provides advanced looping features that allow you to take snapshots of tracks and keep them in time while changing loop lengths on the fly
- Effects
- Offers over 30 studio-grade effects, 4 individual FX units, and one-knob Macro FX for adding texture to tracks
- Loop Recorder
- Records audio from a live source, master out, or individual channels for creative multi-layered overdubs
- DVS and CD Control
- Mix digital files using turntables or CDJs using the included 2 kHz control signal 120 g digital control vinyl or CD control
- Remix Decks and Remix Sets
- Let you slice, loop, edit and deconstruct tracks with content that can be downloaded online
In the Box Native Instruments TRAKTOR KONTROL S8 Power Adapter USB Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Native Instruments TRAKTOR KONTROL S8 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNative Instruments Kontrol S8 Specs | | | System Requirements | Monitor with 1024 x 768 screen resolution
USB 2.0 or higher
OpenGL version 2.1 or higher,
1.5 GB free disc space
High-speed internet connection (for installation)
Mac OS X 10.8 or 10.9 (latest update), Intel Core i5, 4 GB RAM

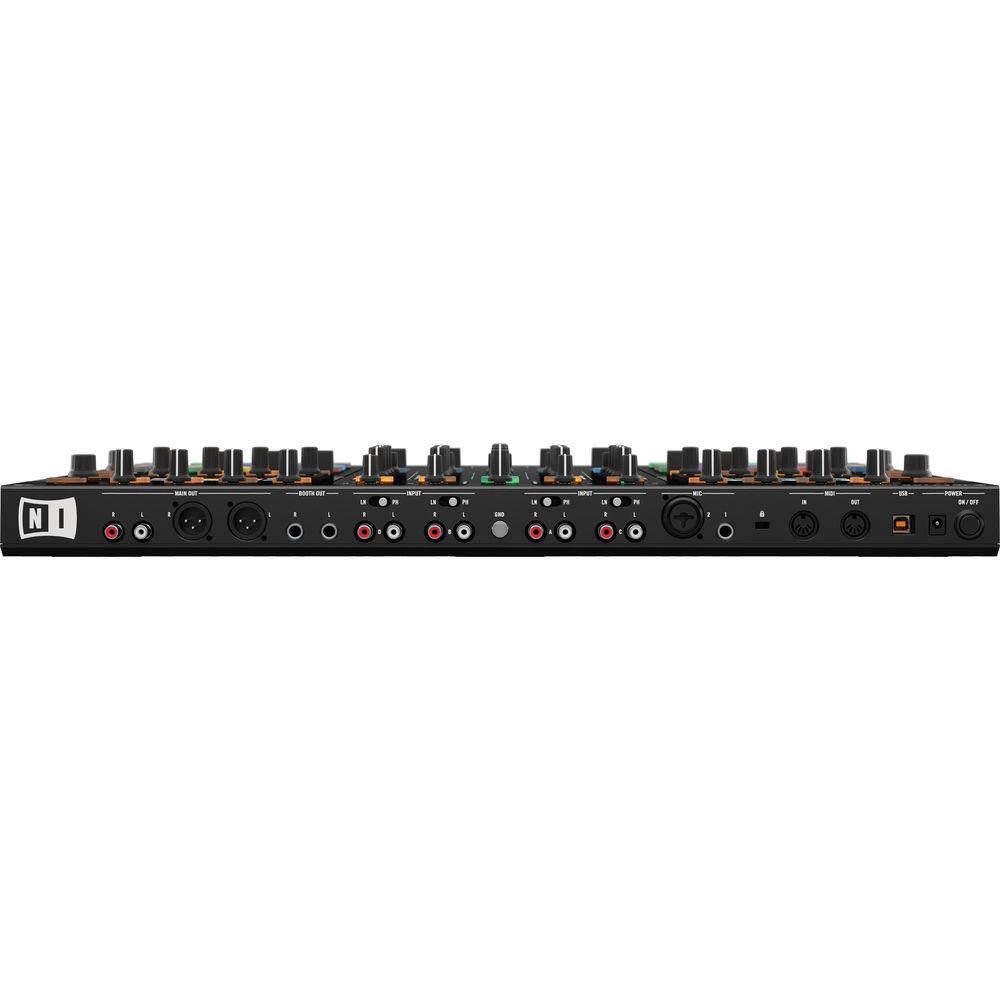

Windows 7 or 8 (latest Service Pack 32/64 bit), 2.0 GHz Intel Core i5 or AMD A-Series, 4 GB RAM | | Supported Audio Formats | MP3, WAV, AIFF, Audio-CD, FLAC, OGG Vorbis, non-DRM WMA (Windows), non-DRM AAC | | | | I/O | 4x switchable line/phono RCA stereo input pairs
1x combo XLR 1/4" mic input
1x 1/4" mic input
1x 5-pin MIDI In
1x USB Type-B
1x 5-pin MIDI out
2x RCA master outputs (stereo pair)
2x XLR-3M master output (stereo pair)
2x 1/4" booth outputs | | Channels | 4 stereo | | Sample Rate | 48 kHz | | Resolution | 24-bit | | Converter | Cirrus Logic | | | | Full Scale Input Level | Line Input: +13 dBu
Mic Input: -7.2 dBu
Phono Input: -23.8 dBu | | DNR | Line Input (A-weighted): 113 dB
Mic Input (A-weighted): 104 dB
Phono Input (A-weighted): 84 dB | | THD + N | Line Input (at 1 kHz): 0.001%
Mic Input (at 1 kHz): 0.006%
Phono Input (at 1 kHz): 0.002% | | Frequency Response | Line Input: 20 to 20,000 Hz ±0.1 dB
Mic Input: 20 to 20,000 Hz ±0.6 dB | | Crosstalk | Line Input: -116 dB (at 1 kHz)
Phono Input (At 1 kHz): -105 dB | | | | Channels | 2 stereo | | Sample Rate | 48 kHz | | Resolution | 24-bit | | Converter | Cirrus Logic | | Maximum Output Level | Line Output: +20 dBu
RCA Output: +14 dBu
Headphone Output: +7.2 dBu | | DNR | Line Output (XLR and 1/4" booth, A-weighted): 108 dB
RCA Output (A-weighted): 108 dB (A-weighted)
Headphones Output (A-weighted): 109 dB | | THD+N | Line Output (XLR and 1/4" booth, at 1 kHz): 0.001%
RCA Output (At 1 kHz): 0.001%
Headphones Output (At 1 kHz): 0.07% | | Frequency Response | Line Output (XLR and 1/4" Booth): 20 to 20,000 Hz ±0.2 dB
RCA Output: 20 to 20,000 Hz ±0.1 dB
Headphone Output: 20 to 20,000 Hz ±0.2 dB | | Crosstalk | Line Output (XLR and 1/4" Booth, at 1 kHz): -115 dB
RCA Output (At 1 kHz): -117 dB
Headphone Output (At 1 kHz) : -63 dB | | Headphone Impedance | 16 to 600 Ohms | | Dimensions (D x W x H) | 15.2 x 23.0 x 2.6" (38.7 x 58.5 x 6.6 cm) | | Weight | 11 lb (5 kg) | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 25.0 x 16.8 x 5.7" |
