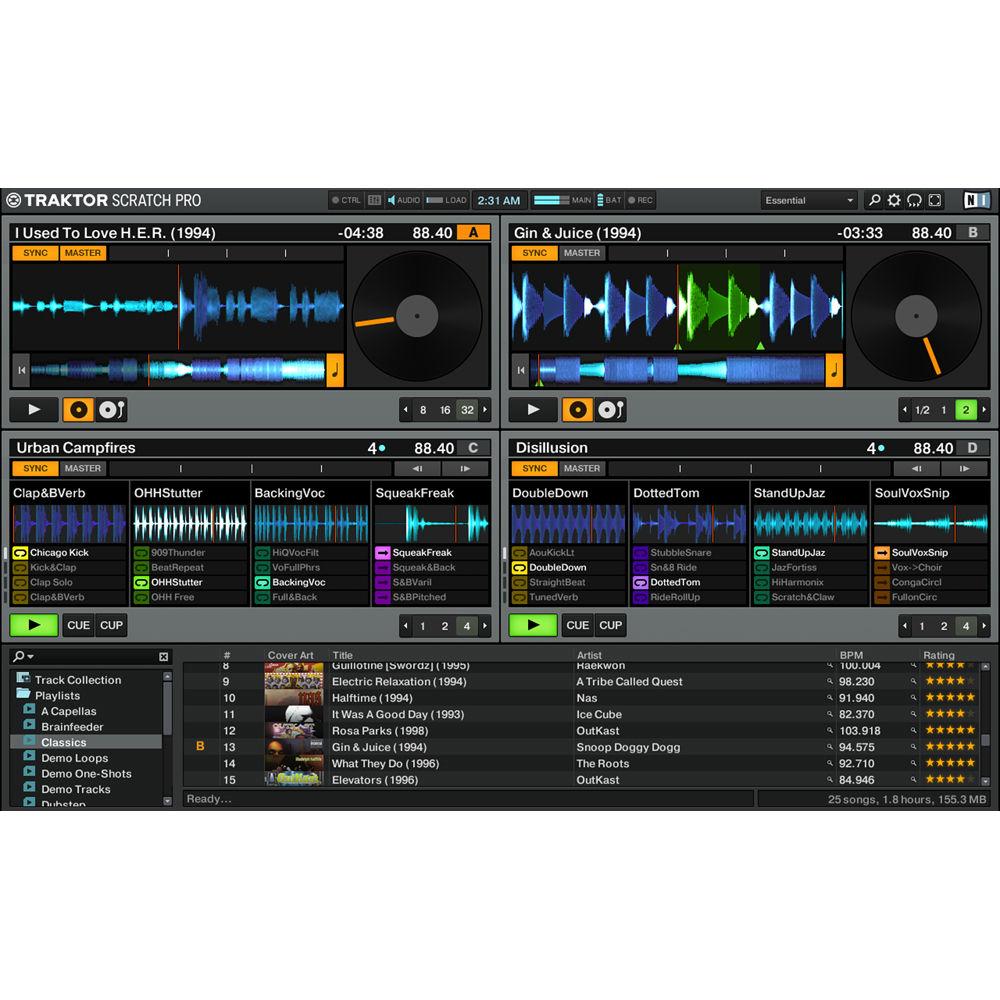

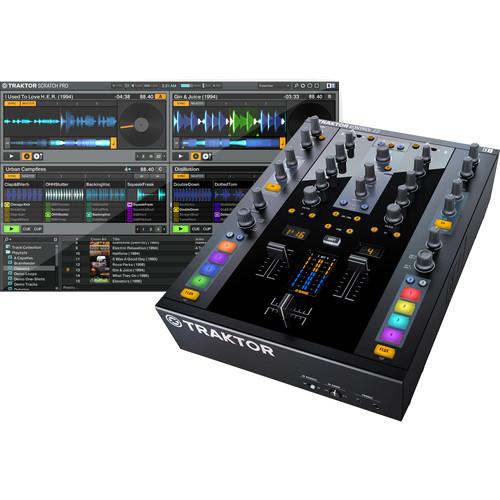

Product description The TRAKTOR KONTROL Z2 from Native Instruments is a Control Mixer that features 2 stereo inputs channels and 2 stereo output channels, but its plentiful connectivity offers far beyond that. KONTROL Z2's mixing layout is ergonomic and spacious with a level fader, 3-band EQ section and chunky filter knob per channel. Additionally, the mixer includes the full TRAKTOR SCRATCH PRO 2 digital vinyl system with Remix Deck technology.
Inside the TRAKTOR KONTROL Z2, a 24-bit soundcard featuring Cirrus Logic converters and XLR outputs provides low-noise audio. The aircraft-grade aluminum chassis features extensive control with knobs, buttons, push encoders and Innofaders. The Z2's backlit buttons provide precise visual feedback while the built-in, powered USB hub adds connectivity for two add-on controllers such as the KONTROL F1 or X1.
Additional TRAKTOR rotary encoders for Macro FX and Remix Decks are placed in the KONTROL section alongside Flux Mode buttons for easy access, and multi-colored cue point trigger buttons allow you to jump through and re-edit your tracks on the fly. Three Section Operation - Mixer Section
- Familiar layout and feel based on industry-standard designs.
- Effects Section
- One-knob Macro FX for buildups, breakdowns, and enabling your creativity.
- Kontrol Section
- TRAKTOR-specific cue point, Remix Deck and loop controls.
Additional Features - Timecode Vinyl and CDs
- Spin digital tracks as if they were pressed on vinyl with the included TRAKTOR Scratch timecode vinyl and CDs.
- Macro FX
- Macro FX combine multiple TRAKTOR effects on a single knob; build up, breakdown and destroy tracks with a single, intuitive action. Over 30 effects from classic DJ effects to advanced beat manglers.
- Flux Mode
- Flux Mode tracks the time while you're looping and lets you drop back in at the right moment. Intuitive loop and cue functions allow auto-loops at the press of a button. The immensely powerful Remix Decks make live remixing easy.
In the Box Native Instruments TRAKTOR KONTROL Z2 - 2+2 Channel Control Mixer TRAKTOR SCRATCH PRO 2 Software License 2 x TRAKTOR SCRATCH Timecode Vinyl 2 x TRAKTOR SCRATCH Timecode CDs USB Cable 2-Year Limited Warranty User Manual PDF 2.3mbyaycfexe Table of Contents
|
Upload User Manual
Have you got an user manual for the Native Instruments TRAKTOR KONTROL Z2 - 2 2 Channel Control Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

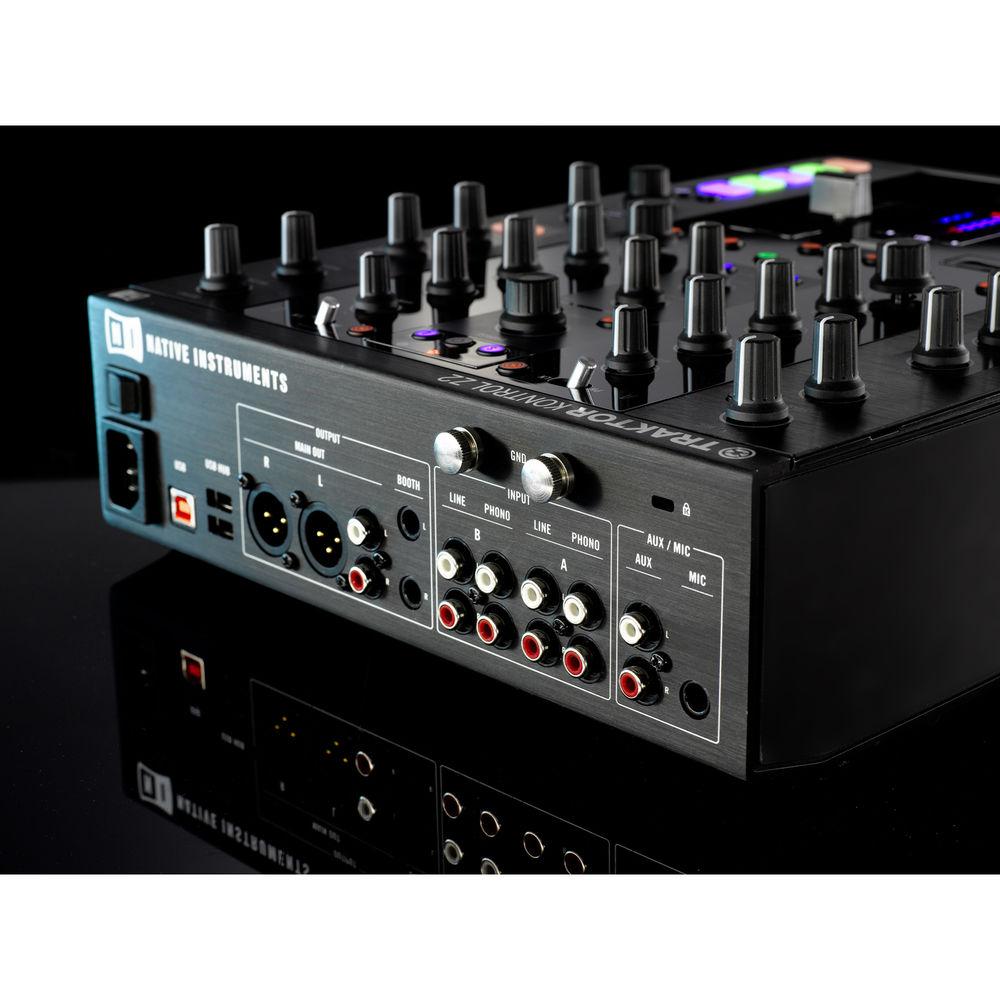

Technical parametersNative Instruments Kontrol Z2 Specs | | | Inputs (Analog) | 2 x RCA phono - Phono A (1 x L/R)
2 x RCA phono - Line A (1 x L/R)
2 x RCA phono - Phono B (1 x L/R)
2 x RCA phono - Line B (1 x L/R)
1 x 1/4" TRS - Mic
1 x RCA phono - Aux (1 x L/R) | | Outputs (Analog) | 2 x XLR - Main Out (1 x L/R)
2 x RCA phono - Main Out (1 x L/R)
2 x 1/4" TRS - Booth Out (1 x L/R) | | Headphone Outputs | 1 x 1/4" TRS stereo
1 x 1/8" TRS stereo mini | | USB Ports | 1 x USB 2.0 type B
2 x USB 2.0 type A (USB Hub) | | | | Line Inputs | Input impedance: 47kΩ
Maximum input level: 13 dBu
Noise floor: -97 dBu /-99 dBu (A-weighted)
Dynamic range: +110 dB /+112dB (A-weighted)
THD+N: < 0.0012% (-98.4 dB) @ +8 dBu
Frequency response: 20 Hz to 20 kHz ±1 dB | | AUX Inputs | Input impedance: 47kΩ
Maximum input level: 13 dBu
Noise floor: -97 dBu /-99 dBu (A-weighted)
Dynamic range: +110 dB /+112dB (A-weighted)
THD+N: < 0.0012% (-98.4 dB) @ +8 dBu
Frequency response: 20 Hz to 20 kHz ±1 dB | | Phono Inputs | Input impedance: 47kΩ
Maximum input level: -22 dBu / 62 mV RMS
Noise floor: -113 dBu /-122 dBu (A-weighted)
Dynamic range: +94 dB /+99.9 dB (A-weighted)
THD+N: < 0.0015% (-96.8 dB) @ -22.5 dBu
Frequency response: 20 Hz to 20 kHz, RIAA curve ±1 dB | | Master XLR and Booth Outputs | Maximum output level: +18 dBu
Noise floor: -89.3 dBu /-92 dBu (A-weighted)
Dynamic range: 111.1 dB / 113.8 dB (A-weighted)
THD+N: < 0.0007% (-103 dB) @ 997 Hz, -1 dBFS
Frequency response: 20 Hz to 20 kHz ±1 dB | | RCA Outputs | Maximum output level: +14.13dBu / 3.93 Vrms
Noise floor: -93 dBu /-96.5 dBu (A-weighted)
Dynamic range: +105 dB /+108 dB (A-weighted)
THD+N: < 0.0015% (-96.8 dB) @ +8 dBu
Frequency response: 20 Hz to 20 kHz ±1 dB | | Headphone Output | Maximum output voltage: +10.6dBu / 2.62 Vrms
Maximum output power: 100 mW
THD+N: < 0.006% (-84.4 dB) @ 997 Hz, 10 dBu
Dynamic range: +102 dB /+105 dB (A-weighted)
Frequency response: 20 Hz to 20 kHz, ±1 dB | | | | Sample Rate | 48 kHz | | Bit Rate | 24-bit | | | | Windows System Requirements | Windows 7
2 GHz Intel Core 2 Duo or AMD Athlon 64 X2
2 GB RAM (4 GB recommended) | | Mac System Requirements | OS X 10.6 or above
Intel Core 2 Duo processor or better
2 GB RAM (4 GB recommended) | | Additional System Requirements | 1024 x 768 screen resolution
Available USB 2.0 port
1 GB free disc space
High-speed internet required | | | | Power Supply | 115 to 230V, 50/60 Hz, 0.5 to 0.75A
Internal power supply with 3-pin IEC power cable included | | Dimensions (W x L x H) | 10.7 x 15.3 x 4.3" (272 x 388 x 109 mm) | | Weight | 11.2 lb (5.1 kg) | | | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 17.8 x 15.8 x 7.2" |
