User Manual for Native Instruments TRAKTOR Scratch A6 - AUDIO 6 DJ Advanced DJ Audio Interface and TRAKTOR Scratch Pro 2 DJ Software License Click to enlarge the picture
Contents of the user manual for the Native Instruments TRAKTOR Scratch A6 -
- Product category: DJ Software Native Instruments
- Brand: Native Instruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Native Instruments DJ Software
 |
User manual for the Native Instruments TRAKTOR Scratch A6 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Native Instruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Native Instruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Native Instruments product will considerably shorten its lifespan!
|

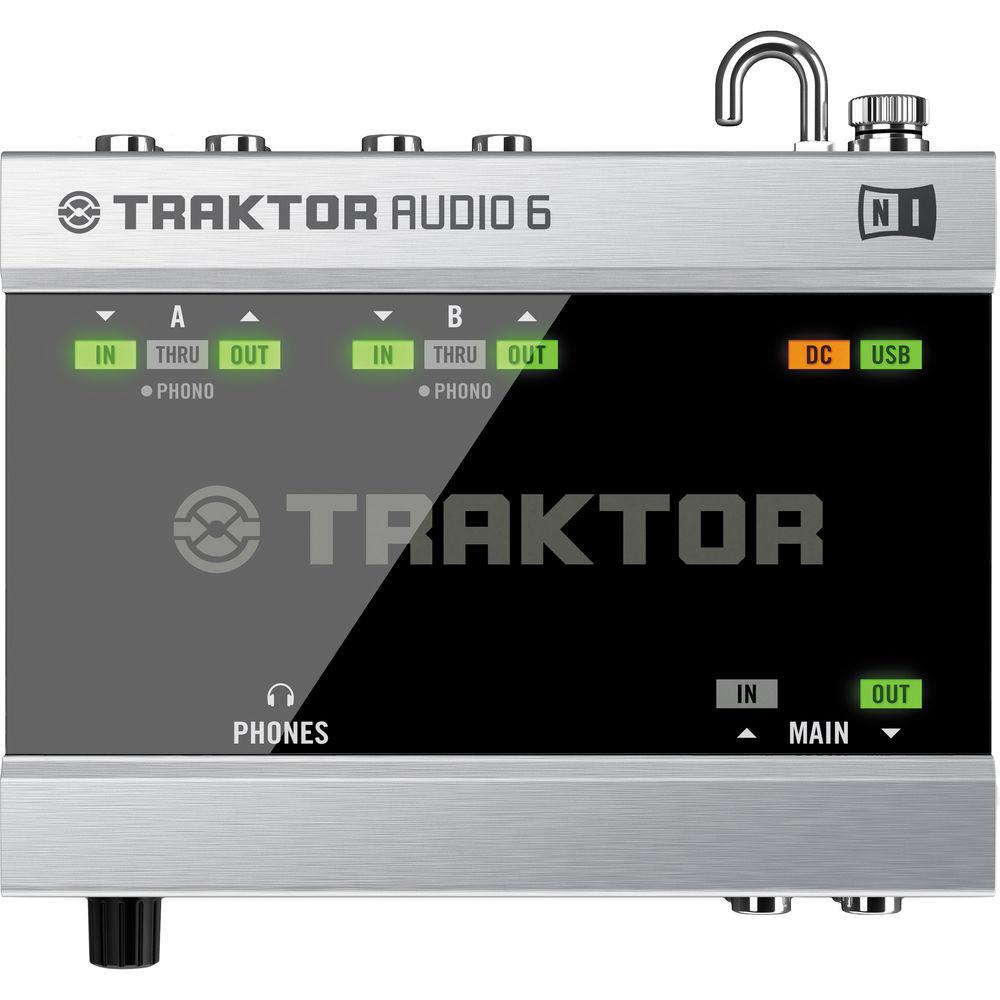

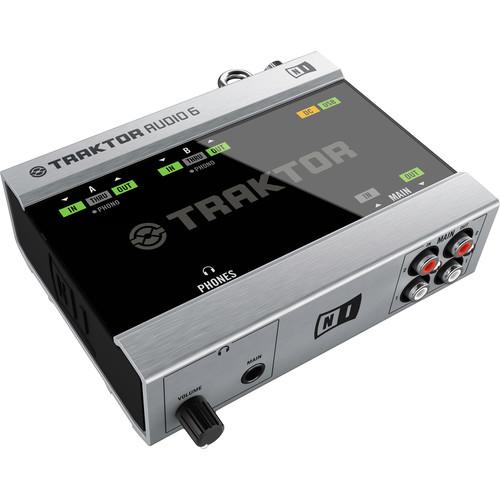

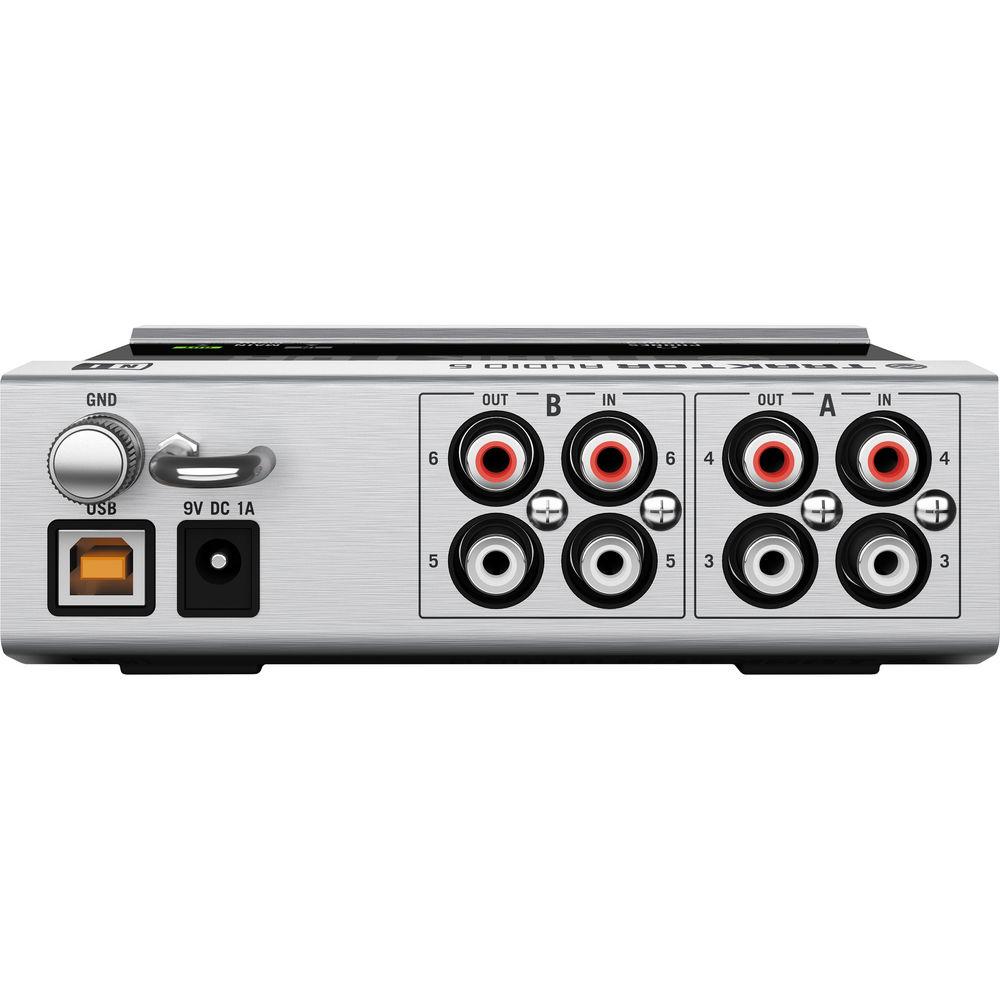

Product description The Native Instruments TRAKTOR Scratch A6 - AUDIO 6 DJ Advanced DJ Audio Interface and TRAKTOR Scratch Pro 2 DJ Software License delivers the sound quality and routing demanded by professional touring, mobile and home DJs. The TRAKTOR AUDIO 6 interface delivers many of the features found on the coveted TRAKTOR AUDIO 8, with a total of 6 inputs and outputs, headphone output and more. Many of the AUDIO 6's unique features are still intact.Features such as status LEDs for inputs and outputs, 24-Bit/96kHz resolution and a rugged metal enclosure are all standard. The TRAKTOR AUDIO 6 features even lower latency. A full license of TRAKTOR Scratch Pro 2 DJ software is included. Also included is a power supply for running the AUDIO 6 without a computer. - Professional DJ audio interface with unrivalled connectivity
- 6 inputs and 6 outputs - 3 phono preamps to connect up to three turntables
- Extra-loud output levels pack enough punch to rock the biggest clubs
- High-quality 24-bit / 96kHz Cirrus Logic AD/DA converters for studio-grade sound quality
- New low latency Mac and PC drivers for tightest possible response
- 25 status LEDs for visual monitoring of signal chain
- Easy club installation with Direct Thru mode and included power supply
- Compatible with all DJ, performance and audio software
- Includes TRAKTOR Scratch Pro 2 DJ software so you can start mixing right away
In the Box Native Instruments TRAKTOR Scratch A6 - AUDIO 6 DJ Advanced DJ Audio Interface and TRAKTOR Scratch Pro 2 DJ Software License TRAKTOR Pro 2 Software Liscense 2 x Control CDs 2 x Control Vinyl Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Native Instruments TRAKTOR Scratch A6 - AUDIO 6 DJ Advanced DJ Audio Interface and TRAKTOR Scratch Pro 2 DJ Software License in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNative Instruments 21903 Specs | Minimum System Requirements | Windows:
Windows XP (latest Service Pack, 32 Bit) or Windows Vista (latest Service Pack, 32/64 Bit) or Windows 7 (latest Service Pack, 32/64 Bit), Intel Pentium 4 2.4GHz or Intel Core Duo or AMD Athlon 64, 2 GB RAM (4 GB Recommended) Mac: 10.6 (latest update) or 10.7, Intel Core Duo, 2 GB RAM (4 GB Recommended) | | Supported Audio Formats | MP3, WAV, AIFF, Audio-CD, FLAC, Ogg Vorbis, non-DRM WMA (Windows only), non-DRM AAC | | Drivers | ASIO
Core Audio DirectSound
WASAPI | | Converters | Channels (A/D, D/A): 10, 10
Sample Rates: 44.1, 48, 88.2, 96kHz Bit Resolution: 16, 24-Bit
Converter: Cirrus Logic | | Line Inputs | Input Impedance: 47 kOhm A/D-D/A to Output:
Full Scale Input Level: +12dBu, 3.08 Vrms Gain: -2.6dB
Dynamic Range: 98.4dB (A) THD+N (Full Scale Level): 0.018 %
Frequency Response (96kHz), -1dB: 13Hz - 45kHz Direct Thru:
Maximum Input Level: +13.2dBu, 3.6 Vrms Gain: -4.55dB
Dynamic Range: 107.5dB (A) THD+N (Maximum Level): 0.0027 %
Frequency Response, -1dB: 13Hz - 73kHz | | Phono Input | Input Impedance: 47 kOhm A/D-D/A to Output:
Full Scale Input Level: -22.2dBu, 60 mVrms Gain: +31.5dB
Dynamic Range @ 1kHz: 95.8dB (A)BR> THD+N (@ 1kHz): 0.02 %
Frequency Response: IEC curve +/- 1dB Direct Thru:
Maximum Input Level @ 1kHz: -16.2dBu, 120 mVrms Gain 1kHz: +29.1dB
Dynamic Range: 96.9dB (A) THD+N (Maximum Level): 0.01 %
Frequency Response: IEC curve +/- 1 dB | | Line Outputs | Full Scale Output Level: +9.6dBu, 2.35 Vrms
Dynamic Range: 101.8dB (A) THD+N: 0.008 %
Frequency Response (96kHz), -1 dB: 9Hz - 45kHz | | Headphone Output | Maximum Output Level @ 10k Ohm: 11.3 dBu, 3.55 Vrms
Maximum Output Power: 20 mW @ 100 Ohms, 11 mw @ 33 Ohms THD+N (Maximum Level, 100 Ohms): 0.011 %
Frequency Response (96kHz), -1 dB: 9Hz - 45kHz | | Dimensions | 1.73 x 5.39 x 5.27" (44 x 137 x 134mm) | | Weight | 1.65 lb (750 g) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 13.2 x 12.6 x 4.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
