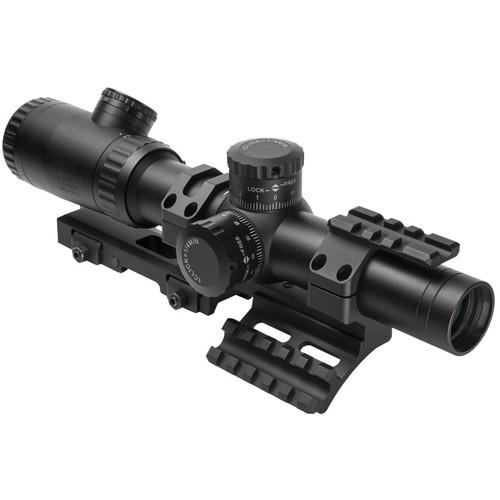

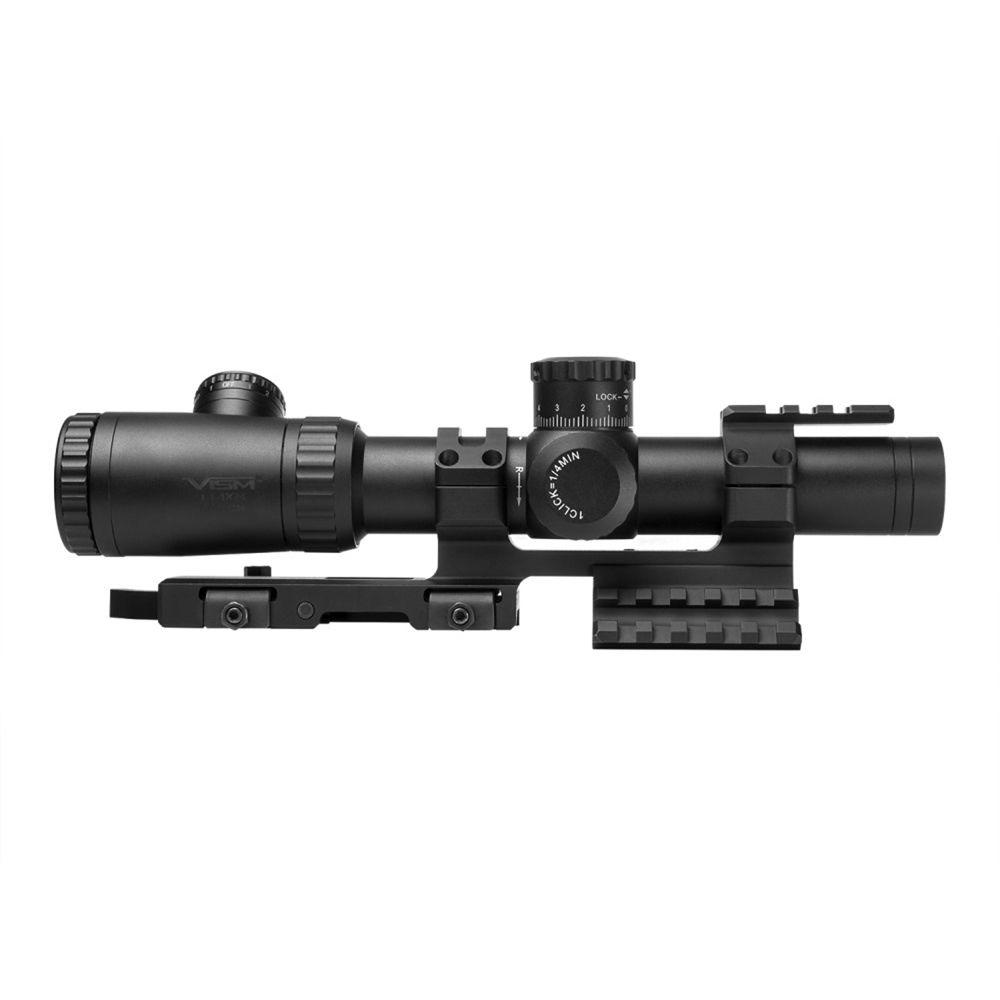

Product description Combining a 1.1-4x, illuminated-reticle riflescope with a versatile mount that can also hold a weapon light or other accessory, the 1.1-4x24 Evolution Series Riflescope with SPR Mount Combo will get you on target in moderate-range shooting scenarios. The scope features a glass-etched dot reticle and locking 1/2 MOA per click windage and elevation adjustment turrets. Its hard anodized aluminum housing is O-ring sealed and nitrogen purged for water and fogproof performance, and fully multi-coated lenses assure optimal light transmission for a bright, sharp target image.

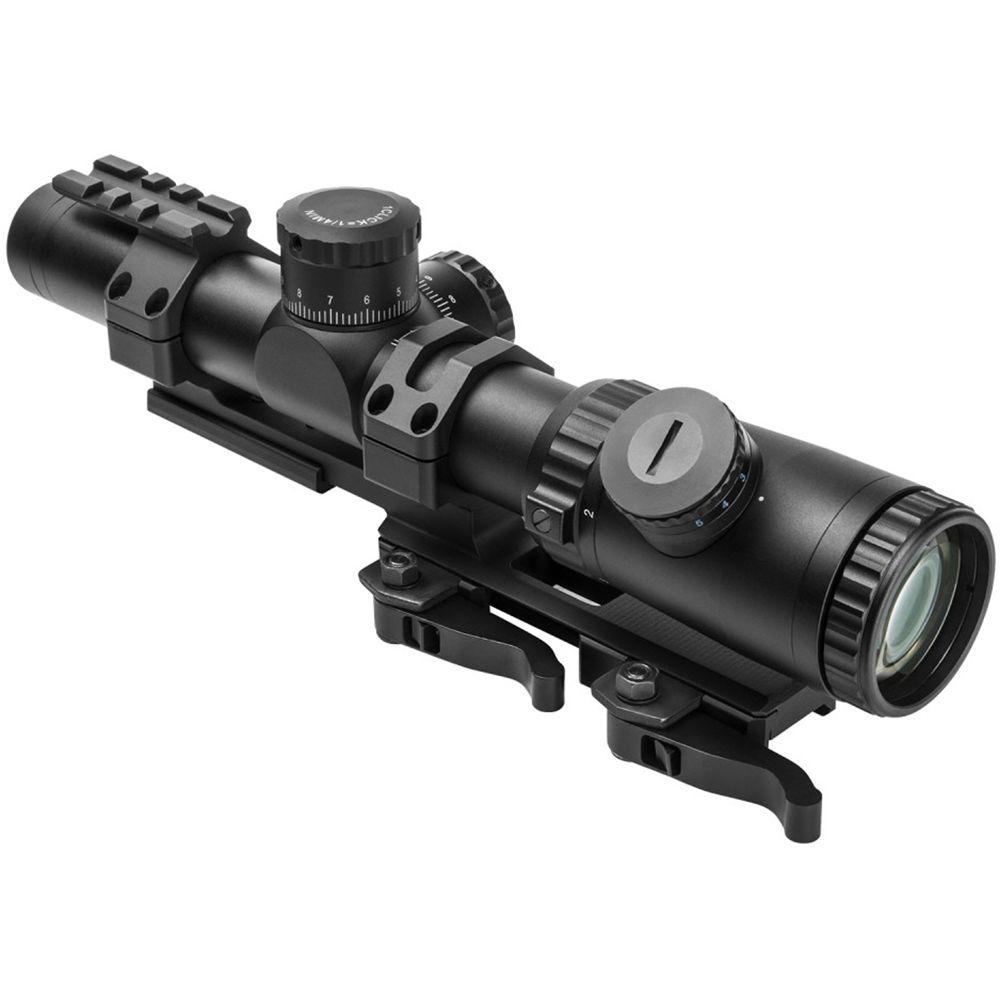

The Gen II 30mm Cantilever Scope Mount is equipped with dual auto-locking quick release levers and mounts on Picatinny and Weaver rails. Its scope centerline is set to 1.5" above the rail, a popular height for AR platform rifles, and its lightweight 30mm rings come with inserts to accomodate 1" scopes. Its 45° offset accessory mount has a Picatinny rail and can be used on either side or removed altogether. - Optical Performance
-
- 1.1-4x magnification
- 24mm objective lens
- Fully multi-coated optics
- Field of view: 98.3-27.2' at 100 yards
- 3.7-3.3" eye relief
- 21.8-6mm exit pupil
- Reticle
-
- Blue or green illuminated etched glass Dot reticle
- Five brightness settings
- 45° offset brightness control for unobstructed view of turrets
- Use and Handling
-
- 1/2 MOA at 100 yards impact point correction
- Lockable elevation and windage turrets

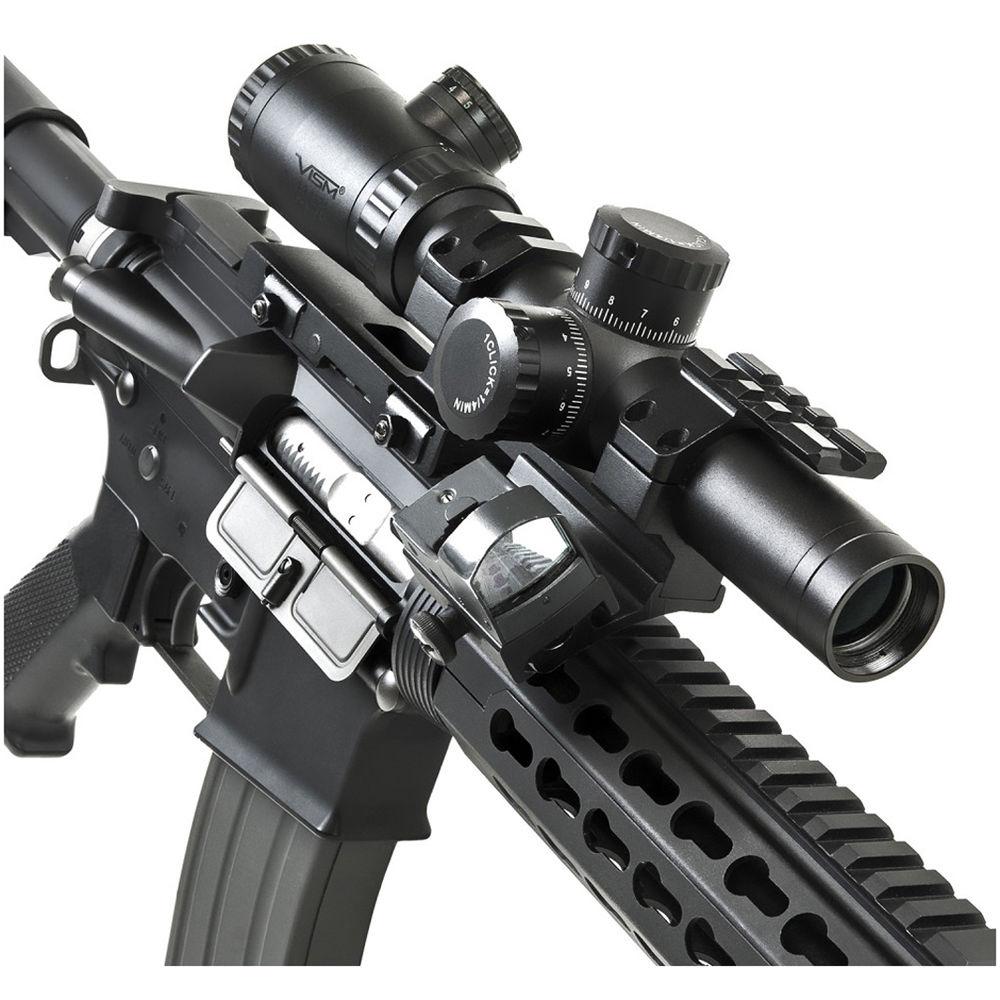

- Auto-locking quick release cantilevered mount for Picatinny/Weaver rail
- 45° offset accessory mount with Picatinny rail
- Offset rail goes on either side or can be removed

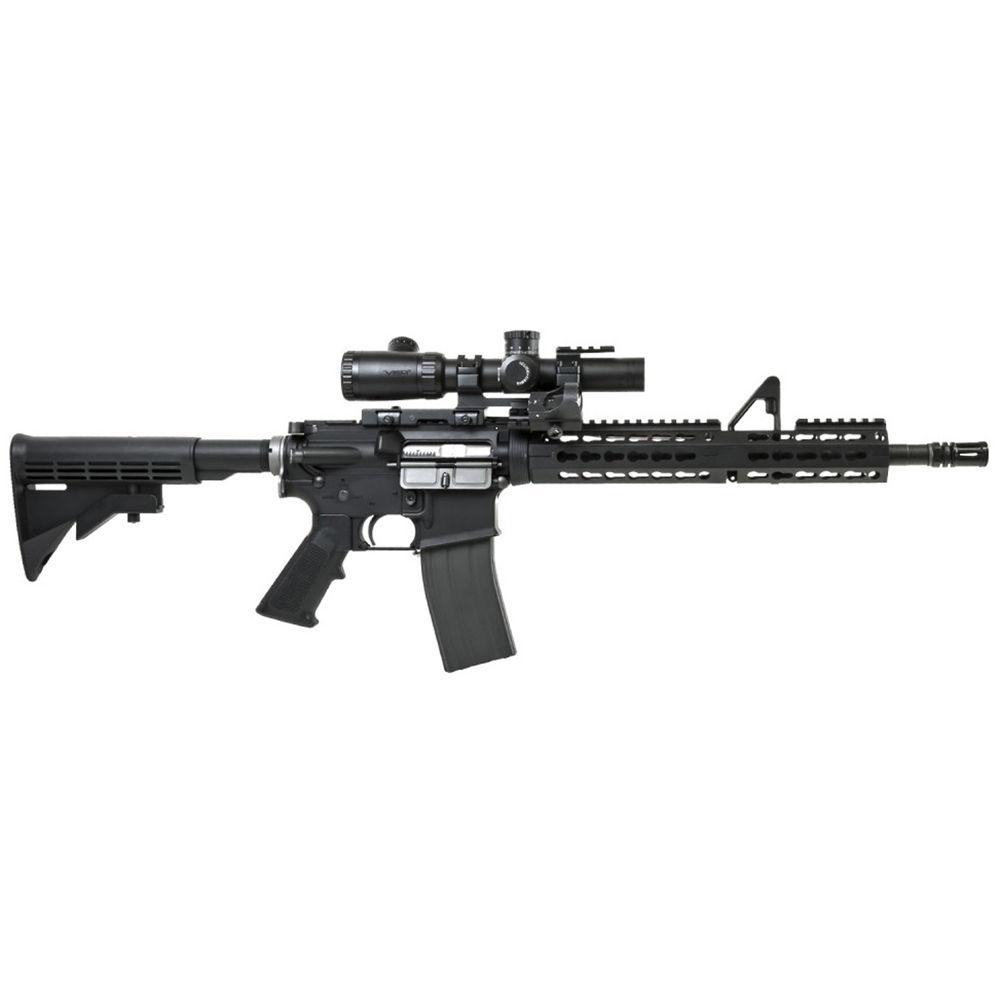

- Centerline is 1.5" above rail, suitable for AR platform rifles
- Construction Details
-
- 30mm maintube diameter
- Hard anodized aluminum housing
- Nitrogen purged and O-ring sealed for water and fogproof performance
- Runs on one CR2032 battery (included)
UPC: 848754002594 In the Box NcSTAR 1.1-4x24 Evolution Series Riflescope with SPR Mount Combo (Blue/Green Dot Illuminated Reticle) Bikini Lens Covers 2 x CR2032 Batteries Limited Lifetime Warranty Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 1.1-4x24 Evolution Series Riflescope with SPR Mount Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNcSTAR VEVOFD11424GSPR-A Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1.1x: 98.3' @ 100 yd / 32.6 m @ 100 m
4x: 27.2' @ 100 yd / 9 m @ 100 m | | Exit Pupil Diameter | 1.1x: 21.8 mm
4x: 6 mm | | Eye Relief | 3.7 to 3.3" / 9.4 to 8.4 cm | | | | Reticle Type | Dot Reticle | | Illumination | Illuminated | | Illuminated Color | Blue, Green | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | Reticle: 1 x CR2032 | | Dimensions | Length: 10" / 25.4 cm | | Weight | 16.1 oz / 456.4 g Scope only |
