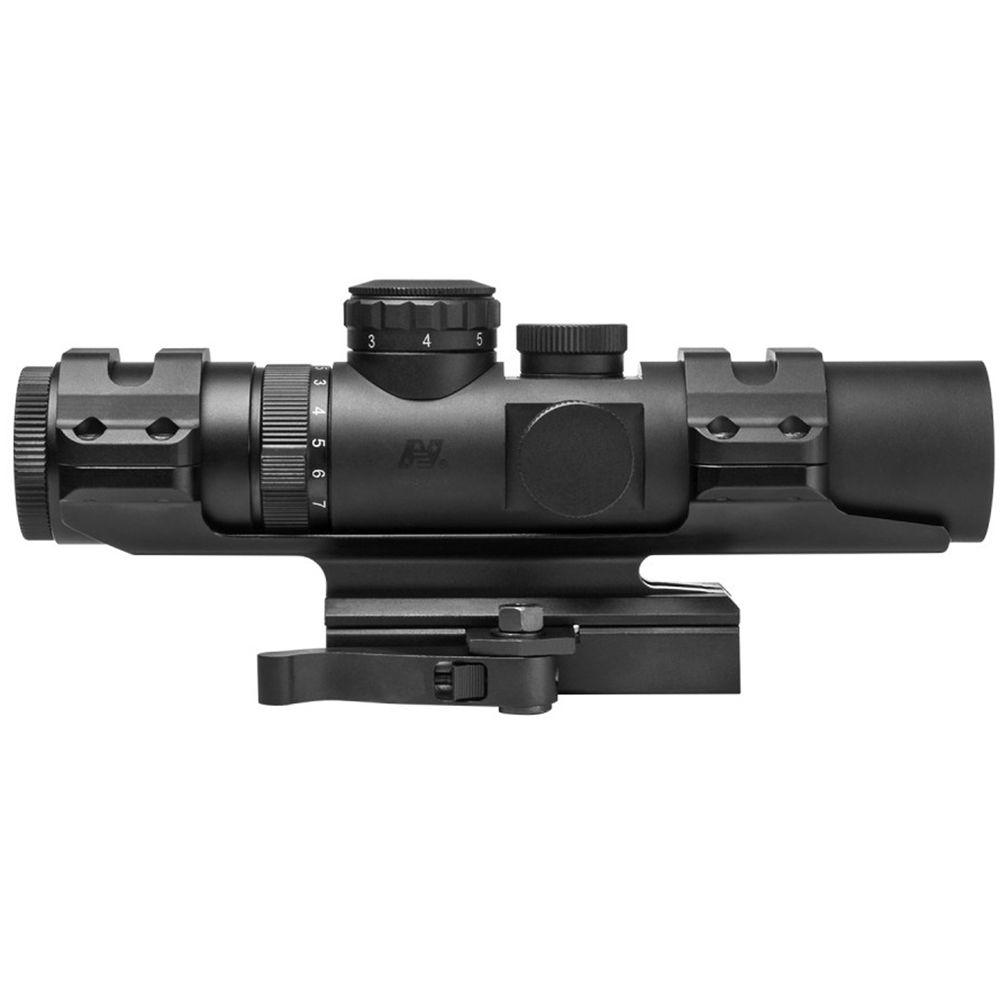

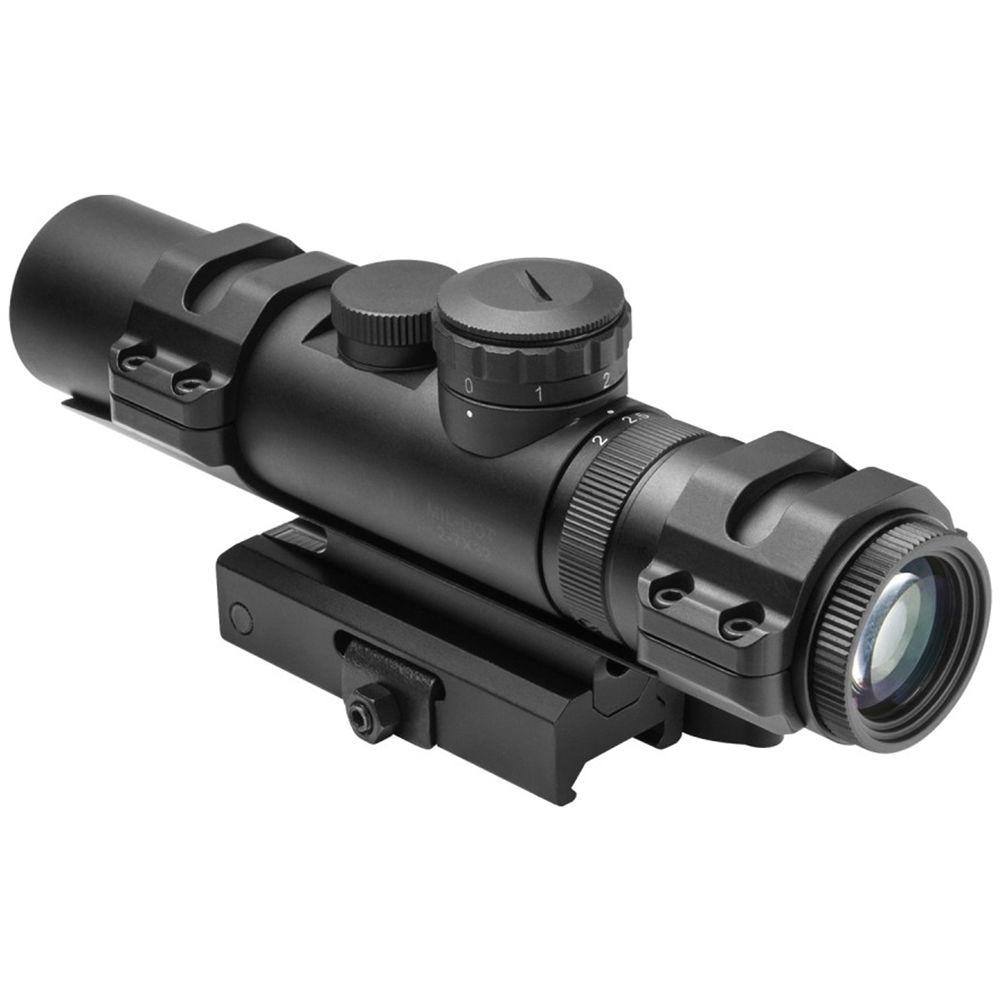

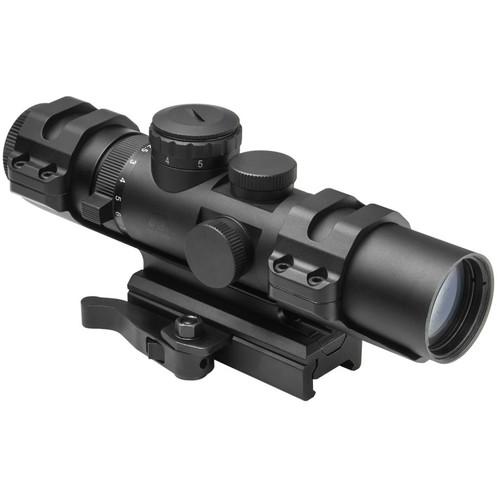

User Manual for NcSTAR 2-7x32 XRS Series Compact Riflescope Click to enlarge the picture
Contents of the user manual for the NcSTAR 2-7x32 XRS Series Compact Riflescope
- Product category: Riflescopes NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Riflescopes
 |
User manual for the NcSTAR 2-7x32 XRS Series Compact Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

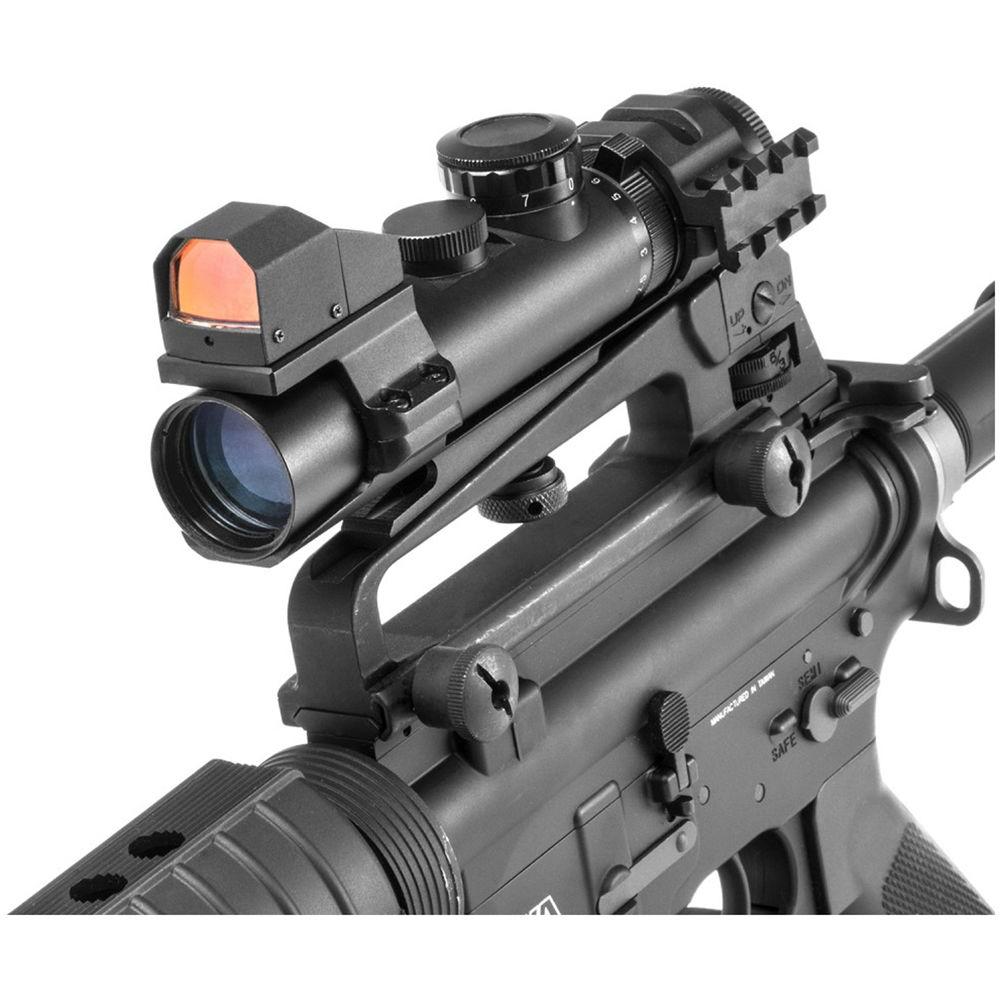

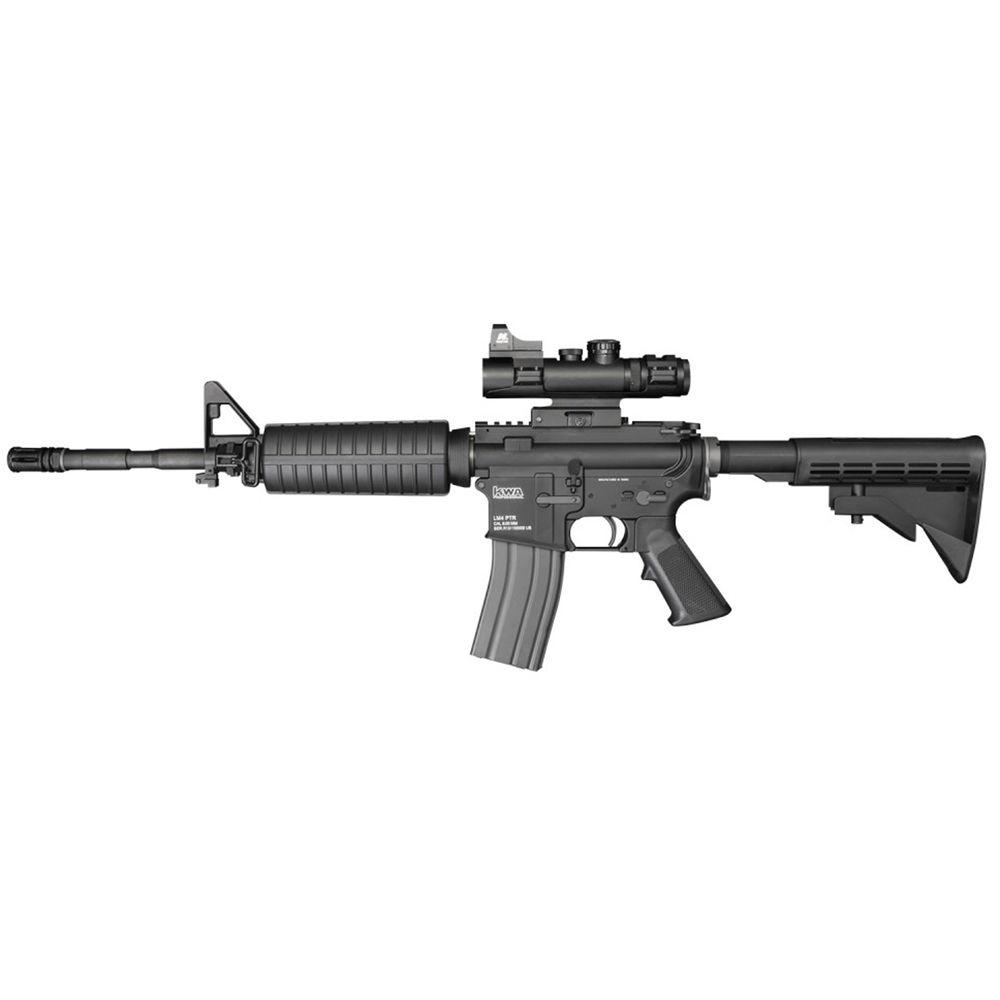

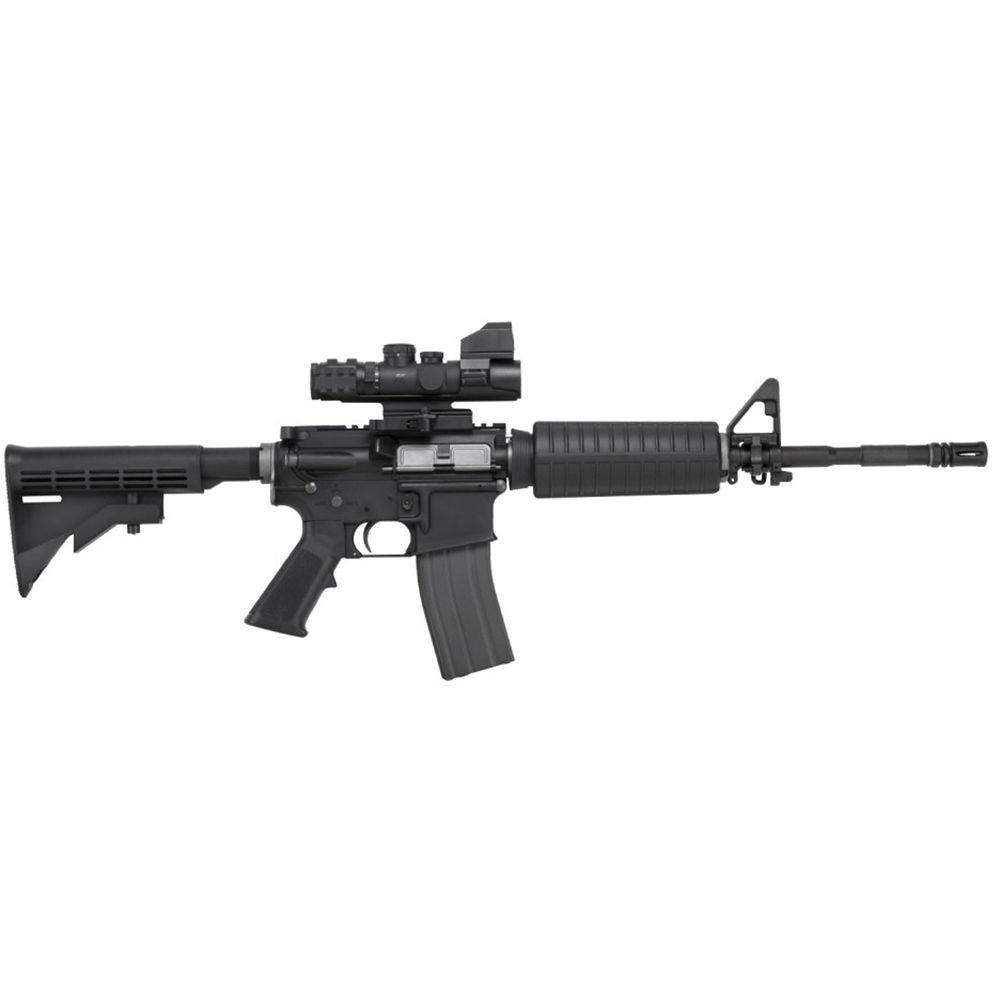

Product description Optimized for AR platform rifles, the 2-7x32 XRS Series Compact Riflescope from NcSTAR features a blue, illuminated Mil-Dot reticle and a 2-7x magnification range to cover the situations you'll encounter in the field. The XRS comes with four upper rings for mounting a reflex sight, light, or accessory on the scope, and a quick-release Picatinny/Weaver mount for easy attachment and removal. The mount can be converted to attach to an AR platform rifle's carry handle, and its see-through base allows use of the rifle's iron sight when mounted this way. - Optical Performance
-
- 2-7x magnification
- 32mm objective lens
- Field of view: 38.3-12.6' at 100 yards
- 2.9" eye relief
- 12.3-4.1mm exit pupil
- Reticle
-
- Blue illuminated Mil-Dot reticle
- Seven brightness settings
- Use and Handling
-
- 1/2" MOA at 100 yards impact point correction
- Aluminum Weaver scope rings
- Construction Details
-
- 34mm maintube diameter
- Aluminum construction with powder-coated finish
- Two lightweight upper rings for mounting accessories
- One upper ring for NcSTAR Micro Dot sights
- One upper ring with two side mounts for light or laser
- Centerline is 1.5" above rail, suitable for AR platform rifles
- Auto-locking quick-release Picatinny/Weaver mount
- Mount can be converted to attach to AR carry handle
UPC: 848754001405 In the Box NcSTAR 2-7x32 XRS Series Compact Riflescope 2 x Lightweight Upper Rings NcSTAR Micro Dot Upper Ring Upper Ring with Dual Side Mounts 2 x CR-2032 Batteries Bikini Lens Cover Set of Mounting Tools Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 2-7x32 XRS Series Compact Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNcSTAR SECXRSM2732G Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 32 mm | | Field of View | 2x: 38.3' @ 100 yd / 12.7 m @ 100 m
7x: 12.6' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 2x: 12.3 mm
7x: 4.1 mm | | Eye Relief | 2.9" / 7.4 cm | | | | Reticle Type | Mil-Dot Reticle | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (7 Levels) | | | | Impact Point Correction | 1/2 MOA per Click | | | | Maintube Diameter | 34 mm | | Battery | Reticle: 1 x CR2032 | | Dimensions | Length: 7.1" / 18 cm | | Weight | 17.2 oz / 487.6 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to NcSTAR 2-7x32 XRS Series Compact Riflescope
| Subject: ncstar, scope, 2-7, mil dot | | Date: 14.11.2025 19:44:13 | Name: richard ranz | i wear glasses, and when looking thru the scope, the image is very blurry, is there a way to clear up the image ? i tried the rear scope ring, but it did not clear up the focus problem.
thanks for your help
rr | | Post reply |
