User Manual for NcSTAR 3.5x32 CPO Riflescope with Micro Red Dot Sight Click to enlarge the picture
Contents of the user manual for the NcSTAR 3.5x32 CPO Riflescope with Micro
- Product category: Riflescopes NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Riflescopes
 |
User manual for the NcSTAR 3.5x32 CPO Riflescope with Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

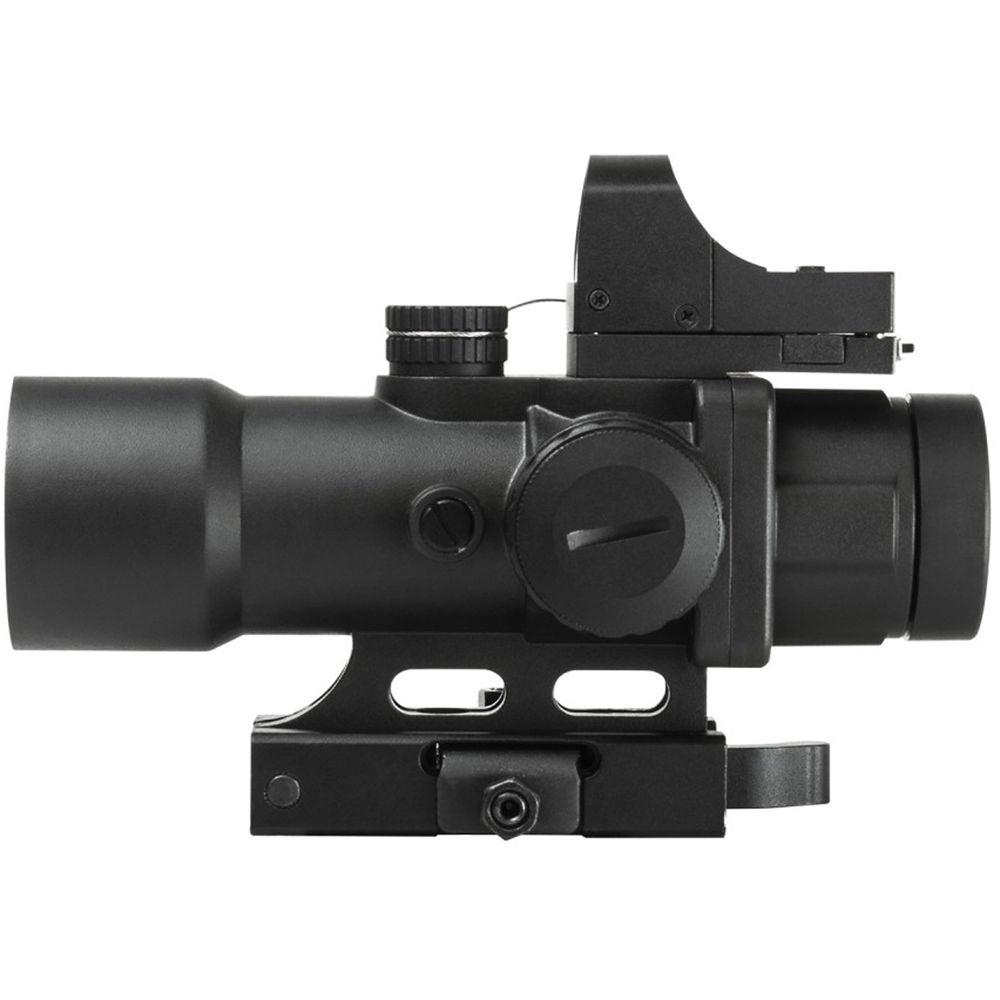

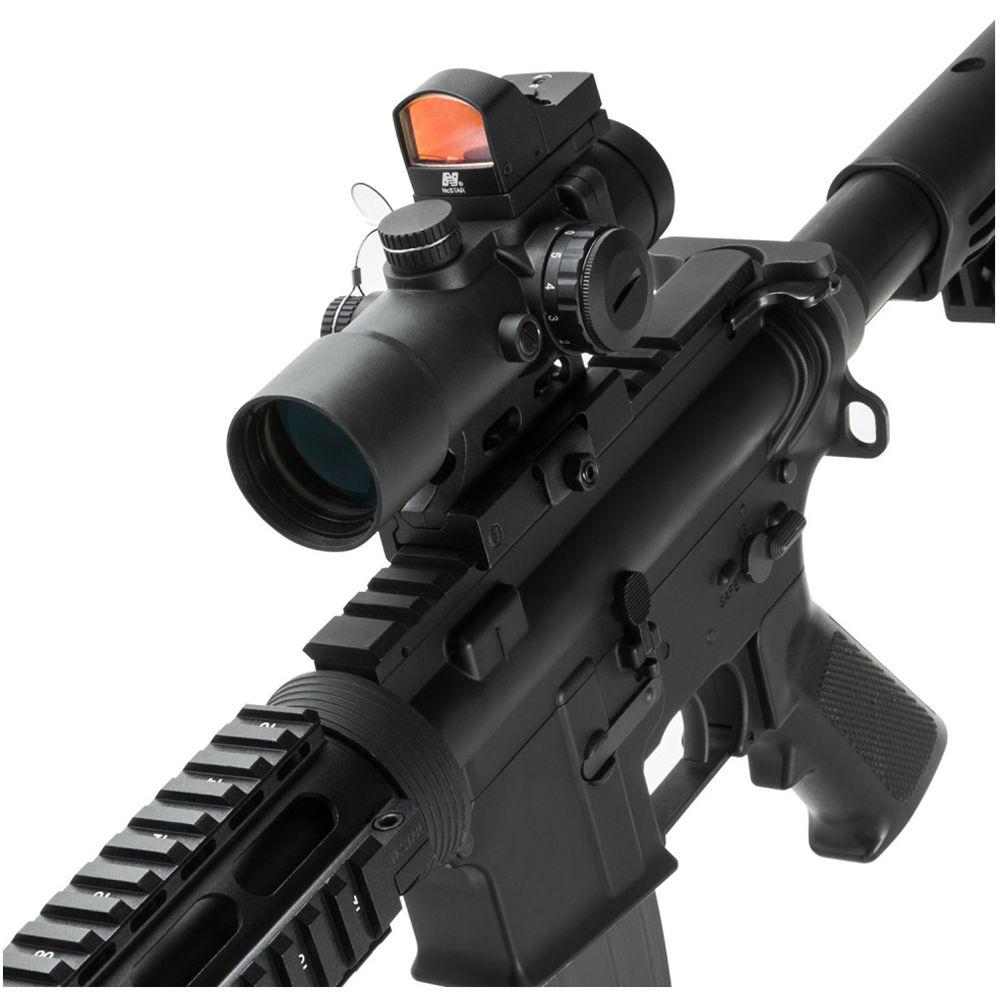

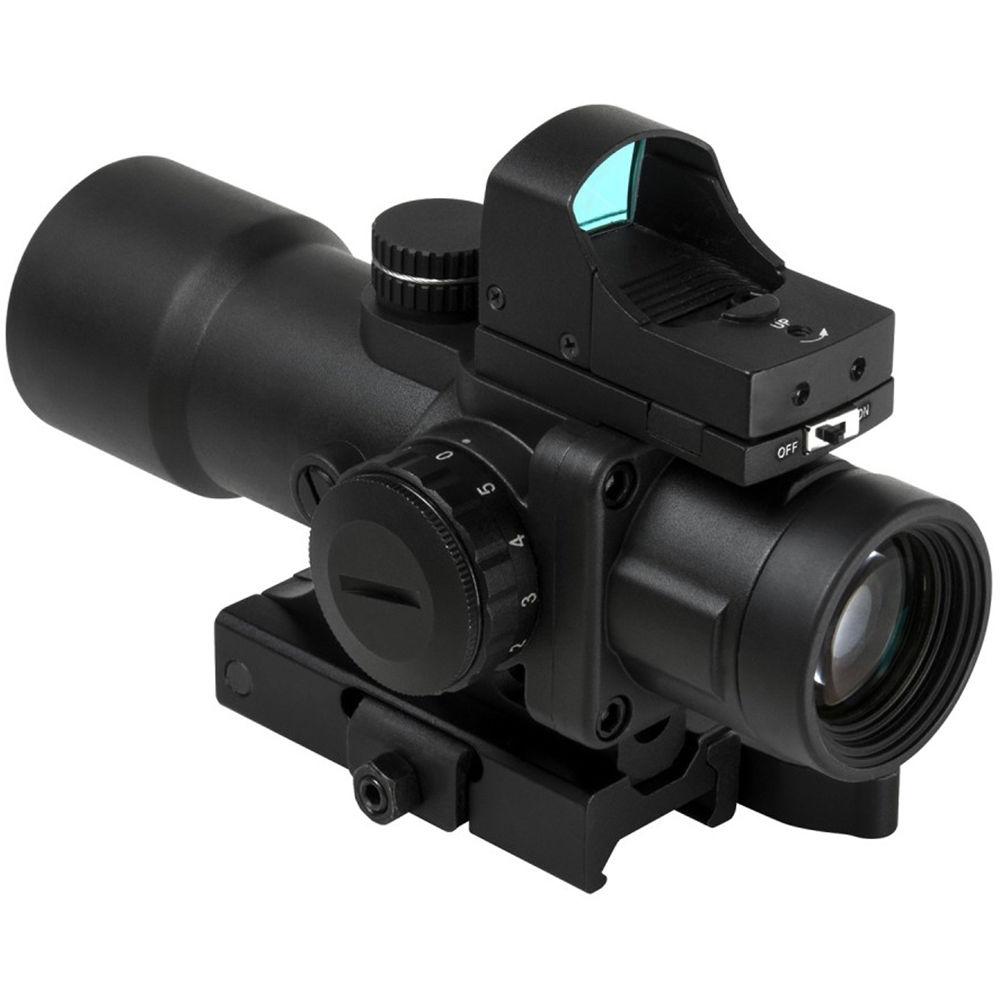

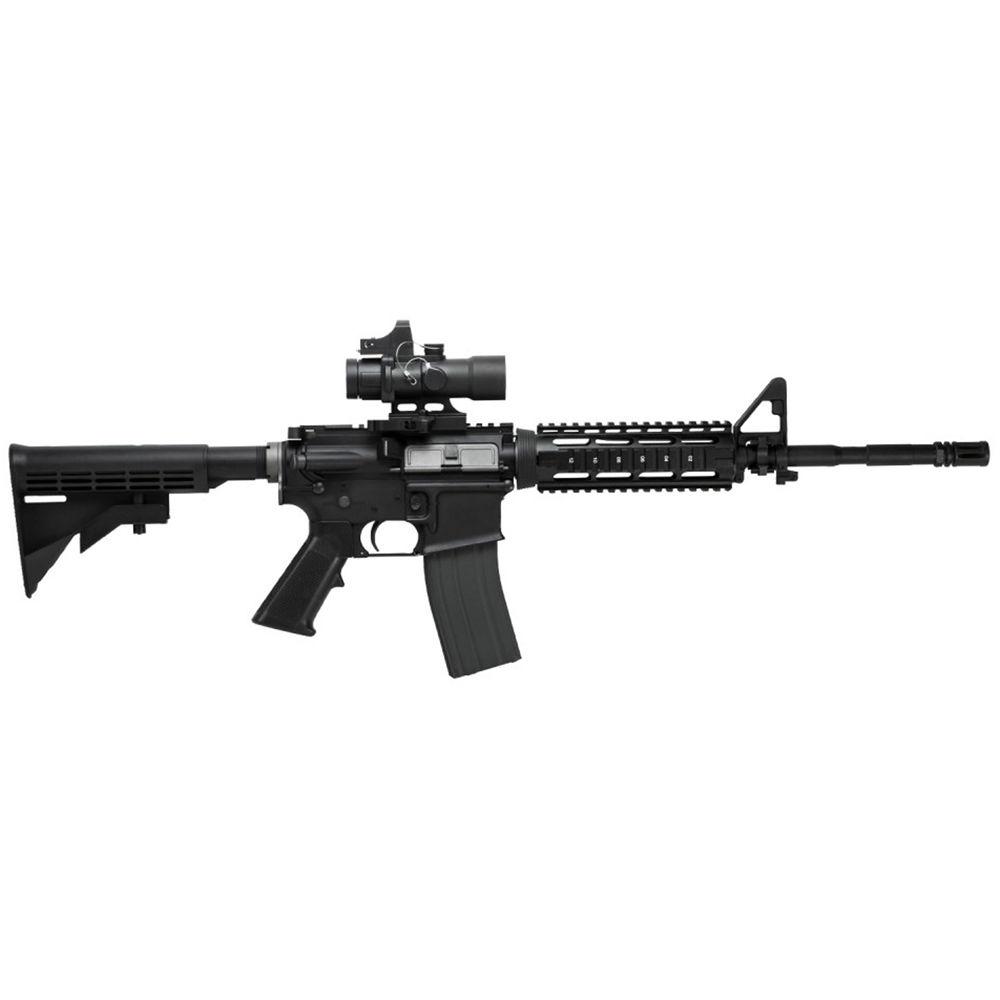

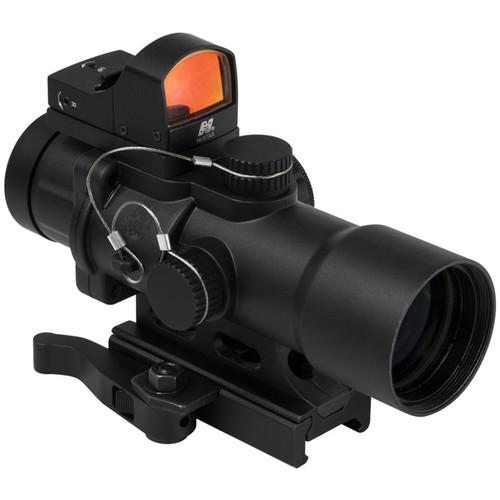

Product description Acquire targets quickly with the 3.5x32 CPO Riflescope with Micro Red Dot Sight from NcSTAR. Featuring a blue or green illuminated Urban Tactical reticle, this compact scope attaches to Picatinny or Weaver rails with an auto-locking quick release mount, and it can also be attached directly to an AR platform carry handle by removing the mount and using the supplied thumb screw. Its 3.5x magnification provides a good look at close- to moderate-range targets, and the 32mm objective lens gathers ample light for a bright, sharp image. The NcSTAR Micro Dot reflex sight facilitates both-eyes-open targeting with maximum situational awareness. It features a 2-MOA red dot and a ruby-colored lens coating. - Optical Performance
-
- Scope: 3.5x magnification
- 32mm objective lens
- Field of view: 31.5' at 100 yards
- Sight: 1x magnification
- 23.5 x 16.8mm objective lens
- 2-MOA red dot sight
- Ruby-colored sight lens coating
- Reticle
-
- Blue or green illuminated etched glass Urban Tactical reticle
- Five brightness settings
- Use and Handling
-
- 1/4 MOA at 100 yards impact point correction
- Elevation and windage turrets with tethered caps
- Auto-locking quick release mount for Picatinny/Weaver rail
- Construction Details
-
- Cast aluminum housing
- Water, fog, and shockproof
- Scope and sight each run on one CR2032 battery (included)
UPC: 848754004116 In the Box NcSTAR 3.5x32 CPO Riflescope with Micro Red Dot Sight (Blue/Green Illuminated Urban Tactical Reticle) Thumb Screw for Carry Handle Mount Sight Mounting & Adjustment Tool Set Micro Dot Sight Lens Cover Set Black Rubber Bikini Lens Covers CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 3.5x32 CPO Riflescope with Micro Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNcSTAR SEECPRQ3532GD-A Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 32 mm | | Field of View | 31.5' @ 100 yd / 10.5 m @ 100 m | | Exit Pupil Diameter | 8.9 mm | | Eye Relief | 2" / 5.1 cm | | | | Reticle Type | Urban Tactical Reticle | | Illumination | Illuminated | | Illuminated Color | Blue, Green | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | Reticle: 1 x CR2032 | | Dimensions | Length: 5.3" / 13.5 cm | | Weight | 12.2 oz / 345.9 g |
