User Manual for NcSTAR 3-9x42 Compact Riflescope with AR Carry Handle Mount Click to enlarge the picture
Contents of the user manual for the NcSTAR 3-9x42 Compact Riflescope with AR
- Product category: Riflescopes NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Riflescopes
 |
User manual for the NcSTAR 3-9x42 Compact Riflescope with AR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

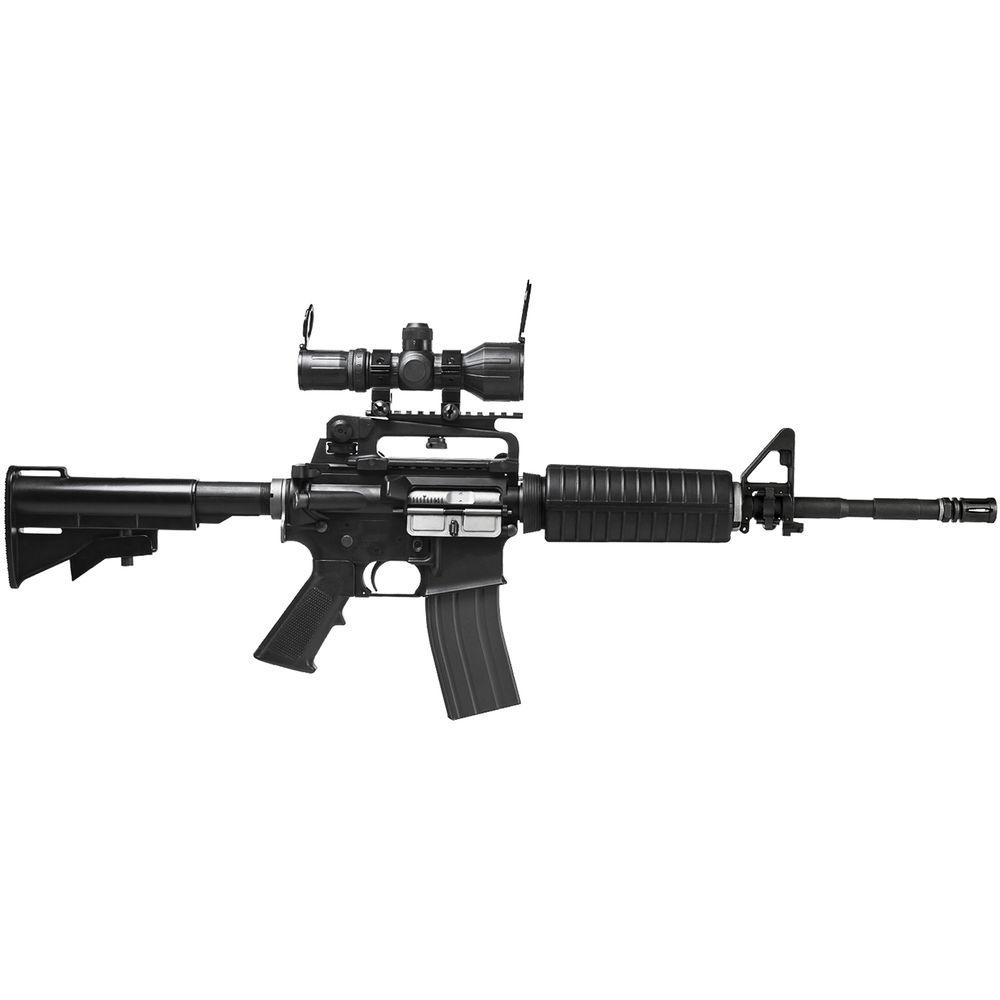

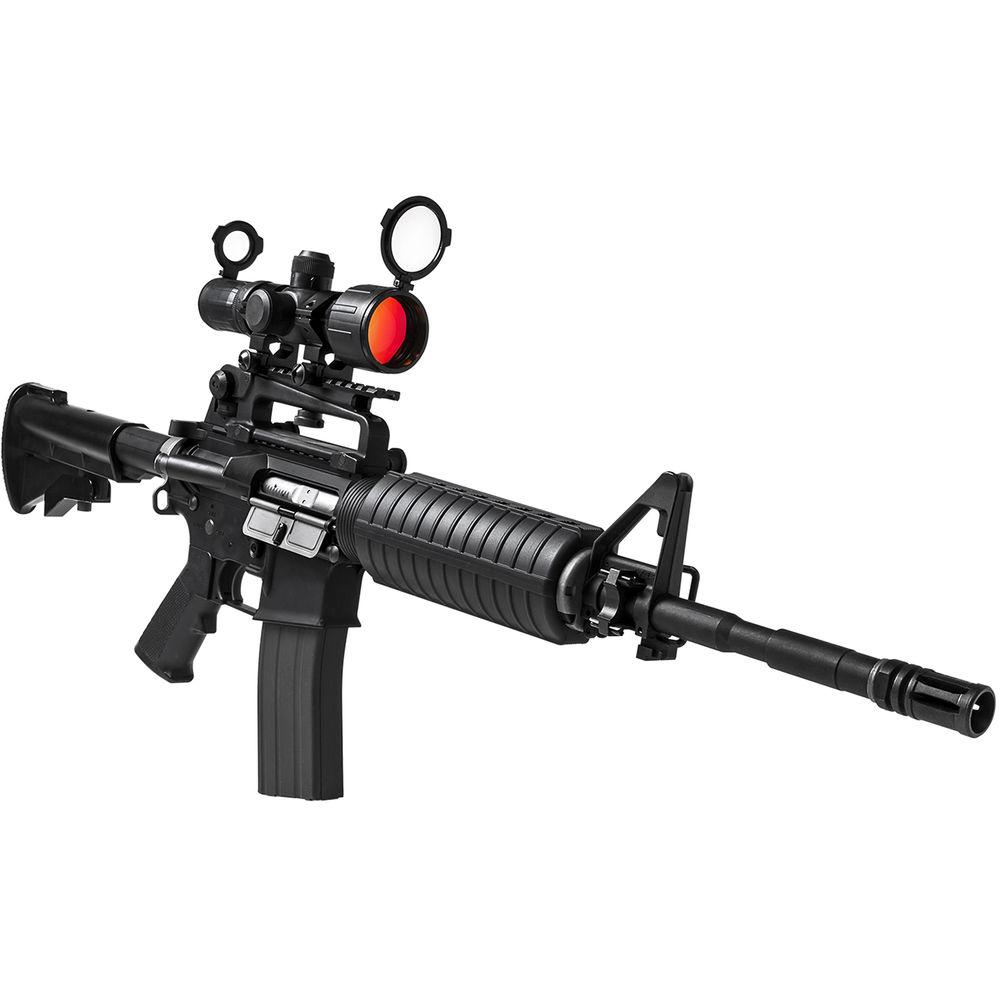

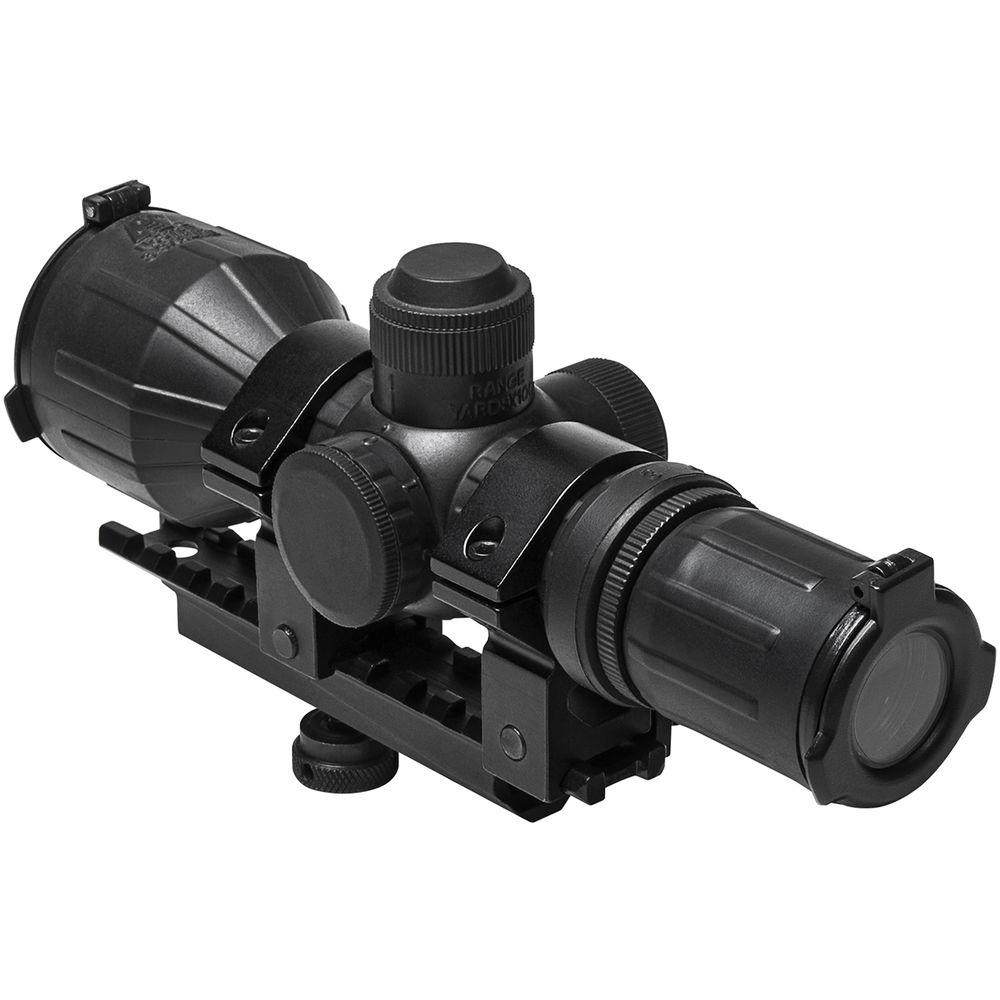

Product description No tools are required to attach the 3-9x42 Compact Riflescope with AR Carry Handle Mount to your AR-platform rifle—simply tighten the thumbscrew and use the optic for precise targeting. The scope features an illuminated P4 Sniper reticle and a 55 grain, .223 caliber ammo bullet-drop compensator along with standard elevation and windage turrets. It comes with a battery and rings. - 3-9x42 Rubber-Armored Compact Riflescope (Red/Green Illuminated P4 Sniper Reticle) Equipped with a red or green illuminated P4 Sniper reticle and protected by rubber armoring and flip-up lens covers, the 3-9x42 Rubber-Armored Compact Riflescope from NcSTAR is engineered for precision and durability. Along with capped, finger-operated 1/2 MOA per click windage and elevation turrets, the scope features a bullet drop compensator for quick impact point correction for 55 grain, .223 caliber ammo. Its 3-9x magnification range supports mid- to long-range shots, and the 42mm, ruby-coated objective lens admits ample light for a sharp image even at dawn and dusk. The scope comes with aluminum Weaver rail rings and one CR2032 battery.
- Optical Performance
-
- 3-9x magnification
- 42mm objective lens
- Multi-coated optics
- Field of view: 37.7-12.5' at 100 yards
- 3" eye relief
- 14-4.7mm exit pupil
- Reticle
-
- Red or green illuminated P4 Sniper reticle
- Seven brightness settings
- Use and Handling
-
- Bullet drop compensator for 55 grain, .223 caliber ammunition
- 1/2 MOA at 100 yards impact point correction
- Capped elevation and windage dials
- Construction Details
-
- Rubber-armored aluminum maintube, 30mm diameter
- Flip-up lens covers
- Aluminum Weaver rail rings
- Runs on one included CR2032 battery
UPC: 814108010638 5" AR-15 Carry Handle Adapter Quickly and easily mount your favorite Picatinny/Weaver mount accessory onto your AR carry handle with the NcSTAR 5" AR-15 Carry Handle Adapter. It installs without tools and gives you 5" of rail space for scopes, reflex/dot sights, NVDs, lights, or illuminators. Made of a durable aluminum alloy that is treated with a scratch-resistant low-reflectivity matte black finish, the adapter's design allows you to view down through the centerline and use your iron sights. UPC: 814108011697 In the Box Bundle Items 3-9x42 Rubber-Armored Compact Riflescope (Red/Green Illuminated P4 Sniper Reticle) svbrbdrctzsxtzzxyftceurufybbtfzawyswuz - 2 x Aluminum Mounting Rings
- Limited Lifetime Warranty
5" AR-15 Carry Handle Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 3-9x42 Compact Riflescope with AR Carry Handle Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3-9x42 Rubber-Armored Compact Riflescope (Red/Green Illuminated P4 Sniper Reticle)
| | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 37.7' @ 100 yd / 12.5 m @ 100 m
9x: 12.5' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.7 mm | | Eye Relief | 3" / 7.6 cm | | | | Reticle Type | P4 Sniper Reticle | | Illumination | Illuminated | | Illuminated Color | Green, Red | | Brightness Settings | Adjustable Brightness (7 Levels) | | | | Mounting | Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Maintube Diameter | 30 mm | | Battery | Reticle: 1 x CR2023 | | Dimensions | Length: 7.8" / 19.8 cm | | Weight | 17.3 oz / 490.5 g | - 5" AR-15 Carry Handle Adapter
| Mounting | Picatinny / Weaver | | Material | Aluminum | | Dimensions | L: 5.2" / L: 13.2 cm | | Weight | 2.3 oz / 65.2 g |
