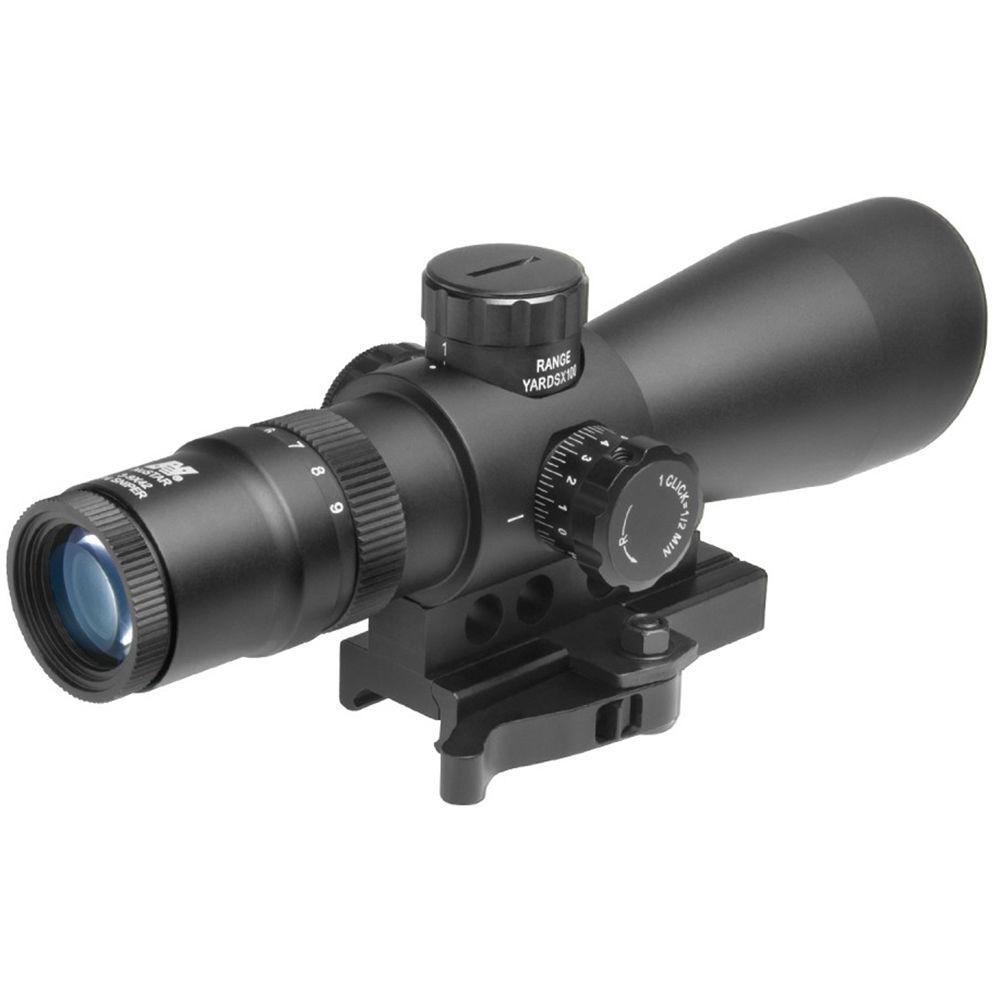

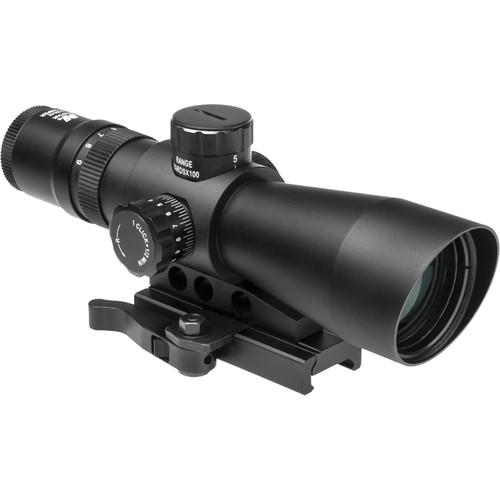

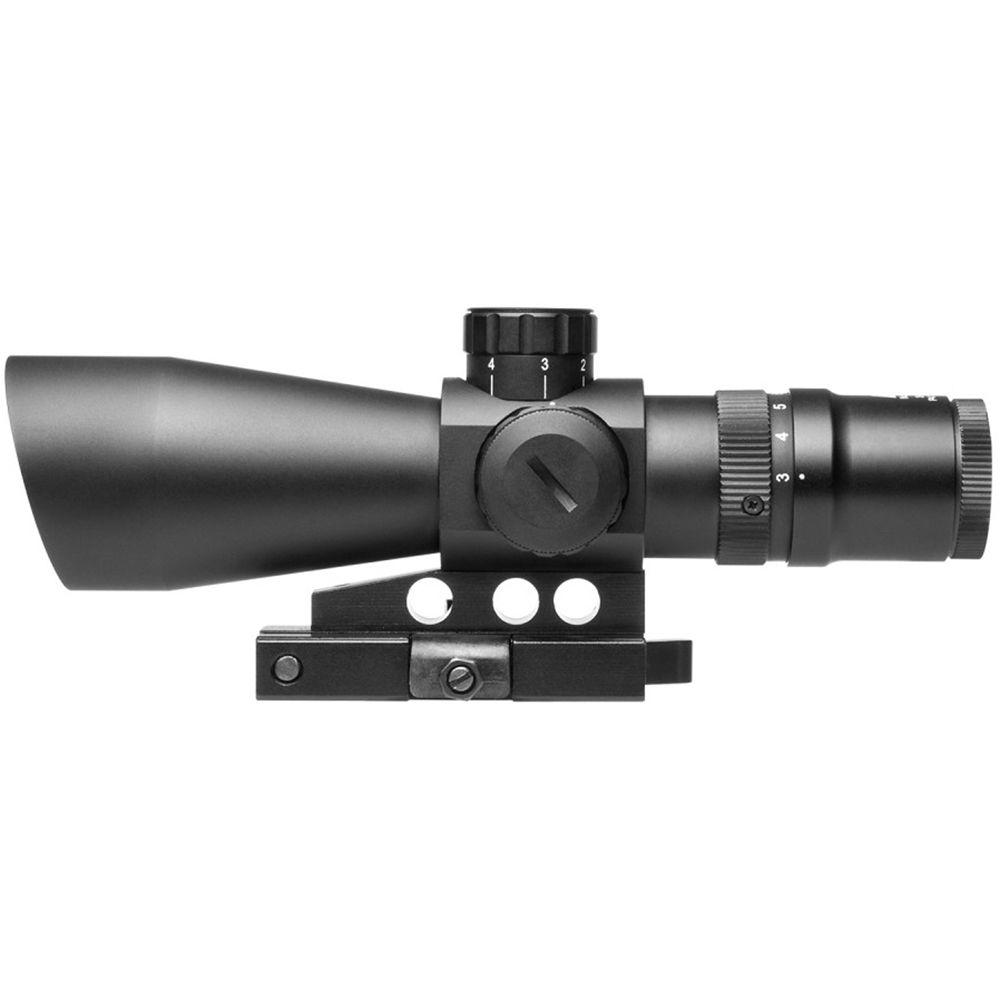

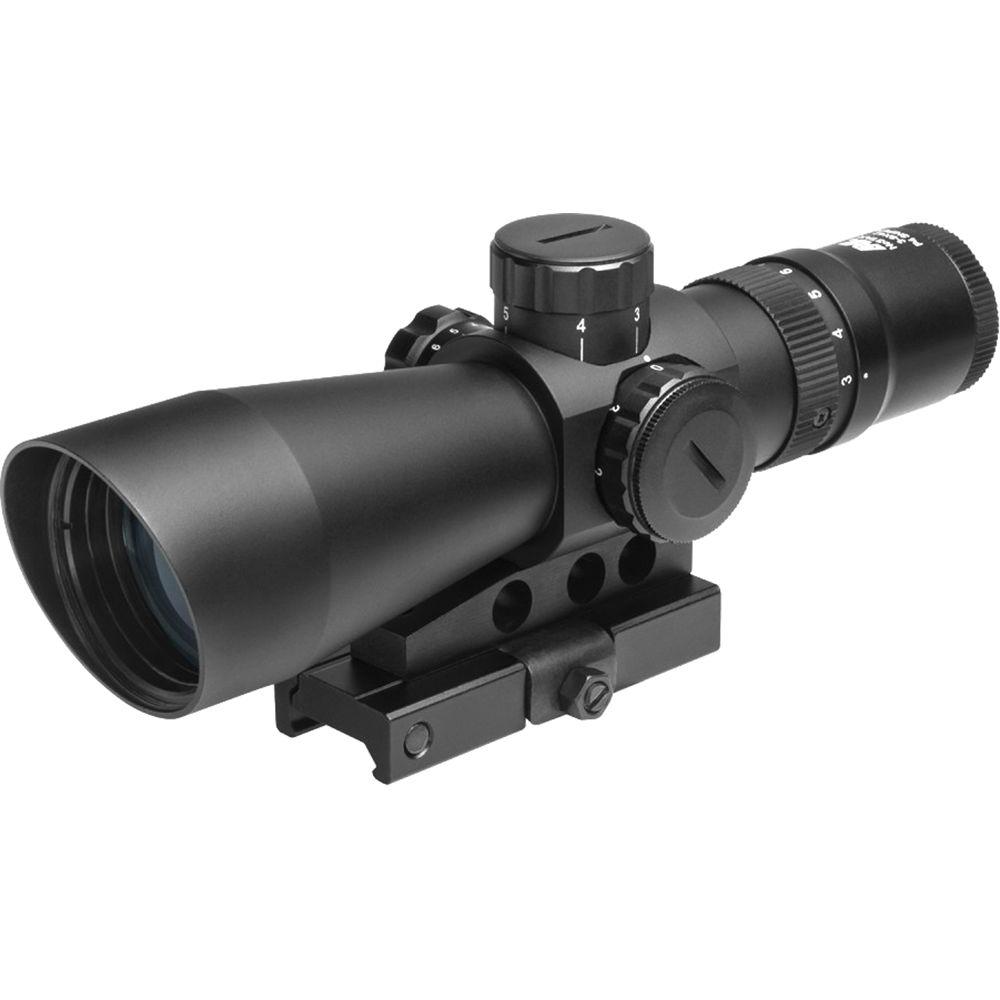

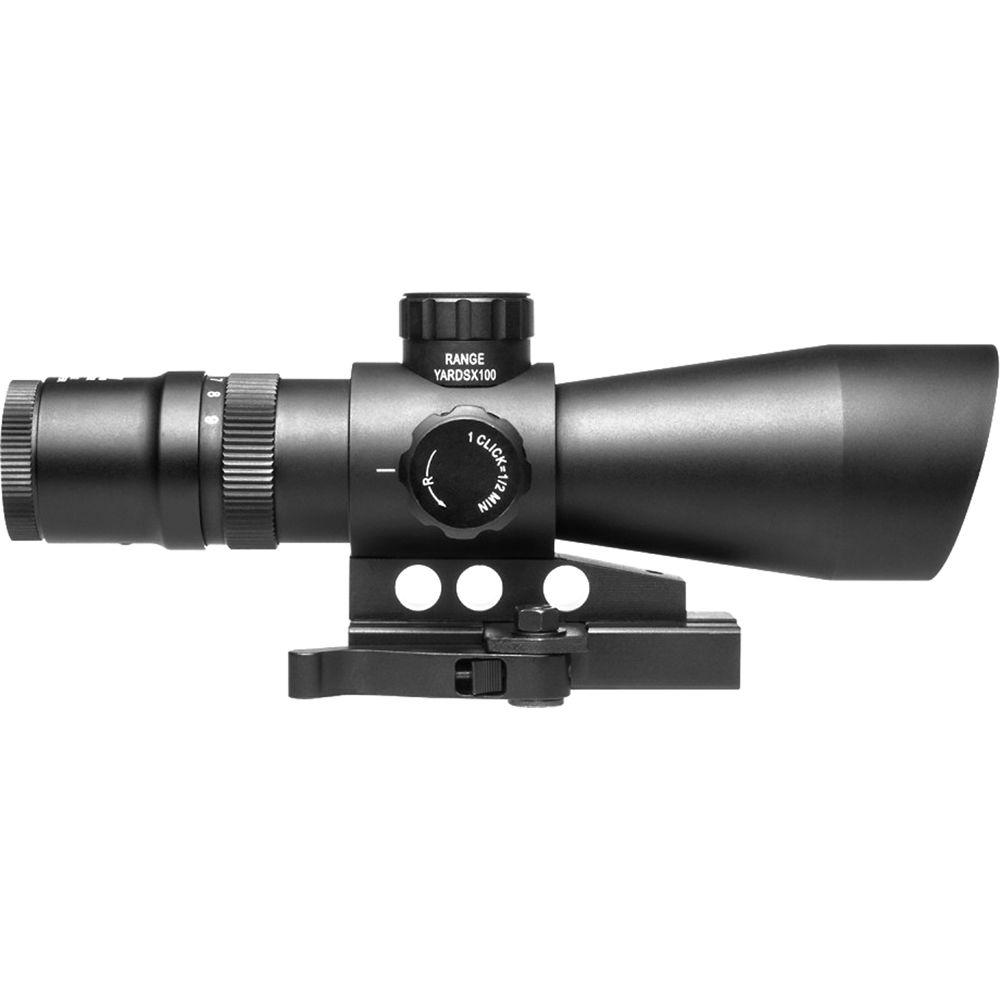

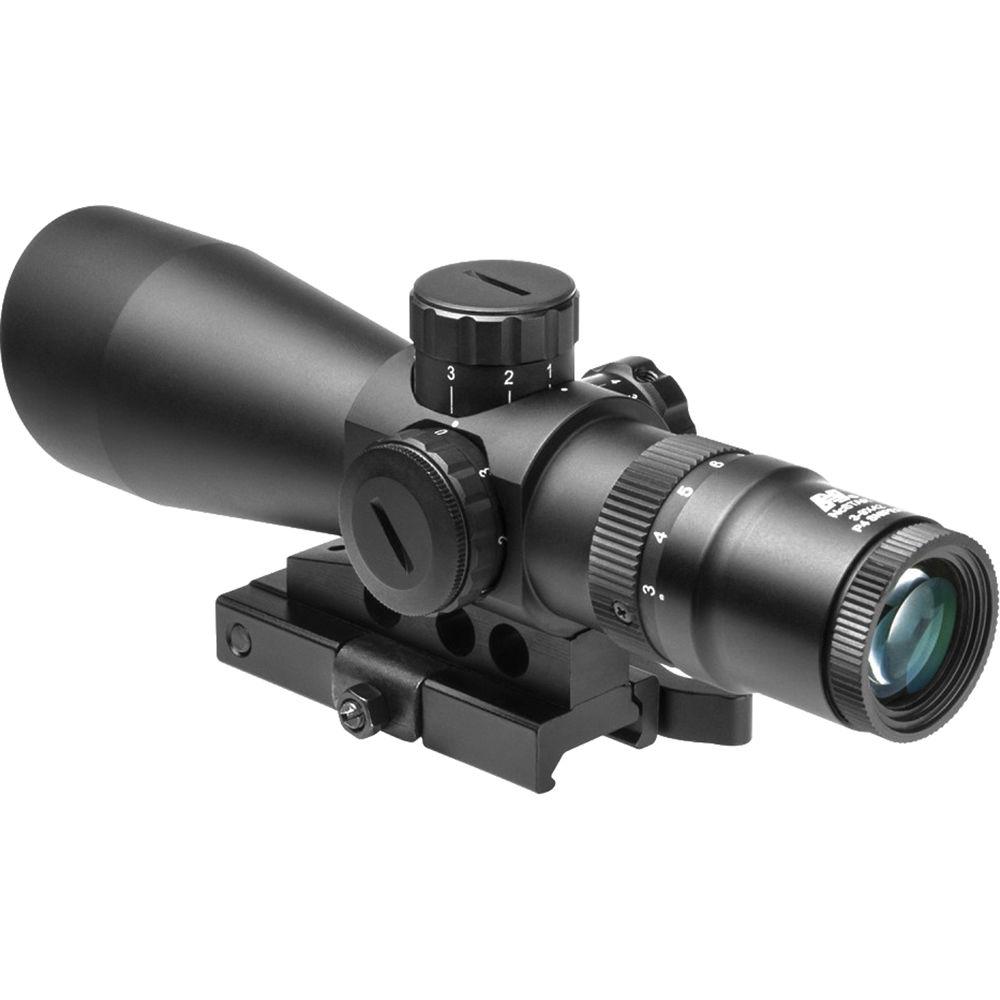

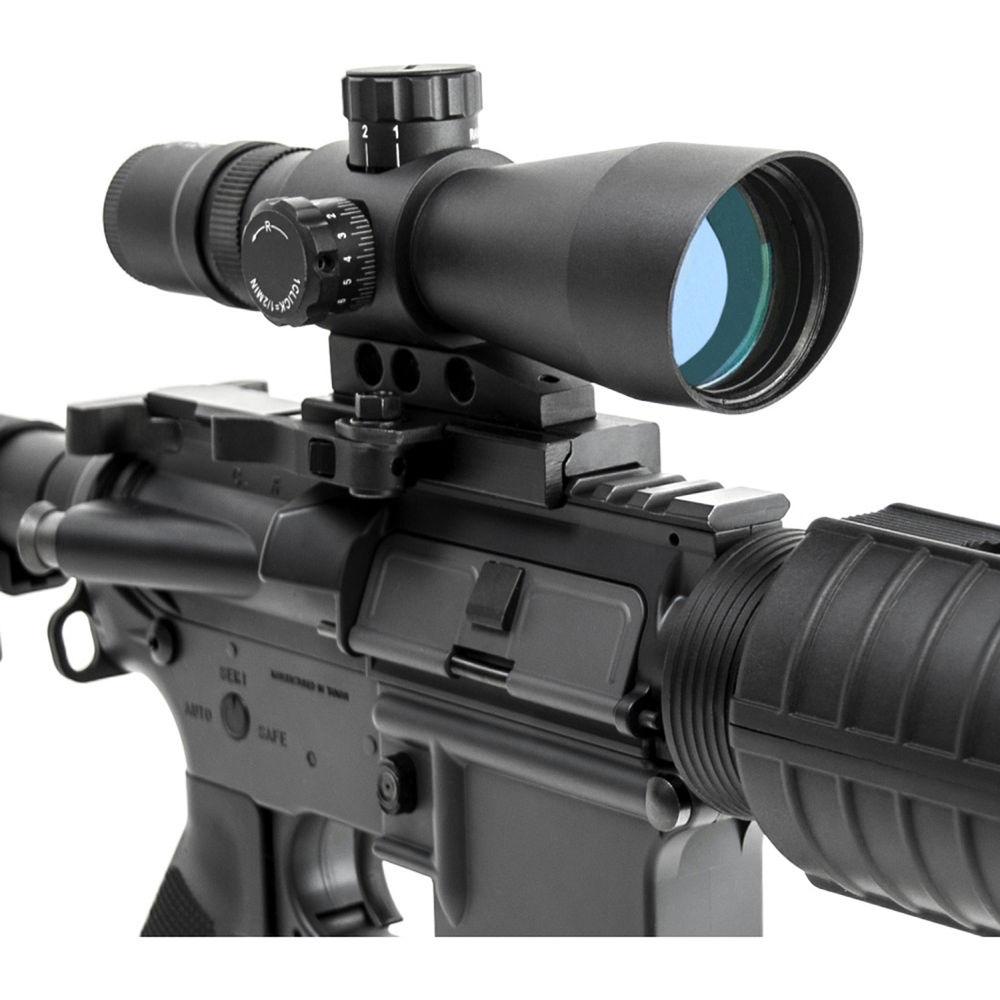

Product description Optimized for AR platform rifle use, the NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope features a bullet drop compensator turret, calibrated for M193 5.56 55g FMJ ammo, that makes impact point correction fast and easy. This hard anodized aluminum scope with fully multi-coated lenses attaches and detaches with a locking quick release mount with recoil lug for Picatinny and Weaver rails. The scope's centerline is set at 1.5" for a comfortable and natural cheek weld on an AR platform.
The scope's 3-9x magnification range is suited to most hunting situations, and the generous 42mm objective lens admits plenty of light for a bright picture, even at dusk and dawn. Along with the BDC turret, which is marked in 100-yard increments, the Mark III Tactical Generation II is equipped with standard elevation and windage dials. The Mil-Dot reticle lights up in green or blue, with three brightness levels; the reticle can also be used in black with the light off. - Optical Performance
-
- 3-9x magnification
- 42mm objective lens
- Fully multi-coated lenses
- Field of view: 36.8-12' at 100 yards
- 2" eye relief
- 14-4.7mm exit pupil
- Reticle
-
- Blue or green illuminated Mil-Dot reticle
- Three brightness settings
- Can be used black with illuminator off
- Use and Handling
-
- Bullet drop compensating turret, calibrated for M193 5.56 55g FMJ ammo
- Standard elevation and windage dials with 1/2" at 100 yards impact point correction
- Locking quick release mount for Picatinny and Weaver rails

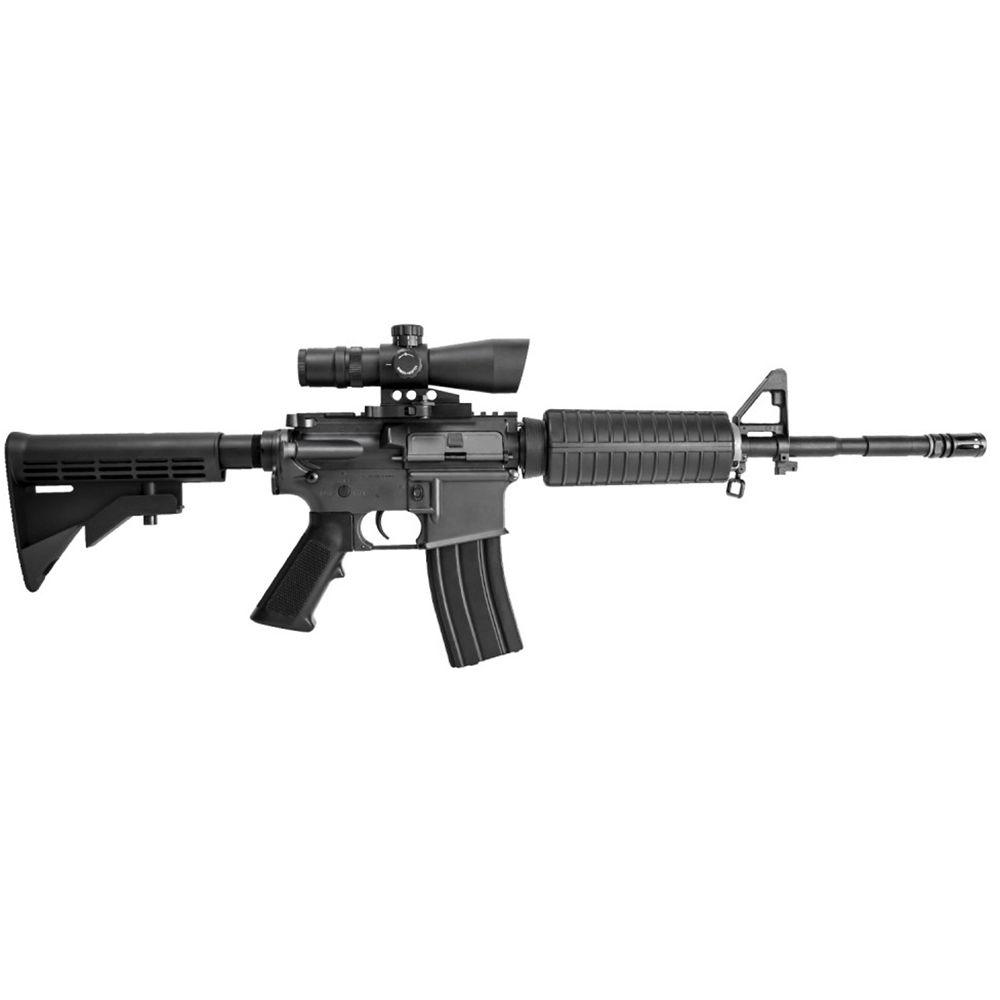

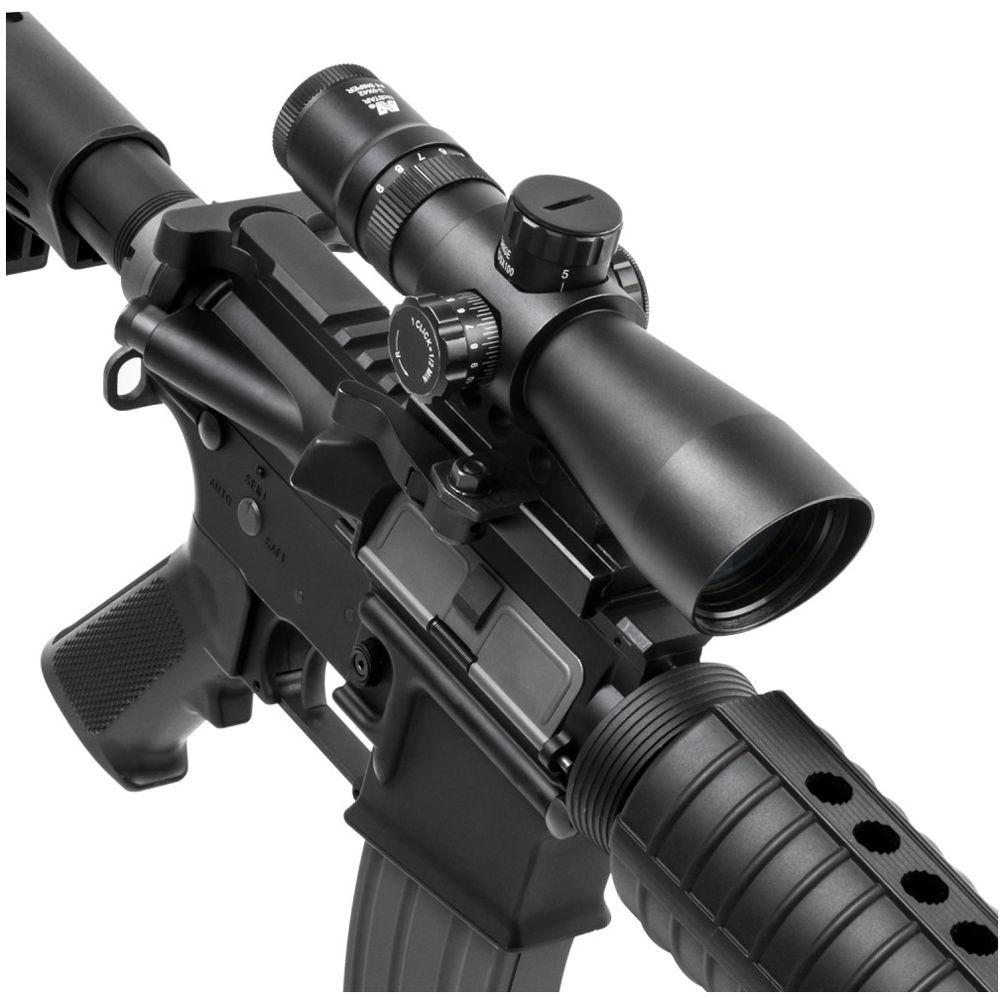

- 1.5" centerline is compatible with AR platform rifles
- Clearance under ocular housing permits use of low-profile rear flip-up iron sights
- BDC turret accommodates optional NcSTAR Micro Dot sight for both-eyes-open target acquisition
- Quick-focus eyepiece
- Construction Details
-
- Hard anodized aluminum construction
- Integrated slant-cut sunshade
- Runs on one CR2032 battery
UPC: 848754000422 In the Box NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope (Blue/Green Illuminated Mil-Dot Reticle) CR2032 Battery Set of Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope can be downloaded in PDF format at the link stated below.
Technical parametersNcSTAR STM3942GV2 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 36.8' @ 100 yd / 12.2 m @ 100 m
9x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.7 mm | | Eye Relief | 2" / 5.1 cm | | | | Reticle Type | Mil-Dot Reticle | | Illumination | Illuminated | | Illuminated Color | Blue, Green | | Brightness Settings | Adjustable Brightness (3 Levels) | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x CR2032 | | Dimensions | Length: 7.5" / 19.1 cm | | Weight | 17.3 oz / 490.5 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope
| Subject: Elevation adjustment on a Ncstar shooting low | | Date: 29.03.2023 21:13:47 | Name: John hanna | My 3-9x42 Ncstar on my ar15 shoots 1inch low at 5 yards. I removed the adapter to lower the scope but getting same results. This my first Ncstar so I’m wondering if maybe something is wrong with it. My other scopes are Nixons on a 30-06 and 308.
Your help would be appreciated.
Thank you | | Post reply |
