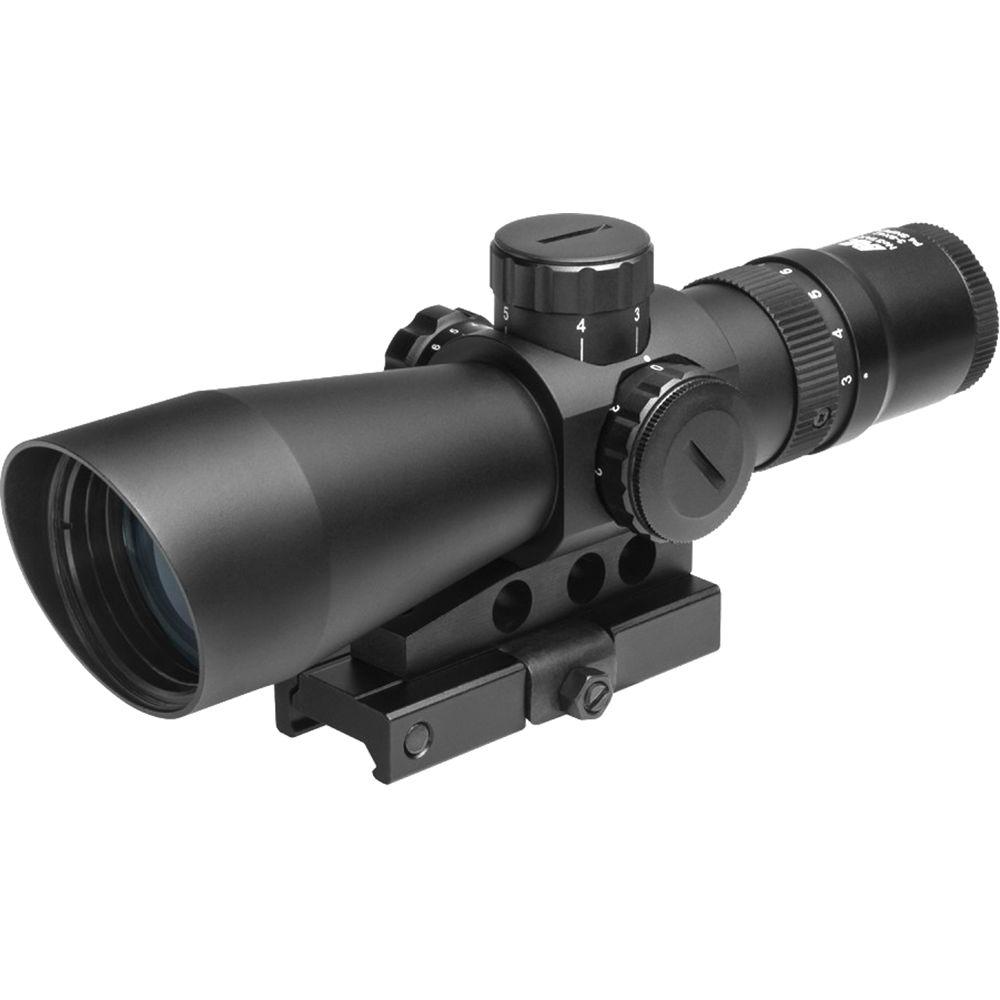

User Manual for NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope Click to enlarge the picture
Contents of the user manual for the NcSTAR 3-9x42 Mark III Tactical Generation
- Product category: Riflescopes NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Riflescopes
 |
User manual for the NcSTAR 3-9x42 Mark III Tactical Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

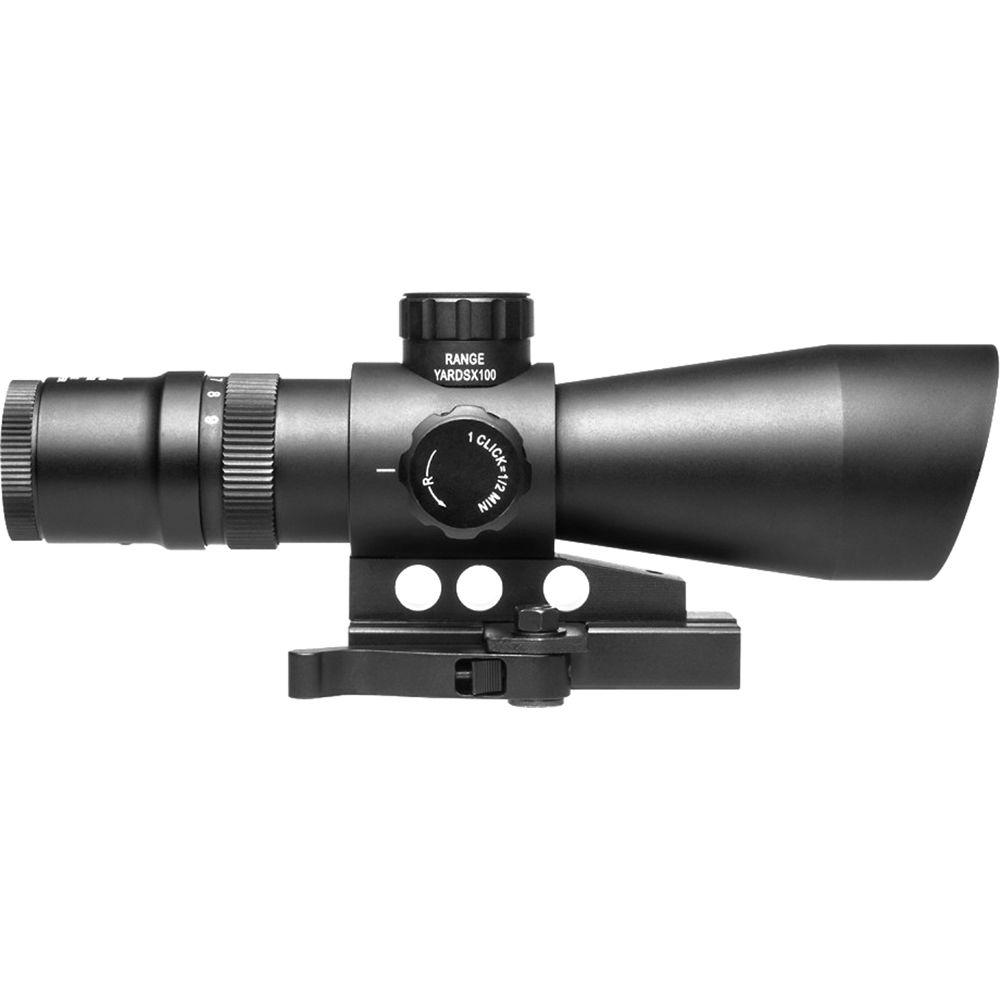

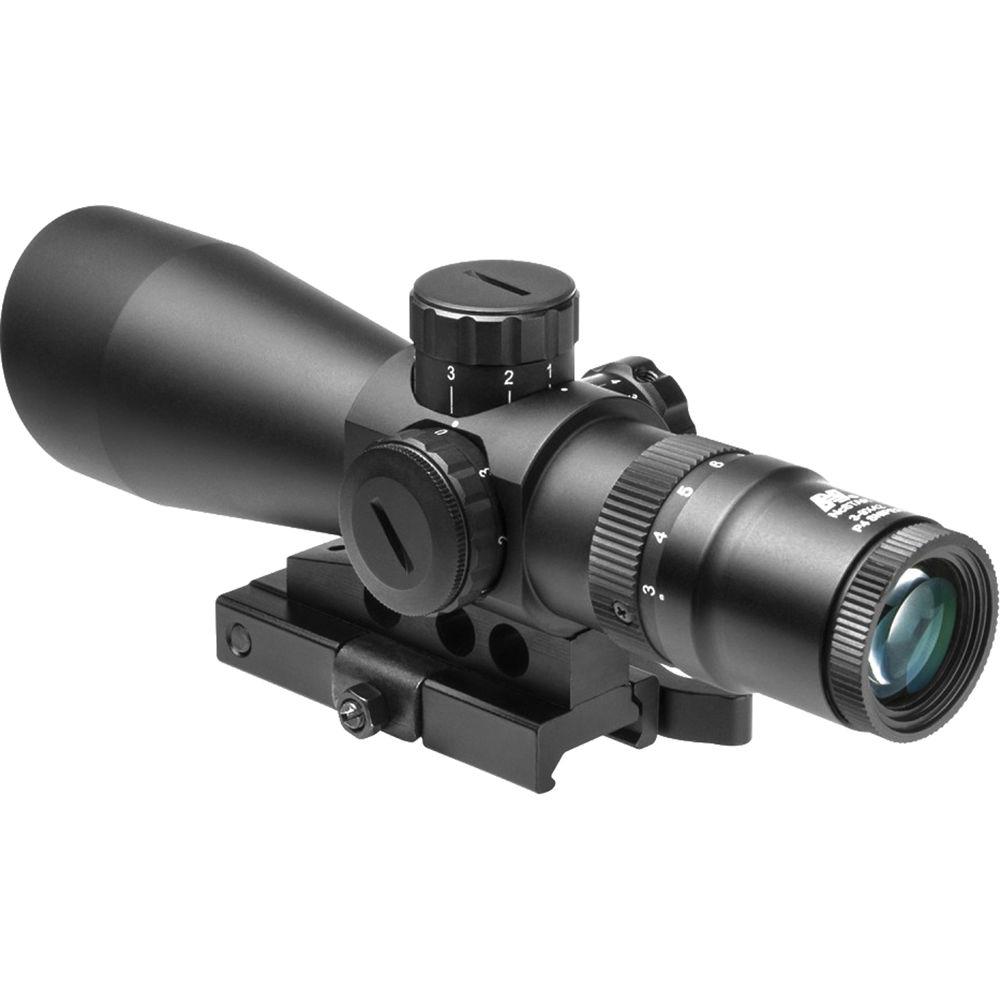

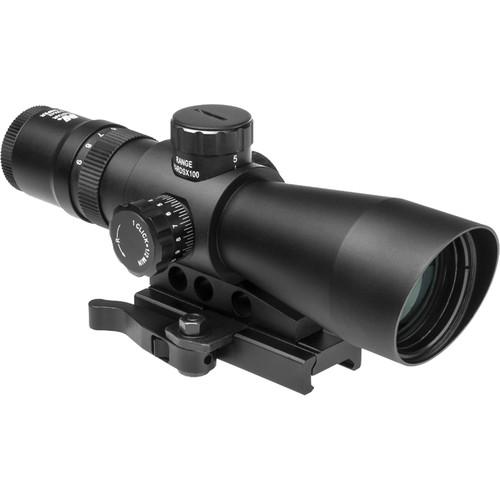

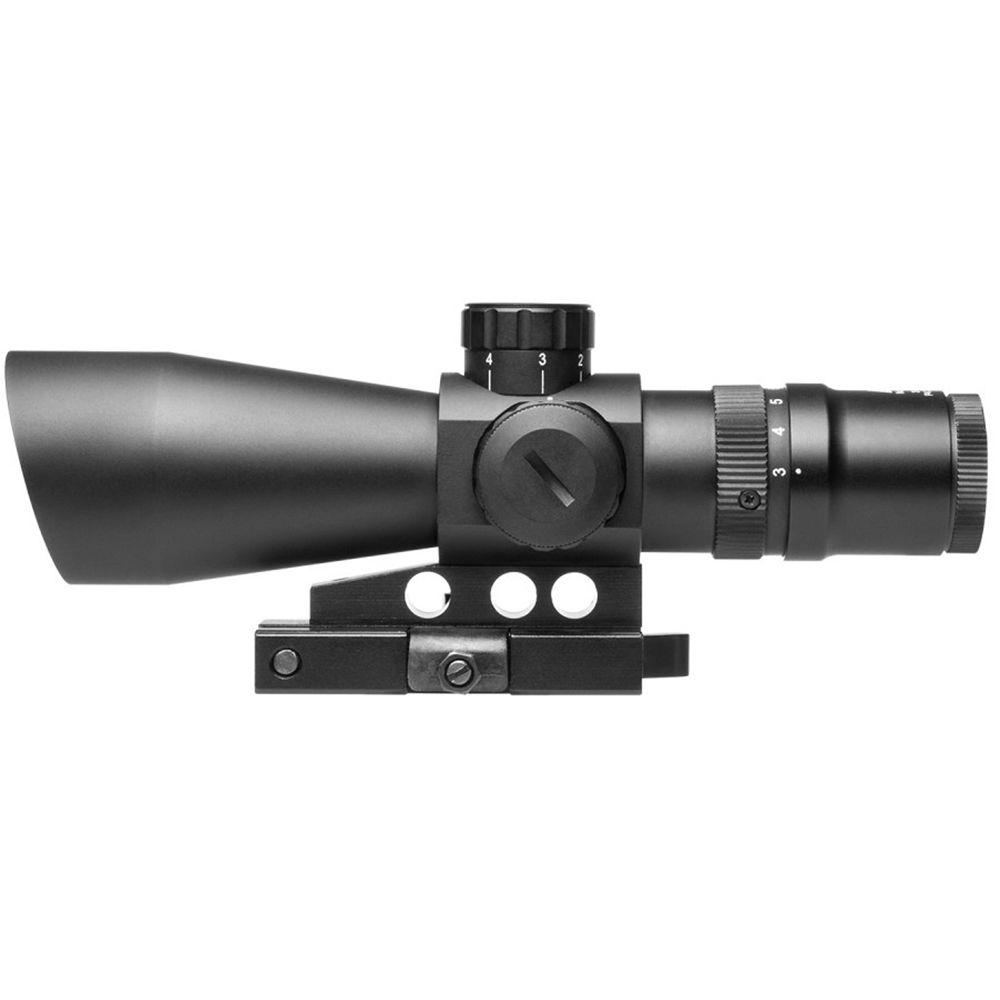

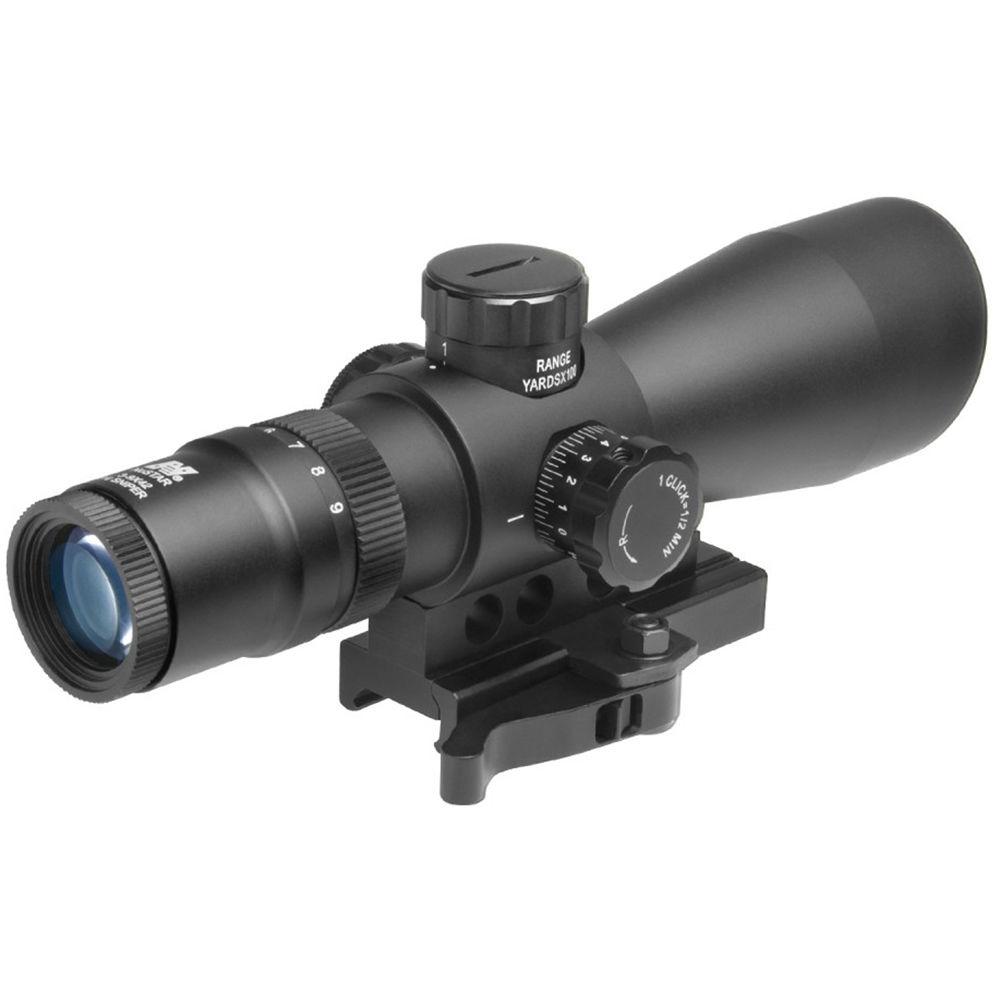

Product description Optimized for AR platform rifle use, the NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope features a bullet drop compensator turret, calibrated for M193 5.56 55g FMJ ammo, that makes impact point correction fast and easy. This hard anodized aluminum scope with fully multi-coated lenses attaches and detaches with a locking quick release mount with recoil lug for Picatinny and Weaver rails. The scope's centerline is set at 1.5" for a comfortable and natural cheek weld on an AR platform.
The scope's 3-9x magnification range is suited to most hunting situations, and the generous 42mm objective lens admits plenty of light for a bright picture, even at dusk and dawn. Along with the BDC turret, which is marked in 100-yard increments, the Mark III Tactical Generation II is equipped with standard elevation and windage dials. The P4 Sniper reticle lights up in green or blue, with three brightness levels; the reticle can also be used in black with the light off. - Optical Performance
-
- 3-9x magnification
- 42mm objective lens
- Fully multi-coated lenses
- Field of view: 36.8-12' at 100 yards
- 2" eye relief
- 14-4.7mm exit pupil
- Reticle
-
- Blue or green illuminated P4 Sniper reticle
- Three brightness settings
- Can be used black with illuminator off
- Use and Handling
-
- Bullet drop compensating turret, calibrated for M193 5.56 55g FMJ ammo
- Standard elevation and windage dials with 1/2" at 100 yards impact point correction
- Locking quick release mount for Picatinny and Weaver rails

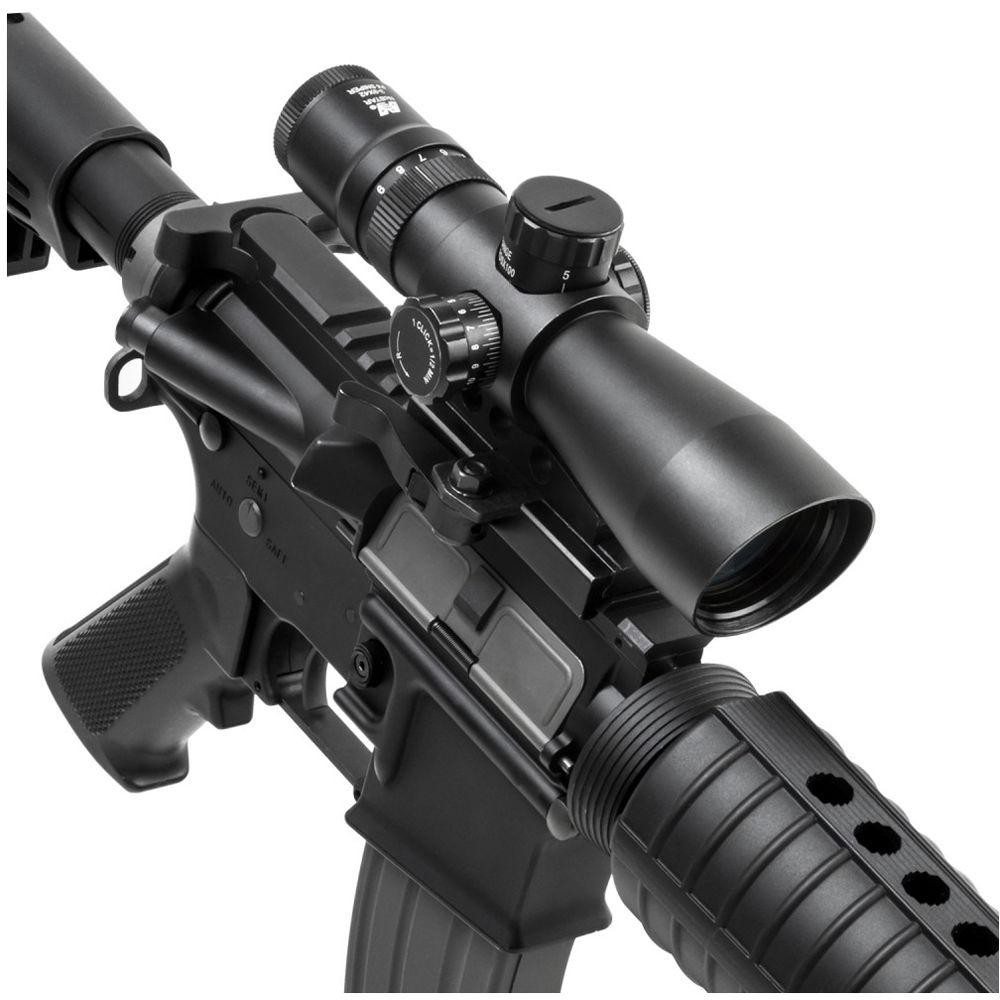

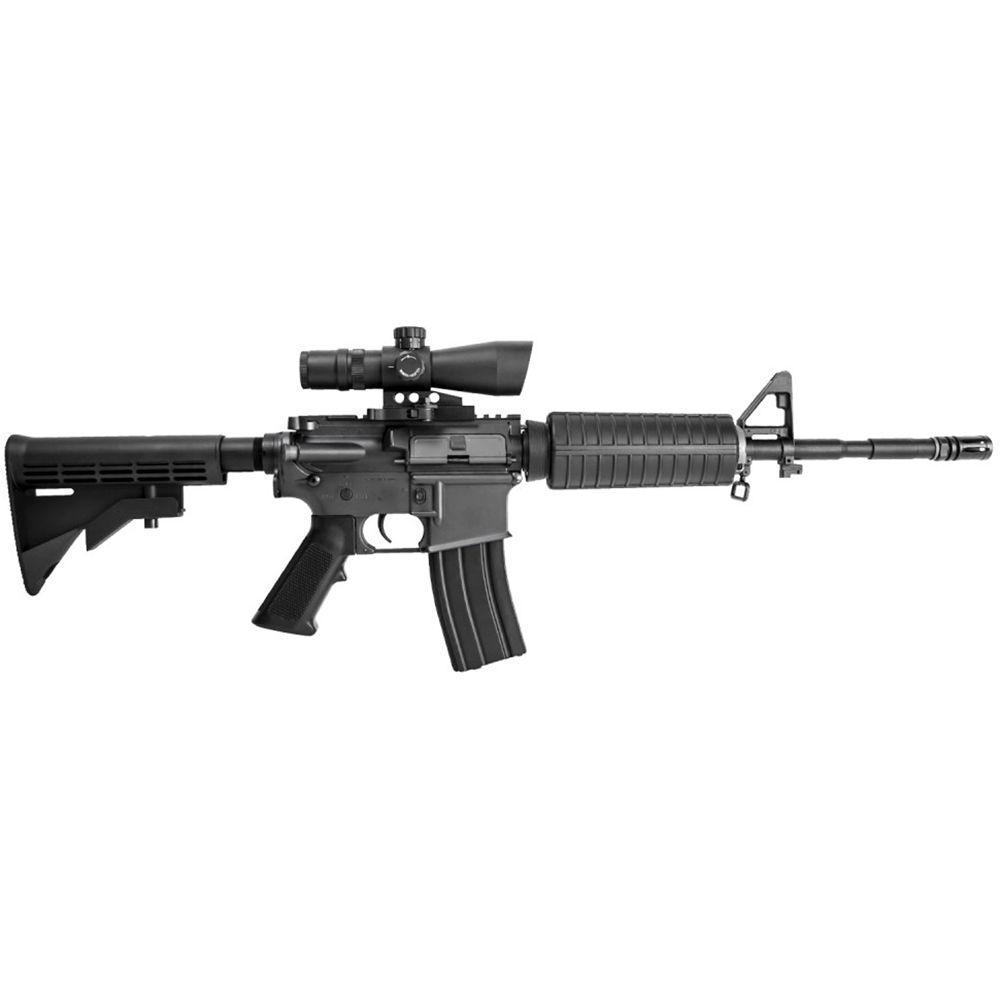

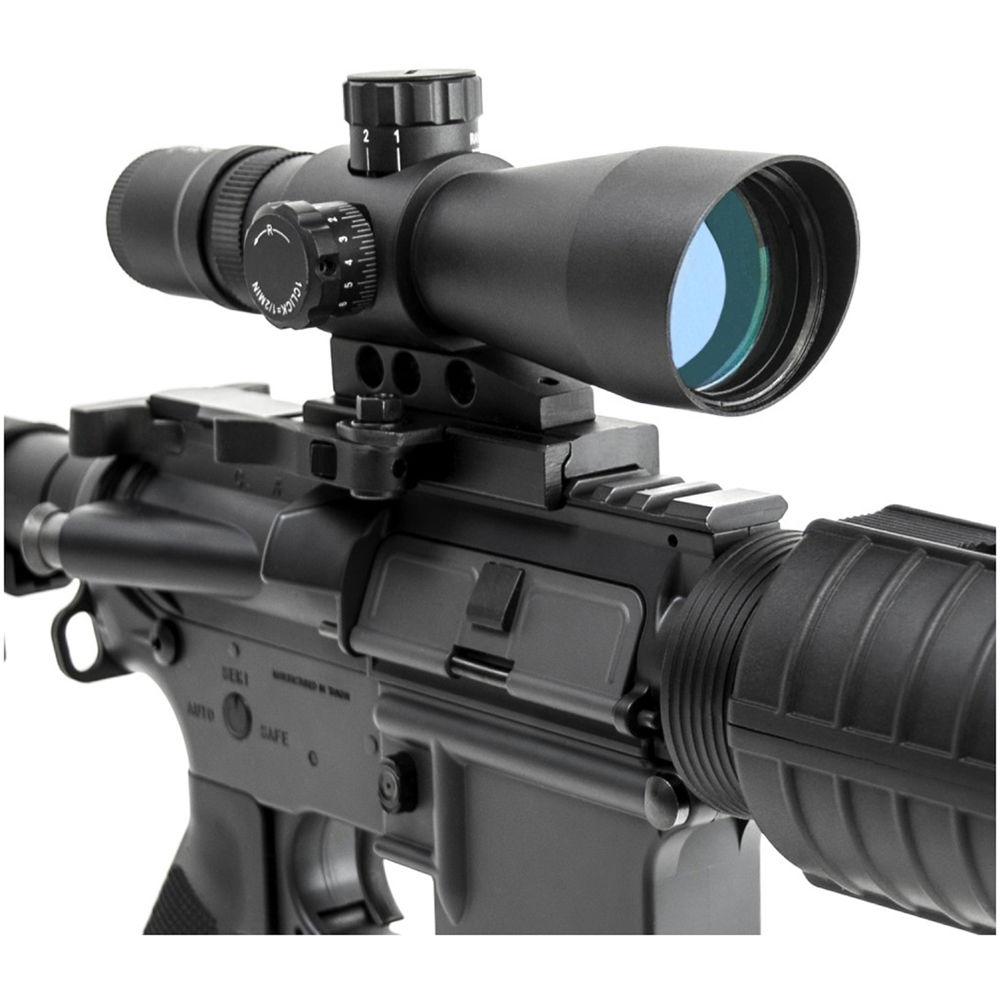

- 1.5" centerline is compatible with AR platform rifles
- Clearance under ocular housing permits use of low-profile rear flip-up iron sights
- BDC turret accommodates optional NcSTAR Micro Dot sight for both-eyes-open target acquisition
- Quick-focus eyepiece
- Construction Details
-
- Hard anodized aluminum construction
- Integrated slant-cut sunshade
- Runs on one CR2032 battery
UPC: 848754000439 In the Box NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope (Blue/Green Illuminated P4 Sniper Reticle) CR2032 Battery Set of Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 3-9x42 Mark III Tactical Generation II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNcSTAR STP3942GV2 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 36.8' @ 100 yd / 12.2 m @ 100 m
9x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.7 mm | | Eye Relief | 2" / 5.1 cm | | | | Reticle Type | P4 Sniper Reticle | | Illumination | Illuminated | | Illuminated Color | Blue, Green | | Brightness Settings | Adjustable Brightness (3 Levels) | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x CR2032 | | Dimensions | Length: 7.5" / 19.1 cm | | Weight | 17.3 oz / 490.5 g |
