User Manual for NcSTAR 3-9x42 Rubber-Armored Compact Riflescope Click to enlarge the picture
Contents of the user manual for the NcSTAR 3-9x42 Rubber-Armored Compact Riflescope
- Product category: Riflescopes NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Riflescopes
 |
User manual for the NcSTAR 3-9x42 Rubber-Armored Compact Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

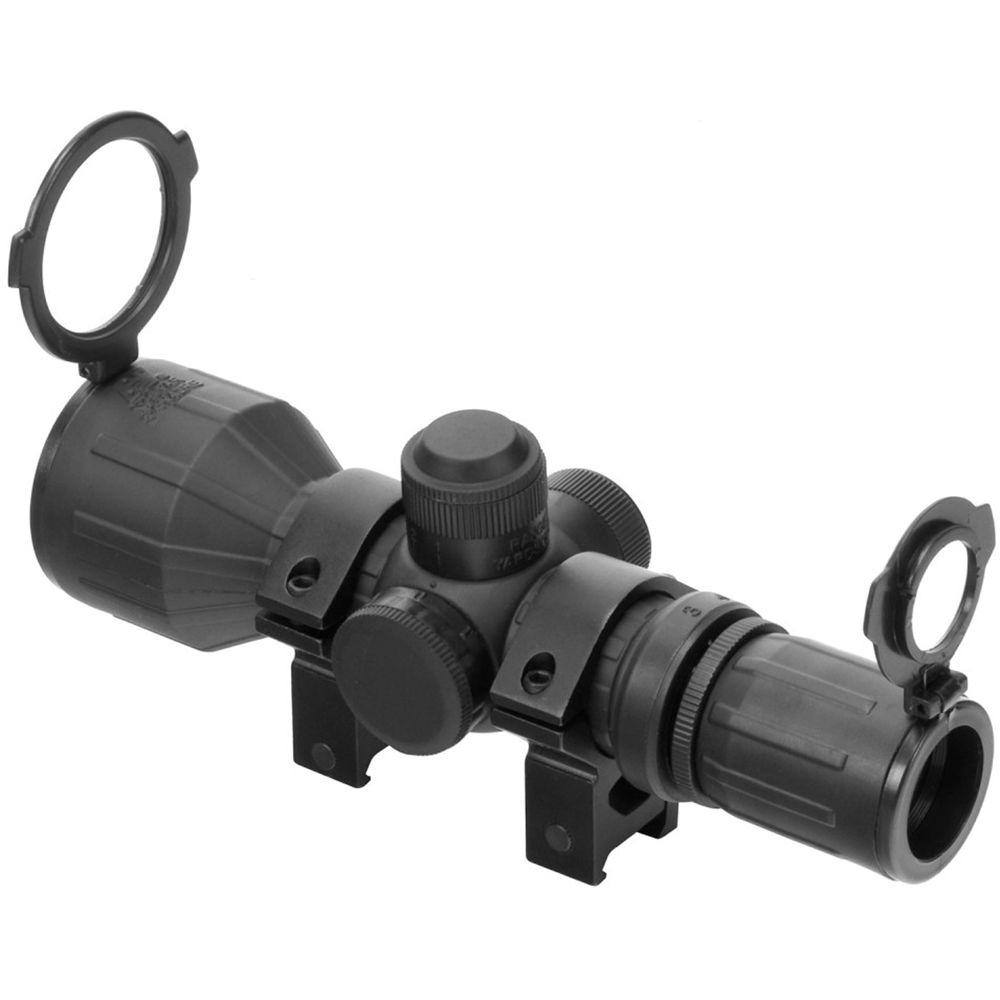

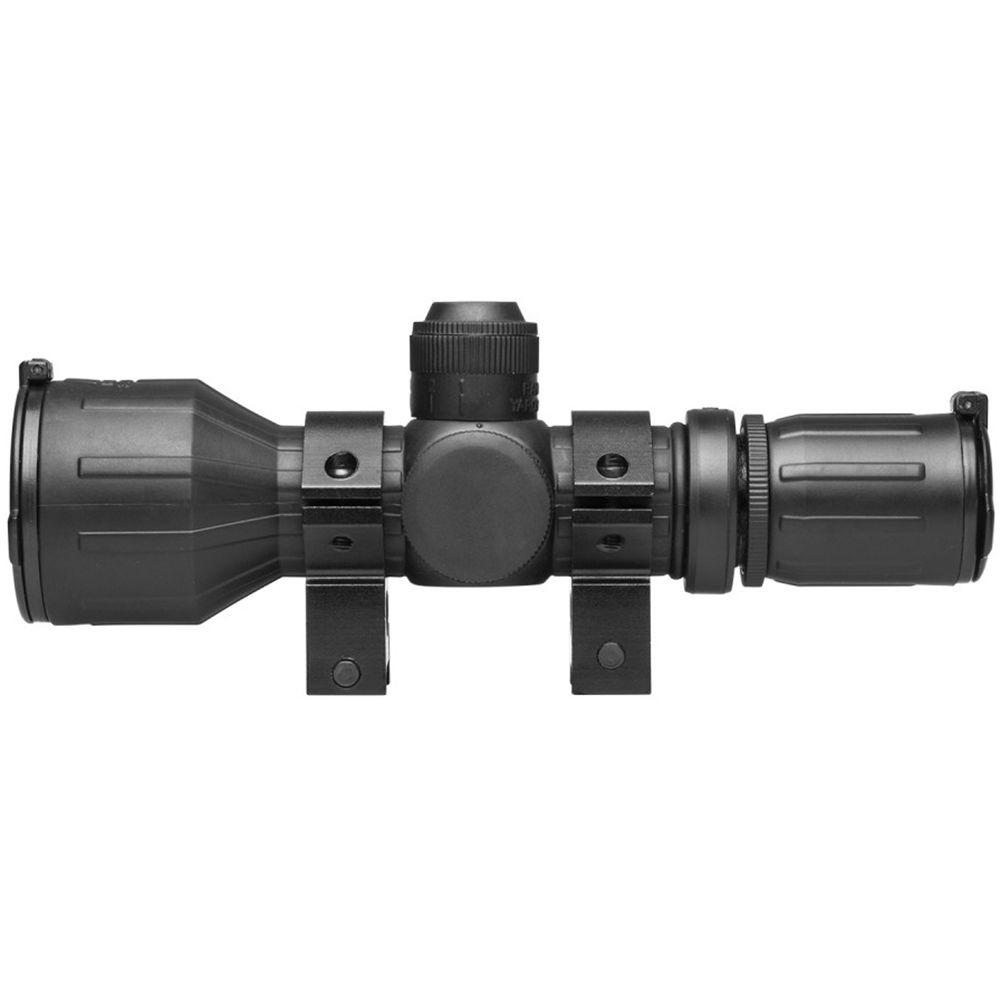

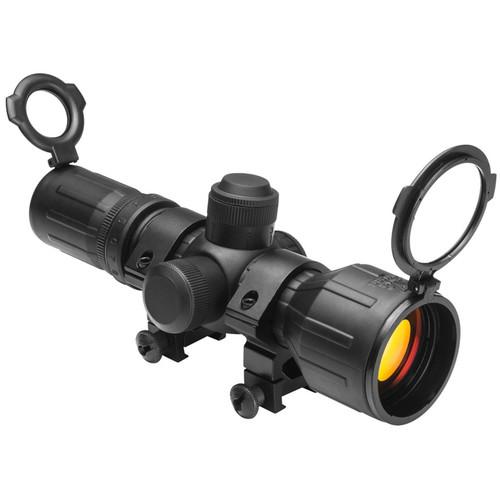

Product description Equipped with a red or green illuminated P4 Sniper reticle and protected by rubber armoring and flip-up lens covers, the 3-9x42 Rubber-Armored Compact Riflescope from NcSTAR is engineered for precision and durability. Along with capped, finger-operated 1/2 MOA per click windage and elevation turrets, the scope features a bullet drop compensator for quick impact point correction for 55 grain, .223 caliber ammo. Its 3-9x magnification range supports mid- to long-range shots, and the 42mm, ruby-coated objective lens admits ample light for a sharp image even at dawn and dusk. The scope comes with aluminum Weaver rail rings and one CR2032 battery. - Optical Performance
-
- 3-9x magnification
- 42mm objective lens
- Multi-coated optics
- Field of view: 37.7-12.5' at 100 yards
- 3" eye relief
- 14-4.7mm exit pupil
- Reticle
-
- Red or green illuminated P4 Sniper reticle
- Seven brightness settings
- Use and Handling
-
- Bullet drop compensator for 55 grain, .223 caliber ammunition
- 1/2 MOA at 100 yards impact point correction
- Capped elevation and windage dials
- Construction Details
-
- Rubber-armored aluminum maintube, 30mm diameter
- Flip-up lens covers
- Aluminum Weaver rail rings
- Runs on one included CR2032 battery
UPC: 814108010638 In the Box NcSTAR 3-9x42 Rubber-Armored Compact Riflescope (Red/Green Illuminated P4 Sniper Reticle) 2 x Aluminum Mounting Rings CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 3-9x42 Rubber-Armored Compact Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNcSTAR SEECR3942R Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 37.7' @ 100 yd / 12.5 m @ 100 m
9x: 12.5' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.7 mm | | Eye Relief | 3" / 7.6 cm | | | | Reticle Type | P4 Sniper Reticle | | Illumination | Illuminated | | Illuminated Color | Green, Red | | Brightness Settings | Adjustable Brightness (7 Levels) | | | | Mounting | Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Maintube Diameter | 30 mm | | Battery | Reticle: 1 x CR2023 | | Dimensions | Length: 7.8" / 19.8 cm | | Weight | 17.3 oz / 490.5 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to NcSTAR 3-9x42 Rubber-Armored Compact Riflescope
| Subject: 3x9x40 vims | | Date: 18.02.2022 11:39:53 | Name: Richard Tallett | Hi could you help please, my vism 3x9x40 has stopped turning on and the laser also isn't working I've changed the batteries and cleaned contacts inside battery compartment, it's probably not worth sending to you as the postage would be to much to the UK. Thank you for your time. Richard
| | Post reply |
