User Manual for NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic

Click to enlarge the picture
NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic Contents of the user manual for the NcSTAR 3-9x42 Ultimate Sighting System Generation
  • Product category: Riflescopes NcSTAR
  • Brand: NcSTAR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for NcSTAR Riflescopes

NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic
User manual for the NcSTAR 3-9x42 Ultimate Sighting System Generation contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any NcSTAR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!



Product description

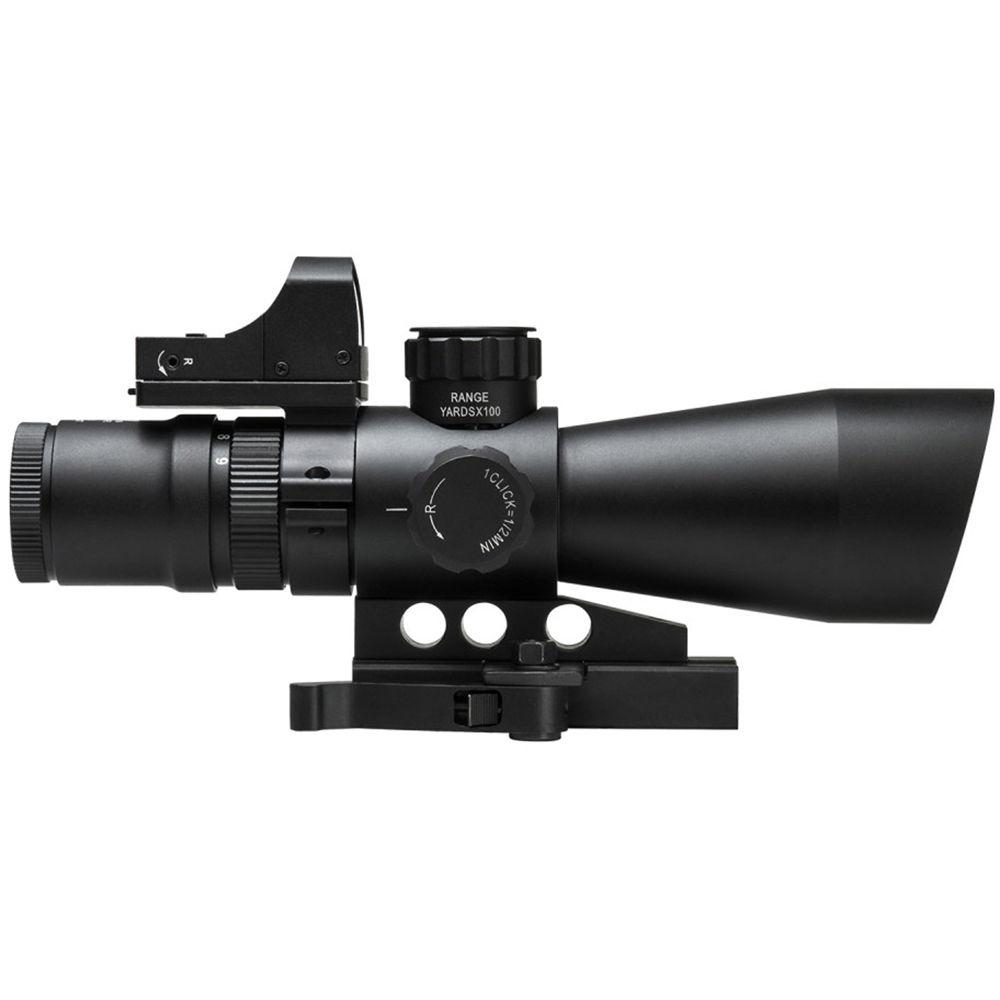

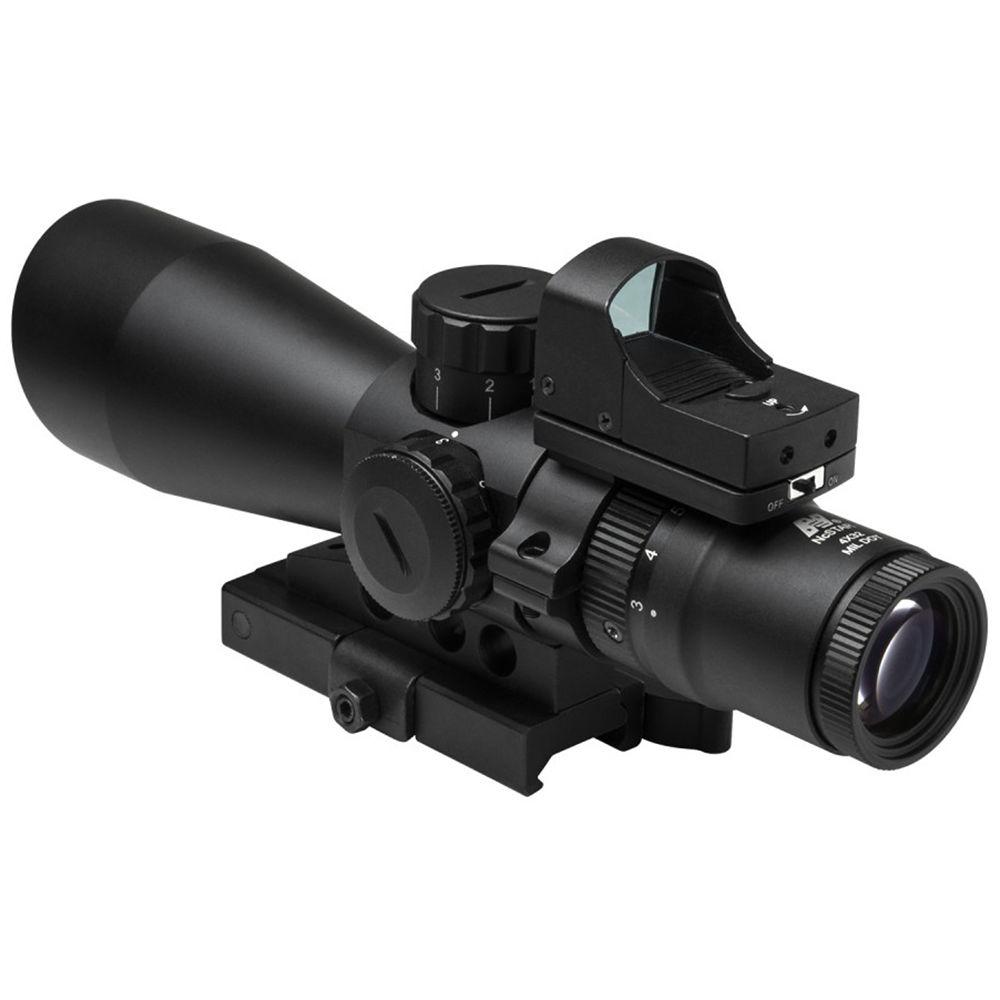

Designed for both long-distance shooting and close-range targeting, the NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic pairs a Mark III Tactical riflescope and red dot sight in one versatile combo. The hard anodized aluminum scope features a bullet drop compensator turret, calibrated for M193 5.56 55g FMJ ammo, that makes impact point correction fast and easy. The scope's centerline is set at 1.5" for a comfortable and natural cheek weld on an AR platform. No rings are needed—the scope attaches and detaches with a locking quick release mount with recoil lug for Picatinny and Weaver rails.

The scope's 3-9x magnification range is suited to most hunting situations, and the generous 42mm objective lens admits plenty of light for a bright picture, even at dusk and dawn. Fully multi-coated lenses assure optimal light transmission. Along with the BDC turret, which is marked in 100-yard increments, the Mark III Tactical is equipped with standard elevation and windage dials. The P4 Sniper reticle lights up in green or blue, with three brightness levels; the reticle can also be used in black with the light off.

The Red Micro Dot Reflex Optic allows for both-eyes-open, situationally aware close-quarters targeting. With 1x magnification, unlimited eye relief, and a wide-open field of view, it's easy to get the red dot on your target quickly. The Micro Dot is 1.4" high, 1.1" wide, and weighs under 2 ounces in use.
    Optical Performance
    • 3-9x magnification
    • 42mm objective lens
    • Fully multi-coated lenses
    • Field of view: 36.8-12' at 100 yards
    • 2" eye relief
    • 14-4.7mm exit pupil
    Reticle
    • Blue or green illuminated P4 Sniper reticle
    • Three brightness settings
    • Can be used black with illuminator off
    Micro Red Dot Reflex Optic
    • 1x magnification
    • 2 MOA red dot
    • Unlimited eye relief and wide field of view
    • Ruby-colored lens coating reduces glare
    • Objective lens: 23.5 x 16.8 mm
    • Runs on one CR2032 battery
    Use and Handling
    • Bullet drop compensating turret, calibrated for M193 5.56 55g FMJ ammo
    • Standard elevation and windage dials with 1/2" at 100 yards impact point correction
    • Locking quick release mount for Picatinny and Weaver rails

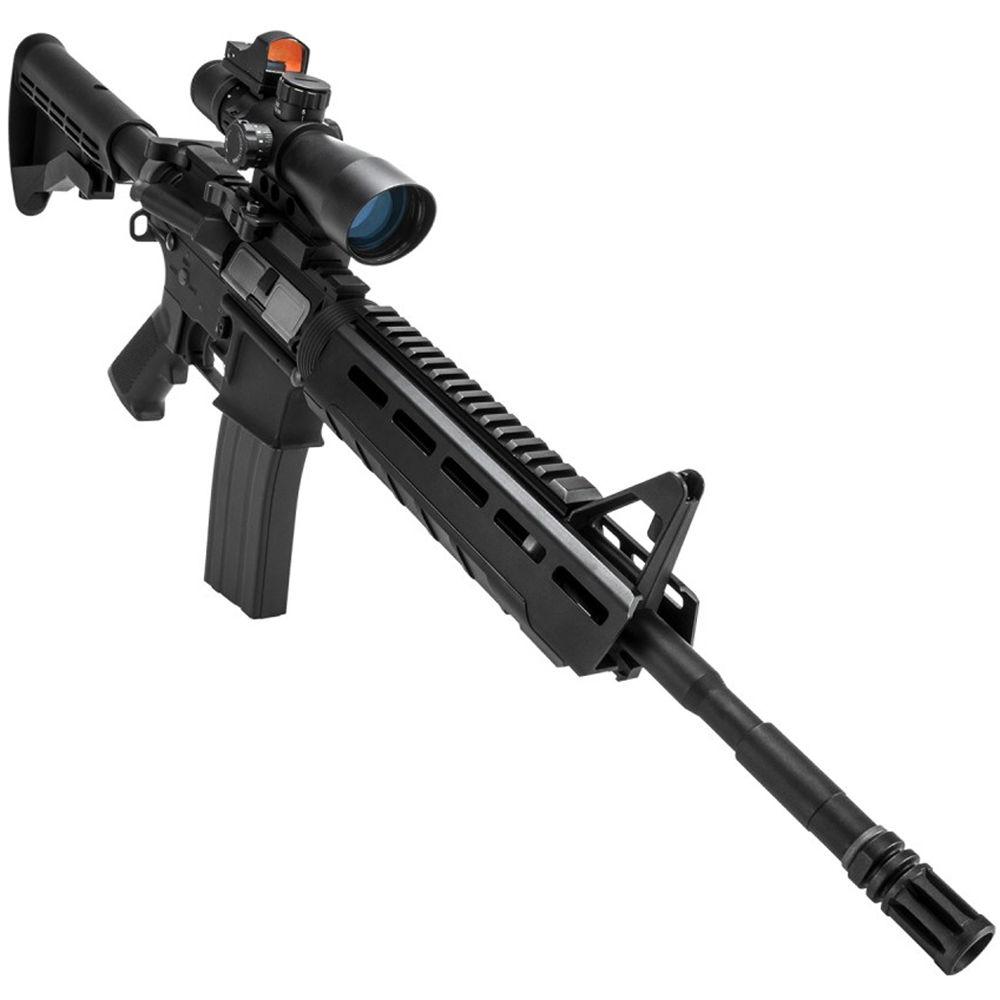

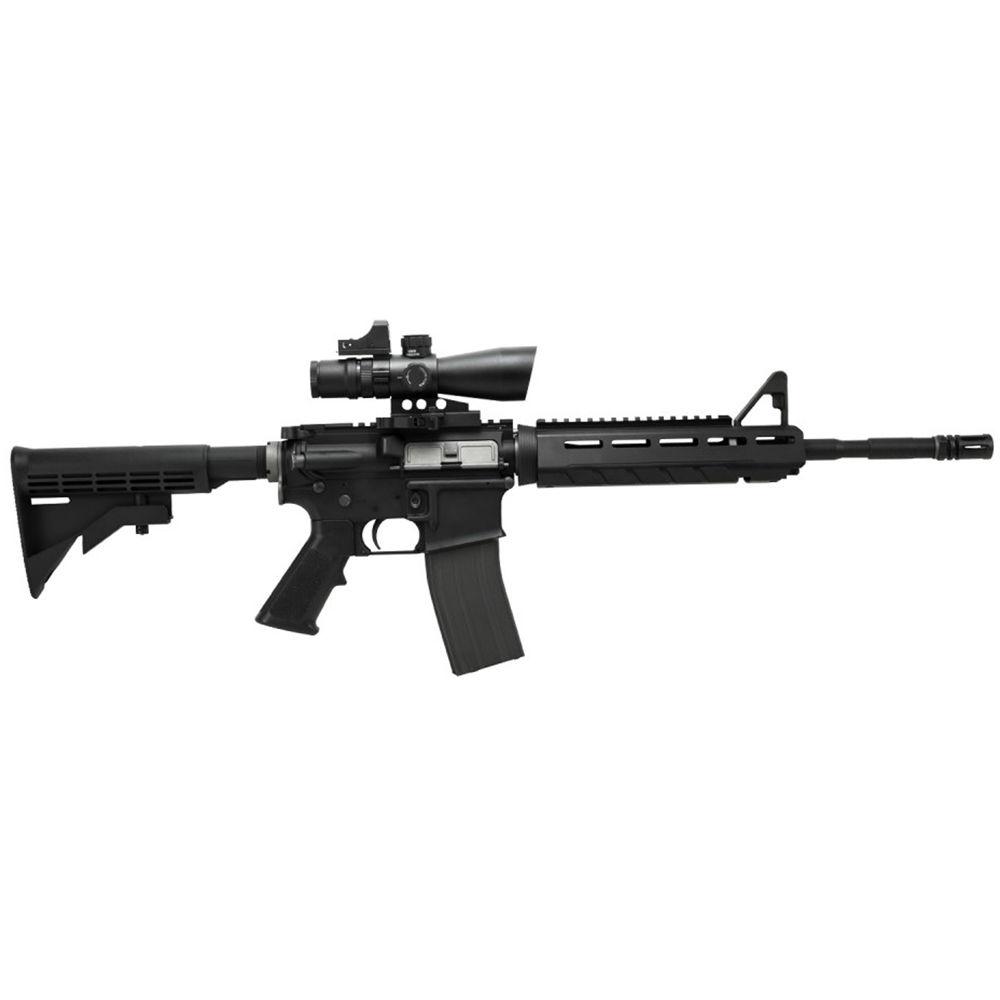

    • 1.5" centerline is compatible with AR platform rifles
    • Clearance under ocular housing permits use of low-profile rear flip-up iron sights
    • Quick-focus eyepiece
    Scope Construction Details
    • Hard anodized aluminum construction
    • Integrated slant-cut sunshade
    • Runs on one CR2032 battery
UPC: 848754000576 In the Box NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic (Blue/Green Illuminated P4 Sniper Reticle)
  • Micro Red Dot Reflex Optic
  • 2 x CR2032 Batteries
  • Set of Lens Caps
  • Micro Dot Dust Cover
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the NcSTAR 3-9x42 Ultimate Sighting System Generation II Riflescope with Micro Dot Optic in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    NcSTAR STP3942GDV2 Specs

    Magnification 3 to 9x
    Objective Lens Diameter 42 mm
    Field of View 3x: 36.8' @ 100 yd / 12.2 m @ 100 m
    9x: 12' @ 100 yd / 4 m @ 100 m
    Exit Pupil Diameter 3x: 14 mm
    9x: 4.7 mm
    Eye Relief 2" / 5.1 cm
    Reticle Type P4 Sniper Reticle
    Illumination Illuminated
    Illuminated Color Blue, Green
    Brightness Settings Adjustable Brightness (3 Levels)
    Laser Type None
    Impact Point Correction 1/2 MOA per Click
    Water Resistance Waterproof
    Fogproof Yes
    Battery Reticle: 1 x CR2032
    Dimensions Length: 7.5" / 19.1 cm
    Weight 19.4 oz / 550 g
