User Manual for NcSTAR 4x34 ECO Laser LED Riflescope with Green Micro Dot Reflex Optic Click to enlarge the picture
Contents of the user manual for the NcSTAR 4x34 ECO Laser LED Riflescope
- Product category: Riflescopes NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Riflescopes
 |
User manual for the NcSTAR 4x34 ECO Laser LED Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

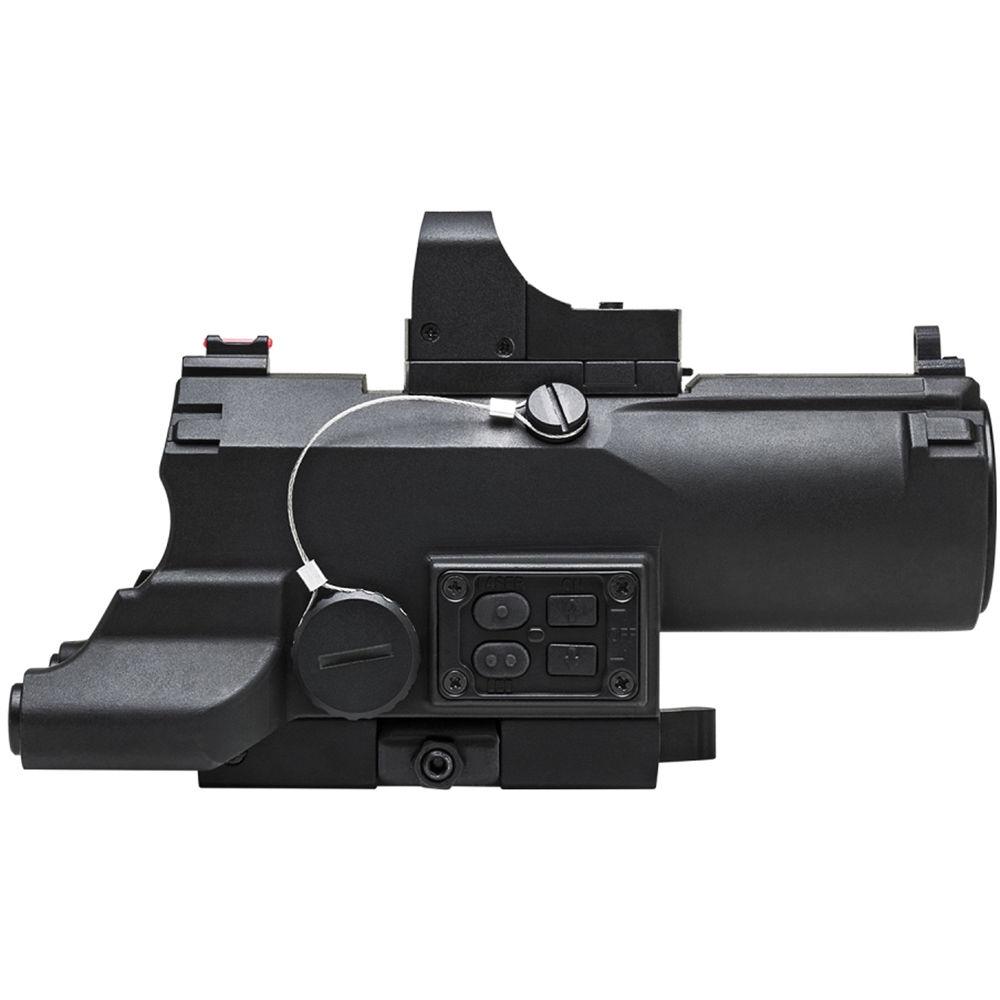

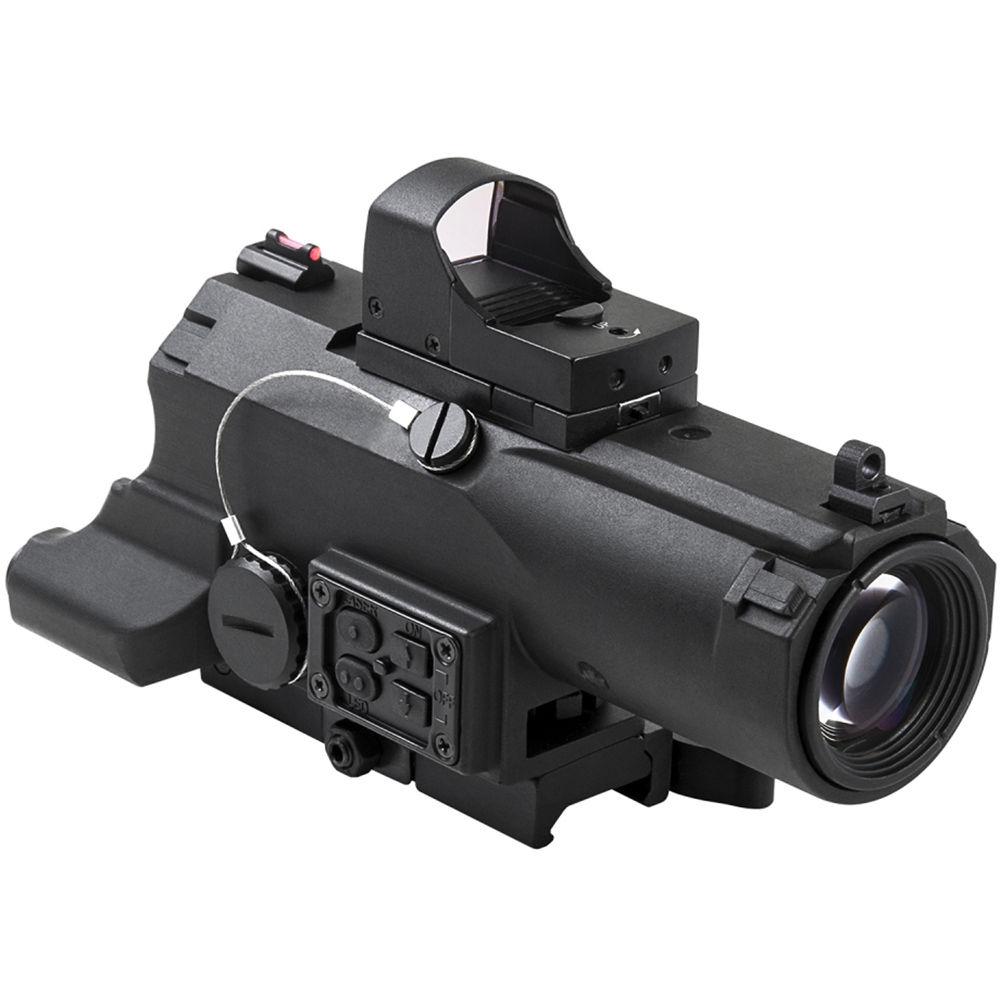

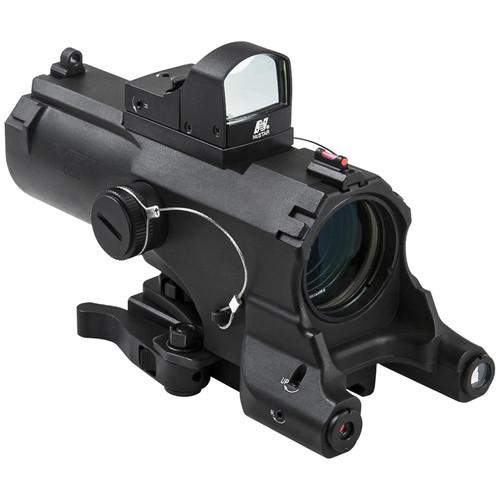

Product description You'll be ready for any set of circumstances with the 4x34 ECO Laser LED Riflescope with Micro Dot Reflex Optic from NcSTAR. This comprehensive system includes a 4x34 riflescope with a green aiming laser and red and white LEDs, a Micro Dot Reflex Optic for fast target acquisition at close range, and backup iron sights with three positions. Functions are operated via an electronic control panel of push-button switches on the left side, and the unit mounts and dismounts from your rifle with an auto-locking quick release mount. There's a Picatinny rail on top of the unit for even more accessories. The blue illuminated etched glass Urban Tactical reticle has five brightness settings. The scope is powered by one CR123A battery while the reflex uses one CR2032 battery. Both are supplied. - Optical Performance
-
- 4x magnification
- 34mm objective lens
- Field of view: 29.2' at 100 yards
- 2.3" eye relief
- 8.5mm exit pupil
- Reticle
-
- Blue illuminated etched glass Urban Tactical reticle
- Five brightness settings
- Micro Dot Reflex Optic
-
- 1x magnification
- 2 MOA green dot
- Unlimited eye relief and wide field of view
- Objective lens: 23.5x16.8mm
- Runs on one CR2032 battery
- Use and Handling
-
- Scope: 1/4 MOA at 100 yards impact point correction
- Locking quick release mount for Picatinny and Weaver rails
- Green Class IIIa laser adjustable for windage and elevation
- Red and white LEDs for after-dark navigation
- Top mounted backup iron rear peep sight and fiber optic front sight post
- Three iron sight mounting positions
- Scope Construction Details
-
- Hard anodized aluminum construction
- Runs on one CR2032 battery
UPC: 848754004130 In the Box NcSTAR 4x34 ECO Laser LED Riflescope with Green Micro Dot Reflex Optic (Blue Illuminated Urban Tactical Reticle, Black) Reflex Lens Cover Set of Reflex Mounting Tools CR2032 Battery CR123A Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 4x34 ECO Laser LED Riflescope with Green Micro Dot Reflex Optic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNcSTAR VECO434QRBG-A Specs | | | Magnification | 4x | | Objective Lens Diameter | 34 mm | | Field of View | 29.2' @ 100 yd / 9.7 m @ 100 m | | Exit Pupil Diameter | 8.5 mm | | Eye Relief | 2.3" / 5.8 cm | | | | Reticle Type | Urban Tactical Reticle | | Illumination | Illuminated | | Illuminated Color | Blue | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x CR123A | | Dimensions | Length: 6.3" / 16 cm | | Weight | 19.9 oz / 564.2 g |
