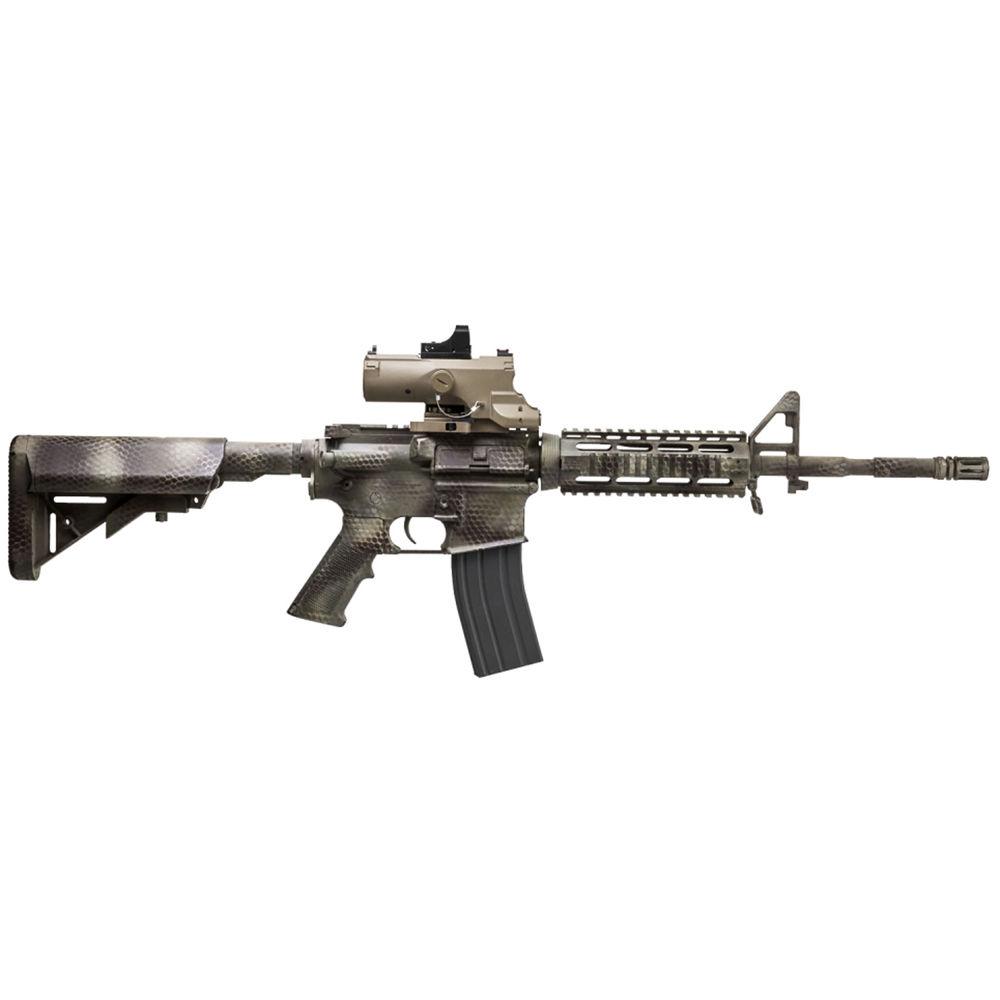

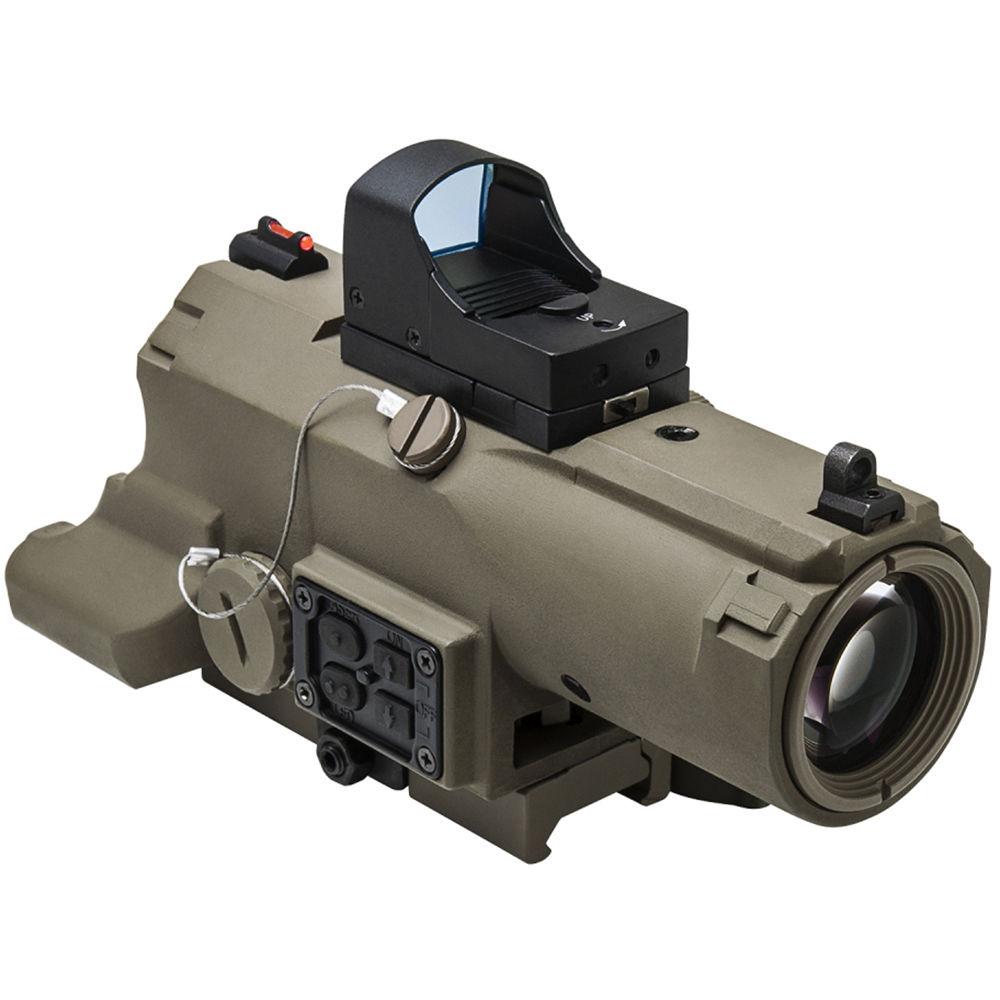

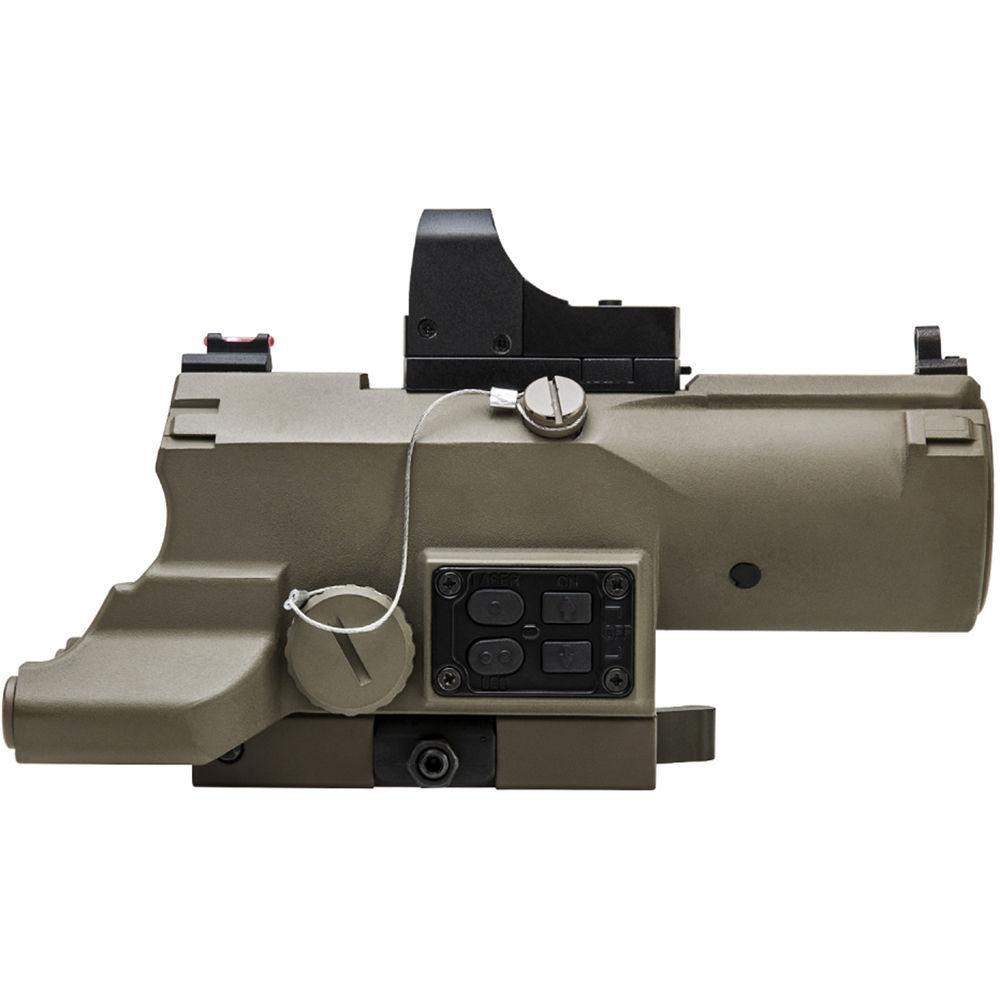

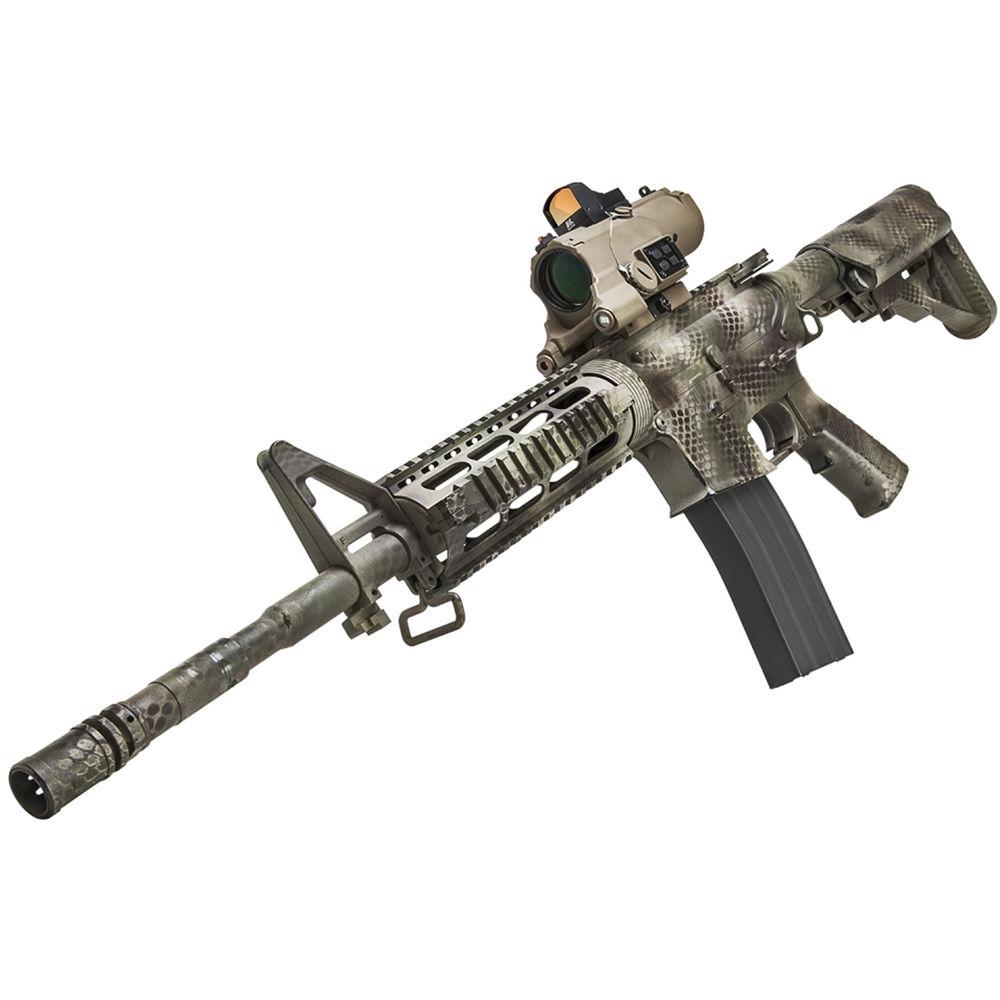

Product description You'll be ready for any set of circumstances with the 4x34 ECO Laser LED Riflescope with Micro Dot Reflex Optic from NcSTAR. This comprehensive system includes a 4x34 riflescope with a green aiming laser and red and white LEDs, a Micro Dot Reflex Optic for fast target acquisition at close range, and backup iron sights with three positions. Functions are operated via an electronic control panel of push-button switches on the left side, and the unit mounts and dismounts from your rifle with an auto-locking quick release mount. There's a Picatinny rail on top of the unit for even more accessories. The blue illuminated etched glass Urban Tactical reticle has five brightness settings. The scope is powered by one CR123A battery while the reflex uses one CR2032 battery. Both are supplied. - Optical Performance
-
- 4x magnification
- 34mm objective lens
- Field of view: 29.2' at 100 yards
- 2.3" eye relief
- 8.5mm exit pupil
- Reticle
-
- Blue illuminated etched glass Urban Tactical reticle
- Five brightness settings
- Micro Dot Reflex Optic
-
- 1x magnification
- 2 MOA red dot
- Unlimited eye relief and wide field of view
- Objective lens: 23.5x16.8mm
- Runs on one CR2032 battery
- Use and Handling
-
- Scope: 1/4 MOA at 100 yards impact point correction
- Locking quick release mount for Picatinny and Weaver rails
- Green Class IIIa laser adjustable for windage and elevation
- Red and white LEDs for after-dark navigation
- Top mounted backup iron rear peep sight and fiber optic front sight post
- Three iron sight mounting positions
- Scope Construction Details
-
- Hard anodized aluminum construction
- Runs on one CR2032 battery
UPC: 848754007797 In the Box NcSTAR 4x34 ECO Laser LED Riflescope with Red Micro Dot Reflex Optic (Blue Illuminated Urban Tactical Reticle, Tan) Reflex Lens Cover Set of Reflex Mounting Tools CR2032 Battery CR123A Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR 4x34 ECO Laser LED Riflescope with Red Micro Dot Reflex Optic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNcSTAR VECO434QRTR-A Specs | | | Magnification | 4x | | Objective Lens Diameter | 34 mm | | Field of View | 29.2' @ 100 yd / 9.7 m @ 100 m | | Exit Pupil Diameter | 8.5 mm | | Eye Relief | 2.3" / 5.8 cm | | | | Reticle Type | Urban Tactical Reticle | | Illumination | Illuminated | | Illuminated Color | Blue | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x CR123A | | Dimensions | Length: 6.3" / 16 cm | | Weight | 19.9 oz / 564.2 g |
