NcSTAR Barrel & Magazine Rail Mount

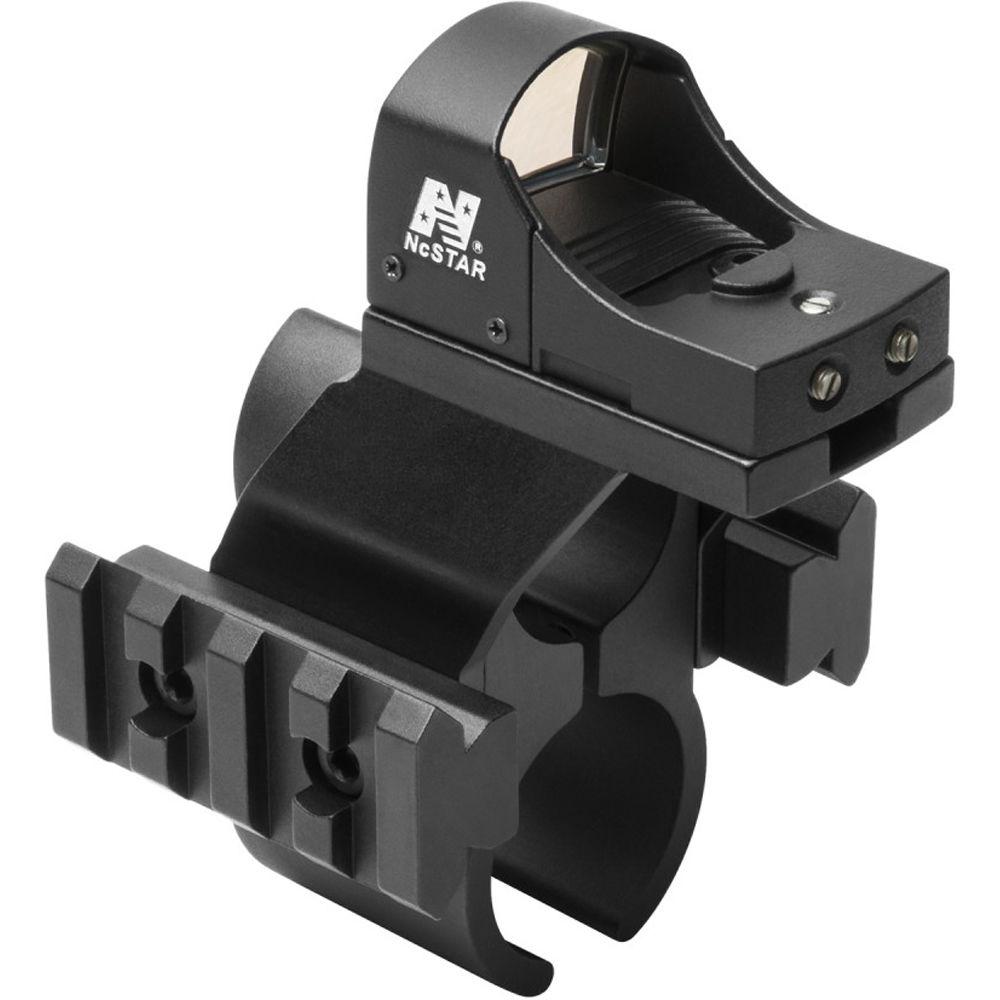

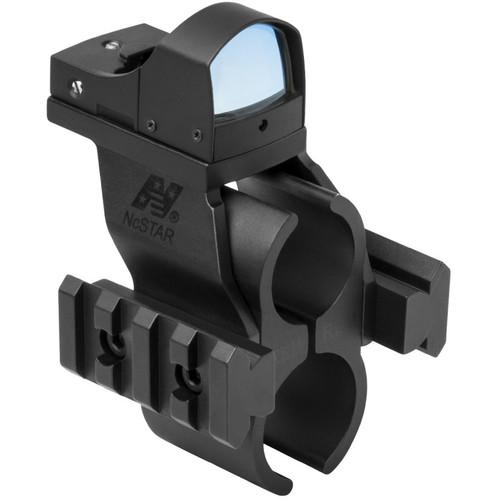

User Manual for NcSTAR Barrel & Magazine Rail Mount and Green Micro-Dot Sight Combo for Remington 870

• Product category: Bases & Mounts NcSTAR
• Brand: NcSTAR
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for NcSTAR Bases & Mounts

Product description

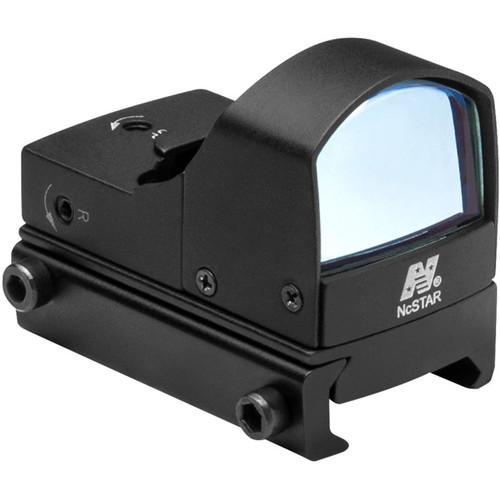

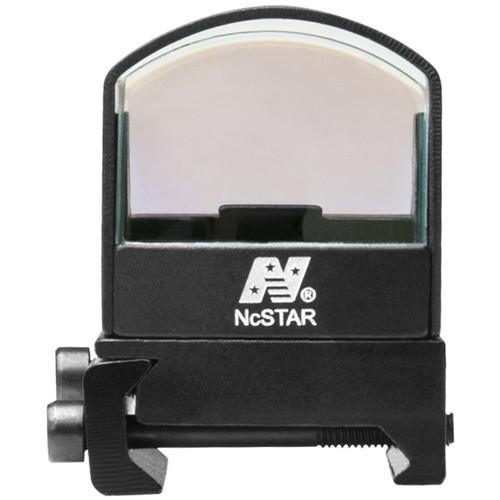

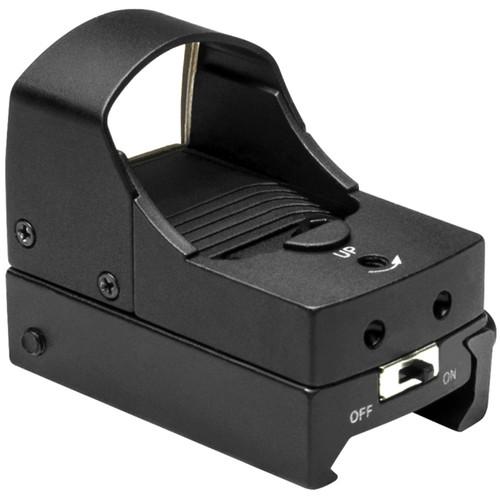

• 1x23 Micro Green Dot Reflex (2 MOA) Designed to take a minimal amount of rail space for use on rifles, pistols, or mounted onto another magnified optic, the matte black NcSTAR 1x23 Micro Green Dot Reflex helps to get you on target quickly and easily during close quarter work. This sight features a simple 2 MOA center aiming dot that won't crowd the window or obstruct smaller targets like varmints. The green reticle color is easier to see at night versus red or blue, and enables the use of lower brightness settings to preserve night-adjusted vision without compromising your ability to clearly see the reticle and get on target.The unmagnified 1x anti-reflection coated optics are designed for both-eyes-open shooting techniques and therefore present you with a spacious field of view and a virtually unlimited exit pupil and eye relief that allows you to maintain exceptional situational awareness during CQB. The illumination is powered by a single included CR2032 battery, and an extra battery is also included. Windage and elevation adjustments allow you to zero the sight to your weapon. The sight comes with an integrated clamp-style Weaver rail mount. UPC: 848754001214

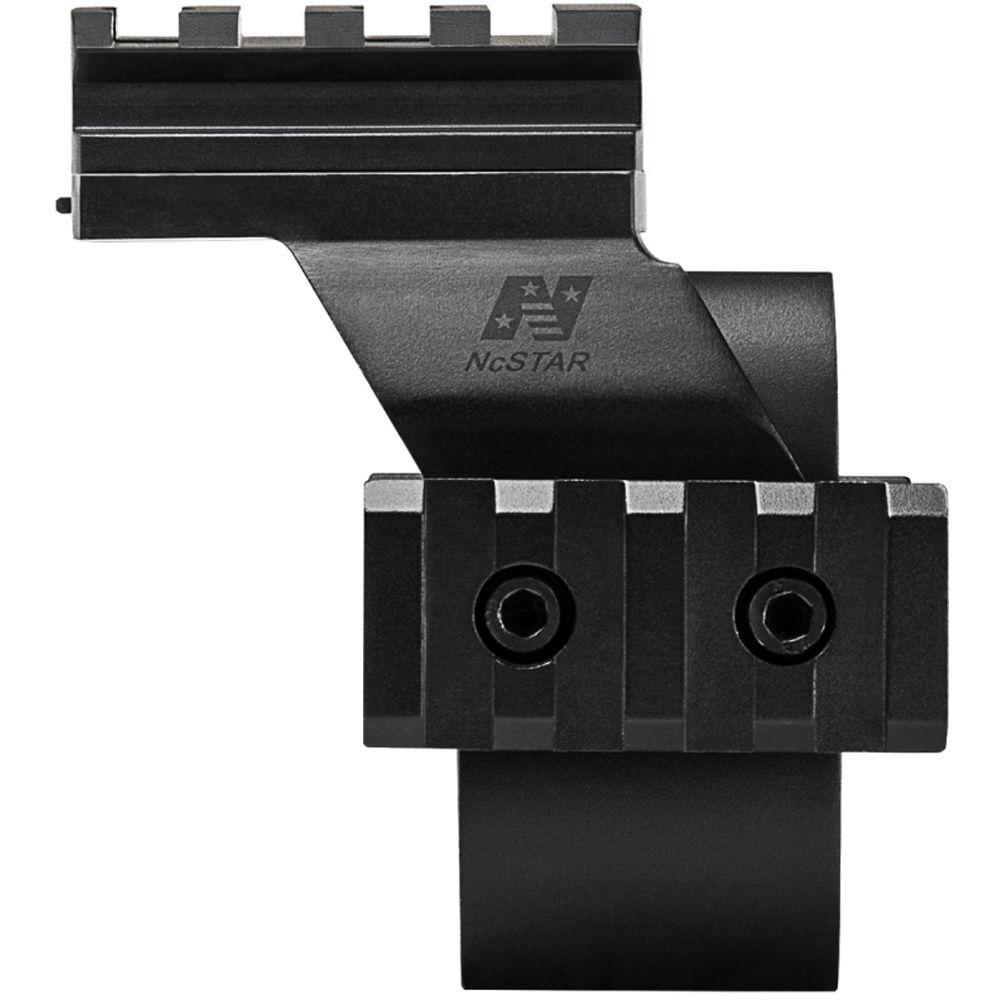

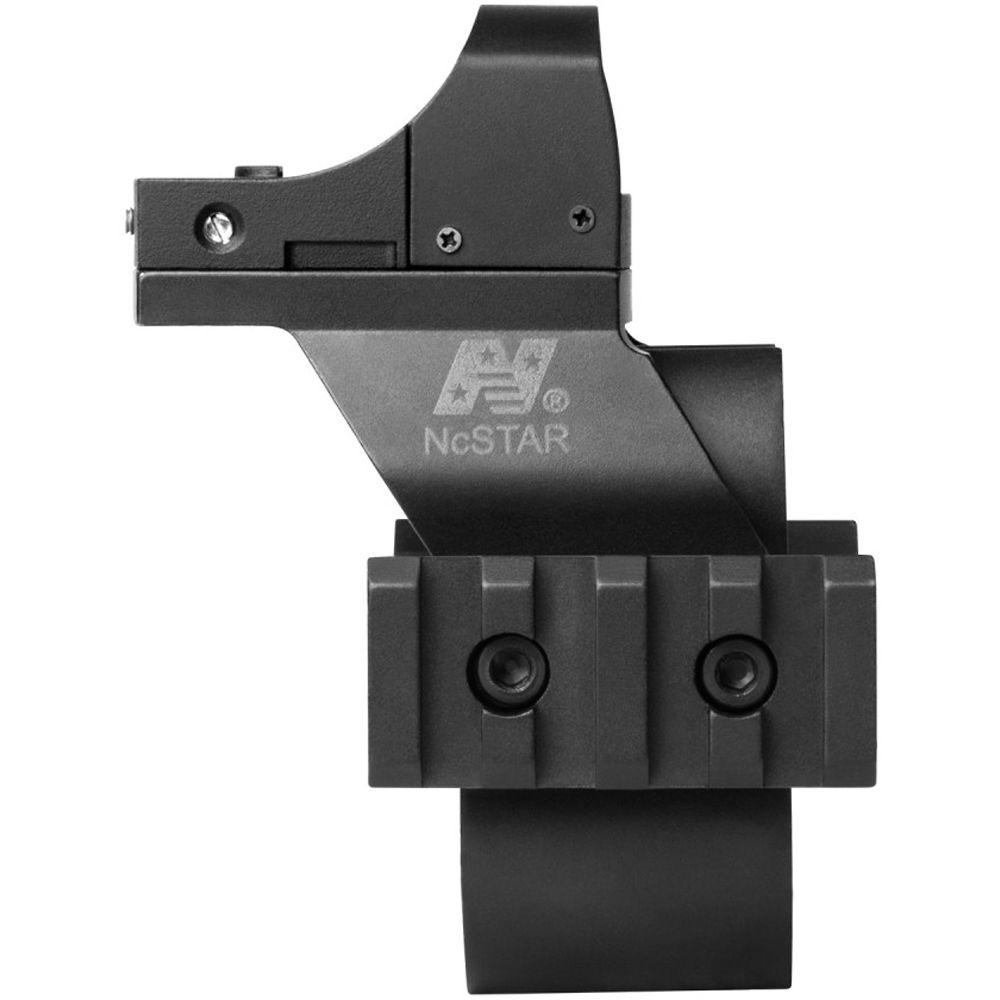

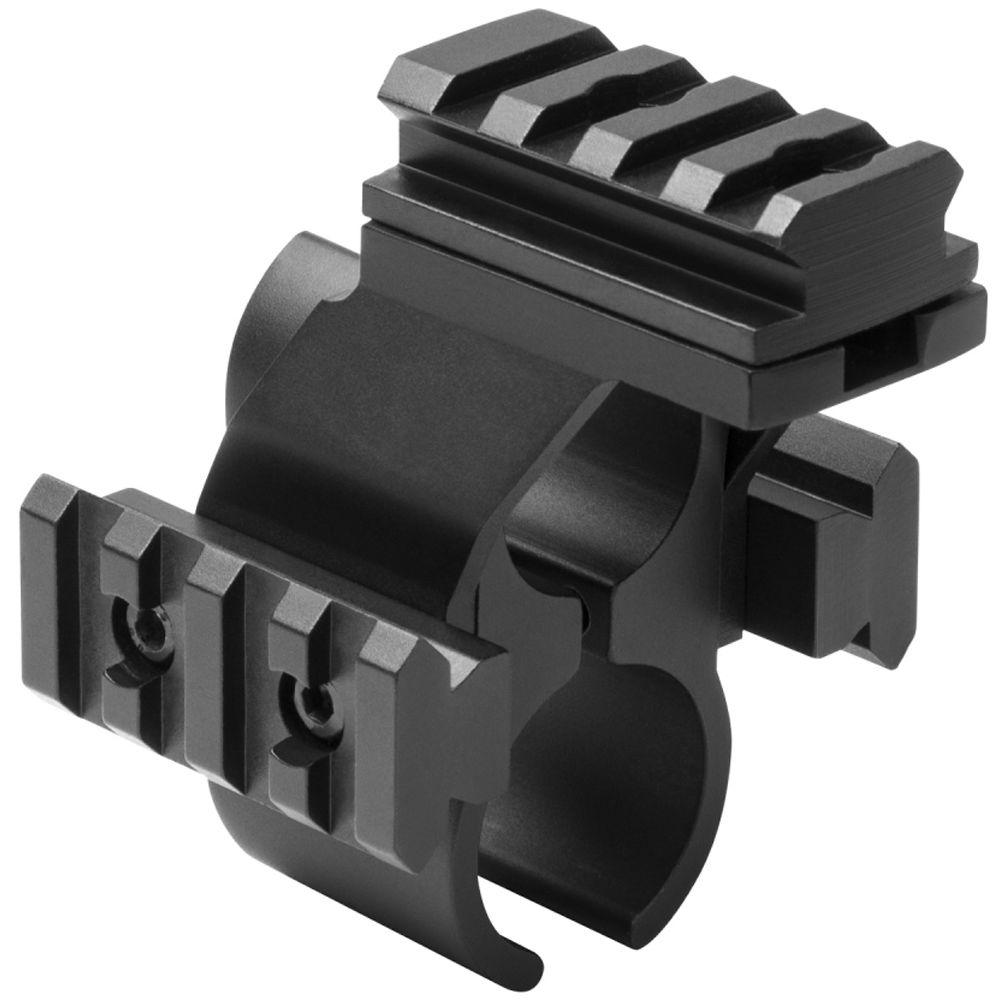

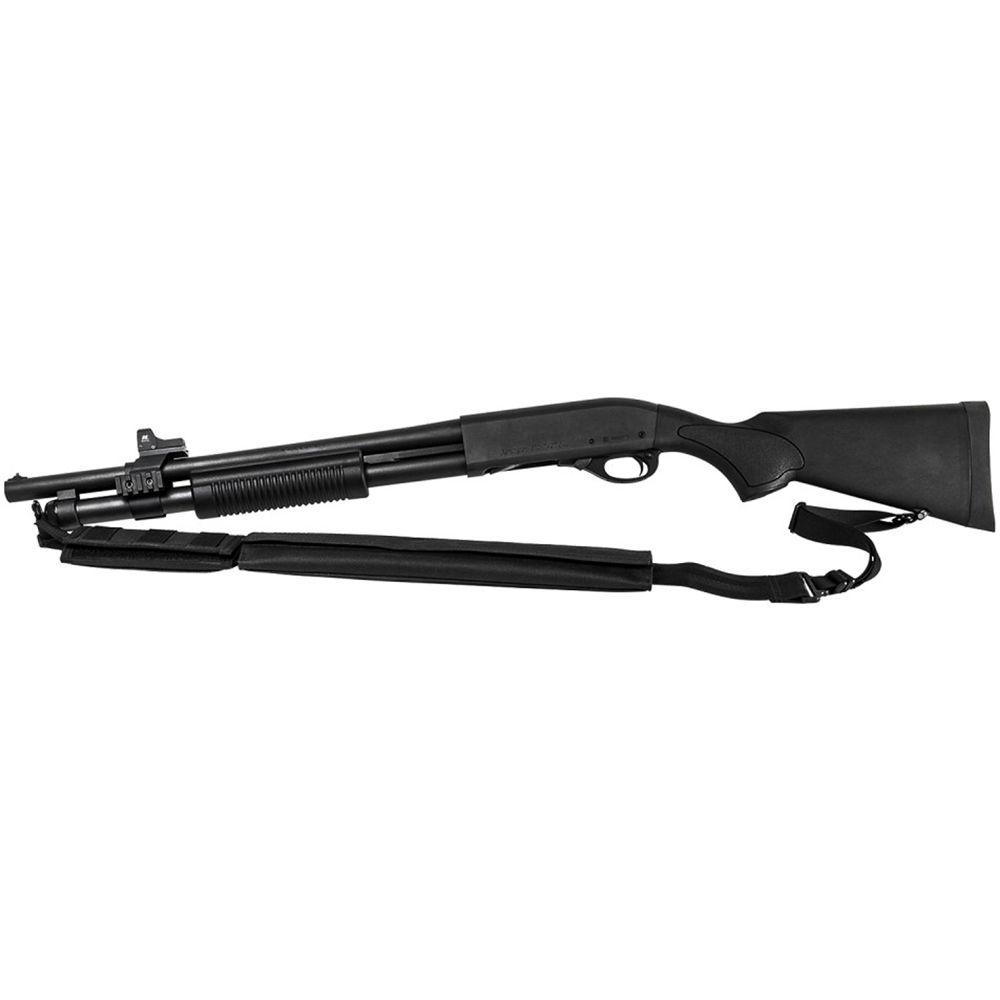

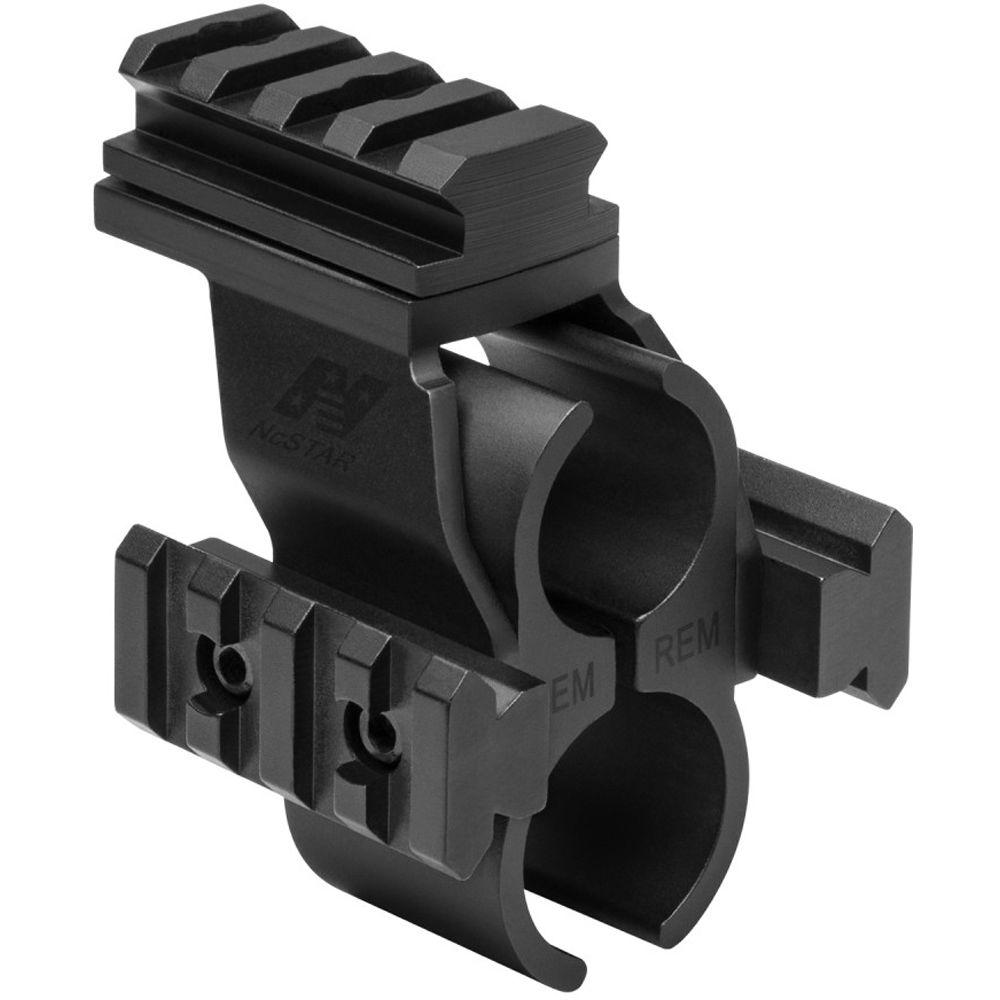

• Barrel & Magazine Micro-Dot Rail Mount for Remington 870 Shotgun With a dozen different configurations available, the NcSTAR Barrel & Magazine Micro-Dot Rail Mount allows you to fully customize your Remington 870, 1100, or 11-87 shotgun to your needs and personal preference. It installs in front of the pump action by simply clamping onto the barrel and magazine tube. With it properly mounted, you have three short Picatinny/Weaver rails for mounting a variety of accessories such as dot sights, lights, and lasers. Each rail is removable if it's not needed to reduce weight and snag hazards. Under the top rail is a base that is pre-drilled and tapped to match the mounting configuration of NcSTAR DDAB, DDABG, DDABL, DGAB, DXDAB, and DXGAB micro-dot reflex sights. This mount is made of a lightweight and durable aluminum alloy treated with a scratch-resistant black anodized finish. UPC: 848754001023

• Lens Cover

• Windage/Elevation Adjustment Tool

• 2 x CR2032 Batteries

• Limited Lifetime Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 1x23 Micro Green Dot Reflex (2 MOA)

  Reticle	2 MOA Dot
  Reticle Color	Green
  Eye Relief	Unlimited
  Power Source	1 x CR2032
  Sight Window Dimensions	0.9 x 0.7" / 23.5 x 16.8 mm
  Mounting	Weaver
  Quick Release	No

  Magnification	1 x
  Parallax Setting	40 yd / 36.6 m to Infinity
  Anti-Reflective Coatings	Fully Coated

  Material	Aluminum
  Dimensions	L: 1.8 x W: 1.4 x H: 1.1" / L: 4.6 x W: 3.6 x H: 2.8 cm
  Weight	1.3 oz / 37 g

• Barrel & Magazine Micro-Dot Rail Mount for Remington 870 Shotgun

  Material of Construction	Aluminum alloy
  Dimensions	3.0 x 2.7" / 7.6 x 6.9 cm (HxL)
  Weight	5.2 oz / 147.4 g
