User Manual for NcSTAR Red Micro Dot Sight with AK Receiver Cover Click to enlarge the picture
Contents of the user manual for the NcSTAR Red Micro Dot Sight with
- Product category: Red Dot/Holographic Sights NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Red Dot/Holographic Sights
 |
User manual for the NcSTAR Red Micro Dot Sight with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

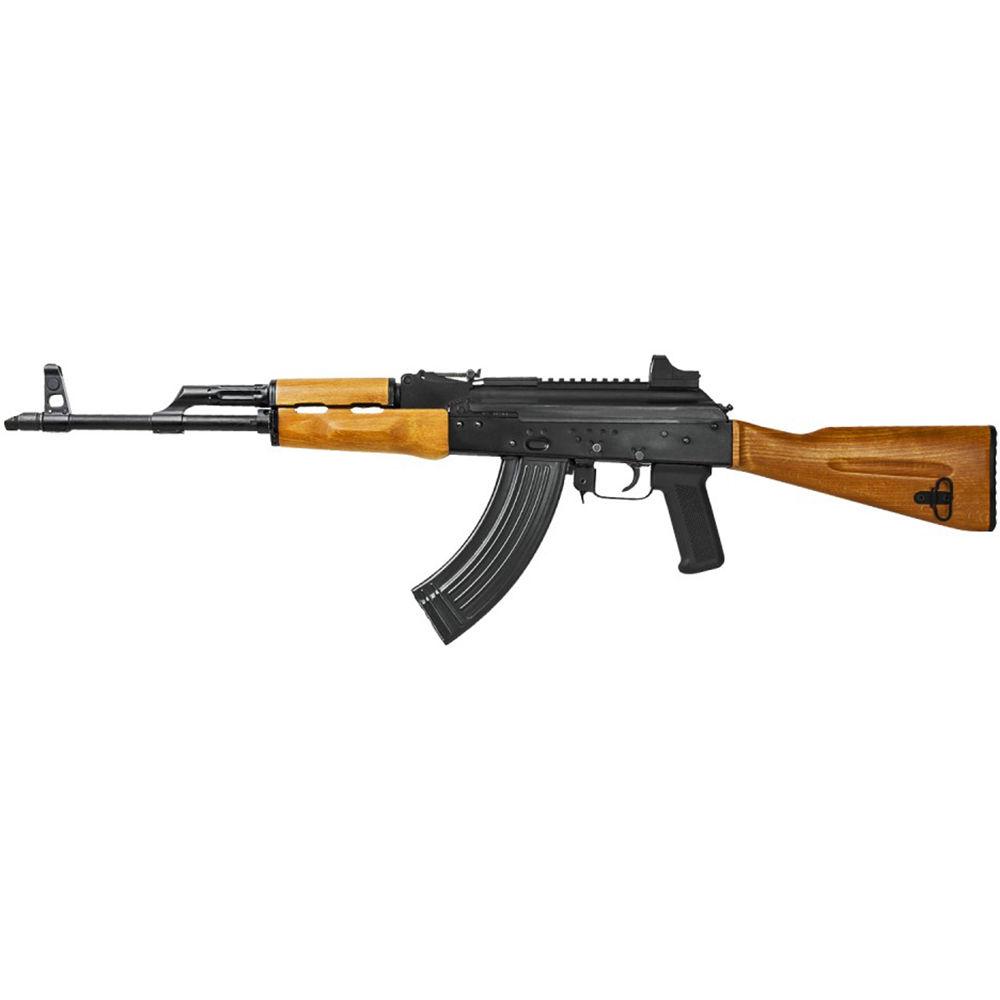

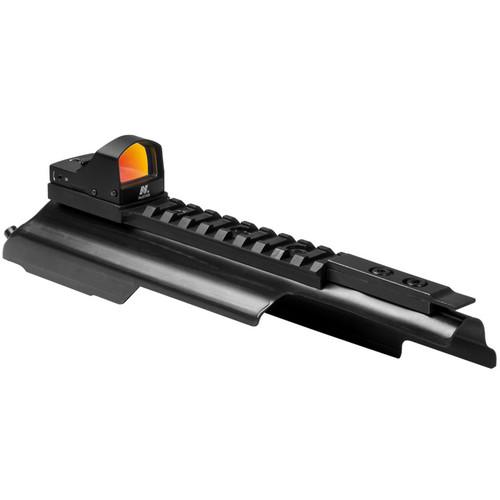

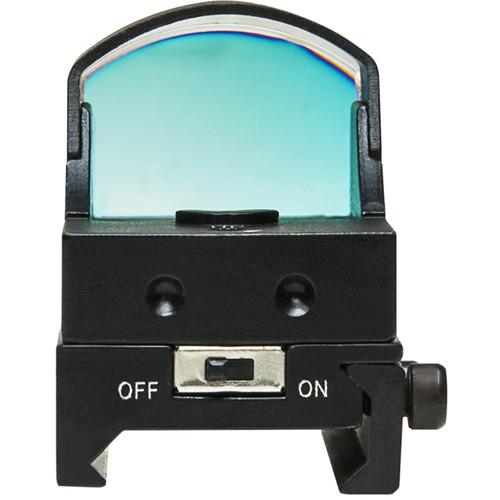

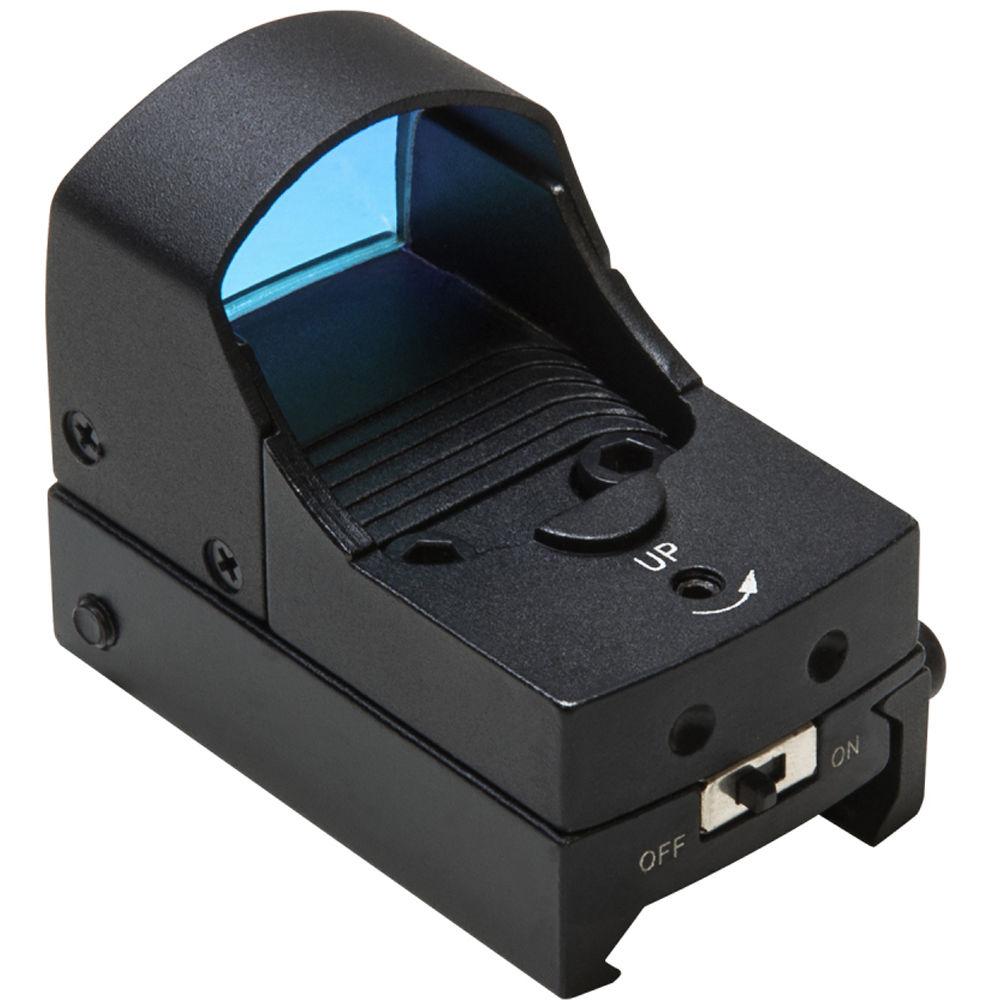

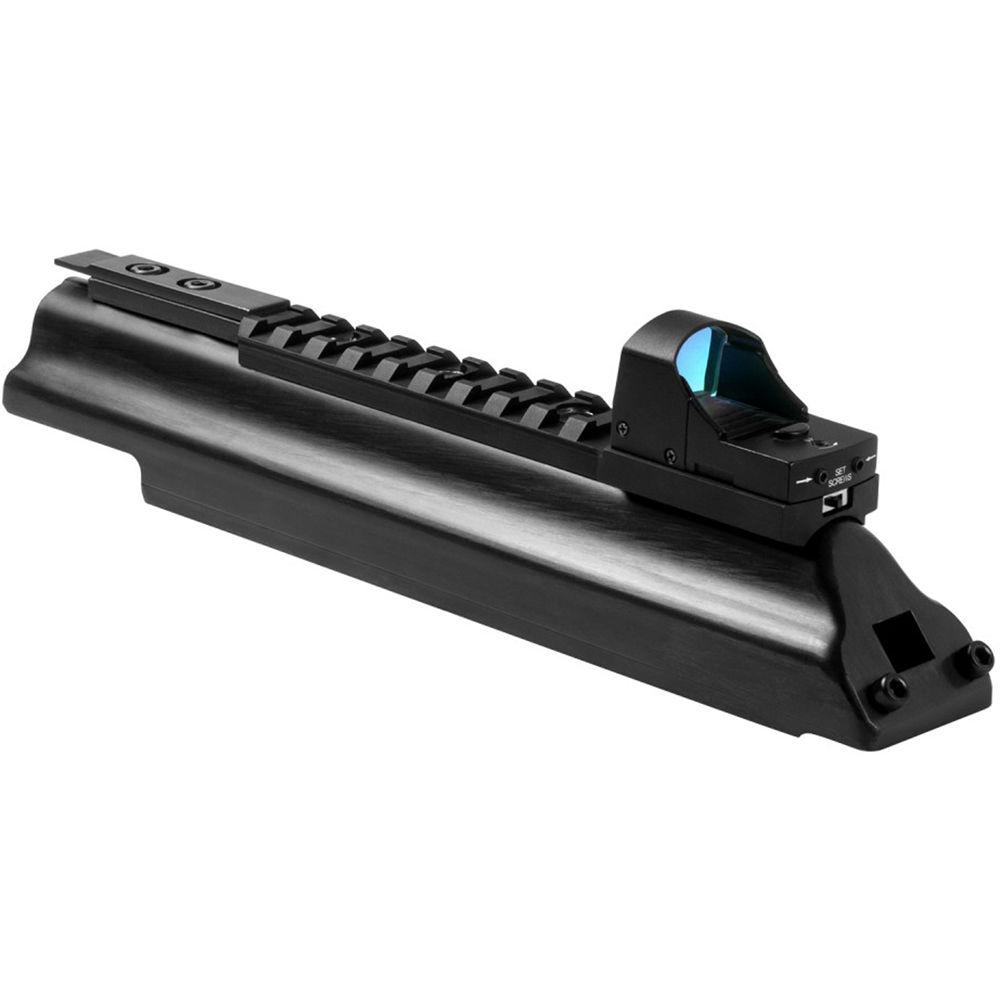

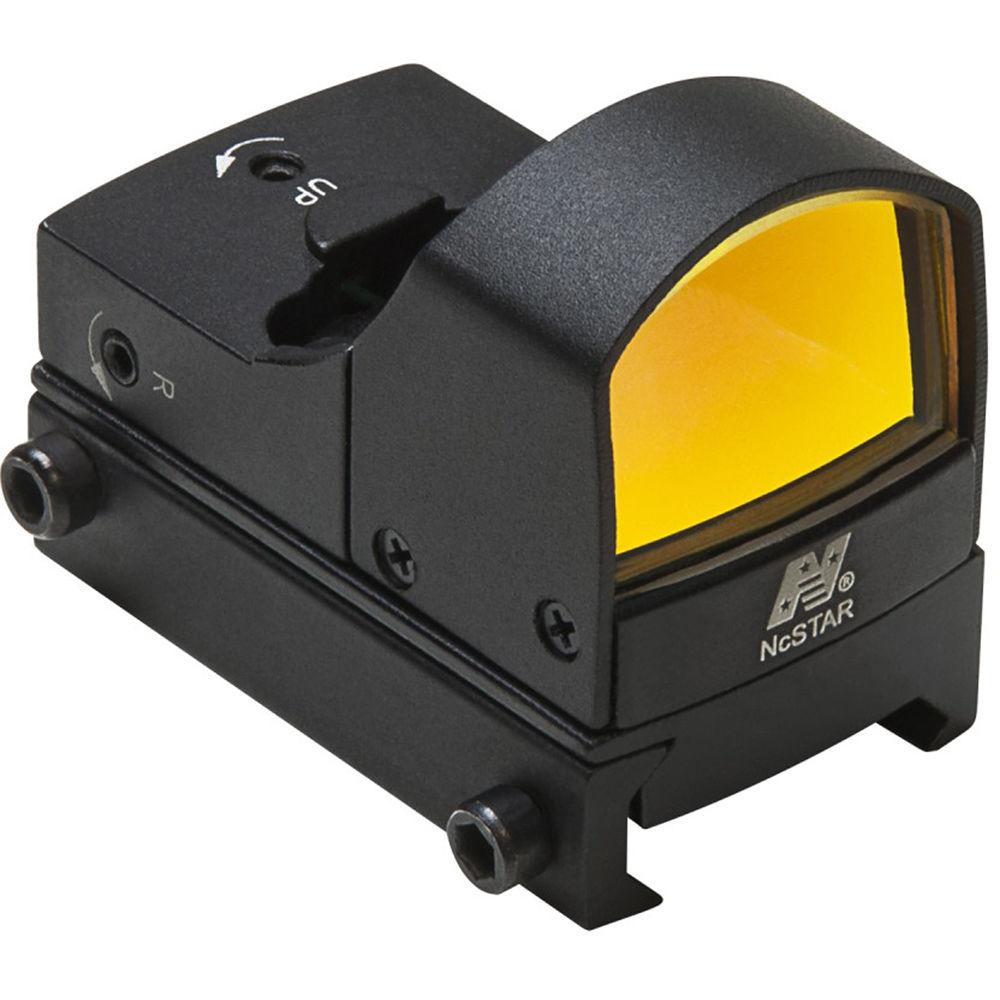

Product description NcSTAR put together the Red Micro Dot Sight with AK Receiver Cover to give you a complete sight kit for your AKM-style rifle. You get the space-saving micro dot sight with a red reticle, and a new receiver cover that comes outfitted with a Weaver-style rail. - 1x23 Micro Red Dot Reflex (2 MOA) Designed to take a minimal amount of rail space for use on rifles, pistols, or mounted onto another magnified optic, the matte black NcSTAR 1x23 Micro Red Dot Reflex helps to get you on target quickly and easily during close quarter work. This sight features a simple 2 MOA center aiming dot that won't crowd the window or obstruct smaller targets like varmints. The traditional red reticle color is easier to see during the day or in well-lit rooms versus green or blue, for faster target acquisition and action.The unmagnified 1x anti-reflection coated optics are designed for both-eyes-open shooting techniques and therefore present you with a spacious field of view and a virtually unlimited exit pupil and eye relief that allows you to maintain exceptional situational awareness during CQB. The illumination is powered by a single included CR2032 battery, and an extra battery is also included. Windage and elevation adjustments allow you to zero the sight to your weapon. The sight comes with an integrated clamp-style Weaver rail mount. UPC: 814108011321

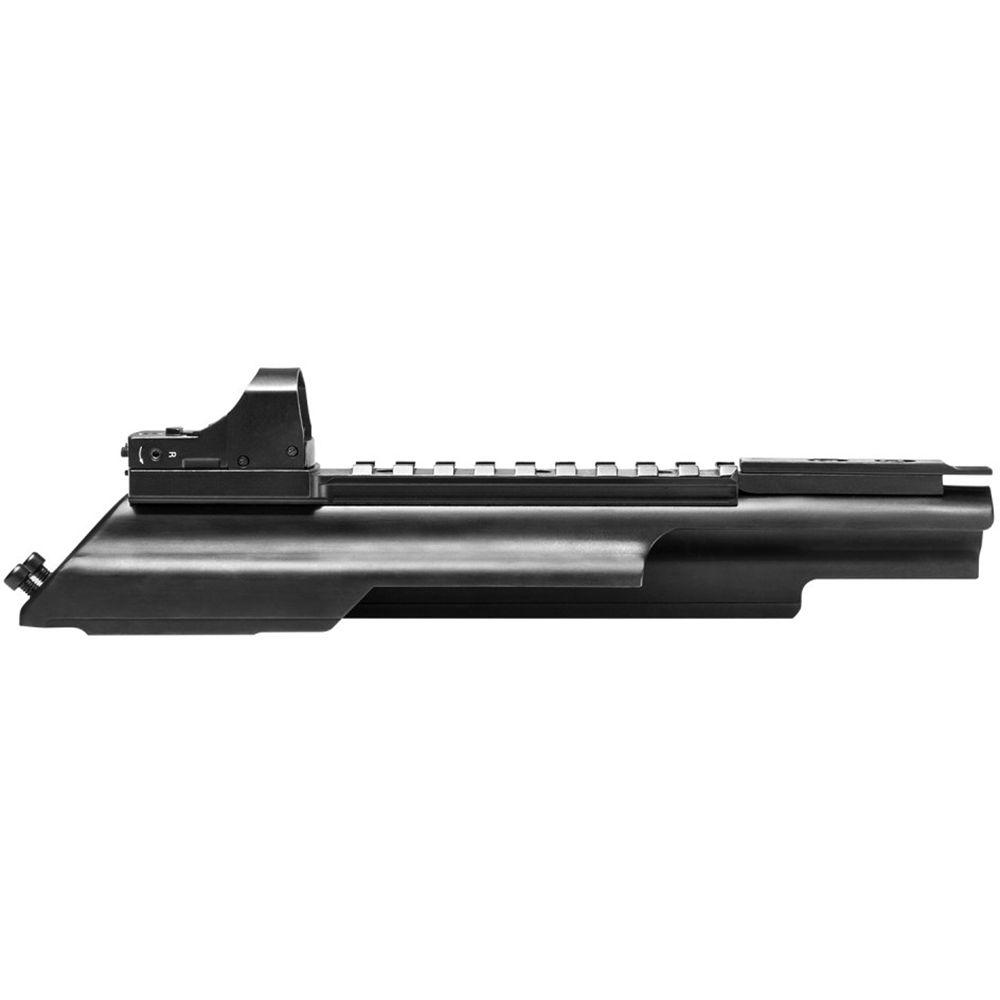

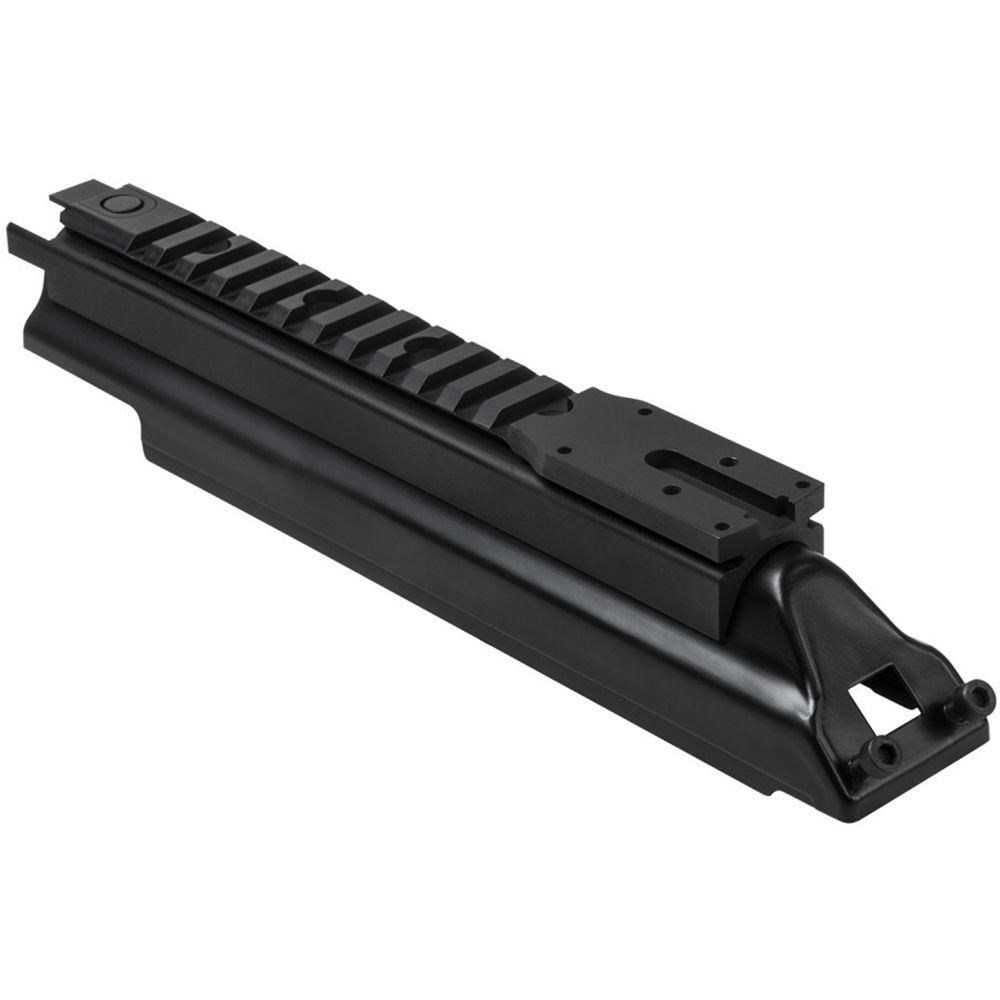

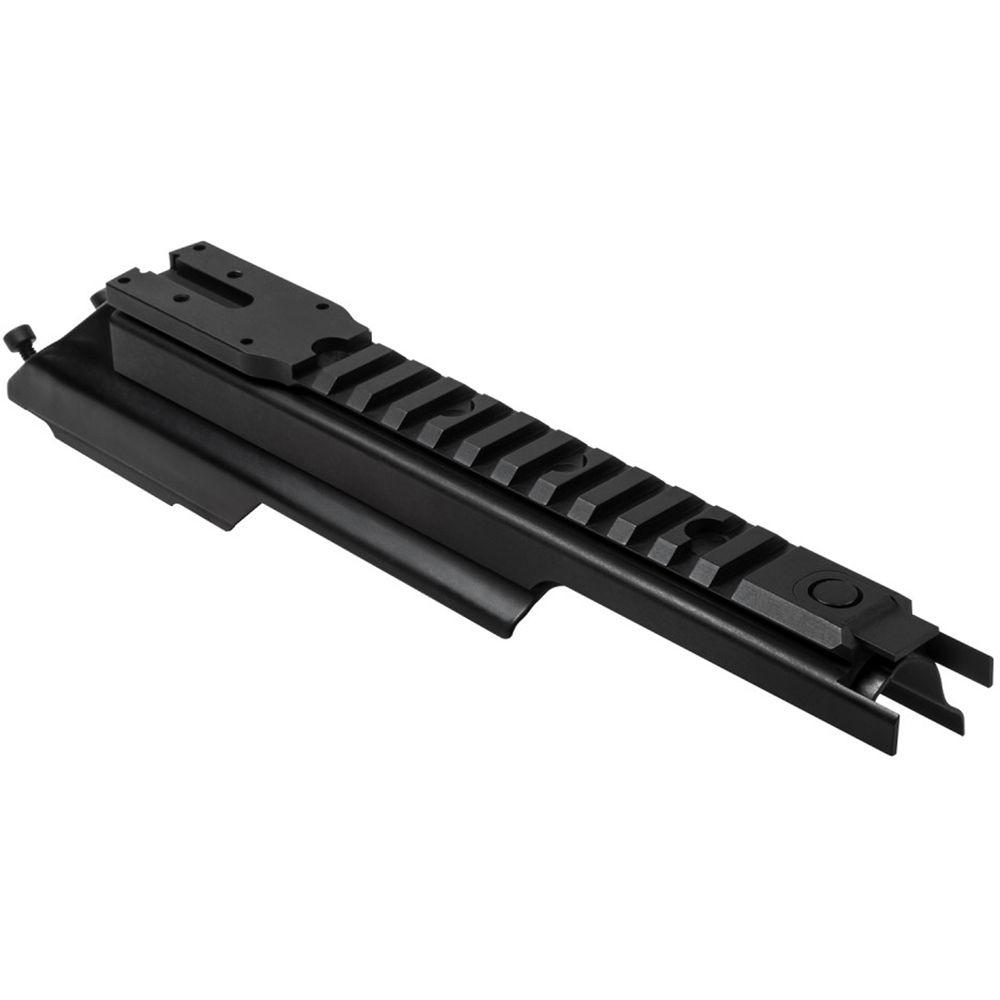

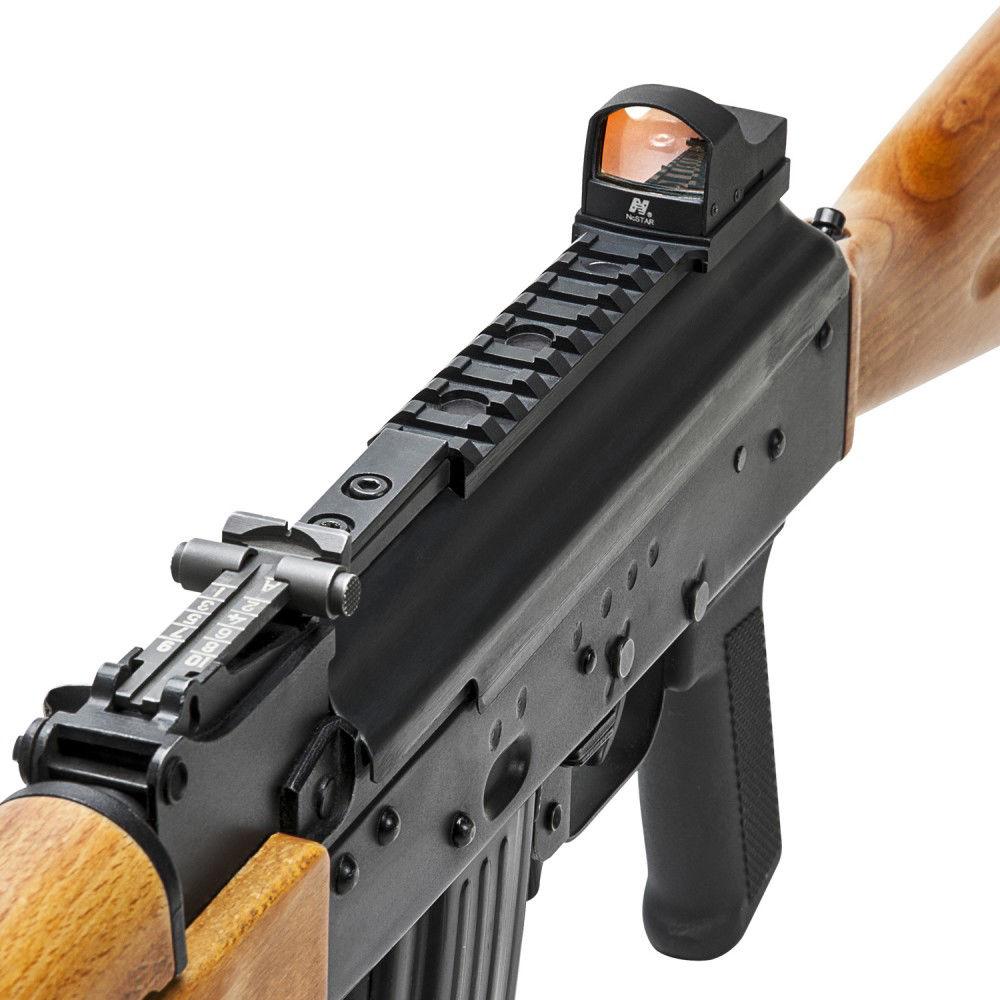

- AK Rail & Micro Dot Mount Receiver Cover (Gen 2) The NcSTAR AK Rail & Micro Dot Mount Receiver Cover replaces the stock stamped receiver cover on AKM pattern rifles—in 7.62x39, 5.54x39, .223 calibers—to give you a solid and secure way to mount a riflescope or a reflex dot sight. The second generation of the cover introduces a rear plate at the end of the rail that allows the direct mounting of many NcSTAR micro dot/reflex sights, without the need for a rail mount assembly, to ensure a solid connection with a low profile. Its Picatinny/Weaver-style rail will accommodate just about any magnified or unmagnified optic or other gear like NVDs, lights, or lasers. To stand up to recoil, the receiver cover is made of steel and the rail is aluminum. Both parts are treated with a scratch-resistant matte black anodized finish to reduce reflections. UPC: 848754005045
In the Box Bundle Items 1x23 Micro Red Dot Reflex (2 MOA) xeetzezyxbstcdwzvufutrvbzfu - Windage/Elevation Adjustment Tool
- Limited Lifetime Warranty
AK Rail & Micro Dot Mount Receiver Cover (Gen 2) Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR Red Micro Dot Sight with AK Receiver Cover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 1x23 Micro Red Dot Reflex (2 MOA)
| | | Reticle | 2 MOA Dot | | Reticle Color | Red | | Eye Relief | Unlimited | | Power Source | 1 x CR2032 | | Sight Window Dimensions | 0.9 x 0.7" / 23.5 x 16.8 mm | | Mounting | Weaver | | Quick Release | No | | | | Magnification | 1 x | | Parallax Setting | 40 yd / 36.6 m to Infinity | | Anti-Reflective Coatings | Fully Coated | | | | Material | Aluminum | | Dimensions | L: 1.8 x W: 1.4 x H: 1.1" / L: 4.6 x W: 3.6 x H: 2.8 cm | | Weight | 1.3 oz / 37 g | - AK Rail & Micro Dot Mount Receiver Cover (Gen 2)
| Mounting | Picatinny / Weaver | | Material | Aluminum, Steel | | Dimensions | L: 9.5" / L: 24.1 cm | | Weight | 7.3 oz / 207 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
