User Manual for NcSTAR Special Operations Red Dot Sight Combo Click to enlarge the picture
Contents of the user manual for the NcSTAR Special Operations Red Dot Sight
- Product category: Red Dot/Holographic Sights NcSTAR
- Brand: NcSTAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NcSTAR Red Dot/Holographic Sights
 |
User manual for the NcSTAR Special Operations Red Dot Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NcSTAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NcSTAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NcSTAR product will considerably shorten its lifespan!
|

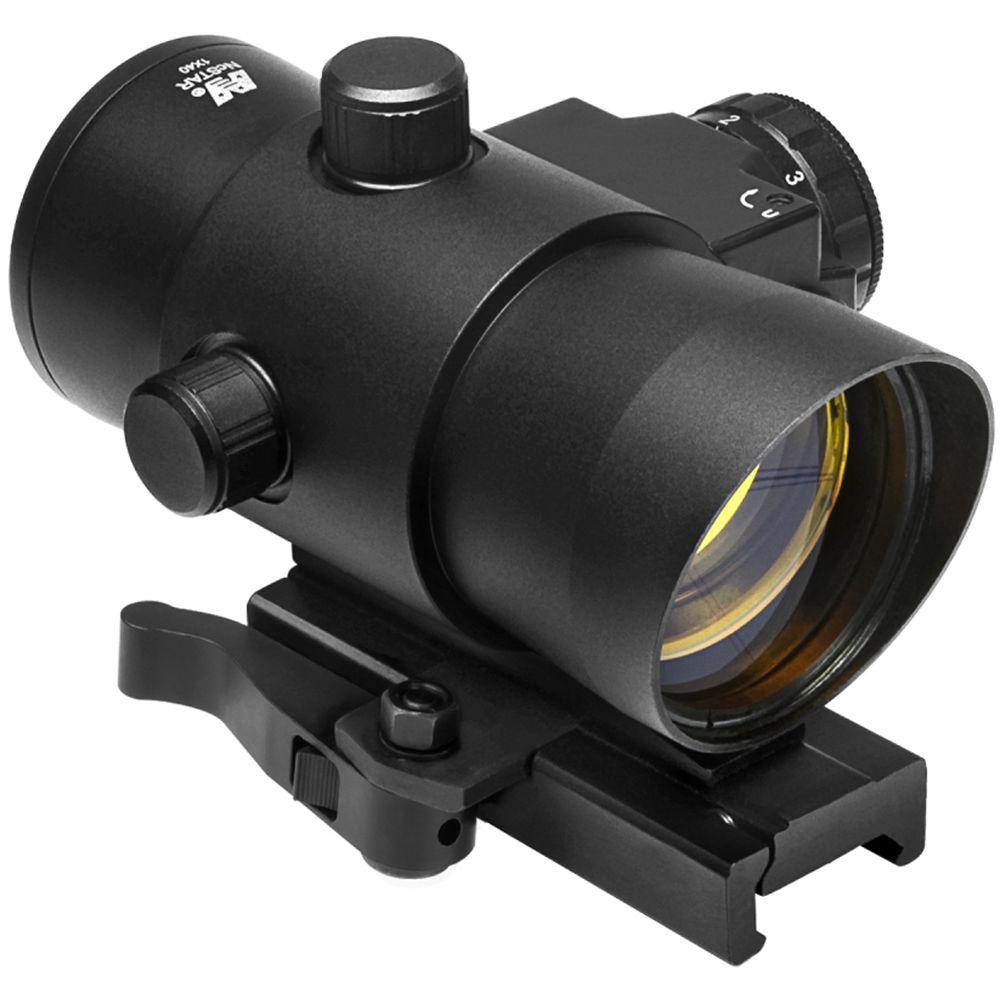

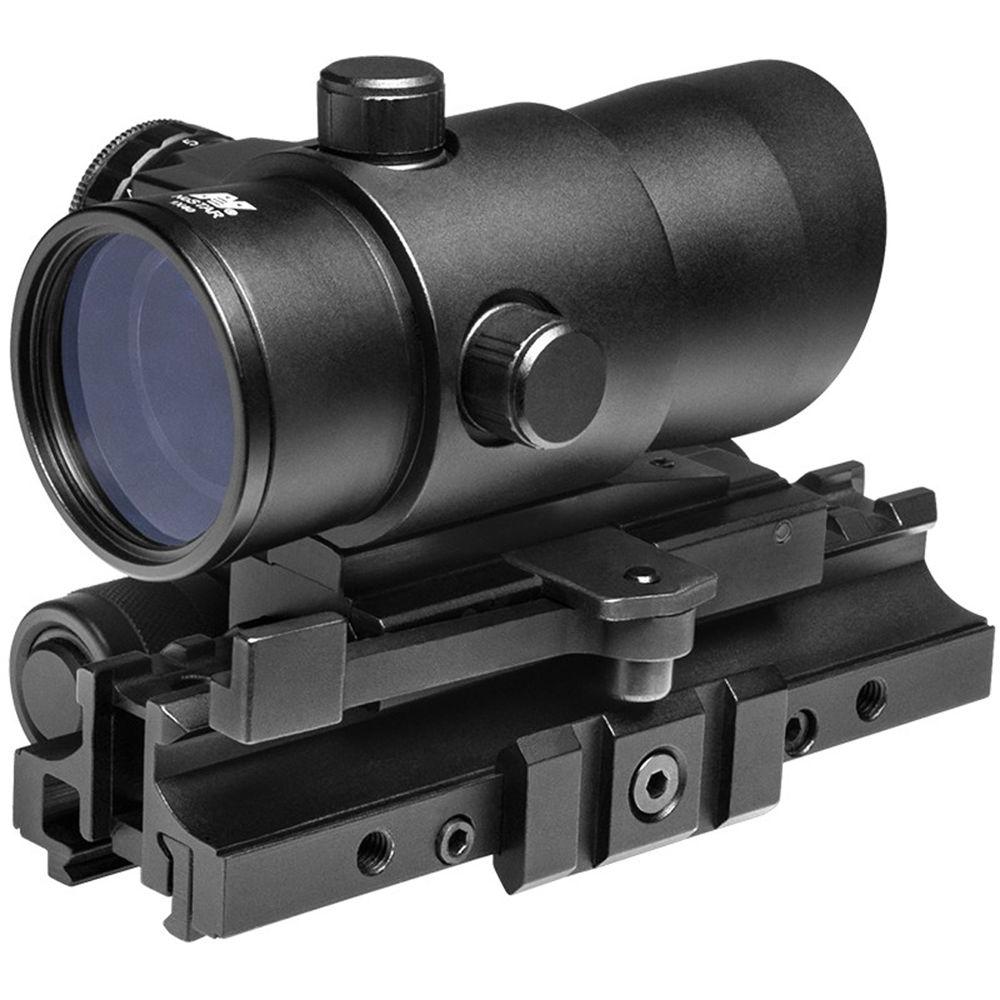

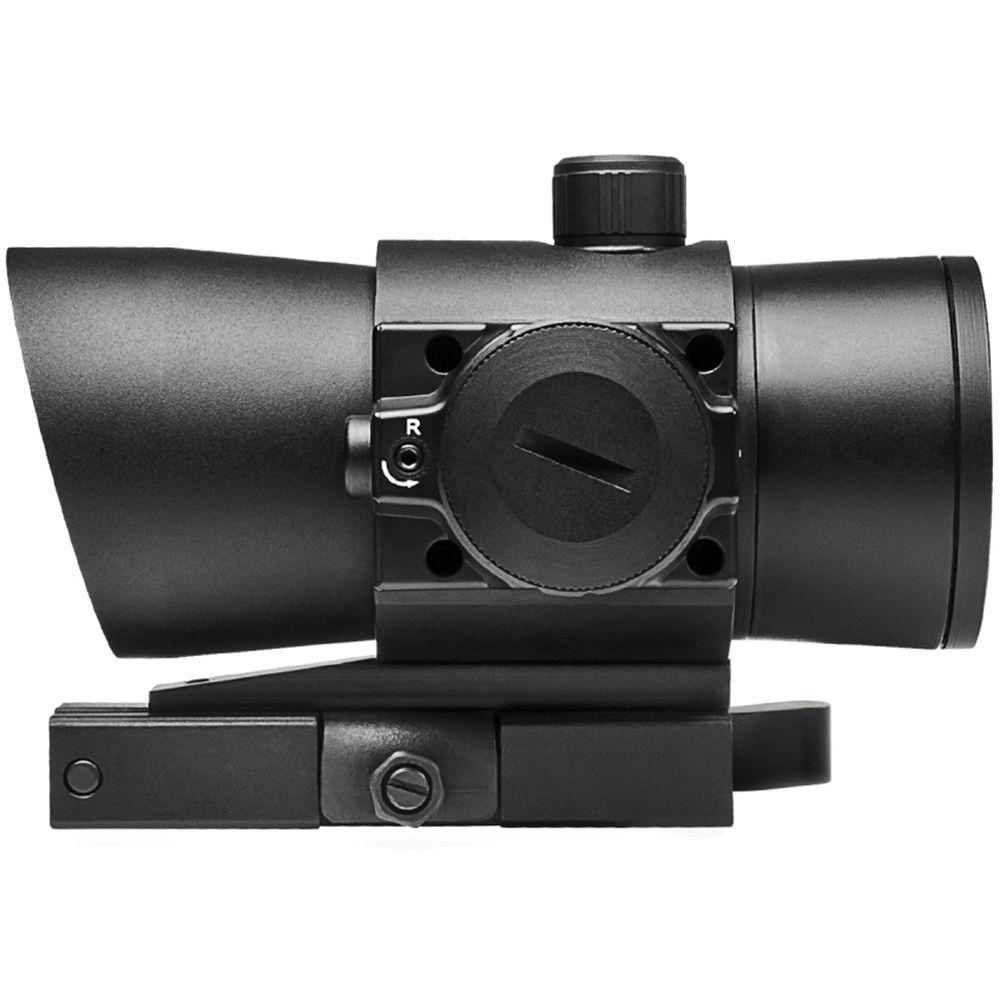

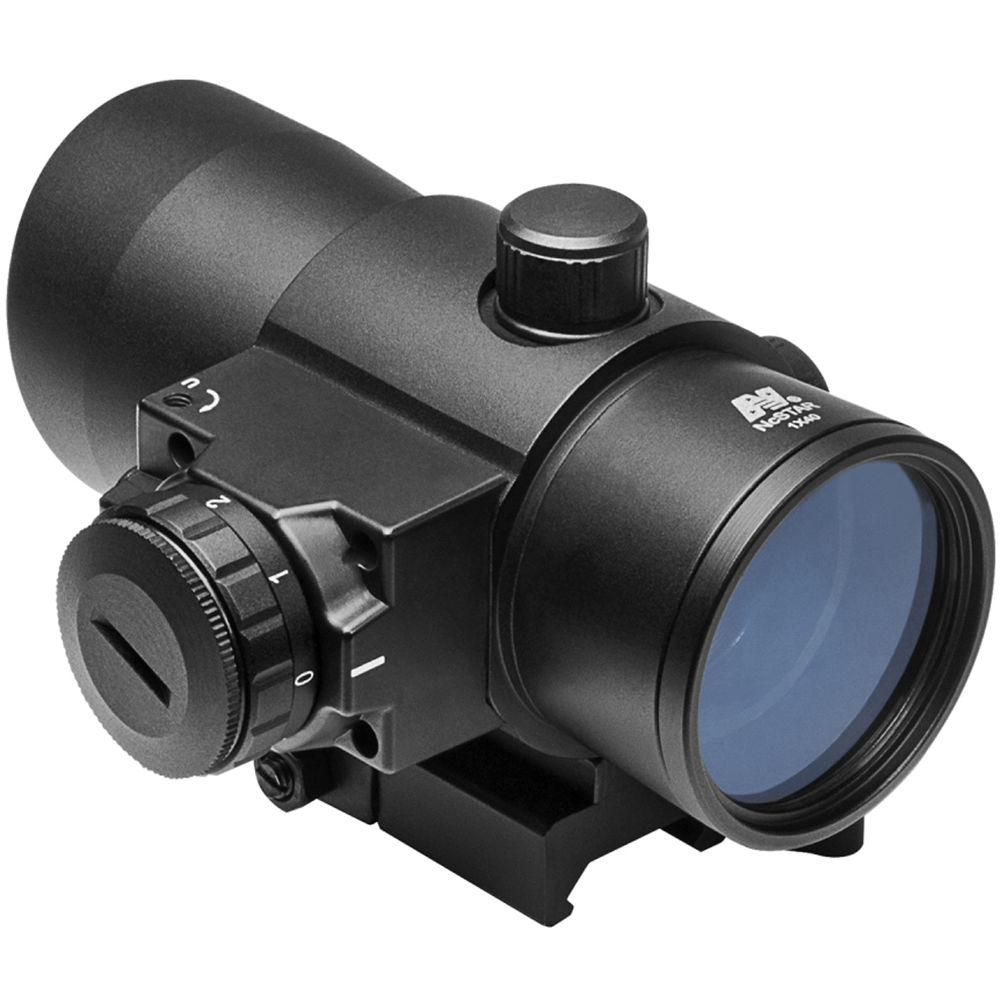

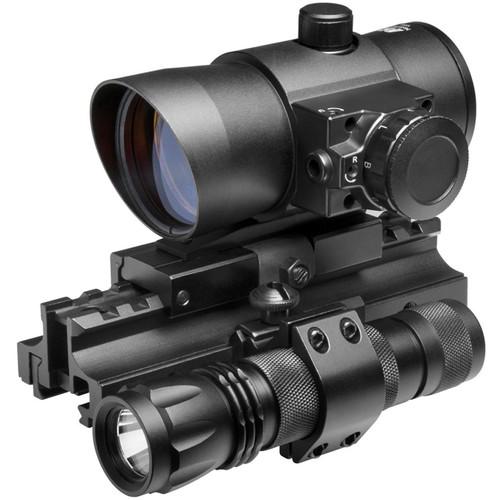

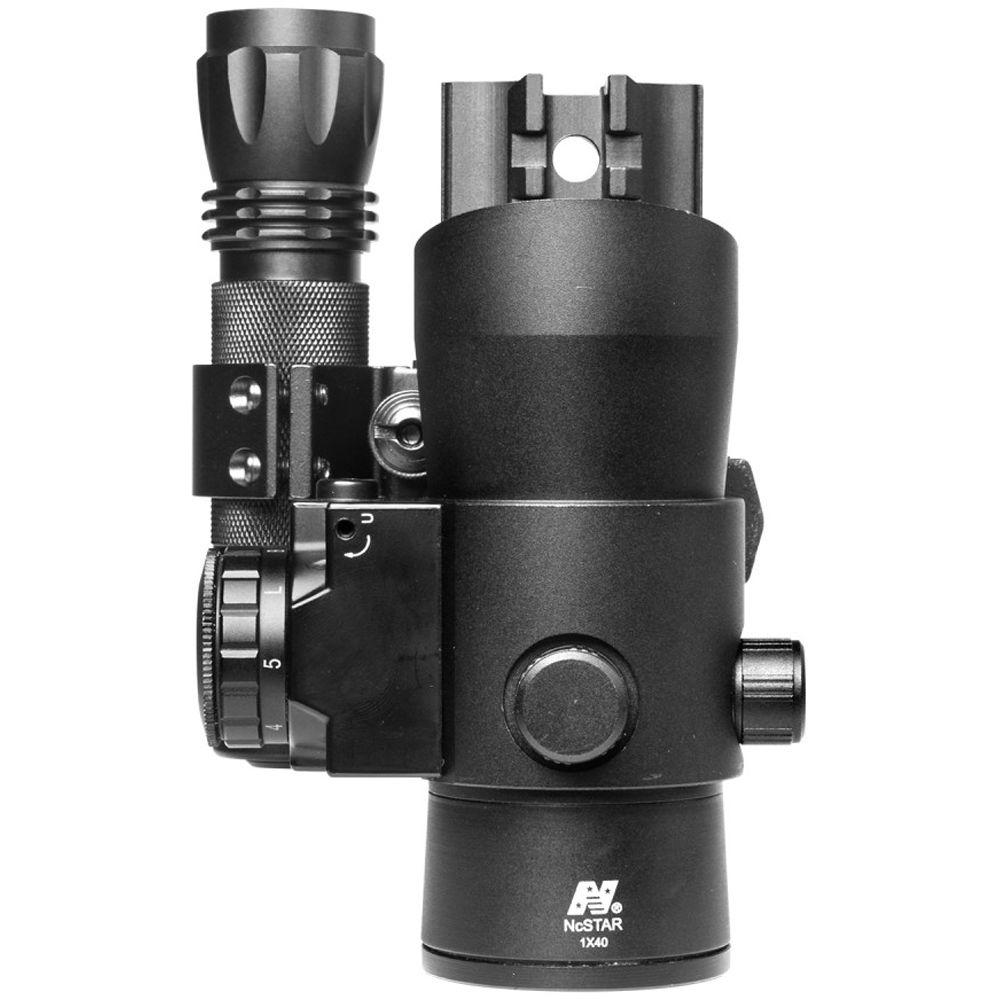

Product description Mount the NcSTAR Special Operations Red Dot Sight Combo on your AR platform rifle, and you'll be ready for any tactical situation. The combo is built around a 40mm Red Dot Reflex Optic with Weaver Tri-Rail Mount. The 3-MOA Red Dot aids in aiming, yet allows quick target acquisition with both eyes open. It has a built-in red aiming laser for more confident targeting. There's also a 160-lumen weapon light, which can be removed and used as an everyday-carry light when not in use on your rifle. - 1x40 Red Dot Sight with Red Laser & Quick Release Mount Get on target quickly in close-quarters combat with the 1x40 Red Dot Sight with Red Laser & Quick Release Weaver Mount from NcSTAR. This eyes-open optic features a 3 MOA red dot and an aiming laser, both operated by the same rheostat knob on the side of the unit. The sight has turrets for adjusting elevation and windage, while the laser has its own zero adjustments, using an included Allen wrench. The adjustable quick release mount attaches to Picatinny and Weaver rails. The unit comes with two CR2032 batteries—one installed, one as a spare.
- Optical Performance
-
- 1x magnification
- Unlimited eye relief
- Use and Handling
-
- 1 MOA per click red dot sight impact point correction
- Five brightness settings
- Laser windage and elevation adjusts with included Allen wrench
- Construction
-
- Lightweight and durable aluminum construction
- Type III hard anodized finish for corrosion- and scratch-resistance
- Compatible with Picatinny and Weaver style rails

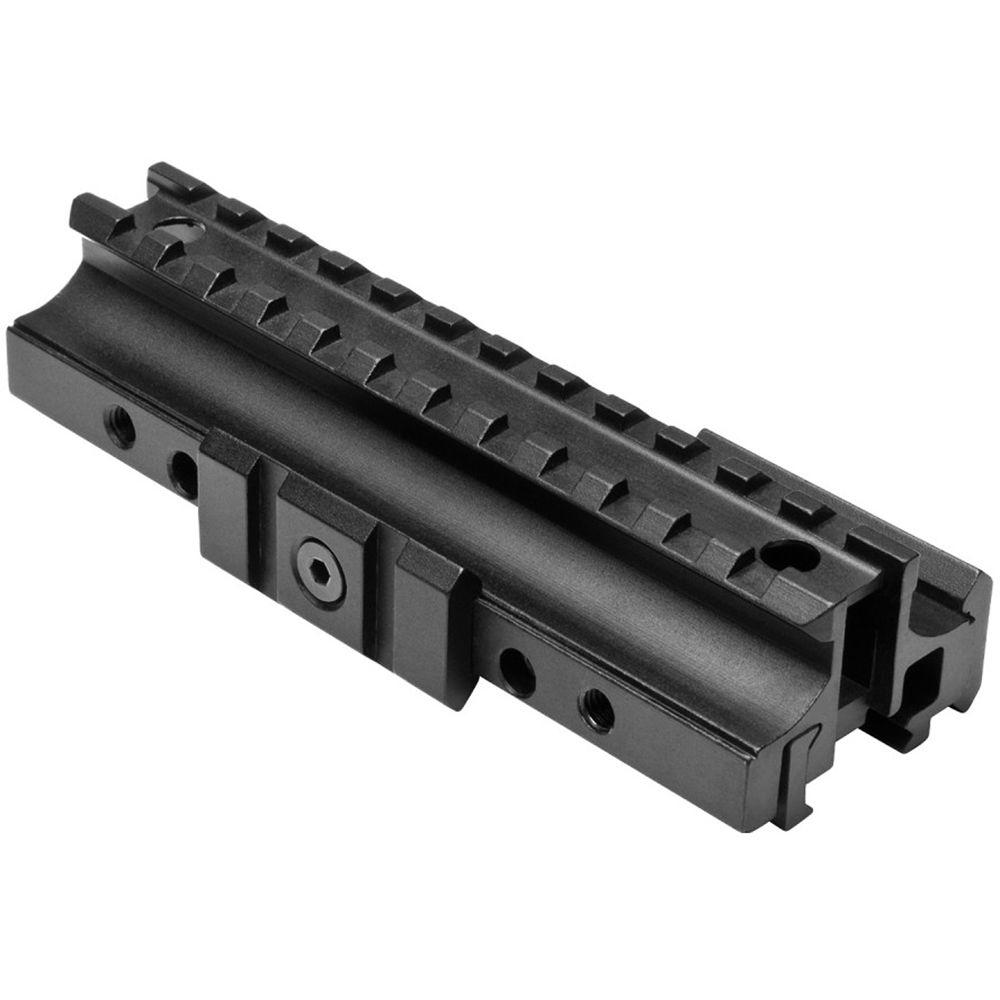

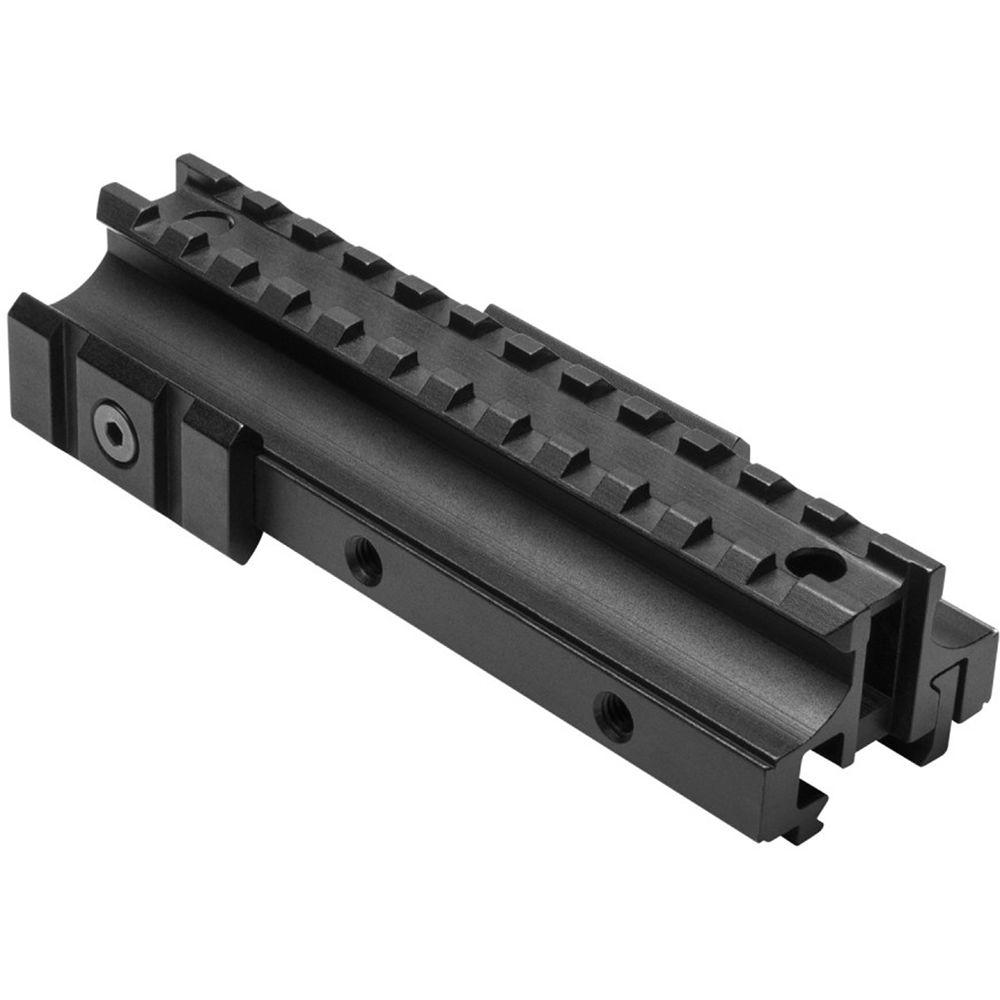

UPC: 814108011352 - AR Flat-Top Weaver Tri-Rail Mount The NcStar AR Flat-Top Weaver Tri-Rail Mount attaches directly to your AR's stock flat-top rail to give you more mounting options. The design of the Tri-Rail raises the optics mounted on the top rail into a more comfortable position while adding two short side rails for accessories like lights, lasers, or illuminators. It can accept any Weaver-compatible optic or accessory, and is made of a lightweight aluminum alloy that is treated with a protective anodized finish. UPC: 814108011734
- ATFLB LED Flashlight Offering 160 lumens of steady light with constant-on or momentary operation, the ATFLB LED Flashlight from NcSTAR is a valuable addition to your tactical gear. Powered by two CR123A batteries, it is controlled by a tailcap push-button switch, and is compatible with the separately sold NcSTAR AFWS Pressure Switch. Made of lightweight but sturdy aluminum, the ATFLB comes with batteries and a Weaver rail mounting ring to attach it to a rifle. UPC: 814108012397
In the Box Bundle Items 1x40 Red Dot Sight with Red Laser & Quick Release Mount xeetzezyxbstcdwzvufutrvbzfu - Limited Lifetime Warranty
AR Flat-Top Weaver Tri-Rail Mount ATFLB LED Flashlight Table of Contents
|
Upload User Manual
Have you got an user manual for the NcSTAR Special Operations Red Dot Sight Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 1x40 Red Dot Sight with Red Laser & Quick Release Mount
| | | Reticle | 3 MOA Dot | | Reticle Color | Red | | Eye Relief | Unlimited | | Power Source | 1 x CR2032 | | Mounting | Picatinny / Weaver | | Quick Release | Yes | | | | Magnification | 1 x | | Objective Lens Diameter | 40 mm | | | | Impact Point Correction | 1 MOA | | Diopter Adjustment | None | | | | Laser Type | Class 3R | | Laser Power | 5 mW | | Laser Wavelength | 655 nm | | Laser Power Source | 1 x CR2032 | | | | Material | Aluminum | | Dimensions | L: 4.4 x W: 3.5 x H: 3.0" / L: 11.2 x W: 8.9 x H: 7.6 cm | | Weight | 11.3 oz / 320 g | | | | Box Dimensions (LxWxH) | 6.6 x 5.1 x 3.6" | - AR Flat-Top Weaver Tri-Rail Mount
| Mounting | Weaver | | Material | Aluminum | | Dimensions | L: 5.2" / L: 13.2 cm | | Weight | 7.8 oz / 221.1 g | - ATFLB LED Flashlight
| Output | 160 lumens | | Emitter | 1 x 3 W Cree LED | | Material of Construction | Aluminum | | Battery | 2 x CR123A | | Dimensions | 4.6 x 1.1 x 1.0" / 11.7 x 2.8 x 2.5 cm | | Weight | 5.7 oz / 162 g |
