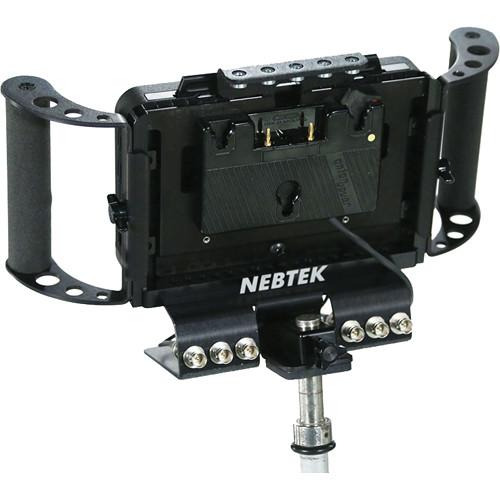

User Manual for Nebtek Odyssey7 Power Bracket with Anton Bauer Plate Click to enlarge the picture
Contents of the user manual for the Nebtek Odyssey7 Power Bracket with Anton
- Product category: Solid State Recorder Accessories Nebtek
- Brand: Nebtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nebtek Solid State Recorder Accessories
|
User manual for the Nebtek Odyssey7 Power Bracket with Anton contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nebtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nebtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nebtek product will considerably shorten its lifespan!
|
Product description The Odyssey7 Power Bracket with Anton Bauer Plate from Nebtek is a powering solution for the Convergent Design Odyssey7 and Odyssey7Q field recorder/monitor hybrids, allowing them to be powered from an existing video battery system. In addition, it acts as a cage by providing a combination of 1/4"-20 and 3/8"-16 threaded holes that can be used either for mounting the Odyssey7 on a camera or rig, or adding additional accessories to the Odyssey7. On top of that, there is a 5/8" socket in case you want to mount it on a light stand or C-stand.
Where a hand-held approach is preferred, the Power Bracket includes a pair of handles to make it easier for the director or another member of the crew to monitor the footage without interfering with the camera. Finally, a bulkhead on the underside of the bracket features cutouts for the installation of optional BNC connectors to help keep your cables organized. - Use your existing video camera batteries to power the Odyssey7 or Odyssey7Q. Options are available for Anton Bauer or IDX (Sony-style V-mount) professional batteries, or to use one or two Panasonic, JVC, Canon, or Sony compatible camcorder-style batteries
- 1/4"-20 and 3/8"-16 threaded holes allow the bracket to be mounted on camera rigs as well as let you add additional accessories to the Odyssey7. There is also a 5/8" socket for C-stands and light stands
- Bulkhead provides cutouts for optional BNC connectors to help with cable organization
- All metal, aluminum construction with foam handgrips
In the Box Nebtek Odyssey7 Power Bracket with Anton Bauer Plate Limited 1-Year Parts / 90-Days Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nebtek Odyssey7 Power Bracket with Anton Bauer Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNebtek O7PBAB Specs | Dimensions | 7.9 x 8.1 x 6.3" / 20.1 x 20.6 x 16 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 13.5 x 5.4 x 4.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
