Product description
10 Factors to Consider When Selecting A Monitor for Video Editing Read More
Picture by Picture
Picture by Picture
How to Load an ICC Profile
Product Demo
IPS Panel
How to Use the DisplaySyncPro KVM
How to Calibrate with SpectraView
DisplaySync Pro

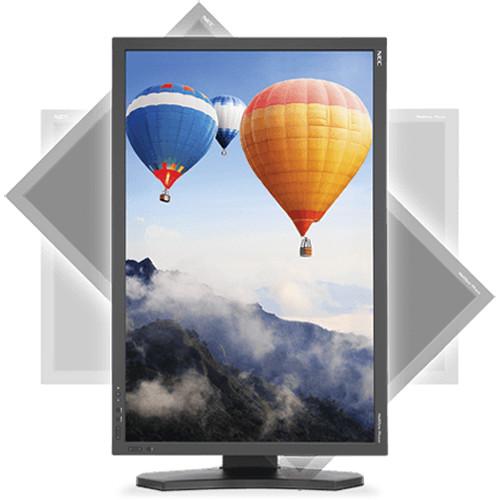

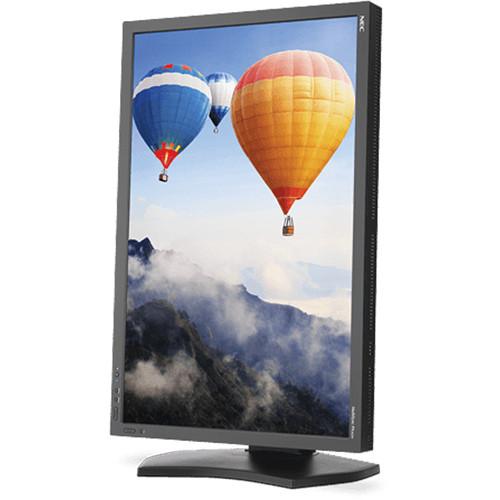

Auto Image Rotation
Backlight Stabilization | NEC Display Solutions

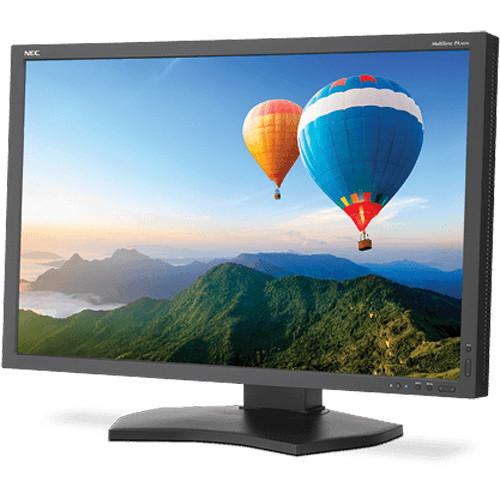

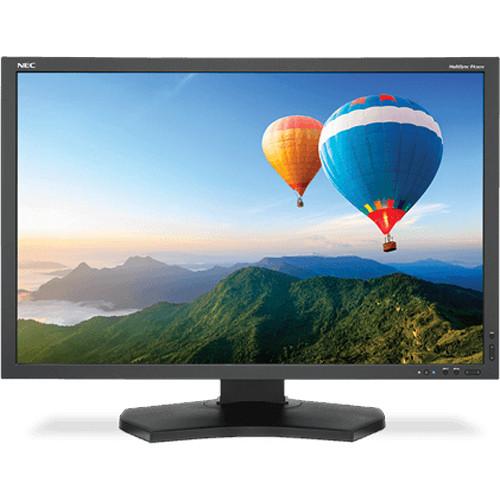

The 30" Widescreen LED Backlit LCD Wide Gamut Desktop Monitor from NEC provides some of the most accurate color representations available with 99.3% coverage of the AdobeRGB color space. Along with enhanced color accuracy, you also benefit from reduced power consumption through the integrated GB-R LED backlight. The display supports a 2560x1600 resolution, a 1,000:1 contrast ratio, 340cd/m² brightness rating and 1.07 billion displayable colors.

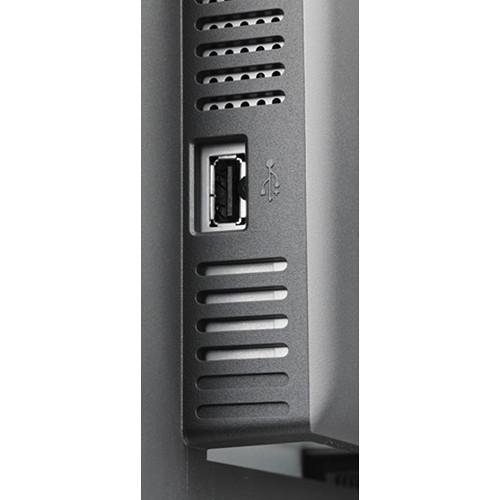

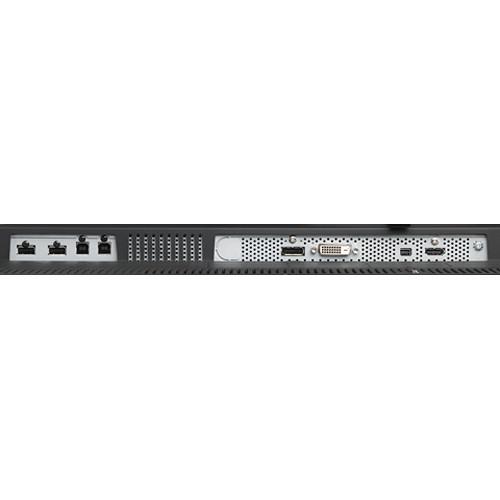

This color accurate monitor comes equipped with DisplayPort, Mini DisplayPort, HDMI and Dual Link DVI-D display input connectors allowing you to set up this monitor for use in a variety of PC configurations. Along with display input connectors, you also benefit from an integrated USB hub consisting of 2 upstream and 3 downstream ports complete with DisplaySync Pro allowing you to control two computers simultaneously. Mount the VESA compatible monitor to the wall or utilize the included stand and take advantage of the enhanced 178° horizontal and vertical viewing angles.
The GB-R LED backlight consumes 44% less power than a comparable CCFL backlight
14-bit 3D internal programmable lookup tables (LUTs) for calibration
Five completely customizable picture modes
MultiProfiler software provides complete control over the five picture modes, including the loading of any ICC profile directly into the monitor for optimal color space matching
DisplaySync Pro controls two computers with only one keyboard and mouse
Wide connectivity includes both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, a DVI-D input as well as a USB hub
Multiprofiler Application
A variety of Monitor controls: MultiProler allows you to control the brightness, black level and color gamut directly from the software in addition to many other settings. Changes to settings are made instantly to the monitor.
Picture Mode preset editing: Multiple picture modes can be quickly congured using MultiProler. Choose from the simplicity of built-in sRGB, Adobe RGB, DCI, DICOM, REC-BT709 and High Brightness modes, or load an ICC prole for color matching an existing printer or display. In addition, MultiProler helps you create a completely custom Picture Mode conguration, including controlling the gamma characteristics, color gamut and white point.
Picture-in-Picture (PIP) conguration: The PIP modes can be completely congured directly in MultiProler, including the PIP mode, the video inputs and the Picture Mode for the second video input. This greatly simplies the management of multiple computer congurations.
DisplaySync Pro and USB hub conguration: The integrated USB hub in MultiSync PA Series monitors also can be managed through MultiProler to function as a keyboard/ video/mouse (KVM) switch. This feature maps the USB upstream ports to the various display inputs, which is useful for managing controlling computers attached to the display.
Quick print preview: Create a print preview Picture Mode for your printer by loading its ICC prole in MultiProler. The Picture-in-Picture or Picture-by-Picture function can then be used to view the print preview in real-time.
Automatic generation of ICC proles: MultiProler automatically generates and updates ICC proles as the color modes are selected or adjusted, reducing the need for a proling package to prole the monitor.
UPC: 805736048131 In the Box NEC 30" Widescreen LED Backlit LCD Wide Gamut Desktop Monitor
Power Cable
DisplayPort Cable
Mini DisplayPort to DisplayPort Cable
DVI Cable
USB Cable
Mounting Screws
Limited 4-Year Warranty
Guides & Manuals tdtxrwdzaudcyuzxeuxvzductw Table of Contents
Upload User Manual
Have you got an user manual for the NEC 30" Widescreen LED Backlit LCD Wide Gamut Desktop Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User Manual
The user manual for the NEC 30" Widescreen LED Backlit LCD Wide Gamut Desktop Monitor can be downloaded in PDF format at the link stated below.
27.1 x 17.6 x 3.2" / 68.8 x 44.7 x 8.2 mm (Without Stand) 27.1 x 18.4 x 11.9" / 68.8 x 46.6 x 30.2 mm (With Stand)
Weight
37.5 lb / 17 kg 23.6 lb / 10.7 kg (Without Stand)
Package Weight
51.7 lb
Box Dimensions (LxWxH)
33.0 x 25.0 x 17.0"
