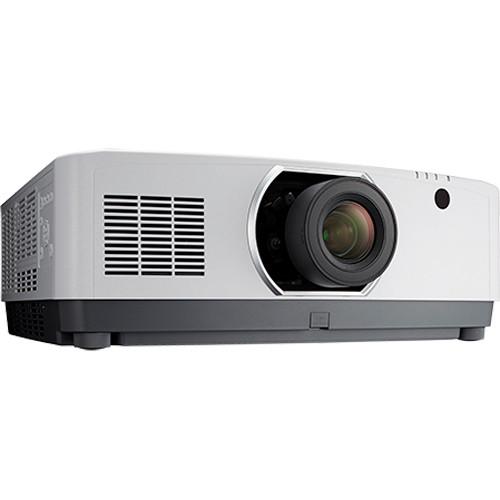

User Manual for NEC 8000-Lumen Laser Installation Projector with 4K Support and NP41ZL Lens Click to enlarge the picture
Contents of the user manual for the NEC 8000-Lumen Laser Installation Projector with
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
|
User manual for the NEC 8000-Lumen Laser Installation Projector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The 8000-Lumen Laser Installation Projector from NEC uses the 0.76" LCD with MLA (Micro Lens Array) display technology to offer a maximum resolution of 4096 x 2160. It features the NP41ZL lens that has a focal length of 21.8-49.7mm and supports HDR10 and BT.2020 signals from Ultra HD Blu-ray and 4K TV broadcasting on all digital inputs. The projector comes with integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon, Extron XTP, and PJ link for complete interactivity and control.
The HDBaseT input and optional HDBaseT repeater provide a single connection for uncompressed full HD digital video, audio, Ethernet power, and various control signals. The Direct Power-Off function protects the lamp when the projector is accidentally unplugged or the power strip is switched off. It allows the fan to continue running until the lamp is properly cooled down. The internal sensors monitor lamp temperature and prevent the lamp from powering on. - TileMatrix enables 4Kx2K resolution utilizing four projectors via HDBaseT loop out
- NP41ZL 21.8-49.7mm varifocal lens with a throw ratio of 1.3-3.02:1
- Manual Keystone correction
- Quick power-on and power-off
- Edge blending allows you to blend multiple projectors together to create non-standard images
- AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
- AutoSense intuitively syncs the projector with most computer signals and features one-touch image optimization
- Built-in Wall Color Correction: Presets provide for adaptive color tone correction to display properly on non-white surfaces
- Cornerstone Correction: Allows for horizontal, vertical, and diagonal image correctionS for aligned images even when the projector is set up at an angle to the screen
- Crestron Roomview: Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network
- Dual computer inputs ensure quick switching between presentations
- Dual HDMI inputs (with HDCP): Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources such as Blu-ray players, cable boxes, satellite receivers, and computers
- ECO Mode extends lamp life and lowers audible noise
- Geometric correction allows you to project on spheres, cylinders, corner angles and more
- Landscape/portrait capable
- Vertical and horizontal lens shift enables flexible projector placement
- Long life power consumption of 285 W (100 to 130 VAC and 200 to 240 VAC)
UPC: 805736066135 In the Box NEC 8000-Lumen Laser Installation Projector with 4K Support and NP41ZL Lens Remote Control Batteries Power Cord Cable Cover Lens Hole Cap Lens Anti-Theft Screw Security Sticker Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC 8000-Lumen Laser Installation Projector with 4K Support and NP41ZL Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-PA803UL-41ZL Specs | | | Display System | 1-Chip 0.76" Micro Lens Array (MLA) LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: UHD 4K - 4096 x 2160 | | Max Brightness | 8000 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 2500000:1 | | Scan | Horizontal: 15 to 100 kHz
Horizontal: 15 to 153 kHz
Vertical: 48 to 120 kHz
Vertical: 24 to 120 kHz Horizontal: Analog/Digital
Vertical: Analog/Digital | | | | Focus | Auto | | Lens | f/1.7 - 2 (f = 21.8 - 49.8 mm) | | Lens Shift | Horizontal: ± 0.3%
Vertical: -.1 + 0.5% | | Throw Distance | 54 - 1285" / 1.372 - 32.639 m | | Throw Ratio | 1.3 - 3.02:1 | | Projection Size | 50 - 500" / 127.00 - 1270.00 cm | | | | Keystone Correction | Horizontal: ± 40°
Vertical: ± 40° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
2 x HDMI Video (Input)
1 x DisplayPort Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x HDBaseT (RJ45) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-A Male
1 x Unspecified Signal (DE-9) Video (Input) | | | | Lamp Power | 798 W
774 W
604 W
592 W
470 W
464 W Normal/ECO1/ECO2 | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 33 dB | | Security | Password Protection | | Supported Languages | Danish
Dutch
English
French
Indonesian
Italian
Malaysian
Polish
Romanian
Spanish
Swedish
Traditional Chinese | | Max Operating Altitude | 12000' / 3657 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Storage
14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 22.8 x 8.2 x 19.5" / 579.1 x 208.3 x 495.3 mm | | Weight | 40.2 lb / 18.2 kg | | | | Package Weight | 67.0 lb | | Box Dimensions (LxWxH) | 35.5 x 30.25 x 22.75" |
