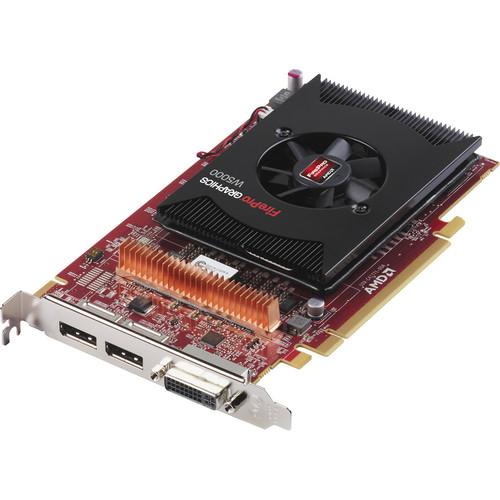

User Manual for NEC AMD FirePro W5000 Dual DisplayPort Video Card Click to enlarge the picture
Contents of the user manual for the NEC AMD FirePro W5000 Dual DisplayPort
- Product category: Graphic Display Cards NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Graphic Display Cards
|
User manual for the NEC AMD FirePro W5000 Dual DisplayPort contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The AMD FirePro W5000 Dual DisplayPort Video Card from NEC is capable of driving up to two 5 Mp displays while offering users the ability to stretch one image or application across both screens for expanded view and enhanced productivity. This PCIe card enables high-quality, high-resolution 10-bit grayscale 2D output, representing images and data with incredible sharpness and clarity. W5000 is a powerful mid-range workstation graphics card designed to deliver superior performance for CAD/CAE and Media workflows, and can process up to 1.65 billion triangles per second. This means during the design process, you can easily interact and render your 3D models. The card also offers 2GB memory and is the ideal solution for professionals working with a broad range of applications, moderately complex models and datasets as well as advanced visual effects. - Ideal for CAD and M&E Applications
- Optimized and certified for major CAD and M&E applications, the DisplayPort Video Card delivers 1 TFLOP of single precision and 80 GFLOPs of double precision performance with outstanding reliability for the most demanding professional tasks.
- Supports DisplayPort 1.2
- Full support of DisplayPort 1.2 allows simultaneous output of multiple, independent audio streams and display content at resolutions beyond standard HD (maximum resolution of 4096 x 2160). 1
Please Note: AMD FirePro W5000 supports DisplayPort 1.2 with a max resolution of 4096 x 2160, can drive three displays at once and features 2GB GDDR5 memory, a 256-bit memory interface and 102.3 GB/s memory bandwidth. close - Energy Efficient
- AMD FirePro W5000 has an energy-efficient design and uses AMD PowerTune technology to dynamically optimize GPU power usage, while AMD ZeroCore Power technology significantly reduces power consumption at idle.
- AMD Eyefinity Technology
- AMD Eyefinity technology is an advanced multi-display technology, delivering the most immersive graphics/computing experience with innovative display capabilities supporting massive desktop workspaces. 2
Please Note: This can support up to six DisplayPort displays using a single enabled AMD graphics card. The number of supported displays varies; confirm specifications with the manufacturer before purchase. Additional hardware may be required. close - AMD PowerTune Technology
- AMD PowerTune technology is a state-of-the-art power management technology that provides direct control over GPU power usage. This technology dynamically optimizes the GPU clock while keeping the workstation energy conscious, conserving electricity when it is not needed. Applications enjoy ultimate performance while intelligently conserving electricity.
- Graphics Core Next (GCN) Architecture
- Graphics Core Next (GCN) architecture is the next-generation architecture engineered to balance compute with 3D workloads efficiently.
- AMD ZeroCore Power Technology
- Provides exceptional idle power reduction by shutting down GPU.
- Discrete Digital Multi-Point Audio (DDMA)
- Simultaneously output multiple and independent audio streams using DisplayPort 1.2.
- Video Codec Engine (VCE)
- Multi-stream hardware H.264 HD Encoder.
Power efficient and faster than real-time 1080p @60f/s. - GeometryBoost
- Utilizes the unique new hardware architecture that features dual graphics engines, allowing the GPU to process two primitives per clock cycle and provide ultra-high geometry processing performance. GeometryBoost also allows users to unleash their creativity by ensuring ultra-high geometry performance and smooth handling of complex models.
- AutoDetect Technology
- As a user moves between applications or opens new ones, the graphics driver settings are automatically configured for maximum performance.
- Full 30-Bit Display Pipeline
- Enables four times more color values than 24-bit products for more accurate color reproduction and superior visual fidelity.
- HydraVision
- Use HydraVision to manage desktop displays and workspaces in multi-display environments:
Explicitly set the behavior of pop-up windows and dialogs in different applications through Desktop Manager.
Provide multiple layers of desktop workspace through Multi-Desktop.
Restrict application window placement across multiple desktops through HydraGrid. UPC: 805736046519 In the Box NEC AMD FirePro W5000 Dual DisplayPort Video Card 3-Year Limited Product Repair/Replacement Warranty Spec sheet PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC AMD FirePro W5000 Dual DisplayPort Video Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC W5000 Specs | Graphics Memory | 2GB GDDR5 | | Compliance | PCIe 3.0 compliant | | Technology | GPU with Graphics Core Next(GCN) technology
AMD Eyefinity technology | | System Requirements | 1 x PCIe x 16 (single slot)
Windows 7 / XP / Windows Vista or Linux (32-bit or 64-bit)
512 MB of system memory
Internet connection for driver installation | | Display Connectors | 2 x DisplayPort 1.2 outputs
1 x Dual-link DVI-I output
Additional DVI (single link and dual link) display support via DisplayPort to DVI adaptor
Independent multi-monitor resolution and refresh rate selection
VGA analog support W5000 (2xDP + 1XDVI-I) supports a maximum of 5 x 2560x1600 displays or 6 x 1920x1200. | | APIs | API and OS Support:
OpenGL 4.2 with OpenGL Shading Language
OpenCL 1.1
Microsoft DirectX 11.1
Windows 7, Windows XP, Windows XP64, Windows Vista and Windows Vista64
Linux 32 and Linux 64 | | Additional Features | Full 30-bit precision display pipeline
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color component |
