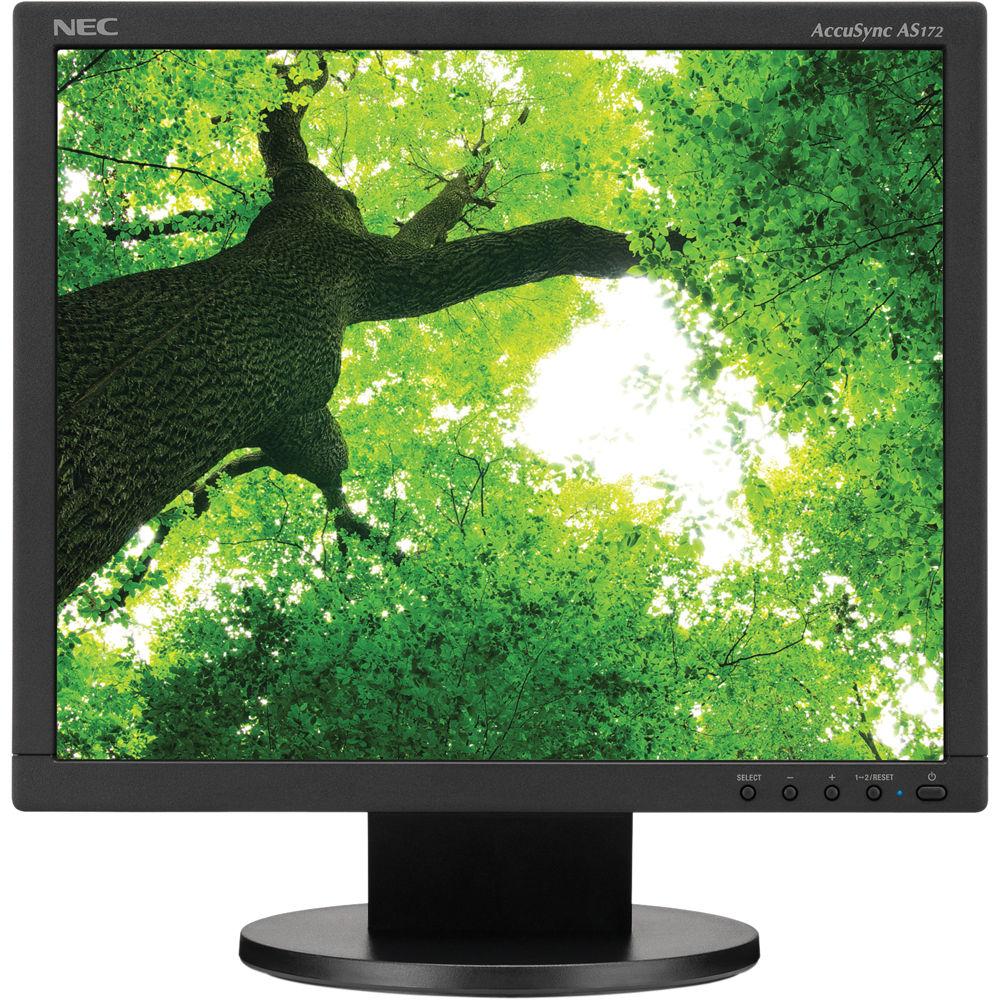

User Manual for NEC AS172-BK 17" LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the NEC AS172-BK 17" LED Backlit LCD
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC AS172-BK 17" LED Backlit LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

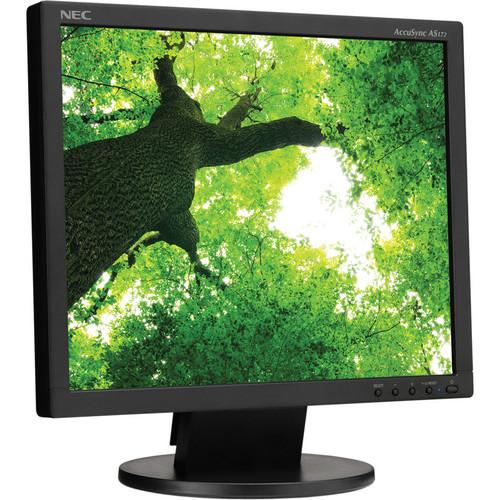

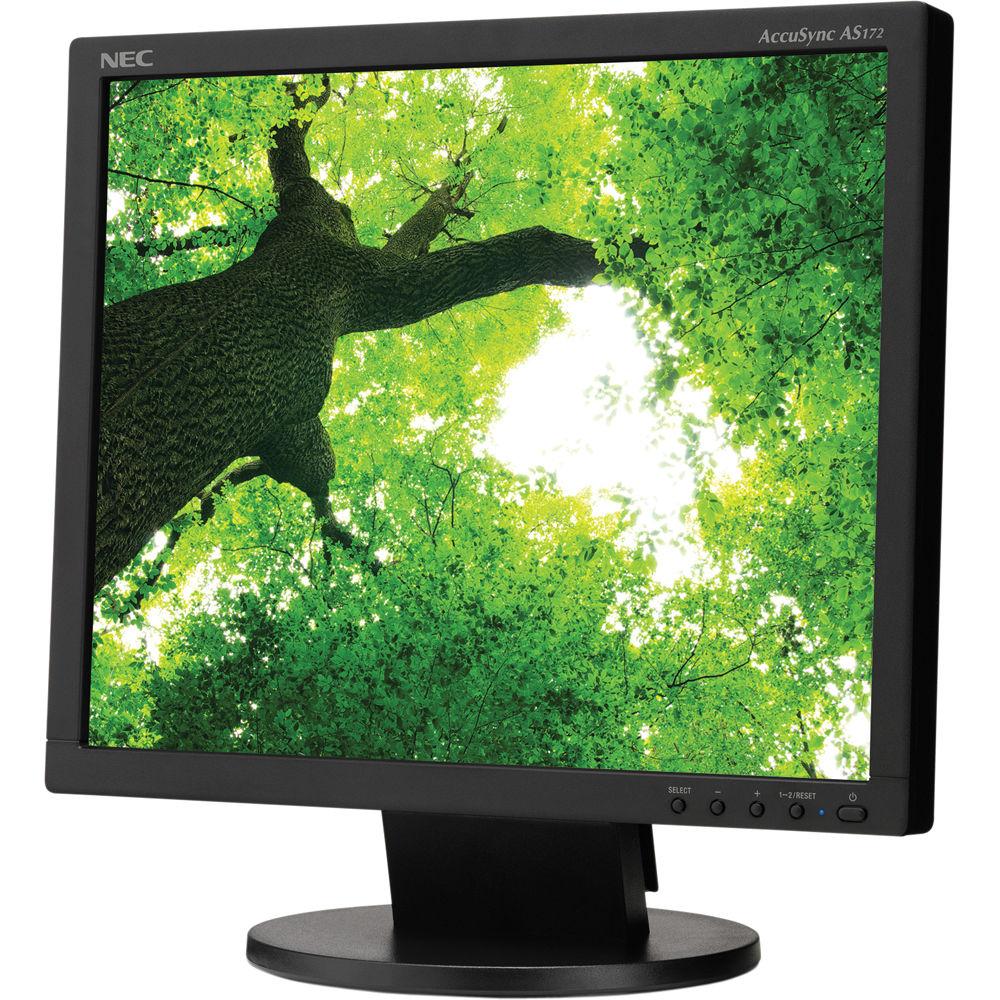

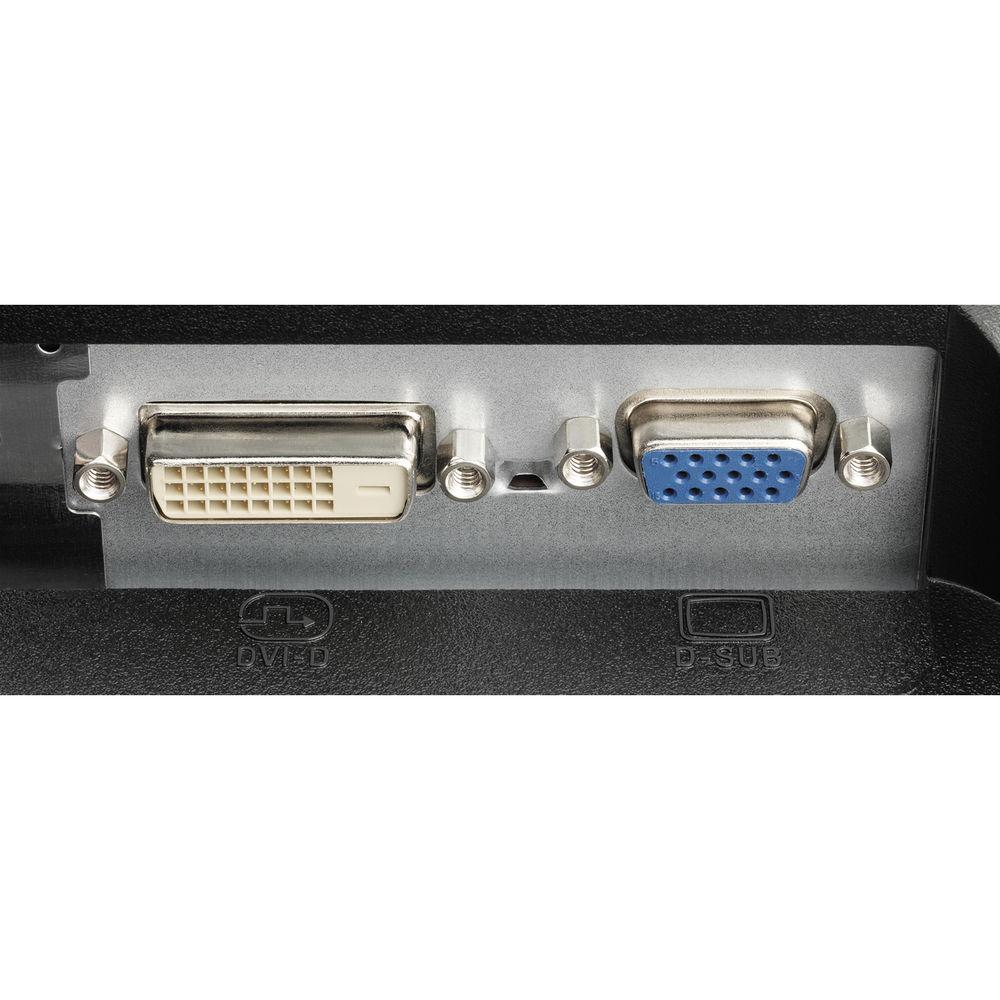

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More wtsrtyyawwzadwdarxt The AS172-BK 17" LED Backlit LCD Monitor from NEC features a 17" viewable display complete with a 1280 x 1024 native resolution, a 1,000:1 contrast ratio, a 5 ms response time, and a brightness rating of 250 cd/m². This 5:4 monitor can be viewed from a variety of angles as it supports 170° horizontal and vertical viewing angles. Setup and configuration of the AS172-BK has also been simplified as it comes equipped with DVI-D and VGA input connectors. - LED Backlight Technology
- LED backlight technology provides reduced power consumption and less hazardous materials. Ambix dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems.
- Rapid Response Technology
- Rapid Response technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
- ECO Mode
- ECO Mode function helps save power, reduce heat and extend the life of the display, a Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use.
UPC: 805736052039 In the Box NEC AS172-BK 17" LED Backlit LCD Monitor Power Cord 15-pin D-Sub Cable Limited 3-Year Warranty User Manual PDF 3.6mbwtsrtyyawwzadwdarxt Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC AS172-BK 17" LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC AS172 Specs | | | Size | 17" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Pixels Per Inch (ppi) | 96 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81.1 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Dot Pitch | 0.26 x 0.26 mm | | | | Connectivity | 1 x DVI-D
1 x VGA | | | | Power Consumption | 0.15 W (Standby)
11 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 14.7 x 14.7 x 8.1" / 37.3 x 37.3 x 20.6 mm (With Stand)
14.7 x 12.2 x 2.7" / 37.3 x 31.0 x 6.9 mm (Without Stand) | | Weight | 7.3 lb / 3.3 kg (With Stand)
6.4 lb / 2.9 kg (Without Stand) | | | | Package Weight | 9.9 lb | | Box Dimensions (LxWxH) | 17.5 x 16.3 x 6.6" |
