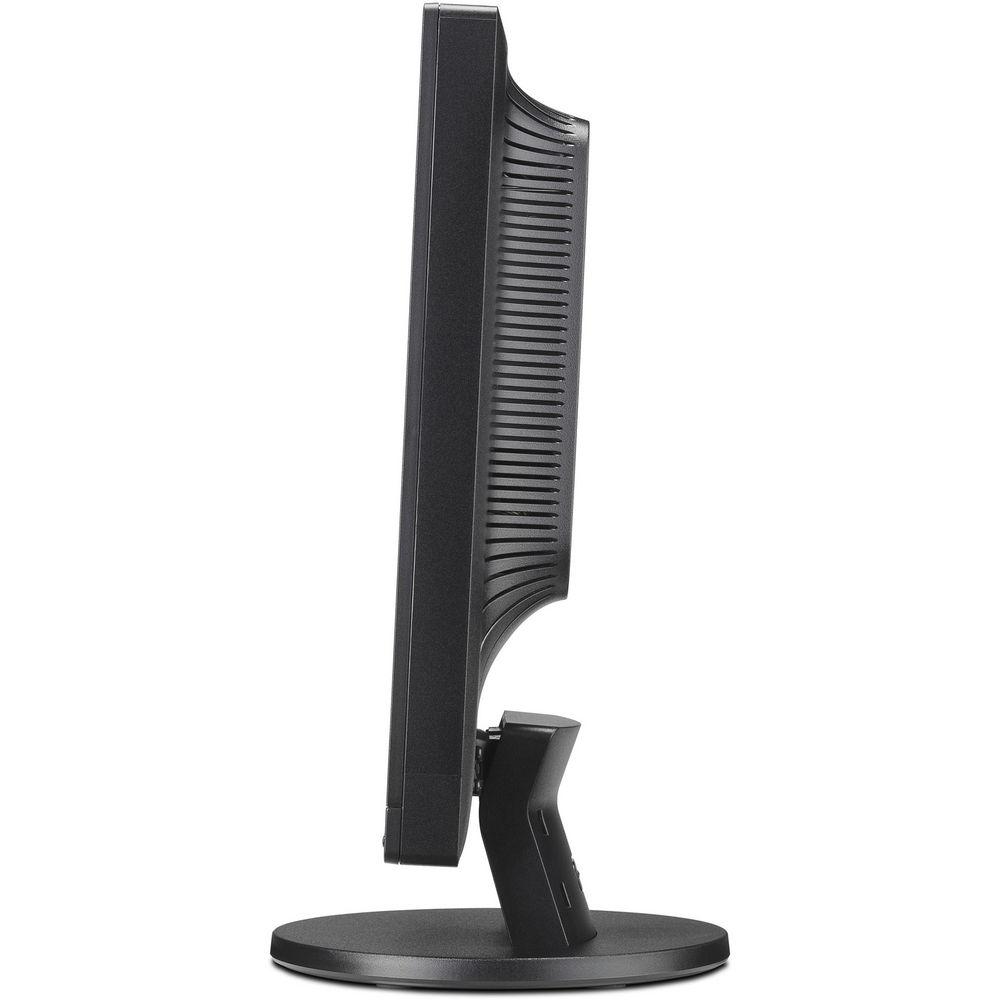

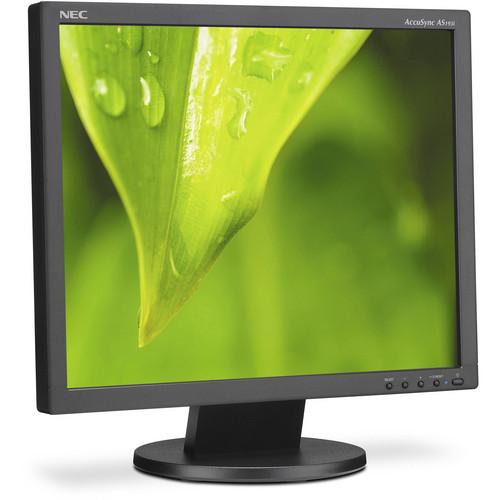

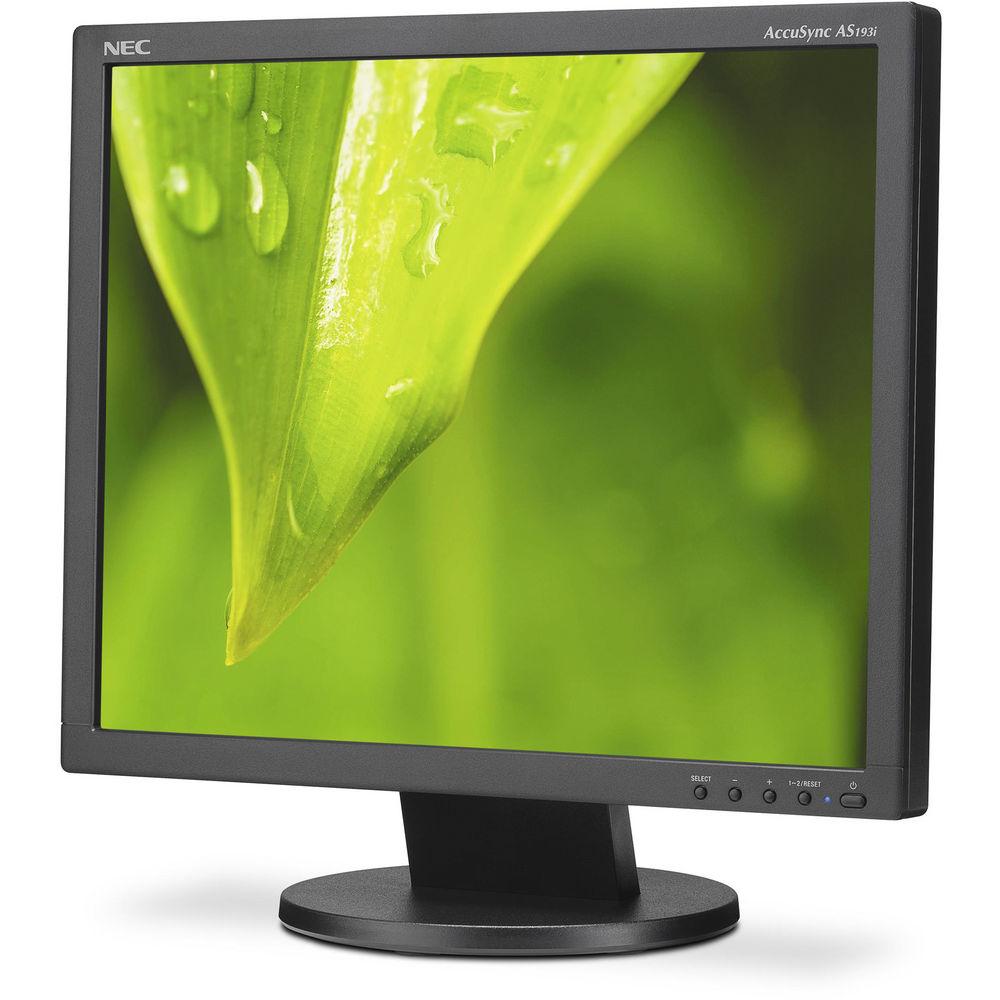

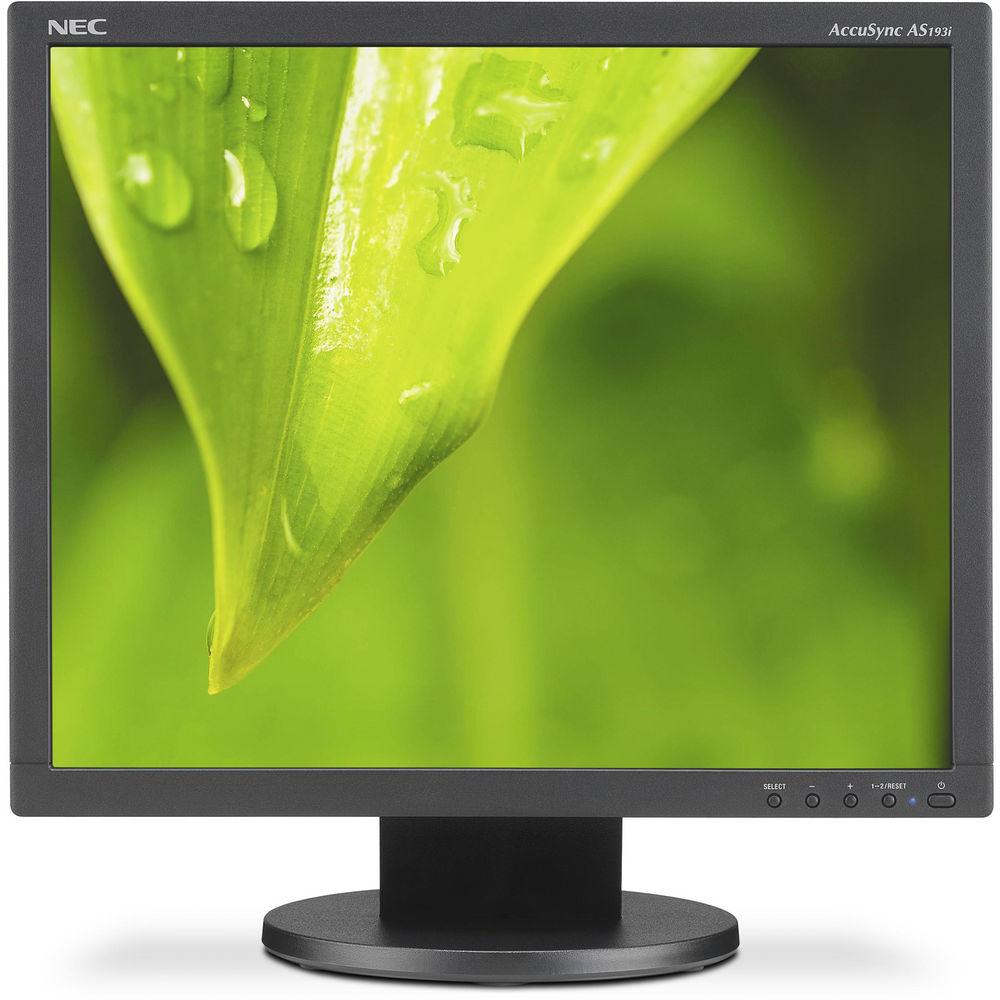

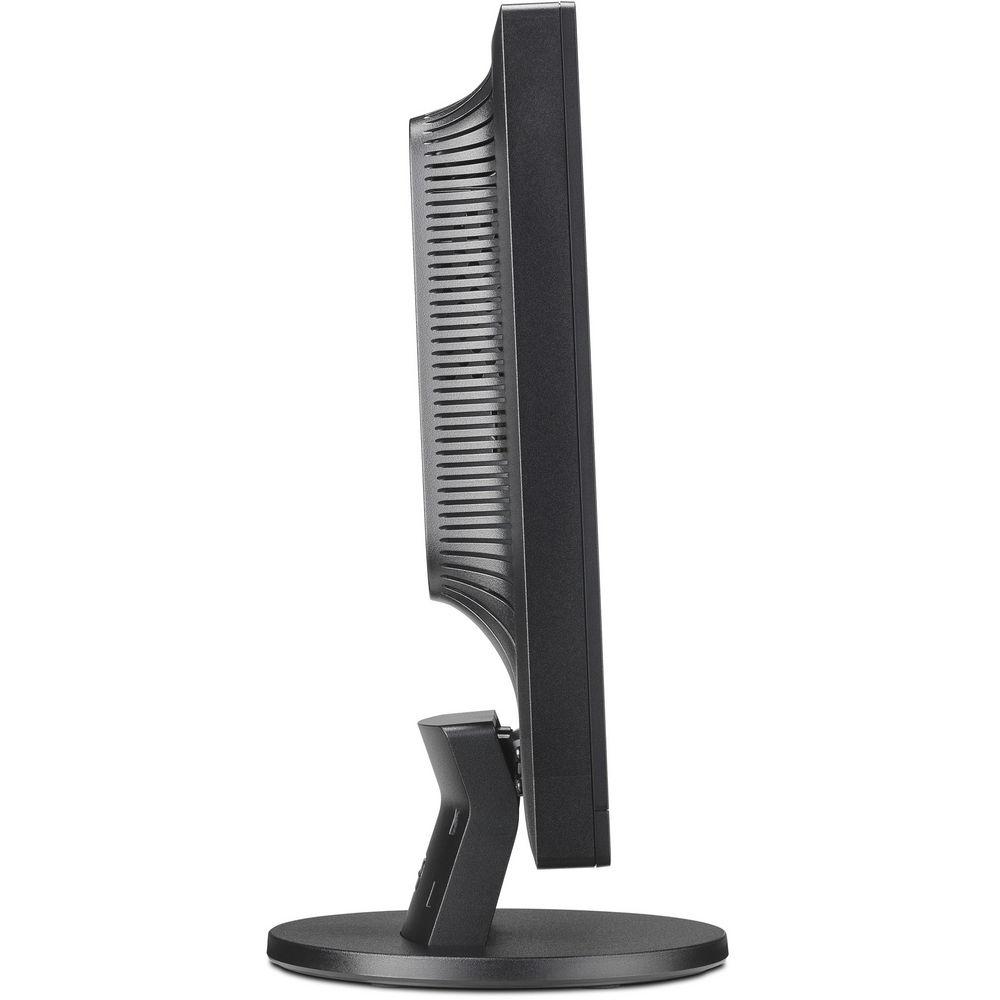

User Manual for NEC AS193i AccuSync 19" Value LED Backlit IPS LCD Desktop Monitor Click to enlarge the picture
Contents of the user manual for the NEC AS193i AccuSync 19" Value LED
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC AS193i AccuSync 19" Value LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The AS193i AccuSync 19" Value LED Backlit IPS LCD Desktop Monitor from NEC is an LED-backlit IPS LCD desktop monitor that enhances desktop computing with eco-friendly benefits. This value-driven model touts features such as an IPS panel for image performance, ECO Mode to extend the life of the display, tilt adjustability, and Intelligent Power Manager. The monitor is mercury-free, consumes little power and generates little heat. Additional benefits include a carbon footprint meter and Rapid Response technology for virtually uninterrupted, undistorted viewing of high-speed, full-motion video; both of which make this model suitable for classrooms and small-to-medium-sized business environments. This monitor provides DVI-D and VGA 15-pin D-sub connectivity. - IPS Active Matrix LCD
- IPS active matrix LCD provides wide viewing angles and lifelike flesh tones
- LED Backlight Technology
- LED Backlight technology provides for low power consumption and less hazardous materials
- Ambix Dual-Input Technology
- Ambix Dual-Input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
- Rapid Response Technology
- Rapid Response technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
- ECO Mode
- ECO Mode function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight
- Intelligent Power Manager System and Off Timer
- Intelligent Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level, or automatically powering down when the monitor is on but not in use
- Carbon Footprint Meter
- Carbon footprint meter helps to track and calculate the reduction of green gas emissions
- Additional Features

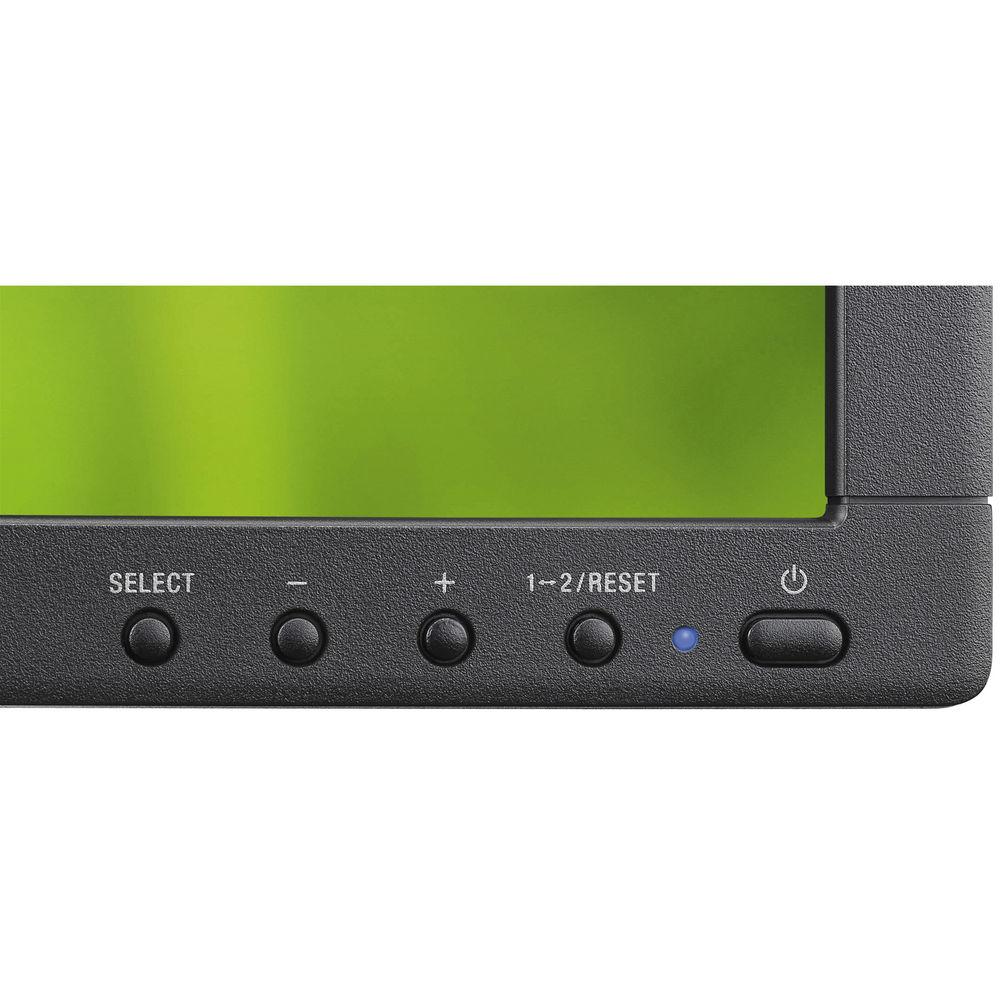

- ECO mode, Carbon footprint meter, Thin frame, Tilt, Rapid Response, Ambix, XtraView, OSD user controls, NaViSet software, Cable management, VESA mount, HDCP, DDC/CI, No Touch Auto Adjust, Plug and Play (VESA DDC 2B), VESA DPMS power management, AccuColor color control, Digital smoothing, Digital controls, ISO 9241-307 Class I
UPC: 805736047967 In the Box NEC AS193i AccuSync 19" Value LED Backlit IPS LCD Desktop Monitor Power Cord VGA Video Signal Cable Base Stand Cable Holder Limited 3-Year Warranty User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD Desktop Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC AS193i Specs | | | Size | 19" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Pixels Per Inch (ppi) | 86 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81.1 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 14 ms | | Viewing Angle | Horizontal: 178°

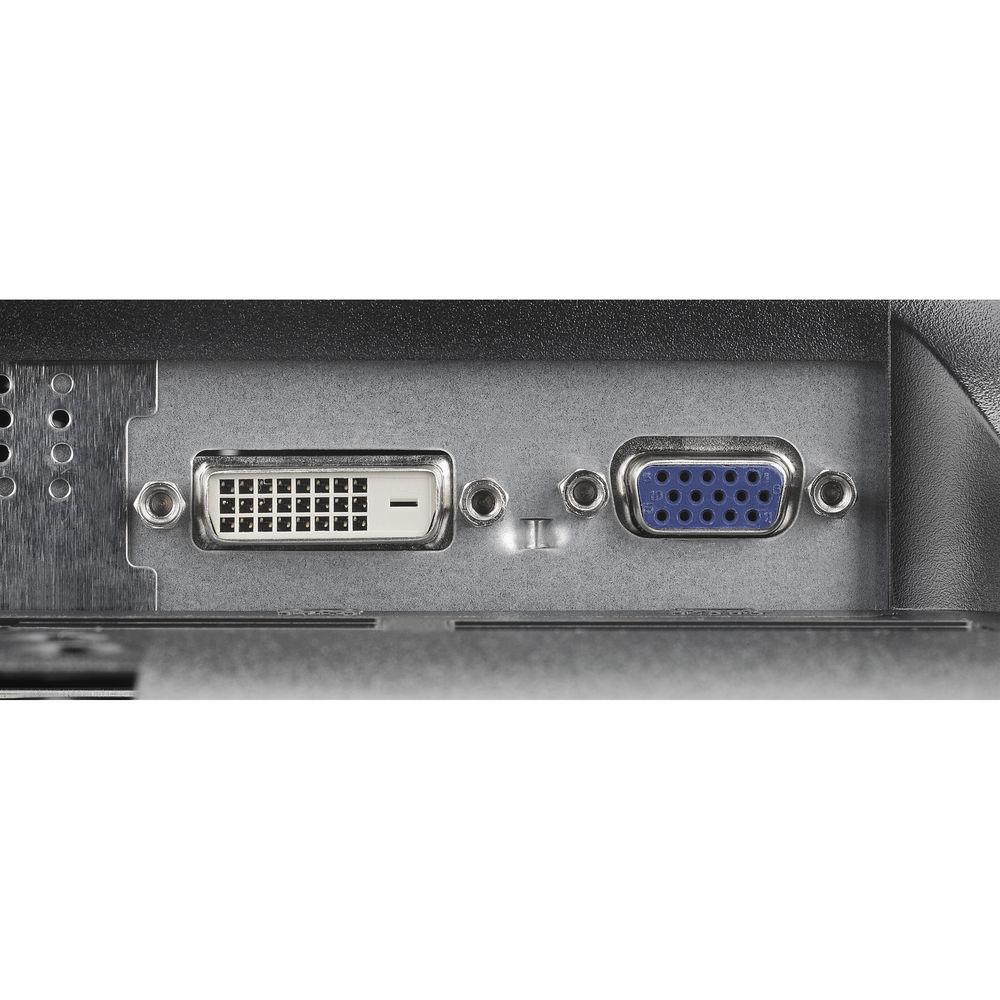

Vertical: 178° | | Dot Pitch | 0.29 x 0.29 mm | | | | Connectivity | 1 x DVI-D
1 x VGA | | | | Power Consumption | 18 W (Typical)
0.15 W (Standby) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 16.2 x 24.1 x 7.9" / 41.0 x 61.1 x 20.0 mm (With Stand)
16.2 x 13.4 x 2.7" / 41.2 x 34.0 x 6.9 mm (Without Stand) | | Weight | 8.6 lb / 3.9 kg (With Stand)
7.5 lb / 3.4 kg (Without Stand) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 19.0 x 17.6 x 6.8" |
