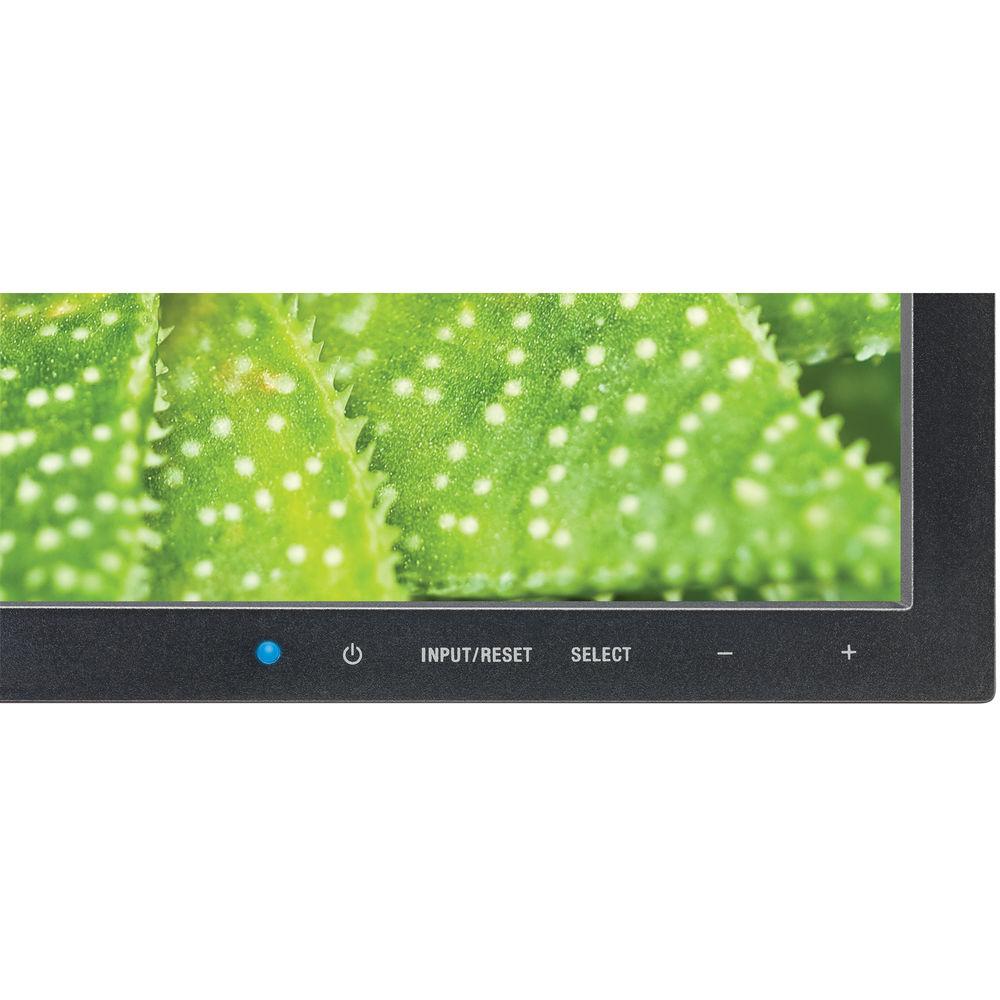

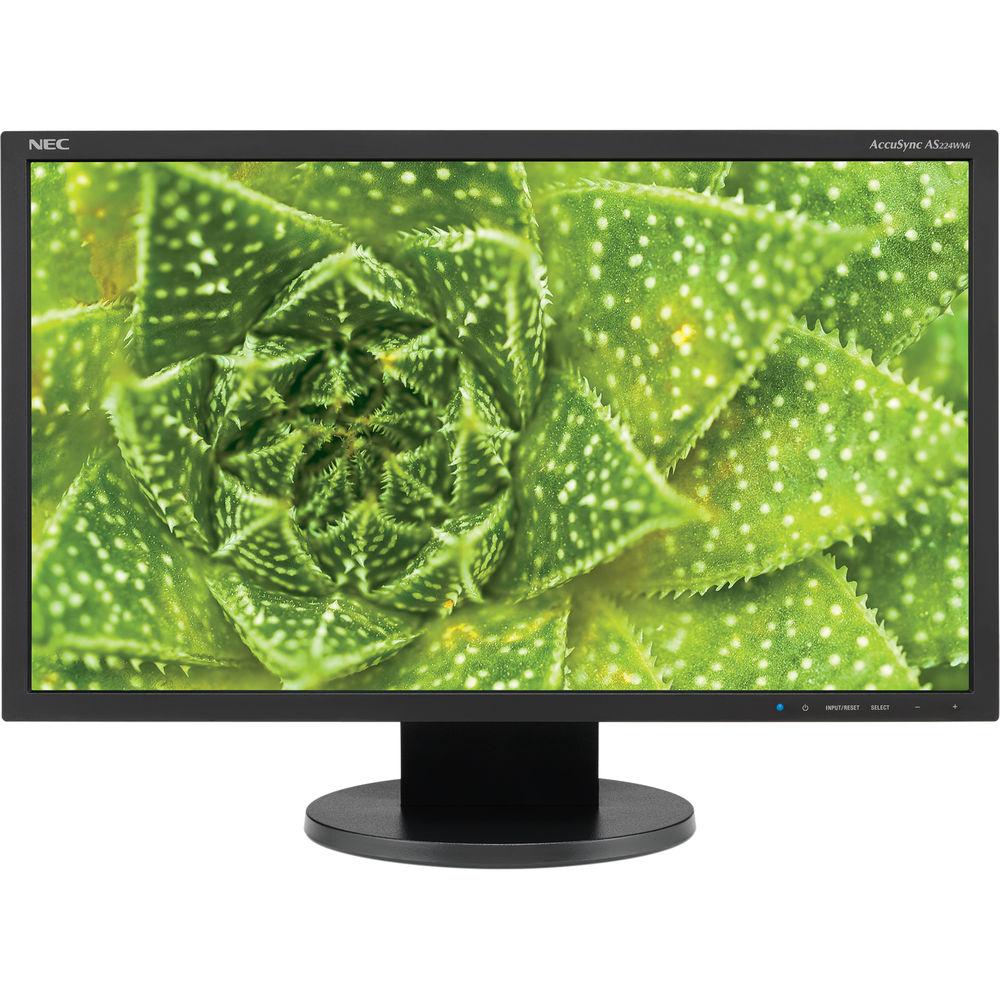

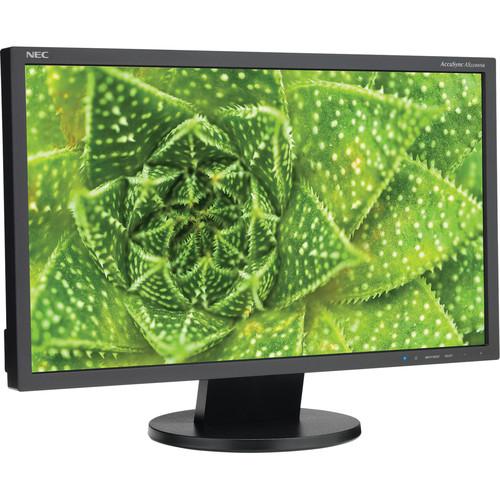

User Manual for NEC AS224WMI-B 22" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC AS224WMI-B 22" 16:9 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC AS224WMI-B 22" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The LED backlit AS224WMI-B 22" 16:9 IPS Monitor from NEC provides low power consumption and is compliant with the ENERGY STAR 7.0 rating. The widescreen display features a 1920 x 1080 resolution along with a 1,000:1 contrast ratio for a crisp, clear picture quality. You can even view videos and movies with reduced ghosting and blur thanks to the built-in Rapid Response Technology. Once configured, the IPS (In-Plane Switching) screen can be viewed from nearly any angle with 178° horizontal and vertical viewing angles. The display can even be tilted to adjust the position of the monitor for optimal viewing. -
- Wide-format screen increases productivity by expanding your working area to view multiple application windows
- Ambix dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
- XtraView delivers wide viewing angles of up to 176° horizontally and vertically (up to 88° up, down, left and right) without any glare, reflection or distortion
- Rapid Response technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
- ECO Mode function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight
- Intelligent Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use
- Carbon footprint meter helps track and calculate the reduction of green gas emissions
- Touch-integration ready
- Additional Features
- Thin frame
Integrated speakers
Rapid Response
OSD user controls
NaViSet software
Cable management
Touch-integratable
HDCP
DDC/CI
No Touch Auto Adjust
Plug-and-Play (VESA DDC 2B)
VESA DPMS power management
AccuColor color control
Digital smoothing
Digital controls
ISO 9241-307 Class I UPC: 805736065183 In the Box NEC AS224WMI-B 22" 16:9 IPS Monitor Power Cord 15-Pin D-Sub Cable Audio Cable Limited 3-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC AS224WMI-B 22" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC AS224WMI-BK Specs | Panel Technology | IPS | | Viewable Image Size | 21.5" / 54.61 cm | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Pixel Pitch | 0.25 mm | | Pixels Per Inch | 102 @ native resolution | | Backlight Type | W-LED | | Brightness | 250 cd/m² (typical) | | Contrast Ratio | 1,000:1 (typical) | | Viewing Angles (Typical) | Horizontal: 178°
Vertical: 178°
(89U/89D/89L/89R) @ CR>5 | | Response Time | 6 ms | | Displayable Colors | More than 16.7 million colors | | Synchronization Range | Horizontal (Analog/Digital): 31.5-81.1 kHz
Vertical: 56-75 Hz | | Input Signal | Video
Analog RGB 0.7 Vp-p/75 Ohms
Sync
Separate Sync: TTL level (positive/negative) | | Speakers | 2 x 1 W | | Input Connections | DisplayPort
VGA (15-pin D-sub) | | Power Consumption | On: 18 W
Power Savings Mode: 0.35 W | | VESA Configuration | 100 x 100 mm | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 6,562 ft / 2,000 m | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Storage Humidity | 10 to 85% | | Storage Altitude | 40,000 ft / 12,192 m | | Environmental Compliance | ENERGY STAR 7.0, RoHS | | Tilt Adjustment | Yes | | Dimensions | With Stand: 20.0 x 14.4 x 8.1" / 50.7 x 36.5 x 20.5 cm
Without Stand: 20.0 x 11.9 x 2.4" / 50.7 x 30.1 x 6 cm | | Weight | With Stand: 9 lb / 4.1 kg
Without Stand: 8.2 lb / 3.7 kg | | | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 22.7 x 16.4 x 6.2" |
