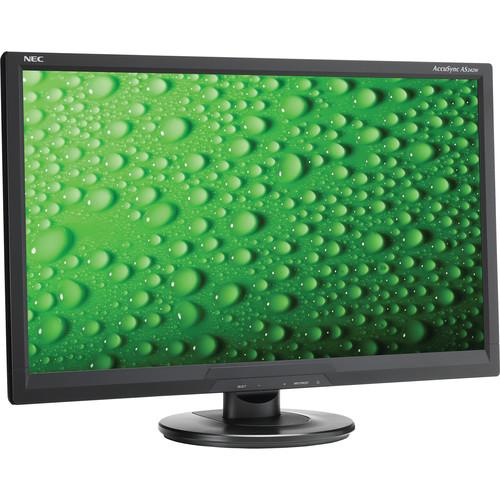

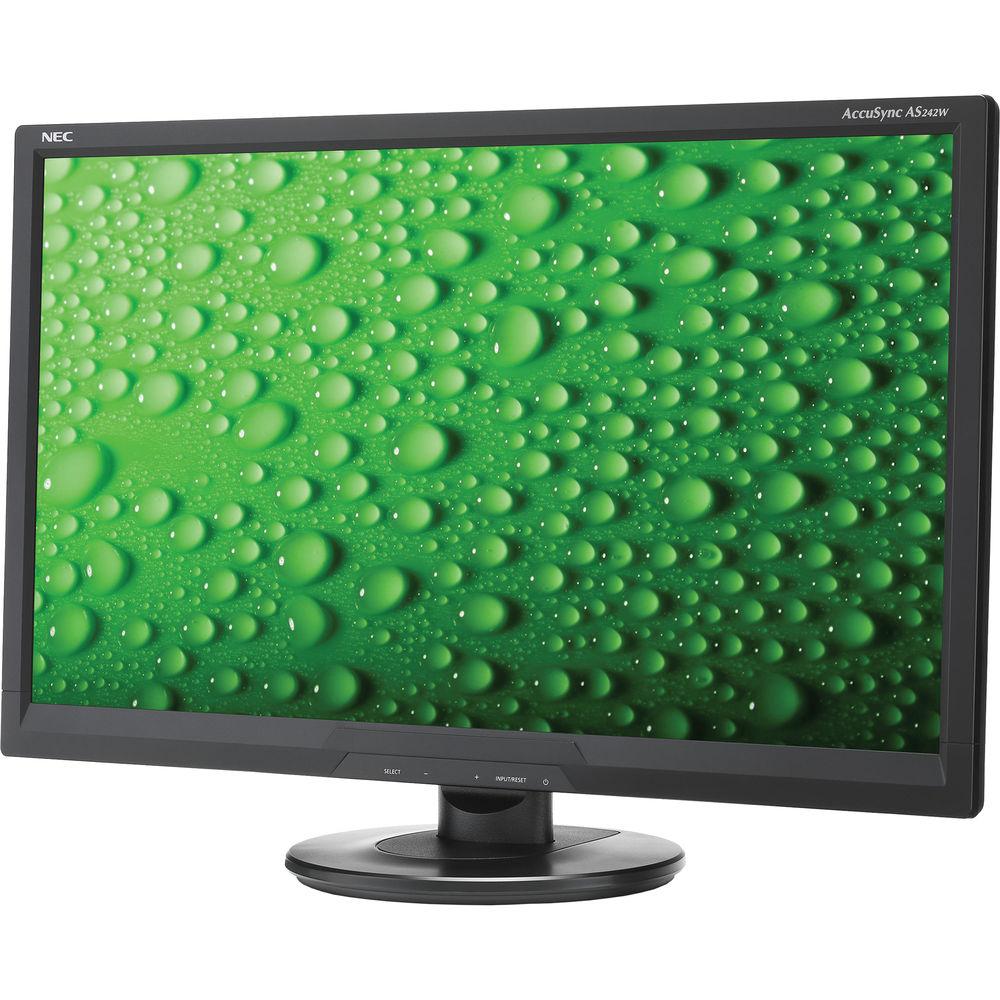

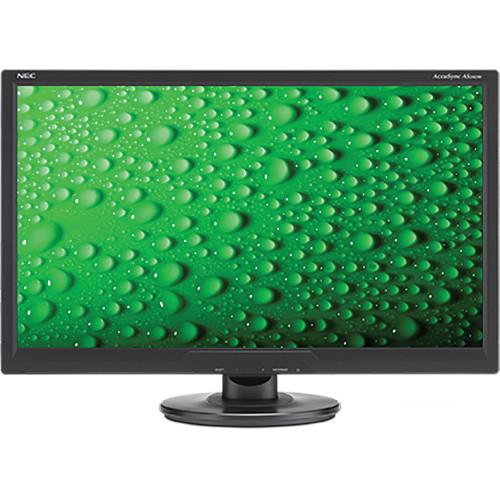

User Manual for NEC AS242W-BK 24" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the NEC AS242W-BK 24" Widescreen LED Backlit
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC AS242W-BK 24" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

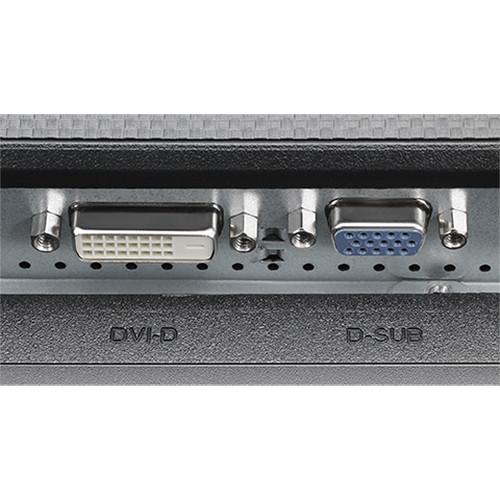

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With Ambix dual-input technology, the AS242W-BK 24" Widescreen LED Backlit LCD Monitor from NEC supports both digital and analog signals as it features one DVI-D and one VGA 15-pin D-Sub port. Once configured, the display boasts a 1920 x 1080 Full HD resolution along with a 1,000:1 contrast ratio, and a 5 ms response time.
Combine the reduced response time with integrated Rapid Response technology and you benefit from reduced ghosting and lag when viewing fast moving video. The AS242W monitor also comes equipped with an ECO mode giving you the ability to dim the backlight which saves power and helps to extend the life of the display. - LED backlight technology provides for low power consumption and less hazardous materials
- Ambix dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
- Rapid Response technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
- ECO Mode function helps save power, reduce heat, and extend the life of the display by allowing you to dim the backlight
- The carbon footprint meter helps track and calculate the reduction of green gas emissions
- The NaViSet Administrator 2 free software solution greatly eases administration and management of larger display device installations
UPC: 805736054637 In the Box NEC AS242W-BK 24" Widescreen LED Backlit LCD Monitor Power Cord 15-pin D-Sub Cable Limited 3-Year Warranty Brochure PDF 314.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC AS242W-BK 24" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC AS242W Specs | | | Size | 23.6" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 94 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81.1 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 176°
Vertical: 170° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x DVI-D
1 x VGA | | | | Power Consumption | 0.45 W (Standby)
19 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 22.5 x 15.8 x 8.3" / 57.1 x 40.1 x 21.1 mm (With Stand)
22.5 x 13.8 x 2.0" / 57.1 x 35.1 x 5.0 mm (Without Stand) | | Weight | 8.8 lb / 4 kg (With Stand)
7.9 lb / 3.6 kg (Without Stand) | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 24.0 x 17.0 x 5.0" |
