User Manual for NEC C501 50"-Class Full HD Commercial LED Display Click to enlarge the picture
Contents of the user manual for the NEC C501 50"-Class Full HD Commercial
- Product category: Commercial Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Commercial Monitors
 |
User manual for the NEC C501 50"-Class Full HD Commercial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description - NEC Display Solutions| C series Large Format Displays
- NEC Display Solutions C Series Verticals

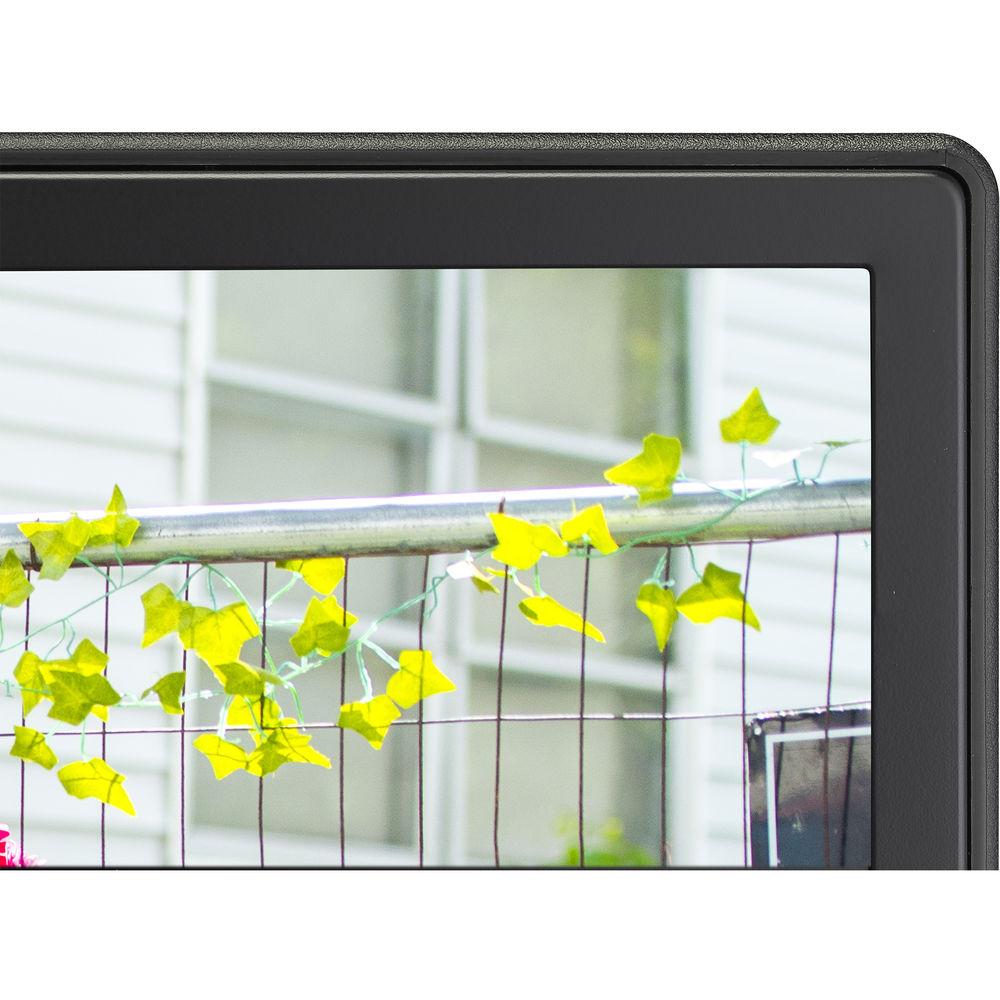

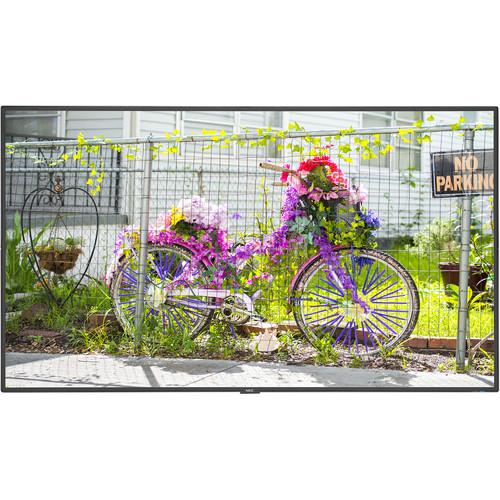

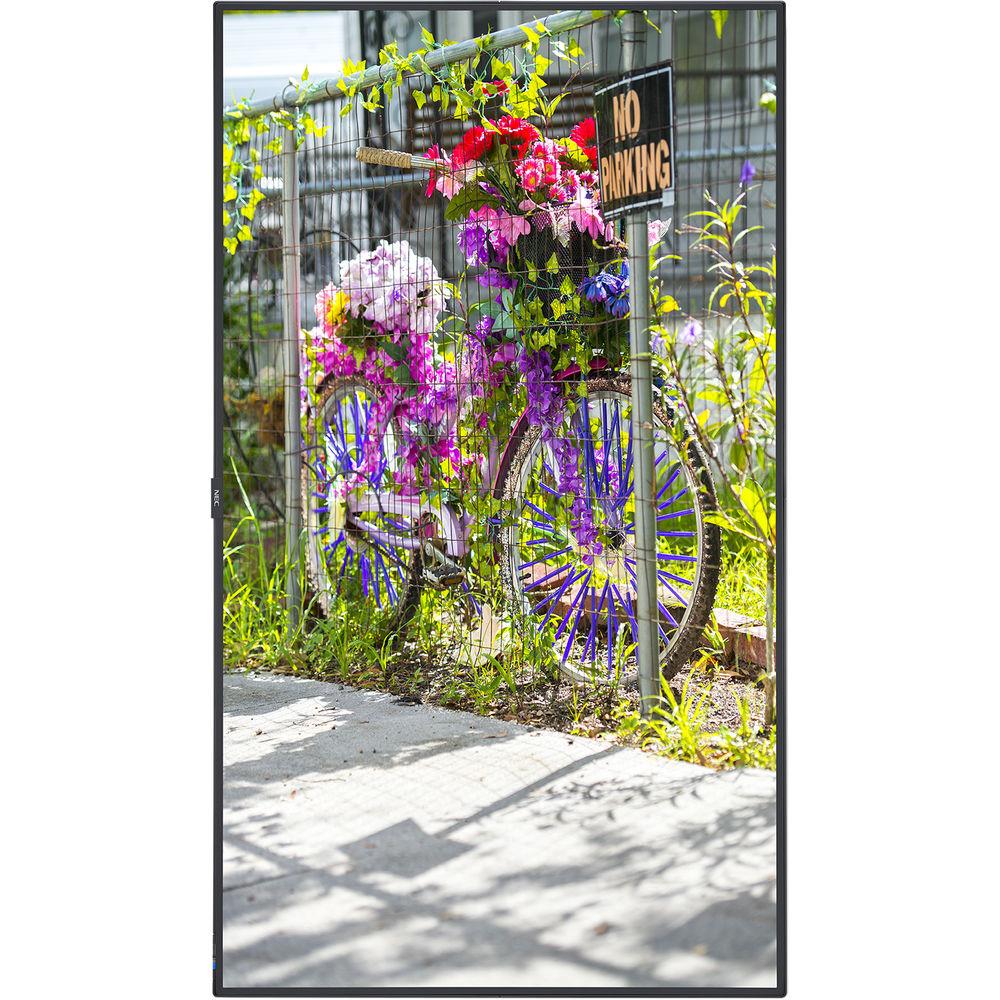

Display your business' content in 1080p with the NEC C501 50"-Class Full HD Commercial LED Display. This commercial display is endowed with a 50" LED edge-lit LCD display and features a 1920 x 1080 native resolution for viewing detailed Full HD images. It supports portrait and landscape viewing orientations and sports a 400 cd/m² typical brightness rating with a 4000:1 typical contrast ratio to showcase its ability to handle light and dark on-screen images.

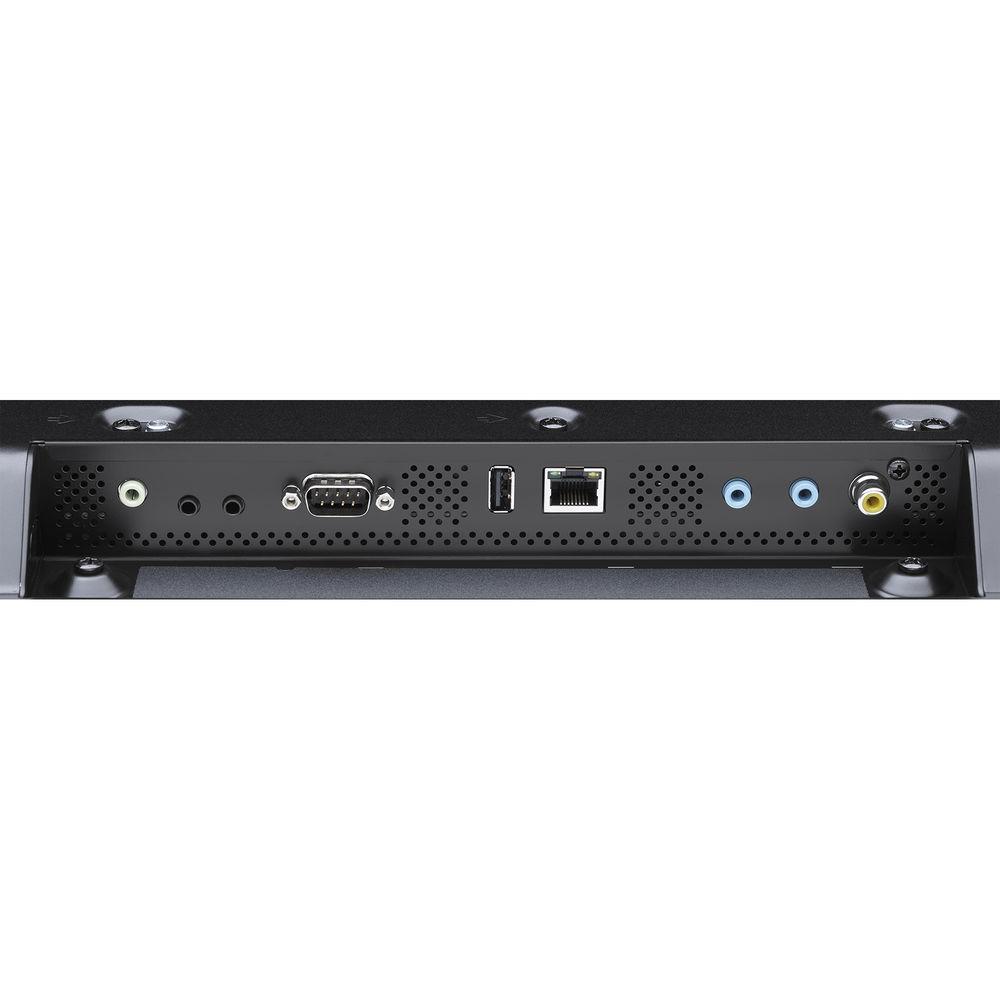

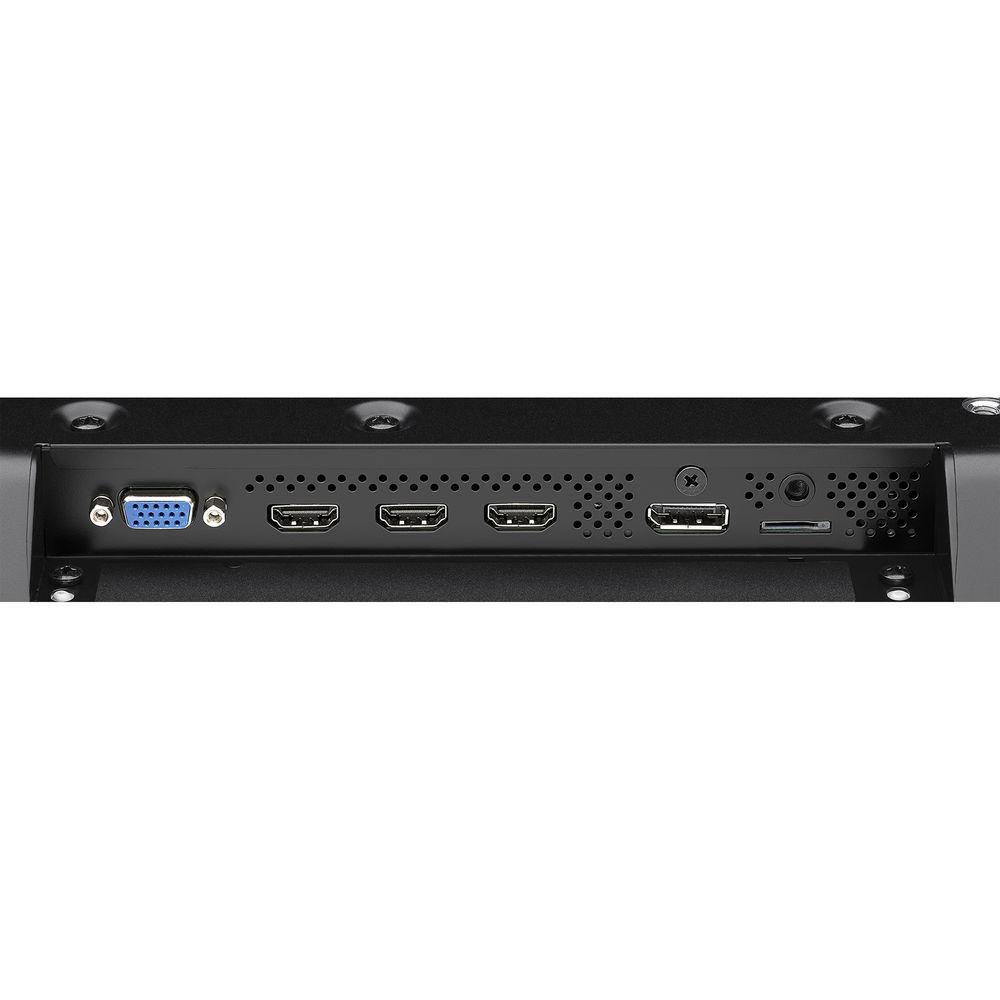

This display is equipped with DisplayPort, VGA, composite video, and three HDMI inputs for connecting a variety of video sources, as well as a USB and microSD slot for multimedia playback. For audio reproduction, the C501 is equipped with dual 10W speakers. - L-Shaped Connectivity
- Connectivity is located on both the bottom and side of the display to allow for easy access, regardless of orientation.
- Removable Logo
- When mounting from landscape to portrait orientation, you can also change the orientation of the logo or remove it altogether.
- Blue On LED and Ambient Light Sensor
- The mechanical structure allows for a sleek LED and ambient sensor design. Auto dimming of the LED backlights can be achieved through the ambient light sensor, allowing for the brightness to change depending on the brightness of the room.
- NaViSet Administrator 2
- NaViSet Administrator 2 software is designed to be an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of many NEC display devices and Windows computers. It is suitable for multi-device installations over arrays.
- Real Time Clock and Scheduler
- The C501 has the ability to load the current date and time as well as up to 30 different schedules to run throughout the course of the week. There is also a Holiday Mode built into the scheduler that allows a user to program all holidays throughout the year and can be set so that the display does not turn on during those times.
- Key Guide

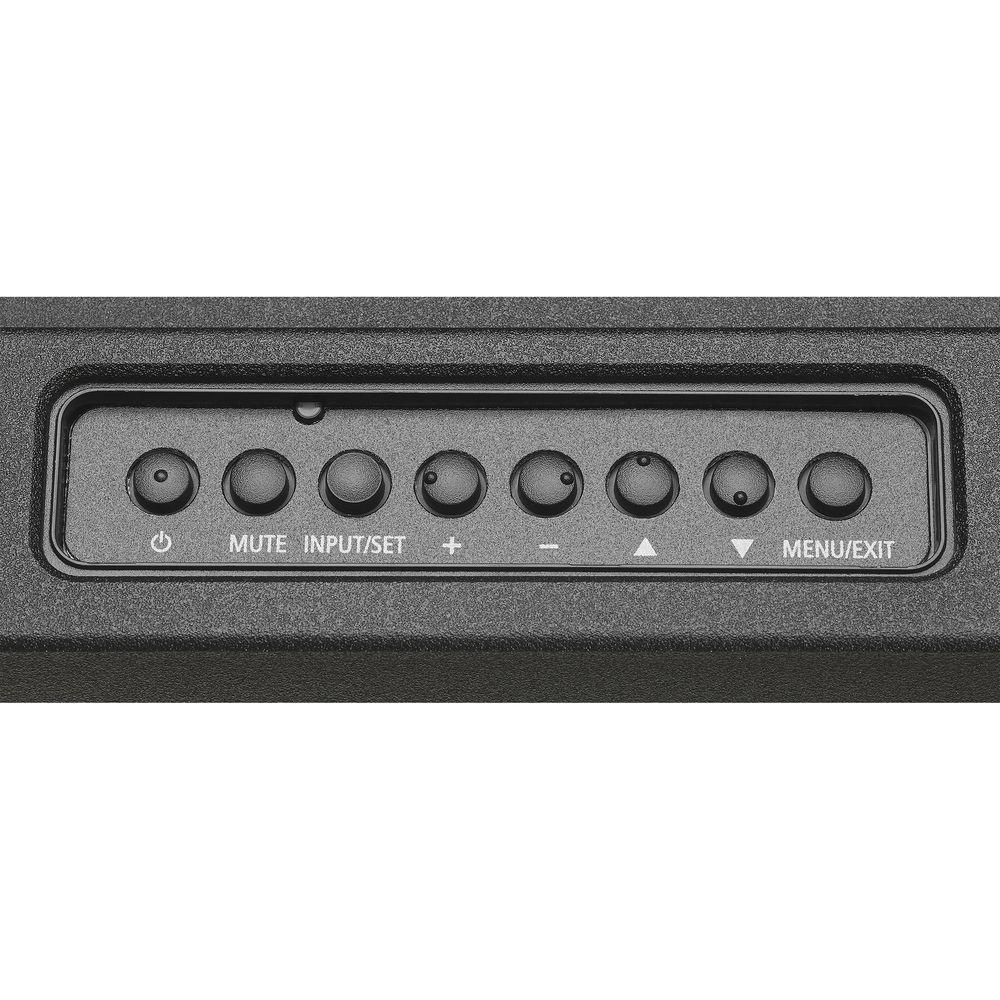

- The Key Guide function allows for simplified OSD navigation when manually controlling the display via the buttons on the back of the display by adding a graphic on the screen that directs the user to the correct key layout in both landscape and portrait modes.
- Custom Input Detect / Failover
- You can prioritize up to three inputs so that if a primary source goes down, the display will automatically switch to whatever you have prioritized next.
- Thin Depth
- The 1.8" depth is designed to allow for easy installations due to a light chassis as well as unobtrusive mounting and easier accessibility.
- Additional Features
-
- Anti-glare panel allows for less reflectivity and clear image visibility
- Bidirectional and full external control for easy integration into control systems
- Integrated media player for playback of audio, video, or images via USB or microSD card, and is upgradable via a LAN
- Ethernet and RS-232 control and communication
- TileMatrix (10 x 10)
- Carbon footprint meter
- Screen saver function
- Metal rear cabinet
- Highbright, Standard, sRGB, Cinema, Custom1, and Custom2 picture modes
- Video settings include Noise Reduction, Adaptive Contrast, adn Telecine
- Input labeling
- Backlight adjust
- Aspect ratio control (Normal, Full, Wide, 1.1, Zoom)
- Supports Crestron RoomView, AMX Beacon, and PJLink
- Rated for 24/7 usage
UPC: 805736063691 In the Box NEC C501 50"-Class Full HD Commercial LED Display Wireless Remote Control with Batteries 5.9' VGA Cable 9.8' Power Cord Limited 3-Year Warranty NEC Whitepaper: Commercial Monitors Vs. Consumer TVs PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC C501 50"-Class Full HD Commercial LED Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC C501 Specs | | | Screen Size (Diagonal) | 50" | | Resolution | 1920 x 1080 | | Panel Type | VA LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 400 cd/m
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
