User Manual for NEC Display Wall Calibration Kit Click to enlarge the picture
Contents of the user manual for the NEC Display Wall Calibration Kit
- Product category: Calibration NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Calibration
|
User manual for the NEC Display Wall Calibration Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The Display Wall Calibrator Kit from NEC allows the exact calibration and enhancement of the digital content on display walls in lobbies, studios, or hospitals.
Designed specifically for video walls, it measures each display's color and brightness then calibrates them all to have identical optimum settings. This capability helps create the look of one large, seamless display out of the several that make it up--and provides assurance of overall image consistency even if one or more of the displays is replaced.
With dozens of NEC displays supported, automatic calibration, and internal test patterns, the Display wall Calibrator Kit is a user friendly and efficient solution to help you get the best out of your video wall and displays. - Automatic Calibration
- The software automatically adjusts display settings directly using either RS-232 or a LAN (Ethernet) connection
- Internal Test Patterns
- These patterns simplify the calibration process by allowing it to be performed automatically without manually selecting different test patterns during the process, or connecting a PC to the video input of the displays
- 10-bit Internal Lookup Tables (LUTs)
- Each supported display features three internal LUTs that allow precise adjustments to be made without reducing the number of displayable colors or introducing color banding
- Gamma Correction
- In addition to adjusting the intensity (luminance) and white point of the displays, the software also calibrates the grayscale using internal LUTs. This results in highly accurate color not only at 100% white but at all steps along the grayscale.
- Flexible Connections
- Displays can be connected to the host PC using RS-232, LAN or combinations of both, or wirelessly by using a wireless-equipped host PC and LAN
- Projects
- All display configurations, measurements, and calibration data can be saved as a project file for later reference or re-calibration
- Multiple Calibration Sets
- Varying calibration projects can be uploaded to each group of displays, allowing for quick and easy switching between calibration settings without the need to re-calibrate
- Informative
- A summary window shows the results of the calibration and measurement data, allowing for detailed logging and reporting of the calibration procedure
- Colorimeter function
- The software allows direct measurements to be taken by the color sensor and the results are displayed in a variety of different formats
- Scalable
- Single displays to a 10x10 video wall are supported

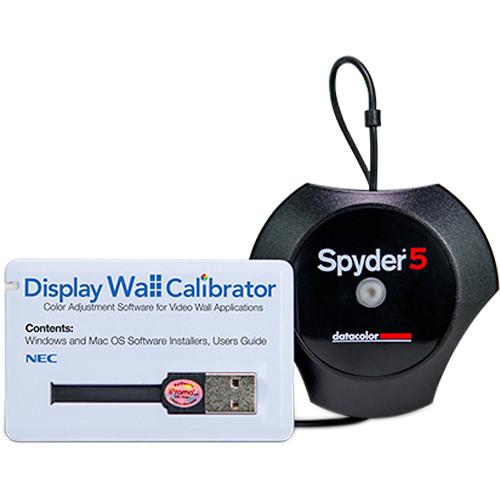

UPC: 805736039689 In the Box NEC Display Wall Calibration Kit NEC Display Wall Calibrator software on a USB drive Color sensor (A version of the DataColor Spyder 3 Series) 1-year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC Display Wall Calibration Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC KT-LFD-CC Specs | | | Windows | Microsoft Windows 2000
Windows XP (Home and Professional editions)
Windows XP x64
Windows Vista 32-bit and x64
Windows 7 32-bit and x64 versions | | Mac OS | Mac OS X version 10.5 or higher | | Hardware | Supported model of NEC displays
Supported color sensor
At least one available USB port for color sensor
Standard TCP/IP LAN interface (optional if using RS-232 or a wireless LAN)
One or more RS-232 Ports (optional if using LAN)
USB to RS-232 adapter (optional if using LAN) | | Supported Devices | NEC MDSVSENSOR iOne Display V2
NEC iOne Display V2 WG
NEC SpectraSensor Pro
X-Rite/GretagMacbeth iOne Pro and iOne Monitor
X-Rite/GretagMacbeth iOne Display V1 and V2
X-Rite DTP94 / MonacoOPTIX-XR
Datacolor Spyder2
Datacolor Spyder3
X-Rite ColorMunki
X-Rite Hubble
X-Rite iOne Display Pro | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.2 x 7.0 x 6.6" |
