User Manual for NEC E-Series 80" LED Commercial-Grade OPS PC Bundle Click to enlarge the picture
Contents of the user manual for the NEC E-Series 80" LED Commercial-Grade OPS
- Product category: Commercial Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Commercial Monitors
|
User manual for the NEC E-Series 80" LED Commercial-Grade OPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The 80" LED Display Bundle from NEC includes an E805 80" Full HD Commercial LED Monitor and an OPS PC with Intel Celeron G3900E 2.4 GHz Dual Core CPU and Intel HD Graphics 4600 (64GB SSD). - OPS PC with Intel Celeron G3900E 2.4GHz Dual Core CPU and Intel HD Graphics 4600 (64GB SSD)
- Key Features
-
- Full HD resolution
- USB 3.0 ports

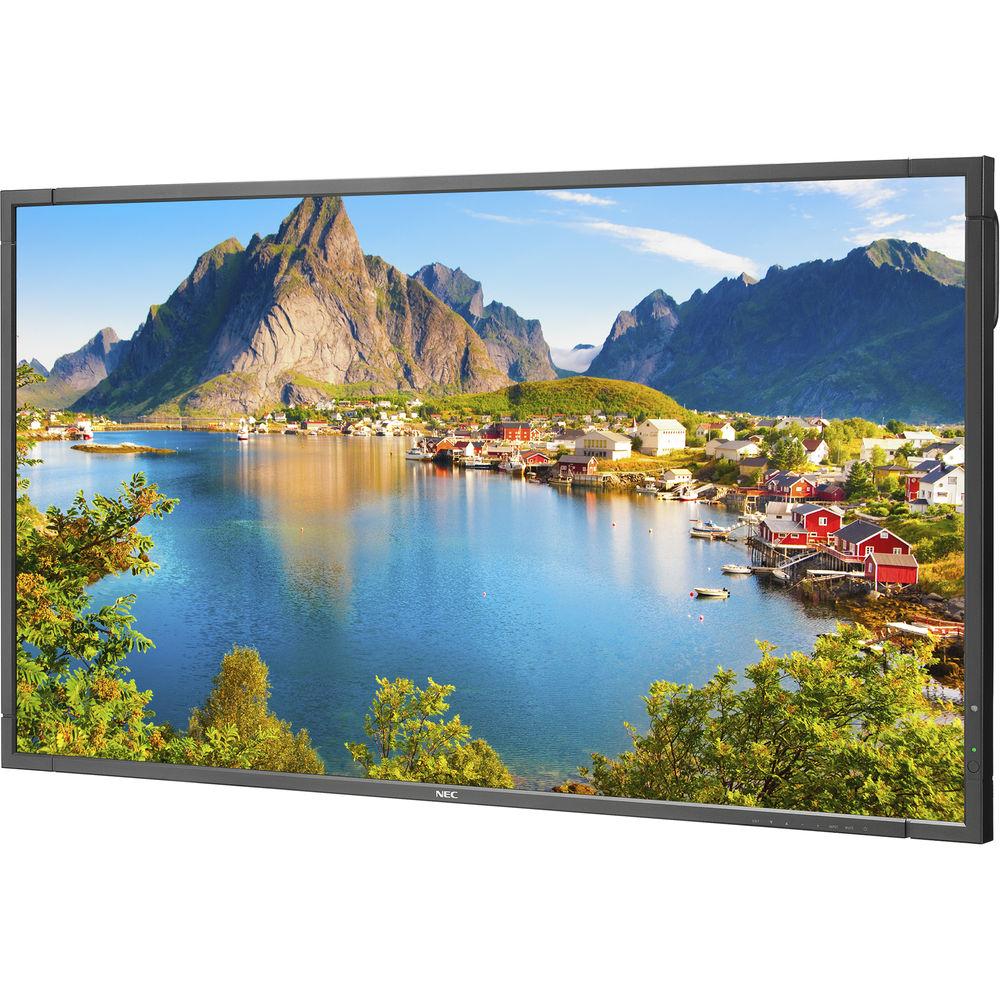

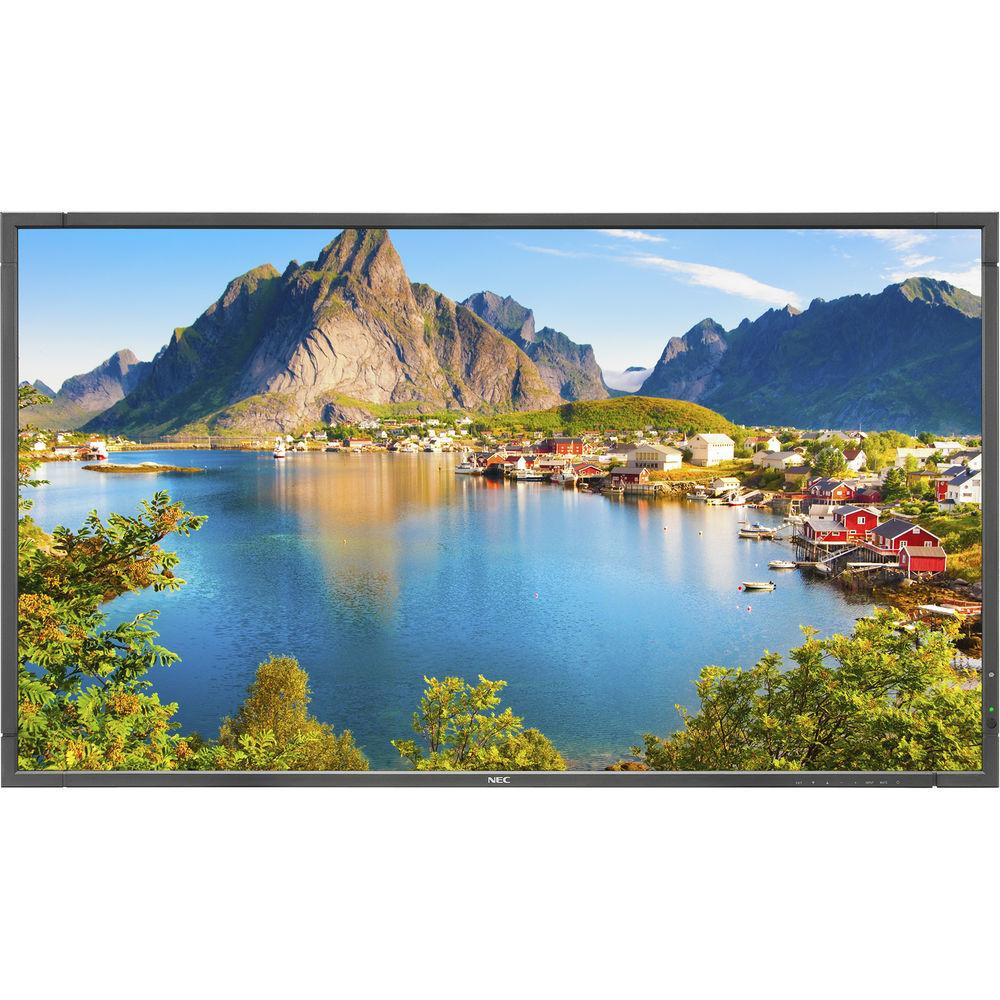

UPC: 805736064834 - E805 80" Full HD Commercial LED Monitor Display your businesses content on an expansive display in 1080p with the NEC E805 80" Full HD Commercial LED Monitor. This business-ready monitor features a large 80" LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 280 cd/m² brightness rating and 5000:1 contrast ratio showcases its ability to handle light and dark on-screen images. This model also a 8ms response time, which helps it display fast-moving images with reduced image blur.
As a digital-signage-capable display, this commercial monitor is suitable for use in environments such as hospitals and restaurants. This display is equipped with VGA, DVI, DisplayPort, and two HDMI ports for connecting a variety of video sources. Additionally, an interface extension slot is onboard for component expansion. This monitor's dual built-in 10W speakers allow you to enjoy stereo audio playback. - Commercial-Grade
-
- LED backlighting for efficient operation
- Integrated temperature sensors and thermodynamic cooling fans help to protect the panel from damage
- High definition, and contrast ratio deliver superior visual quality

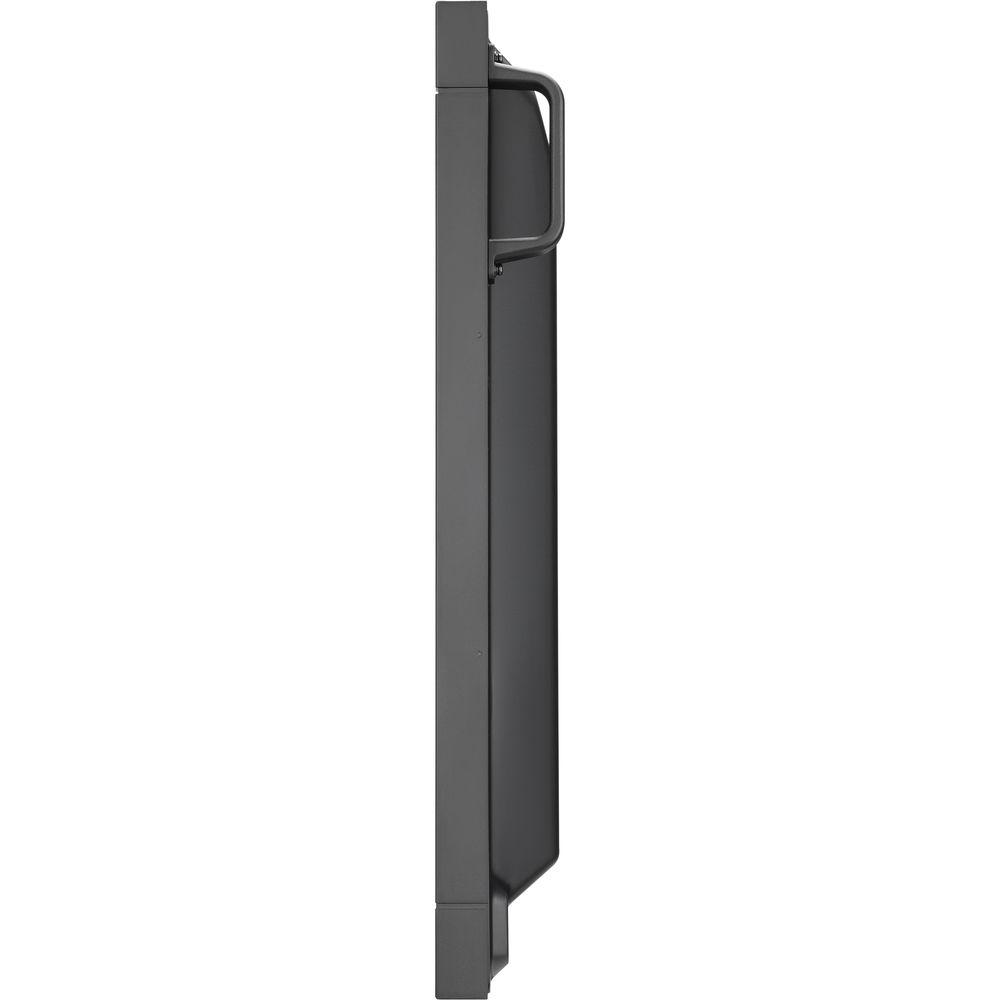

- Internal 10W speakers and built-in handles enable a simplified installation
- Connected
-
- Comprehensive input panel connects to various peripherals
- Full bi-directional RS-232 control and Ethernet control allow individual and group-addressable control, including email diagnostics
- Compatibility with NEC control software PD Comms Tool and NaViSet Administrator 2
- Custom input detect feature to prioritize active inputs

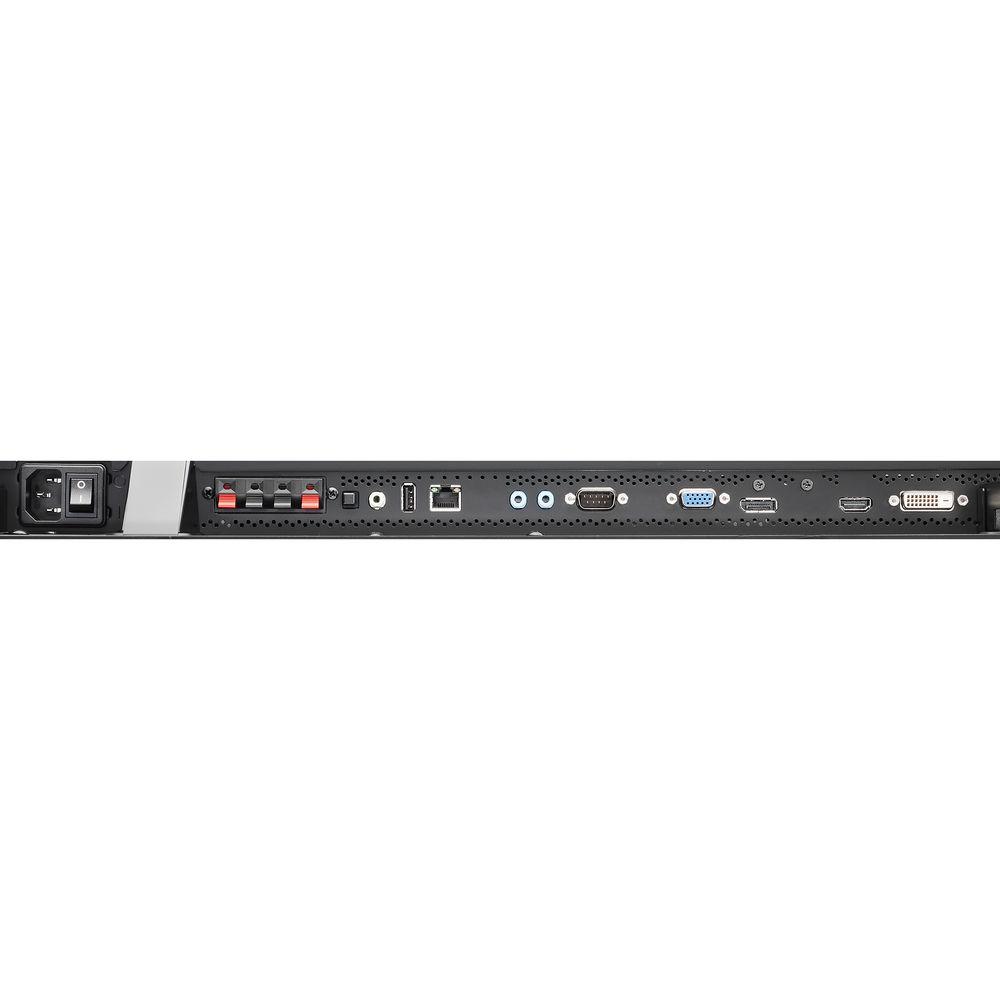

- Expanded terminal interface including 2 HDMI, DisplayPort, DVI, and VGA options
- Adaptable
-
- Flexible connectivity with built-in OPS expansion slot for maximum versatility
- Extensive control and diagnostic communication provide the high level remote management

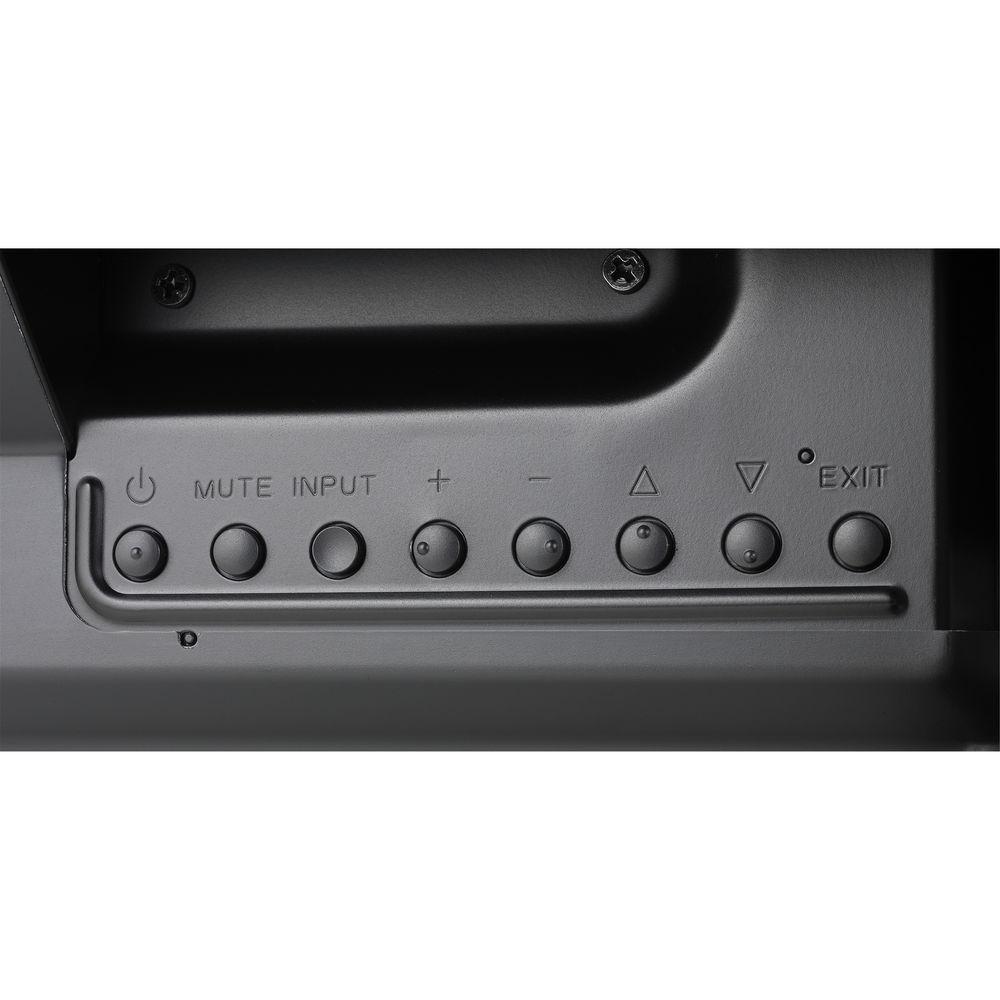

- IR and button lock options for protecting against unnecessary setting changes
- Additional Features
-
- AMX Beacon compatible
- Crestron Connected compatible
- Carbon footprint meter
- Full 24/7 scheduler function
- PIP/POP/side-by-side settings
- Input labeling
- Fixed/variable audio output
UPC: 805736056082 In the Box Bundle Items OPS PC with Intel Celeron G3900E 2.4GHz Dual Core CPU and Intel HD Graphics 4600 (64GB SSD) E805 80" Full HD Commercial LED Monitor - Limited 3-Year Warranty including Backlight
Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC E-Series 80" LED Commercial-Grade OPS PC Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - OPS PC with Intel Celeron G3900E 2.4GHz Dual Core CPU and Intel HD Graphics 4600 (64GB SSD)
| Device Type | Digital signage player | Width | 7.9 in | Depth | 4.7 in | Height | 1.2 in | Weight | 6.83 lbs | OS Provided | Windows 10 Pro 64-bit Edition | Interfaces | USB 2.0, USB 3.0 | Key Features | Digital audio player, digital photo viewer, digital video player | | Manufacturer | Intel | Type | Celeron | Installed Qty | 1 | Processor Number | G3900E | Clock Speed | 2.4 GHz | | Technology | DDR3 SDRAM | Installed Size | 4 GB | | Storage Drive Type | SSD | Capacity | 64 GB | | Graphics Processor | Intel HD Graphics 4600 | | Storage Drive Capacity | 64 GB | | Connections | DisplayPort output USB 2.0 2 x USB 3.0 Microphone Audio line-out | | Service & Support | Limited warranty - 3 years | | Box Dimensions (LxWxH) | 7.1 x 4.9 x 1.4" | - E805 80" Full HD Commercial LED Monitor
| Screen Size (Diagonal) | 80" | Panel Type | VA LCD | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | Brightness | 350 cd/m
