User Manual for NEC E203W-BK 20" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the NEC E203W-BK 20" 16:9 LCD Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC E203W-BK 20" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

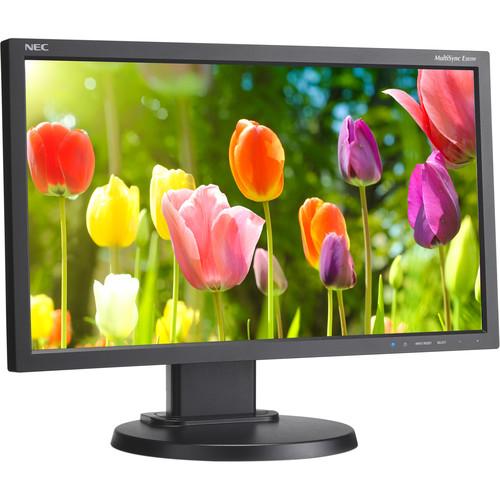

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More ruezbvytrbrerfsbfrdwbtzqfyrxtsdt The LED backlit E203W-BK 20" 16:9 LCD Monitor from NEC offers reduced power consumption for improved energy savings. The display is simple to set up as it comes equipped with DisplayPort, DVI-D, and VGA inputs allowing the monitor to be plugged into a variety of computer configurations. Once configured, this monitor features a 1600 x 900 resolution along with a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and support for over 16.7 million colors to generate a crisp, clear picture. You can also adjust the height of the display as well as tilt, pivot, and swivel it into place for maximum viewing comfort. -
- LED backlight technology provides for improved low power consumption and less hazardous materials

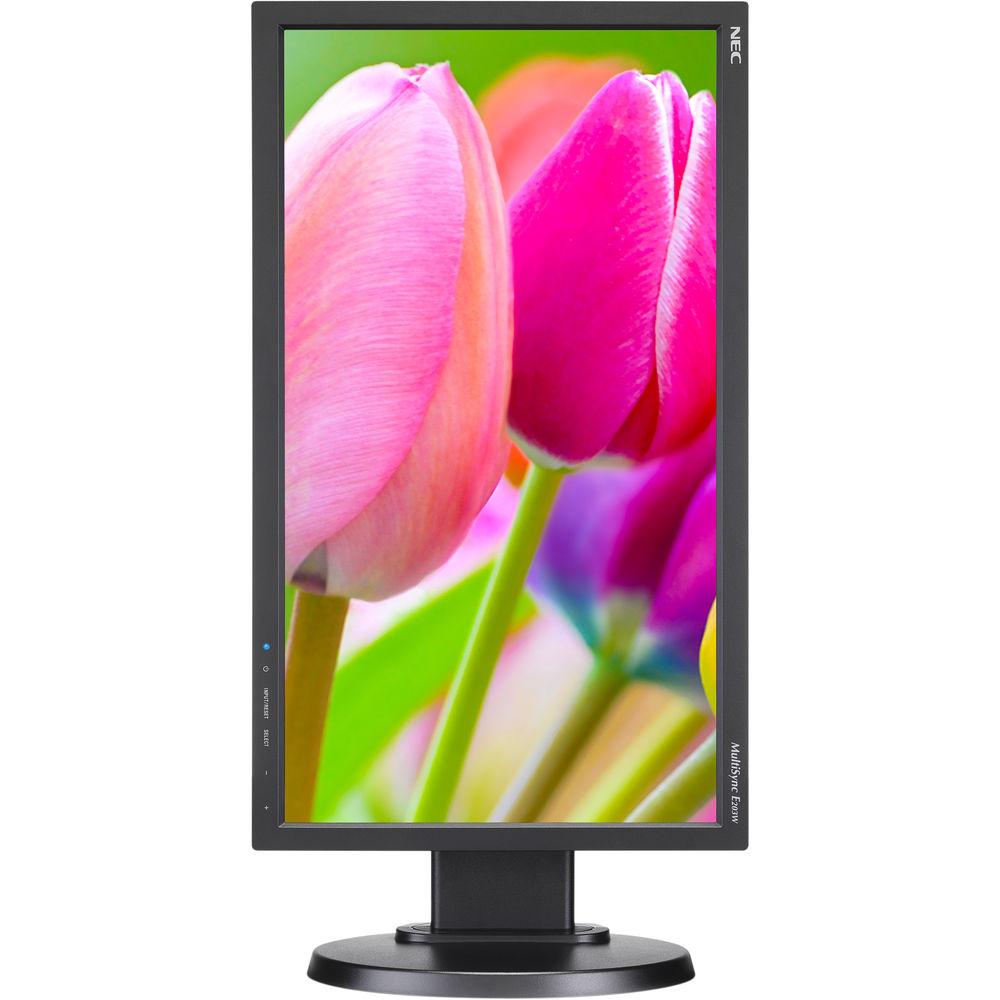

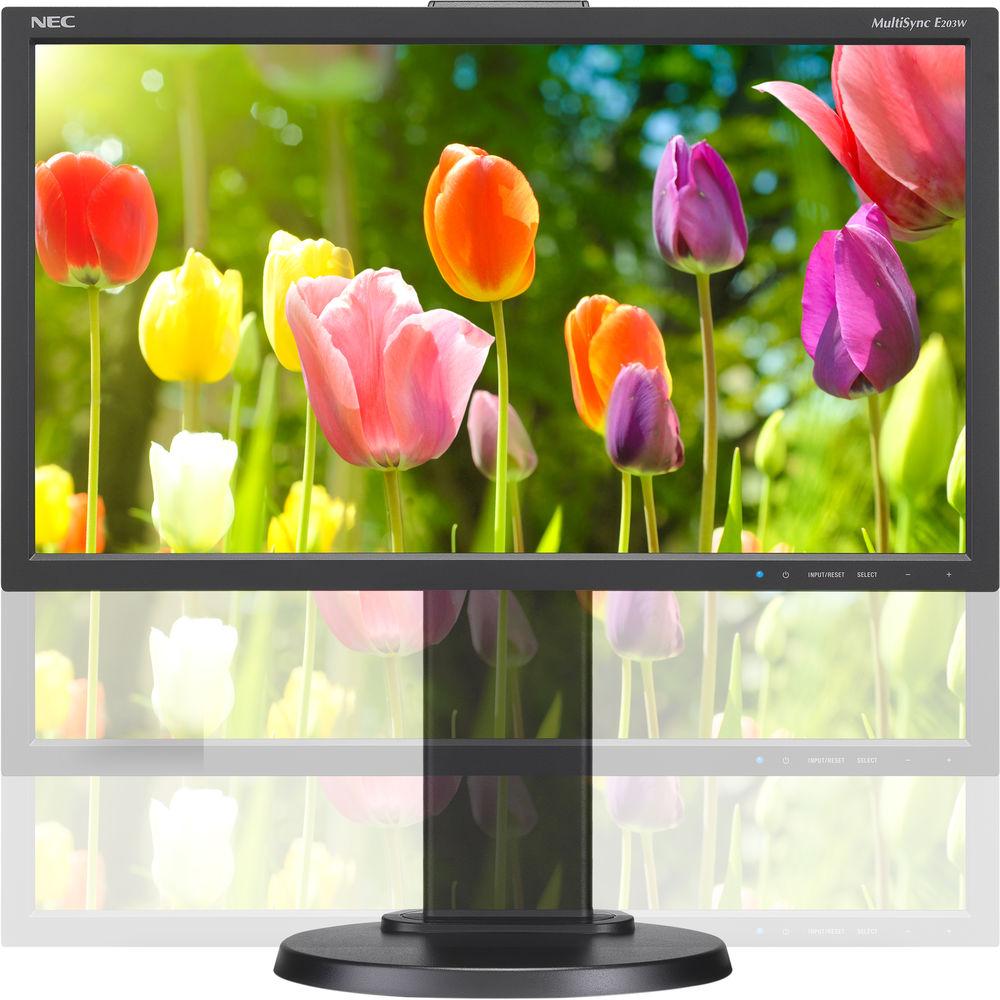

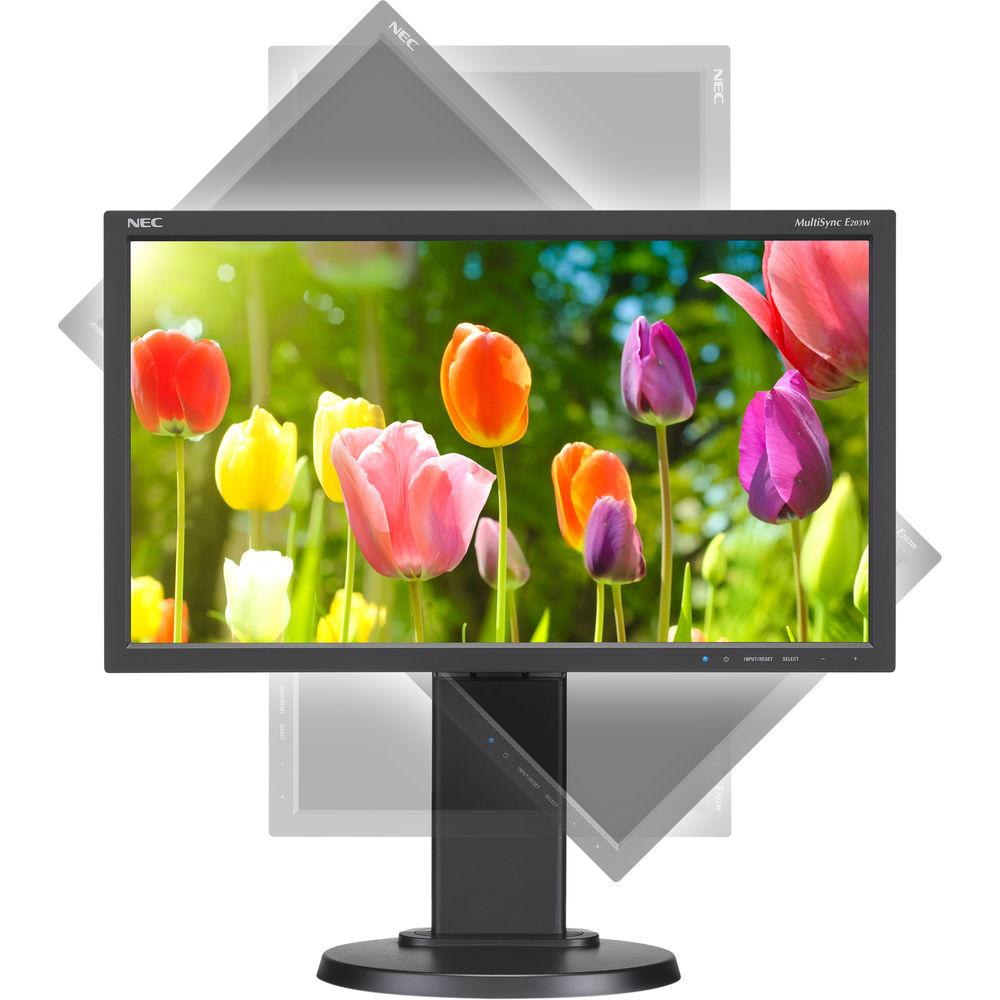

- Height-adjust, pivot, tilt, and swivel capabilities add flexibility and comfort to your viewing preferences
- DisplayPort input provides expanded connectivity with advanced technology
- ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- 5000:1 dynamic contrast ratio delivers detailed images and text
- Resettable carbon footprint meter helps track and calculate the savings of green gas emissions
- Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color, and contrast
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Built-in low blue light filter technology and flicker-free certified
- Additional Features
-
- Auto brightness with ambient light sensor
- ECO Mode
- Carbon footprint meter
- Resettable cost meter
- Thin frame
- Tilt
- Swivel
- Pivot
- Height-adjustable stand
- Carrying handle
- Rapid Response
- Ambix
- XtraView

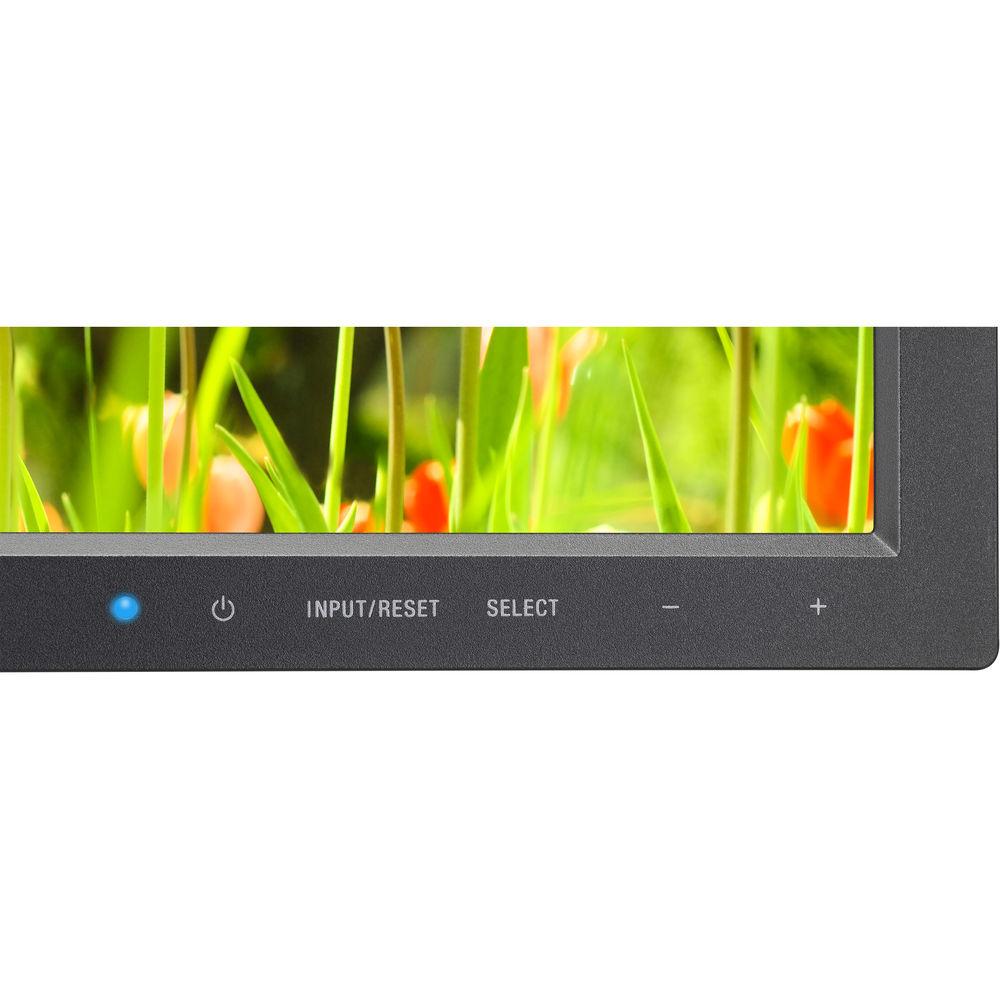

- OSD user controls
- NaViSet software
- Cable management
- VESA mount
- HDMI-capable via DVI adapter
- HDCP
- DDC/CI
- No Touch Auto Adjust
- Plug-and-Play (VESA DDC 2B)
- VESA DPMS power management
- Dynamic Video Mode
- AccuColor color control
- Digital smoothing
- Digital controls
UPC: 805736065190 In the Box NEC E203W-BK 20" 16:9 LCD Monitor Power Cord DisplayPort cable Limited 3-Year Warranty User Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC E203W-BK 20" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC E203W-BK Specs | | | Size | 20" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1600 x 900 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 6 ms | | Viewing Angle | Horizontal: 176°
Vertical: 170° | | Dot Pitch | 0.28 x 0.28 mm | | | | Connectivity | 1 x DisplayPort Input
1 x DVI-D Input
1 x VGA Input | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 13 W (Typical)
0.28 W (Standby) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 6561' / 2000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 18.3 x 18.1 x 8.4" / 46.5 x 46.0 x 21.3 cm (With Stand)
18.3 x 10.8 x 2.1" / 46.5 x 27.4 x 5.3 cm (Without Stand) | | Weight | 10.6 lb / 4.81 kg (With Stand)
6.2 lb / 2.81 kg (Without Stand) | | | | Package Weight | 15.05 lb | | Box Dimensions (LxWxH) | 24.4 x 13.8 x 8.6" |
