User Manual for NEC E221N-BK 21.5" 16:9 Narrow Bezel IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC E221N-BK 21.5" 16:9 Narrow Bezel
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC E221N-BK 21.5" 16:9 Narrow Bezel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a narrow bezel, the E221N-BK 21.5" 16:9 IPS Monitor from NEC offers an enhanced viewing experience as it features a Full HD 1920 x 1080 resolution along with a 1,000:1 contrast ratio, a 250 cd/m² brightness rating, and a 6 ms response time. Setup and configuration of this NEC display has been greatly simplified thanks to the DisplayPort, HDMI, and VGA connectors. This monitor also comes VESA compliant and includes a mounting plate to easily mount the monitor to the wall. Whether mounted to the wall or placed on the ergonomic stand, the E221N-BK offers enhanced 178° horizontal and vertical viewing angles making it easy to see the display from nearly any perspective. Additionally, the display settings can be adjusted using the OSD controls built right into the bezel. - LED backlight technology provides for low power consumption and less hazardous materials

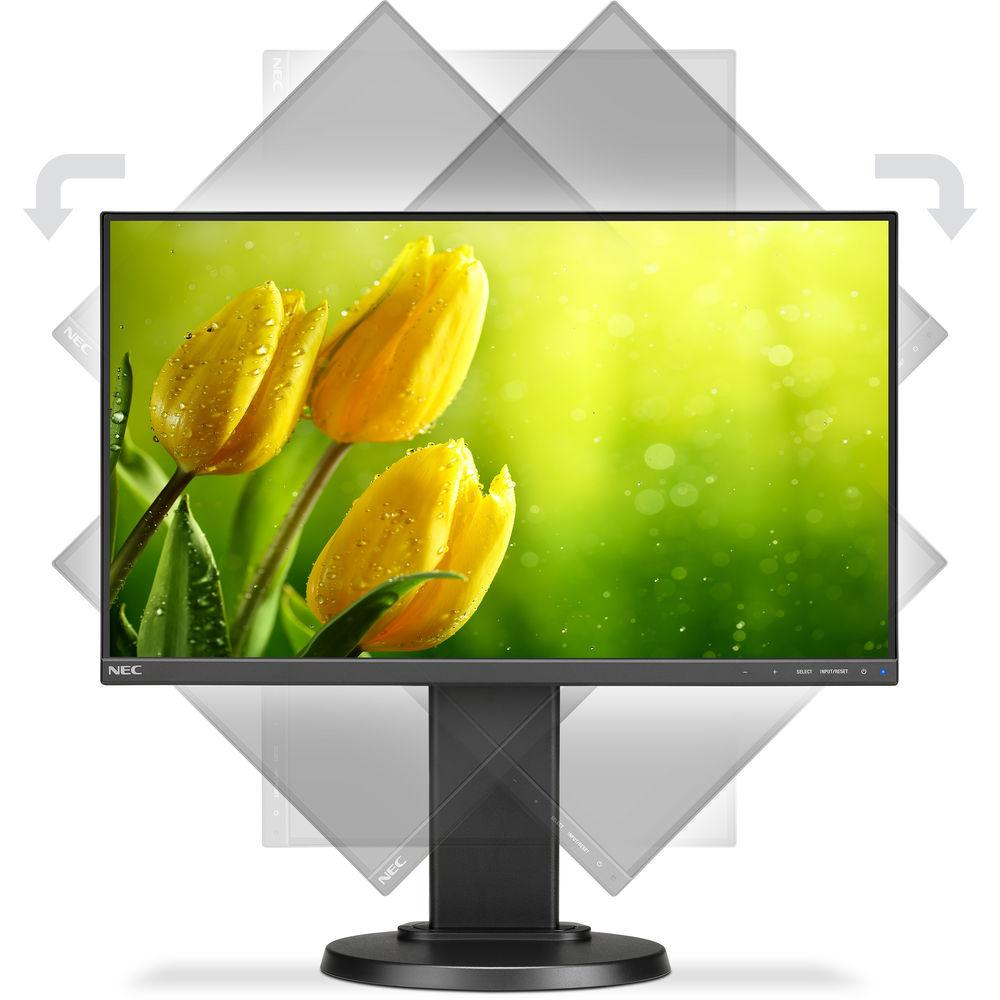

- Height-adjust, dual direction pivot, tilt, and swivel capabilities are designed to fit every work environment

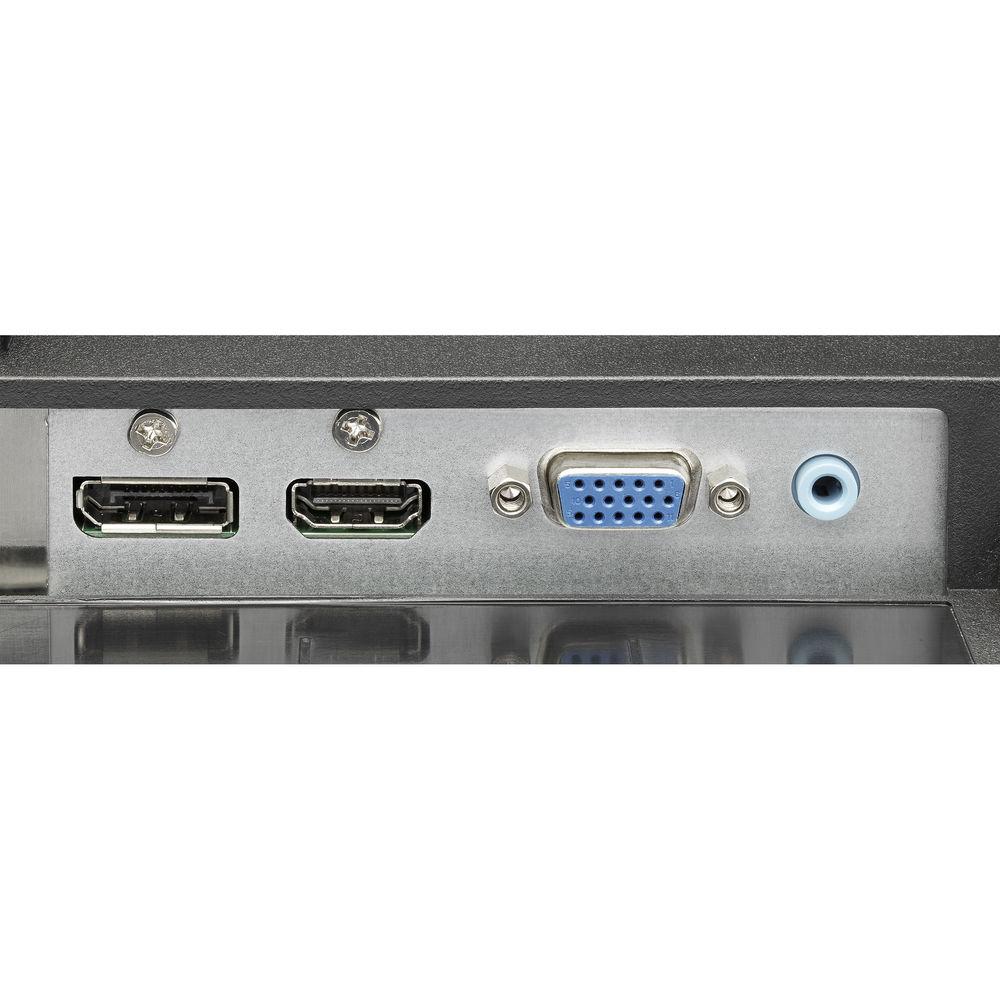

- Full connectivity, including DisplayPort, HDMI, and VGA inputs

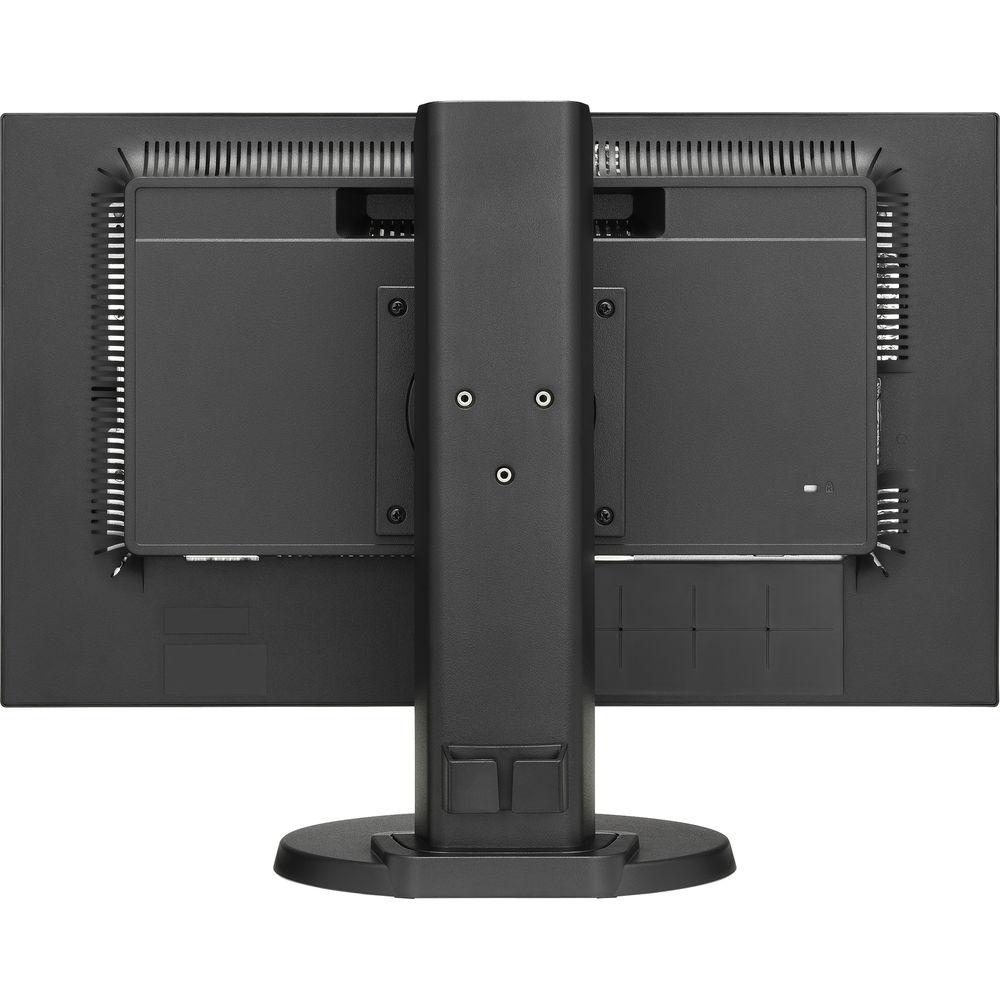

- Securely mount zero or thin clients with the included mounting plate

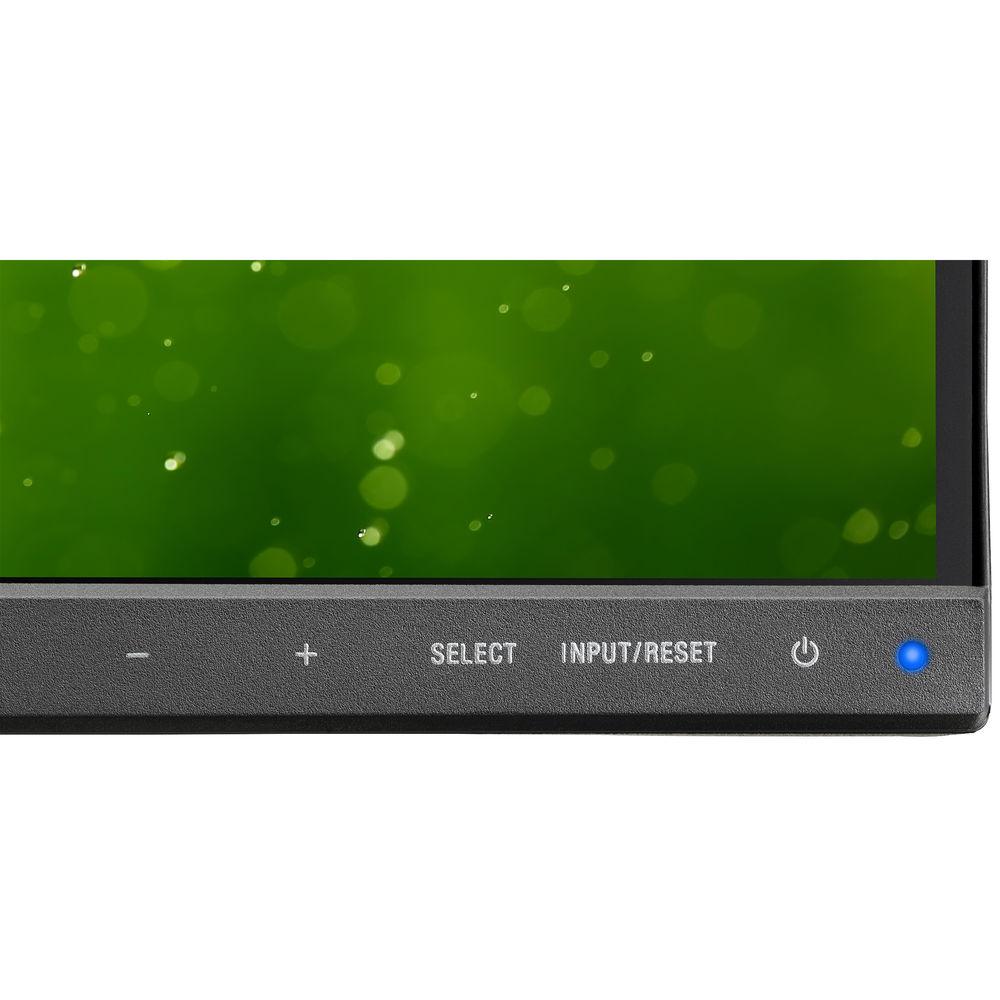

- Touch-sensitive OSD controls are integrated into the bezel, making for easier display adjustments
- ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- ENERGY STAR 7.0 and TCO 7.0
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Built-in low blue light filter technology and flicker-free certified
UPC: 805736063240 In the Box NEC E221N-BK 21.5" 16:9 Narrow Bezel IPS Monitor Power Cord DisplayPort Cable Thin / Zero Client VESA Plate Limited 3-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC E221N-BK 21.5" 16:9 Narrow Bezel IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC E221N Specs | | | Size | 21.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Pixels Per Inch (ppi) | 102 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81.1 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.25 x 0.25 mm | | | | Connectivity | 1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.3 W (Standby)
25 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.3" / 10.9 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 19.2 x 14.2 x 8.4" / 48.8 x 36.0 x 21.4 mm (With Stand)
19.2 x 11.5 x 1.9" / 48.8 x 29.1 x 4.8 mm (Without Stand) | | Weight | 11 lb / 5 kg (With Stand)
6.6 lb / 3 kg (Without Stand) | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 27.0 x 15.3 x 9.1" |
