User Manual for NEC E223W-BK 22" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the NEC E223W-BK 22" Widescreen LED Backlit
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC E223W-BK 22" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

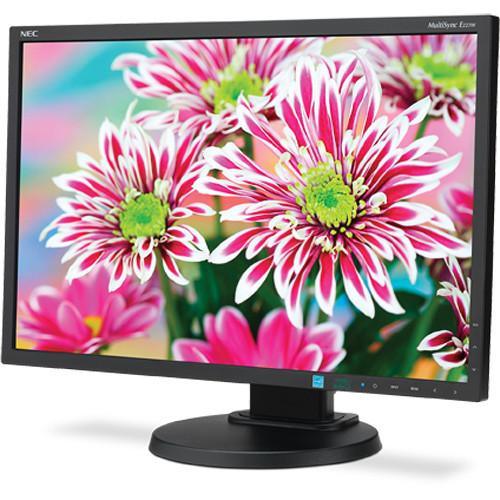

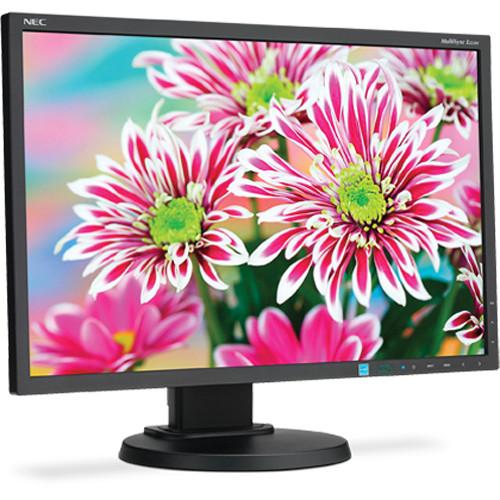

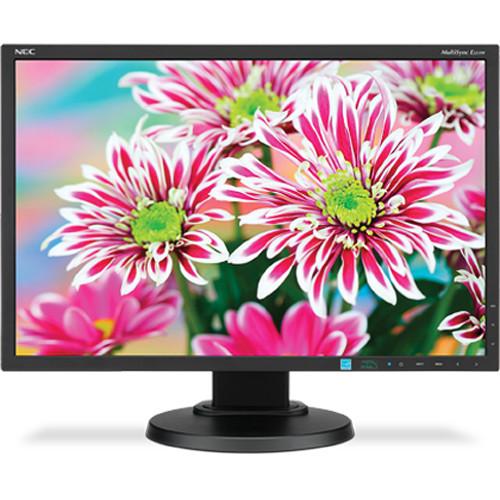

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More wtabrdszcbxsxz The E223W-BK 22" LED Backlit LCD Monitor from NEC is a widescreen high definition monitor supporting a resolution of 1680 x 1050 for enhanced picture quality, along with a 5ms response time reducing lag and blur when watching movies and videos. The enhanced contrast ratio of 1,000:1 creates a more dynamic picture through darker dark and brighter white colors.

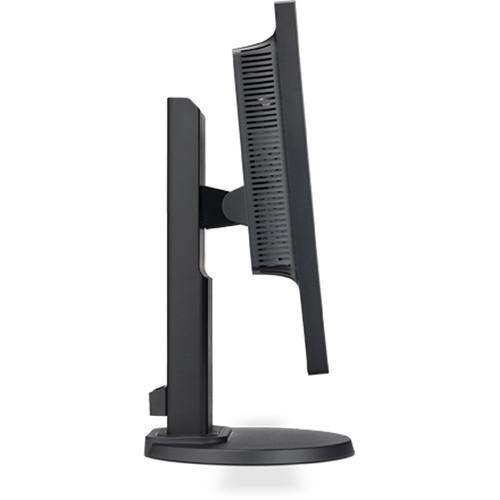

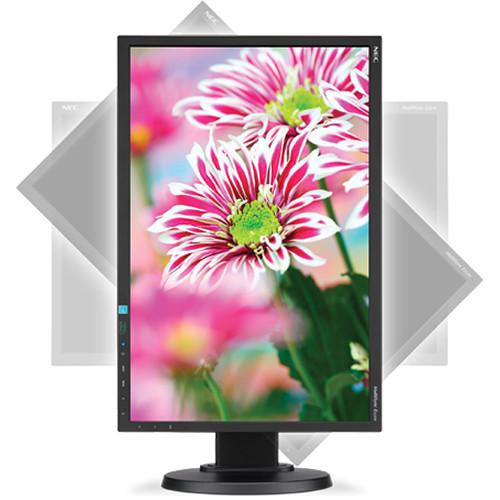

Configure this VESA compatible monitor with or without the included stand and take full advantage of the 178° horizontal and vertical viewing angles. Once configured, this NEC monitor is packed with enhanced features to take your viewing experience to the next level. You can tilt, swivel and pivot the monitor for increased viewing comfort while adjusting the aspects of the monitor through enhanced OSD user controls. - Ambix
- Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.
- XtraView
- Delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left and right) with less color shift and without any glare, reflection or distortion.
- Rapid Response
- Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
- No Touch Auto Adjust
- Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.
- LED Backlight
- Provides for enhanced low power consumption and less hazardous materials.
- Carbon Footprint Meter
- Informs and motivates responsible use of the display by calculating and tracking the conversation of green gas emissions in real time.
- Additional Features

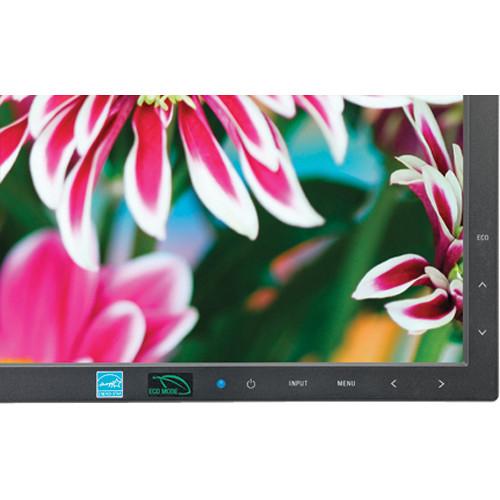

- ECO Mode, Carbon footprint meter, Thin frame, Tilt, Swivel, Pivot, Height-adjustable stand, Carrying handle, Rapid Response, Ambix, XtraView, OSD user controls, NaViKey, NaViSet software, Cable management, VESA mount, HDMI-capable via DVI adapter, HDCP, DDC/CI, No Touch Auto Adjust, Plug and Play (VESA DDC 1/2B), VESA DPMS power management, AccuColor color control, Digital smoothing, Digital controls, ISO 13406-2 Class II
UPC: 805736044546 In the Box NEC E223W-BK 22" Widescreen LED Backlit LCD Monitor User Manual Power Cord 15-pin D-Sub Cable DVI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC E223W-BK 22" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC E223W Specs | | | Size | 22" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1680 x 1050 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 90 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 82.3 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.28 x 0.28 mm | | | | Connectivity | 1 x DVI-D
1 x DisplayPort Input
1 x VGA | | | | Power Consumption | 0.4 W (Standby)

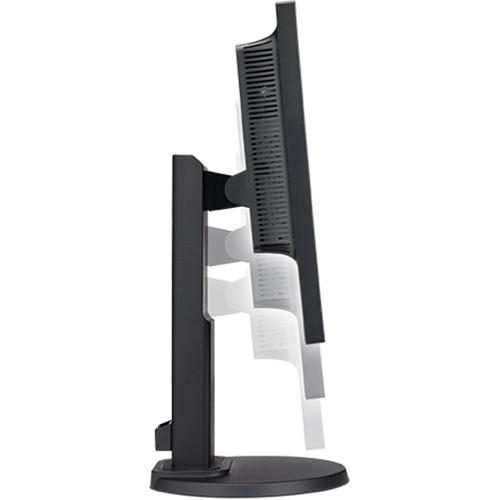

24 W (Typical) | | | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.3" / 10.9 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 19.8 x 15.1 x 8.4" / 50.4 x 38.3 x 21.4 mm (With Stand)
19.8 x 13.0 x 2.4" / 50.4 x 33.0 x 6.1 mm (Without Stand) | | Weight | 10.8 lb / 4.9 kg (With Stand)
7.1 lb / 3.2 kg (Without Stand) | | | | Package Weight | 14.9 lb | | Box Dimensions (LxWxH) | 24.4 x 16.5 x 9.3" |
