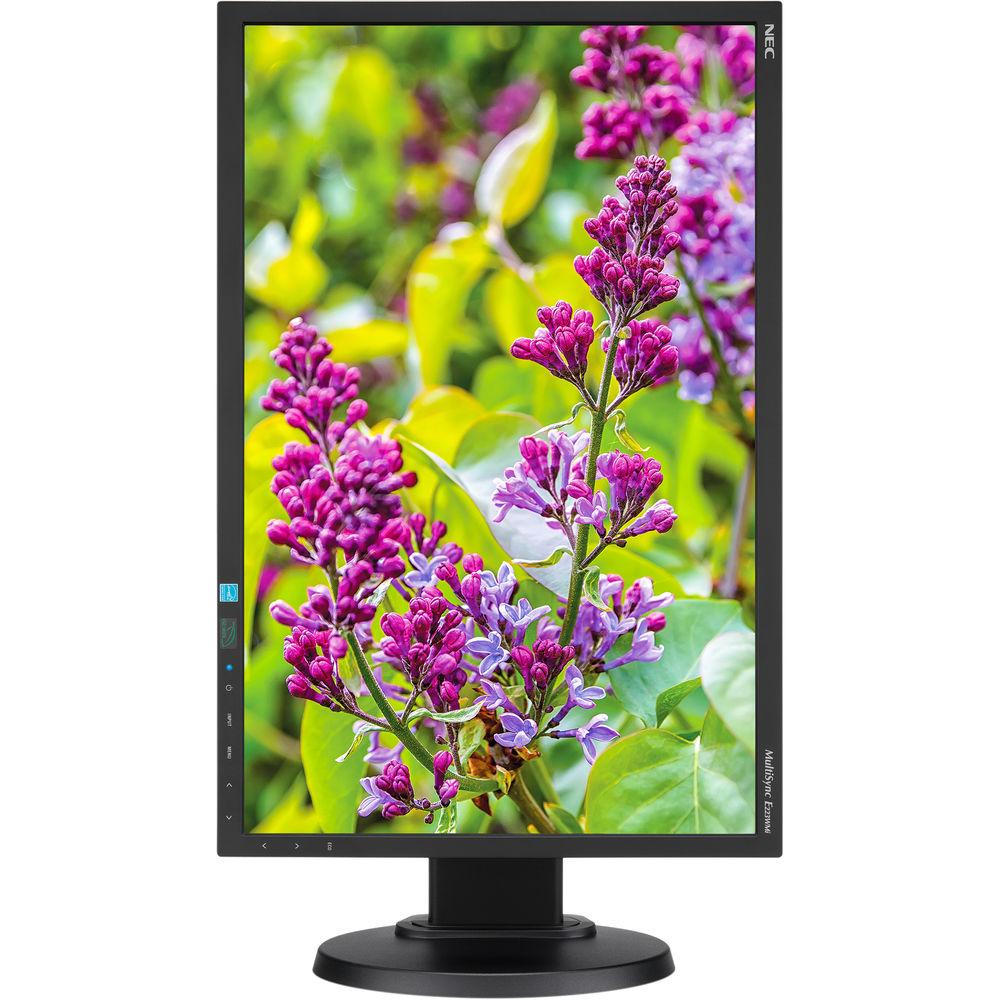

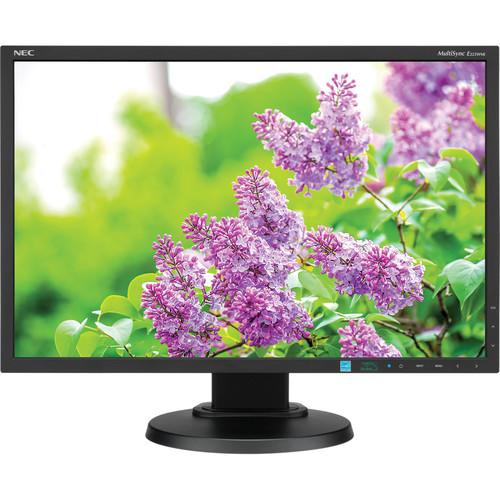

User Manual for NEC E233WMI-BK 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC E233WMI-BK 23" 16:9 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC E233WMI-BK 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More rewbfuduevzeaqdayaxwfbyrss Pivot, tilt, swivel, and adjust the height of the E233WMI-BK 23" 16:9 IPS Monitor from NEC to accommodate the content being viewed. In addition to enhanced maneuverability, this IPS (In-Plane Switching) panel supports 178° horizontal and vertical viewing angles along with a 1920 x 1080 resolution, producing a crisp, clear picture. Users also benefit from a 6 ms response time and a 1000:1 contrast ratio to reduce ghosting and create a more dynamic overall picture.
Setup and configuration of the E233WMI-BK display is simple as it comes equipped with DisplayPort, DVI-D, and VGA connectors. Accompanying the multiple connection options are the dual built-in 1W speakers, providing a complete multimedia experience. Once installed, the screen can be configured to exact user specifications using the OSD controls while ambient light sensors adjust various aspects of the screen based on environmental conditions. -
- LED backlight technology uses less power than other backlight types
- 4-way ergonomic design (4.3" height-adjust, pivot, tilt, and swivel) fits a variety of workspaces
- DisplayPort, VGA, and DVI inputs work with nearly any computer
- Carbon footprint meter helps track and calculate the reduction of green gas emissions
- Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color, and contrast
- Works with NaViSet Administrator 2, which greatly eases administration and management of larger display installations
- Built-in low blue light filter technology and flicker-free certified
- Additional Features
- • ECO Mode
• Carbon footprint meter
• Thin frame
• Tilt
• Swivel
• Pivot
• Height-adjustable stand
• Carrying handle
• Rapid Response
• Ambix
• XtraView

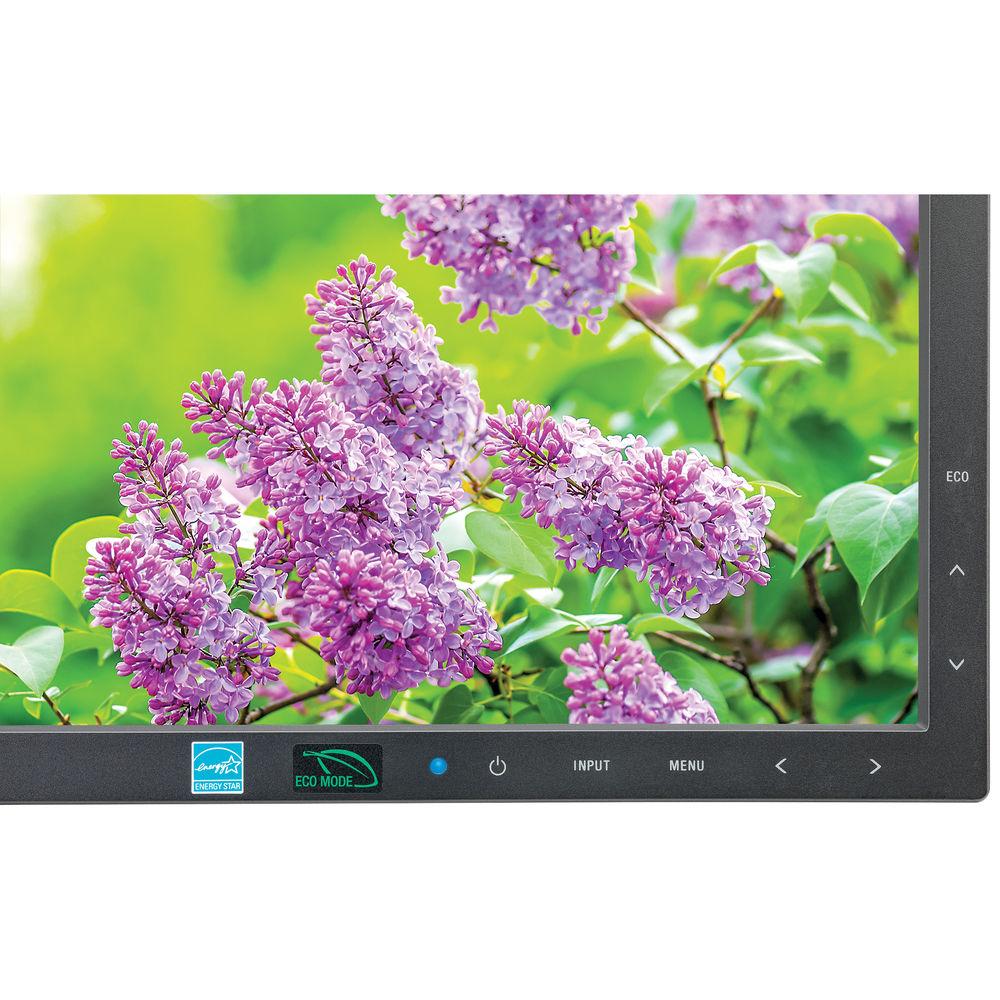

• OSD user controls
• NaViSet software
• Cable management
• VESA mount
• HDCP
• DDC/CI
• No Touch Auto Adjust
• Plug-and-Play (VESA DDC 1/2B)
• VESA DPMS power management
• Digital smoothing
• Digital controls
• ISO 13406-2 Class II UPC: 805736065305 In the Box NEC E233WMI-BK 23" 16:9 IPS Monitor Power Cord DisplayPort Cable Limited 3-Year Warranty User Guide PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC E233WMI-BK 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC E233WMI-BK Specs | | | Size | 23" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 14 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x DisplayPort Input
1 x DVI-D Input
1 x VGA Input | | HDCP Support | Yes | | Built-In Speakers | Yes | | | | Power Consumption | 15 W (Typical)
0.3 W (Standby) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 6561' / 2000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 21.4 x 19.1 x 8.4" / 54.4 x 48.5 x 21.3 cm (With Stand)
21.4 x 12.7 x 2.1" / 54.4 x 32.3 x 5.3 cm (Without Stand) | | Weight | 12.6 lb / 5.72 kg (With Stand)
8.2 lb / 3.72 kg (Without Stand) | | | | Package Weight | 17.05 lb | | Box Dimensions (LxWxH) | 26.0 x 16.2 x 8.7" |
