User Manual for NEC E425 42" Full HD Commercial LED Monitor Click to enlarge the picture
Contents of the user manual for the NEC E425 42" Full HD Commercial
- Product category: Commercial Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Commercial Monitors
 |
User manual for the NEC E425 42" Full HD Commercial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description - E Series Large-Screen Displays | NEC Display Solutions

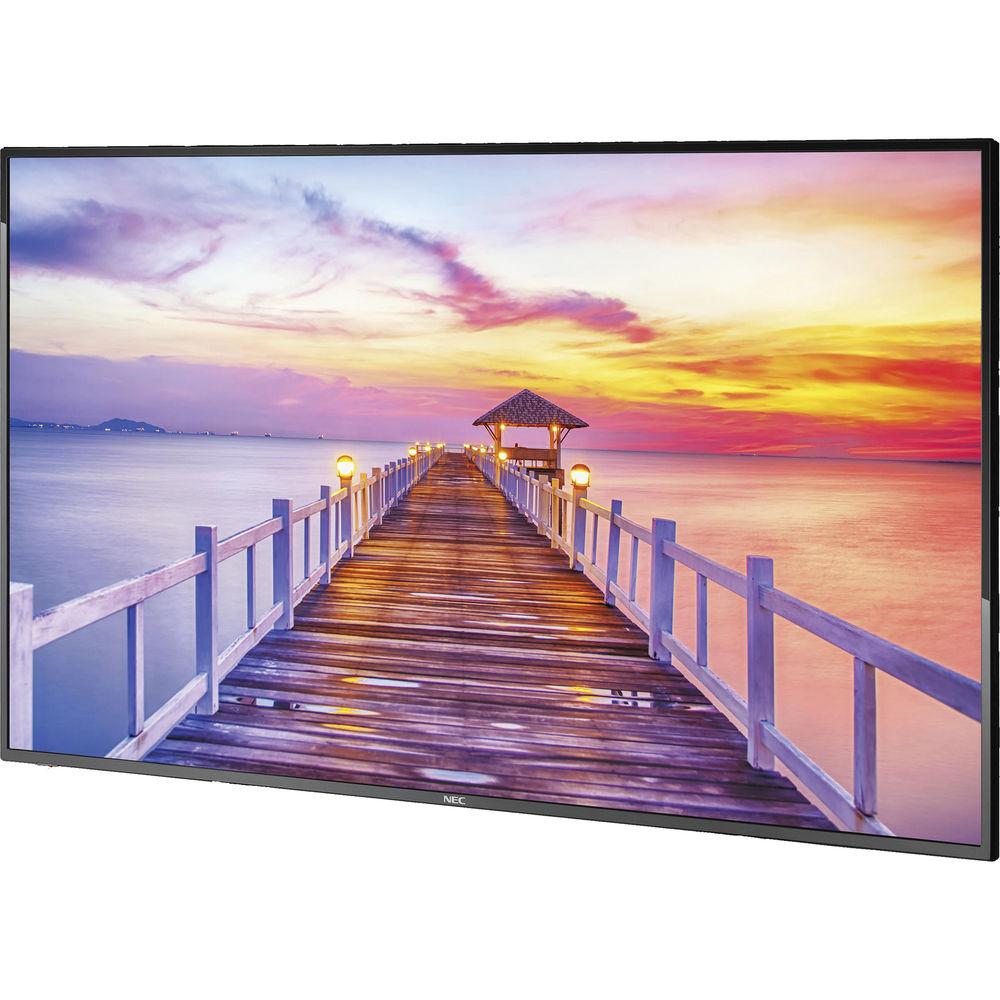

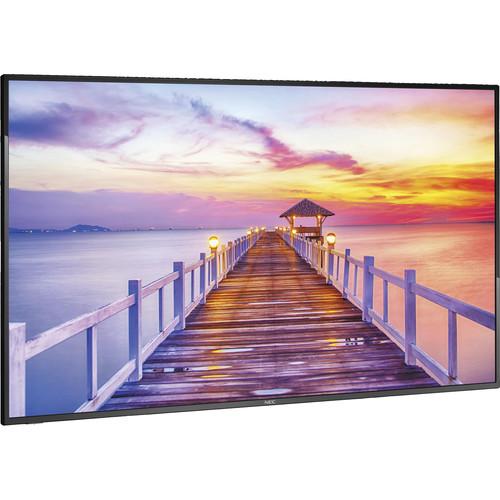

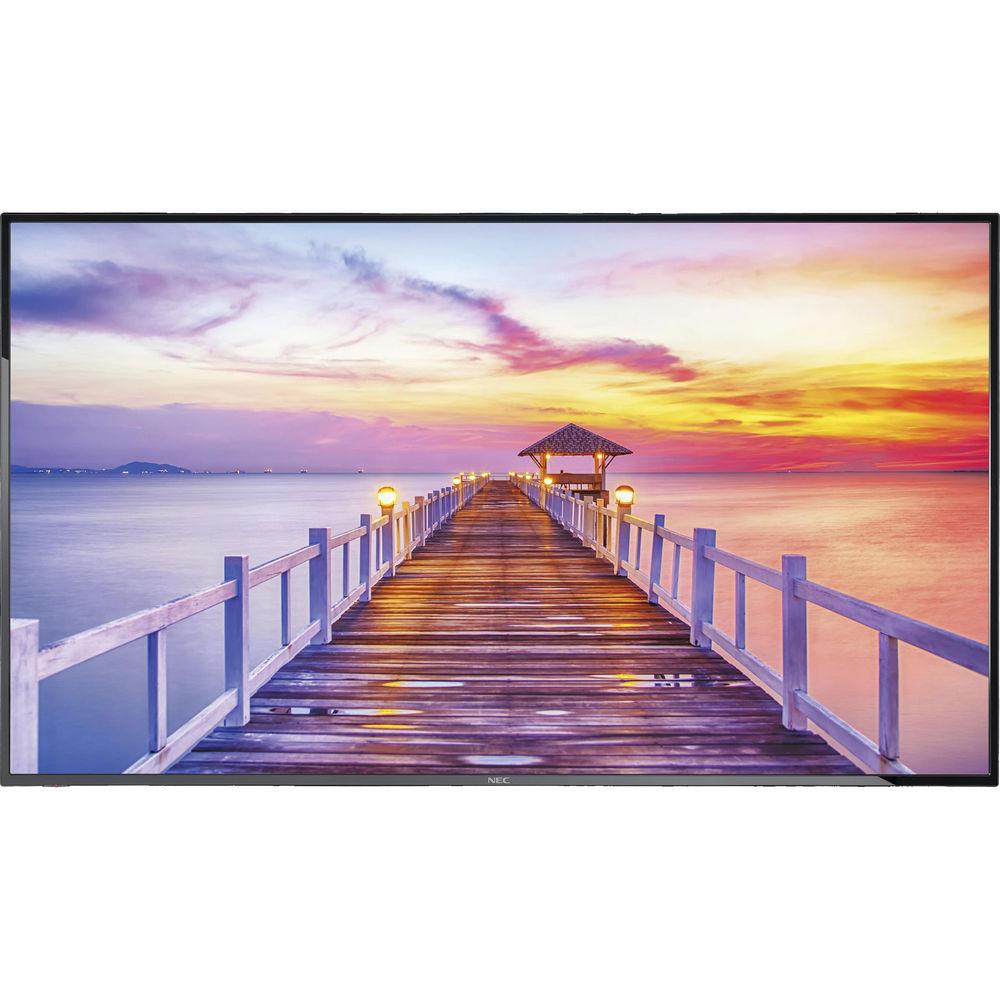

Display your businesses content on a large display in 1080p with the E425 Full HD Commercial LED Monitor. This business-ready monitor features a large 42" LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 300 cd/m² brightness rating and 3000:1 contrast ratio showcases its ability to handle light and dark on-screen images.

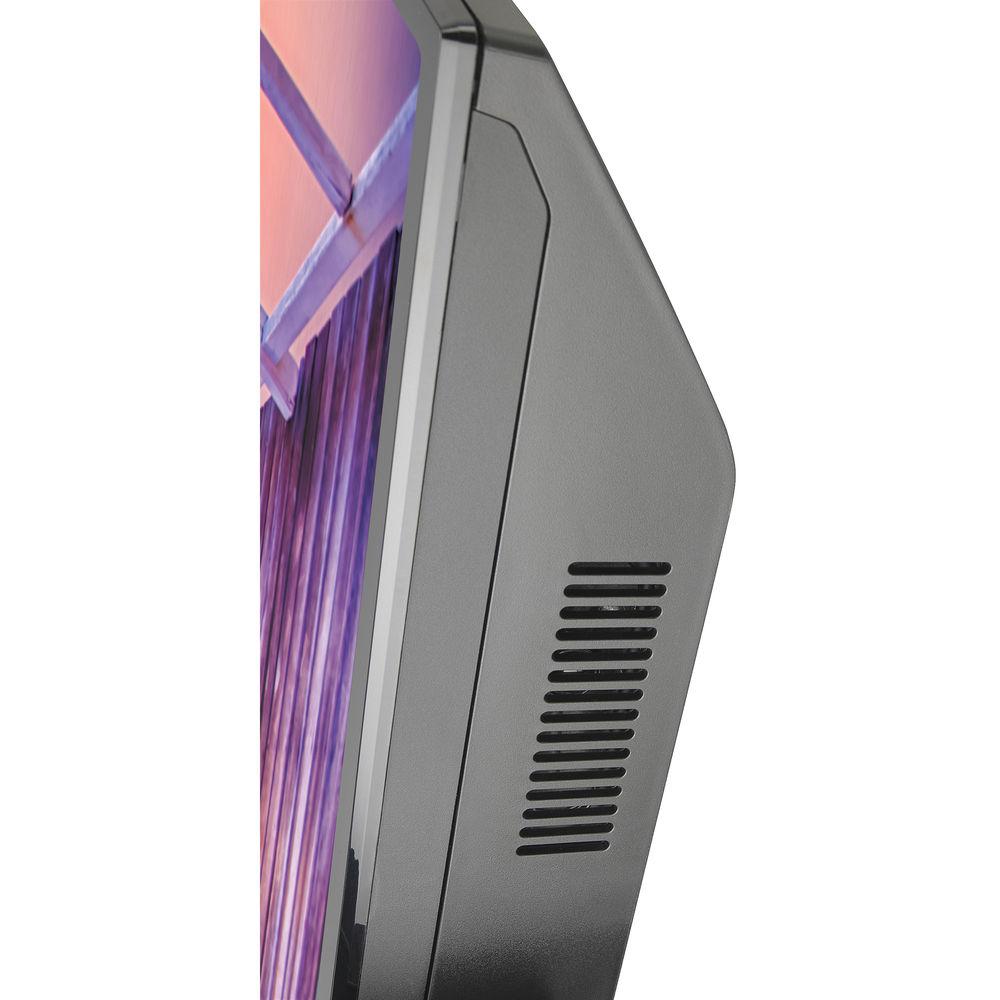

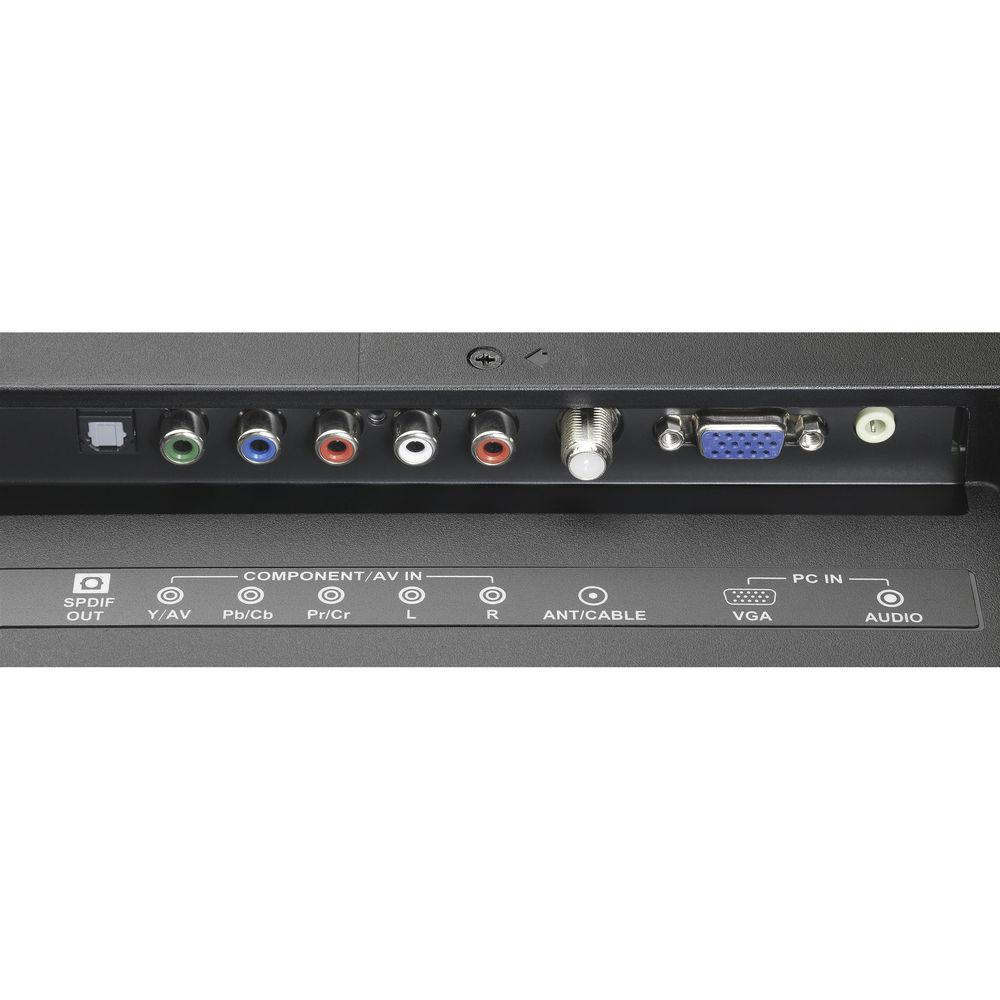

As a digital-signage-capable display, this commercial monitor is suitable for use in environments such as lobbies, schools, and corporate settings. This display is equipped with VGA, component video, USB, and three HDMI ports for connecting a variety of video sources. This monitor's dual built-in 10W down-firing speakers allow you to enjoy stereo audio playback, while its digital optical interface allows you to connect to an external audio system. While the NEC E425 doesn't include a table stand, it offers a VESA 200 x 200 wall-mountable design - Simple 24-hour scheduler feature allows for programmable on/off times
- Integrated USB Media Player allows for playback of video, audio, and picture files
- Built-in tuner allows for high-definition broadcast capabilities
- Integrated backlight adjust setting allows users to customize the backlight strength
- Additional energy options include a Power Savings Mode to further reduce energy consumption
- LED backlighting enables eco-friendly digital signage
- Slim bezel width creates seamless digital signage
In the Box NEC E425 42" Full HD Commercial LED Monitor Power Cord Wireless Remote Control VGA Cable Limited 3-Year Warranty (Parts / Labor / Backlight) Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC E425 42" Full HD Commercial LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC E425 Specs | | | Panel Technology | MVA | | Viewable Image Size | 42" (106.7 cm) | | Native Resolution | 1920 x 1080 | | Brightness | 300 cd/m² | | Contrast Ratio | 3000:1 | | Viewing Angle (H/V) | 176/176° (88U/88D/88L/88R) at CR>10 | | Aspect Ratio | 16:9 | | Colors | Over 16.7 million | | Orientation | Landscape | | | | Inputs | 3 x HDMI
1 x USB (Audio, Video, Photo)
1 x VGA
1 x Component Video
1 x Stereo RCA
1 x 1/8" (3.5 mm)
1 x RF
1 x RS-232 | | Outputs | 1 x Digital Optical (SPDIF) | | Other Ports | 1 x Power | | | | Speakers | 2 x 10 W | | Power Consumption | On (Max): 99 W
Power Management: <0.5 W | | Power Requirements | 100 to 120 VAC at 0.9 A | | VESA Compatibility | 200 x 200 | | Operating Conditions | Temperature: 32 - 104°F (0 - 40°C)
Humidity: 10 - 80%
Altitude: 6562' (2000 m) | | Bezel Width | Left/Right/Top: 0.47" (11.9 mm)
Bottom: 0.59" (14.9 mm) | | Dimensions (WxHxD) | 37.8 x 21.9 x 3.0" (959.7 x 555.2 x 76.8 mm) | | Weight | 18.9 lb (8.6 kg) | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 40.0 x 25.5 x 5.3" |
