User Manual for NEC EA193MI 19" LED Backlit IPS LCD Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA193MI 19" LED Backlit IPS
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA193MI 19" LED Backlit IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

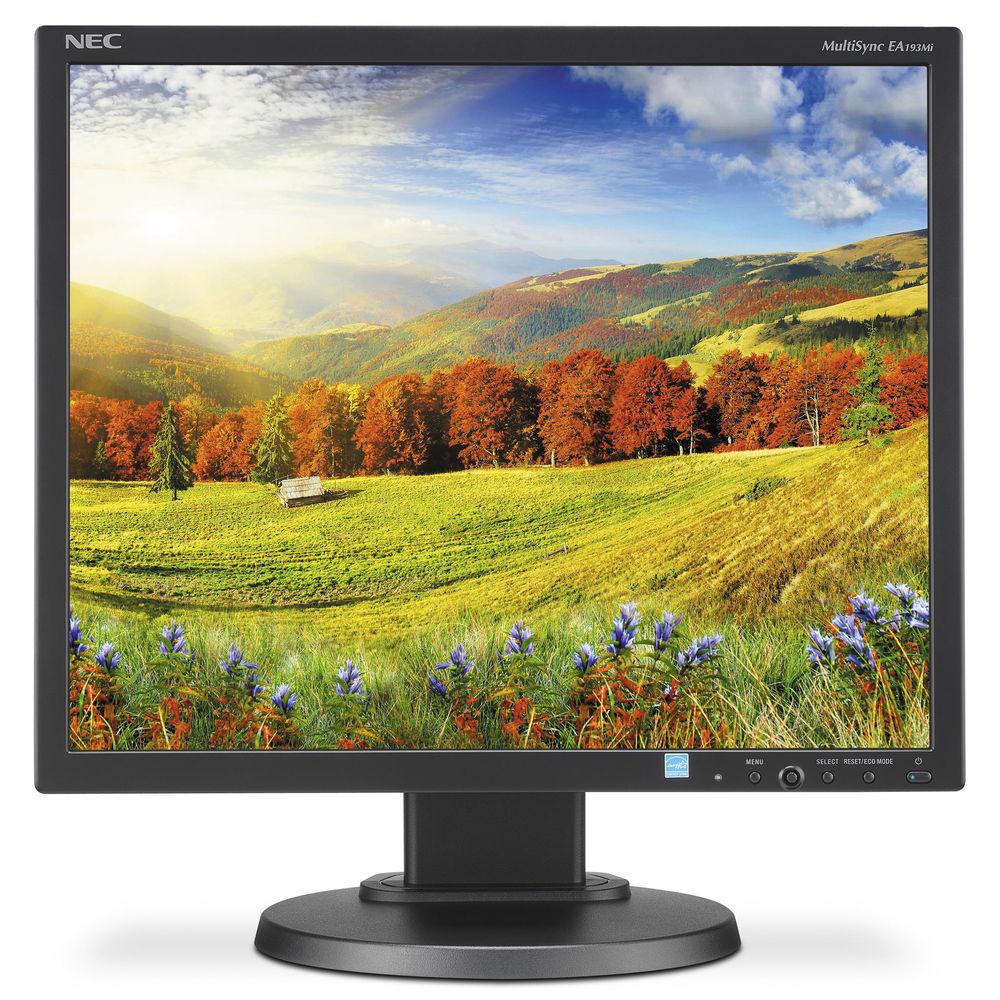

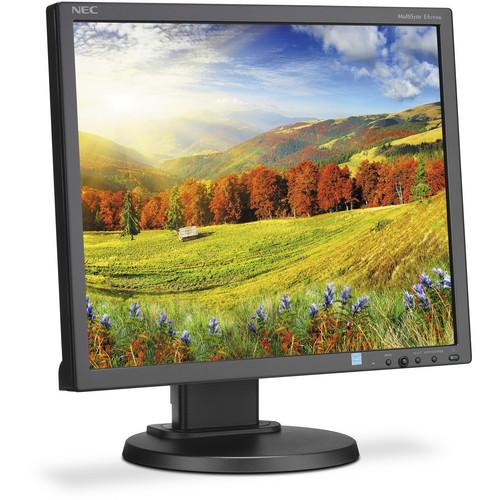

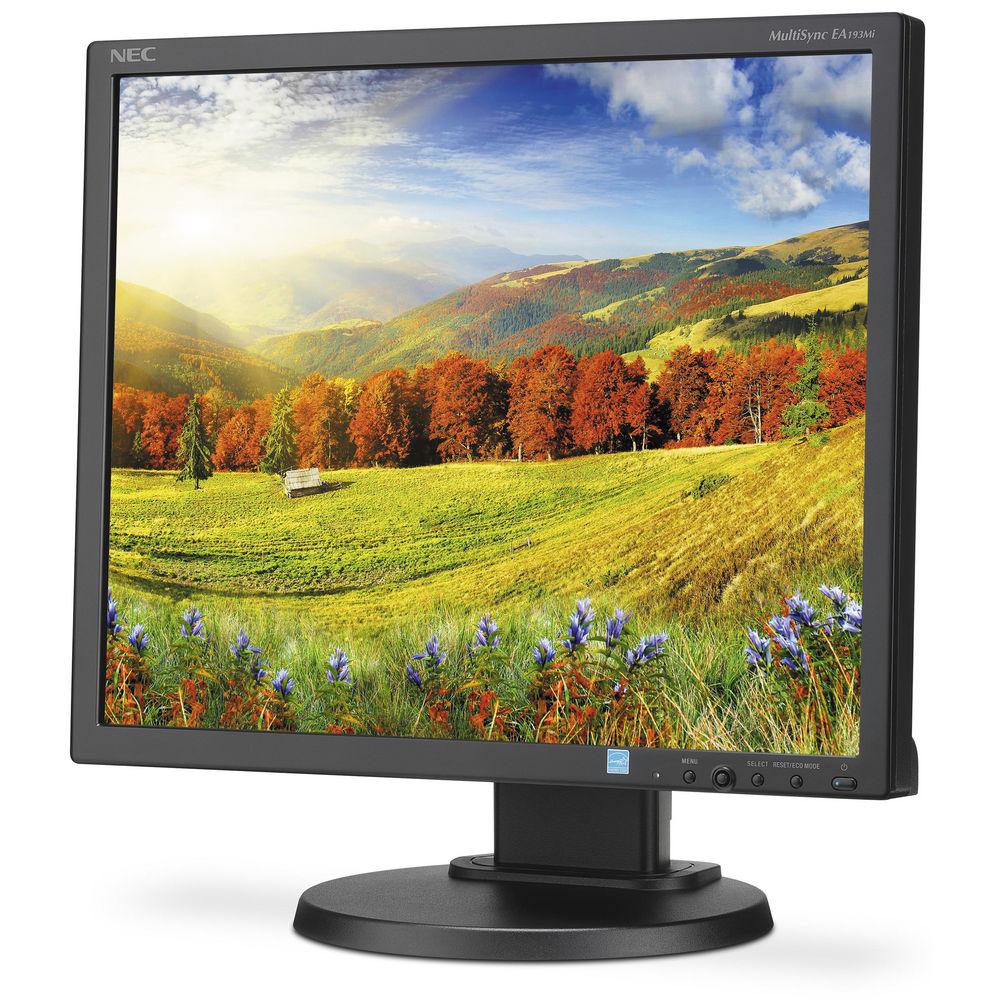

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More accqdwxcwsstabuxerzxfxf The EA193MI 19" LED Backlit IPS LCD Monitor from NEC uses a premium-grade IPS panel that provides wide viewing angles, outstanding color consistency, and image accuracy. Its LED backlighting technology allows for a thin, light, and sleek design, while offering high power efficiency. This EPEAT Silver and Energy Star-compliant monitor includes DisplayPort, DVI-D, and VGA D-Sub inputs to connect system peripherals and also has integrated speakers. Full ergonomic flexibility with height adjustment, tilt, swivel, and portrait adjustability is also provided. - IPS Active Matrix LCD
- Provides superior screen performance, including wide viewing angles, and lifelike flesh tones
- LED Backlight Technology
- Provides for industry-leading low power consumption and less hazardous materials

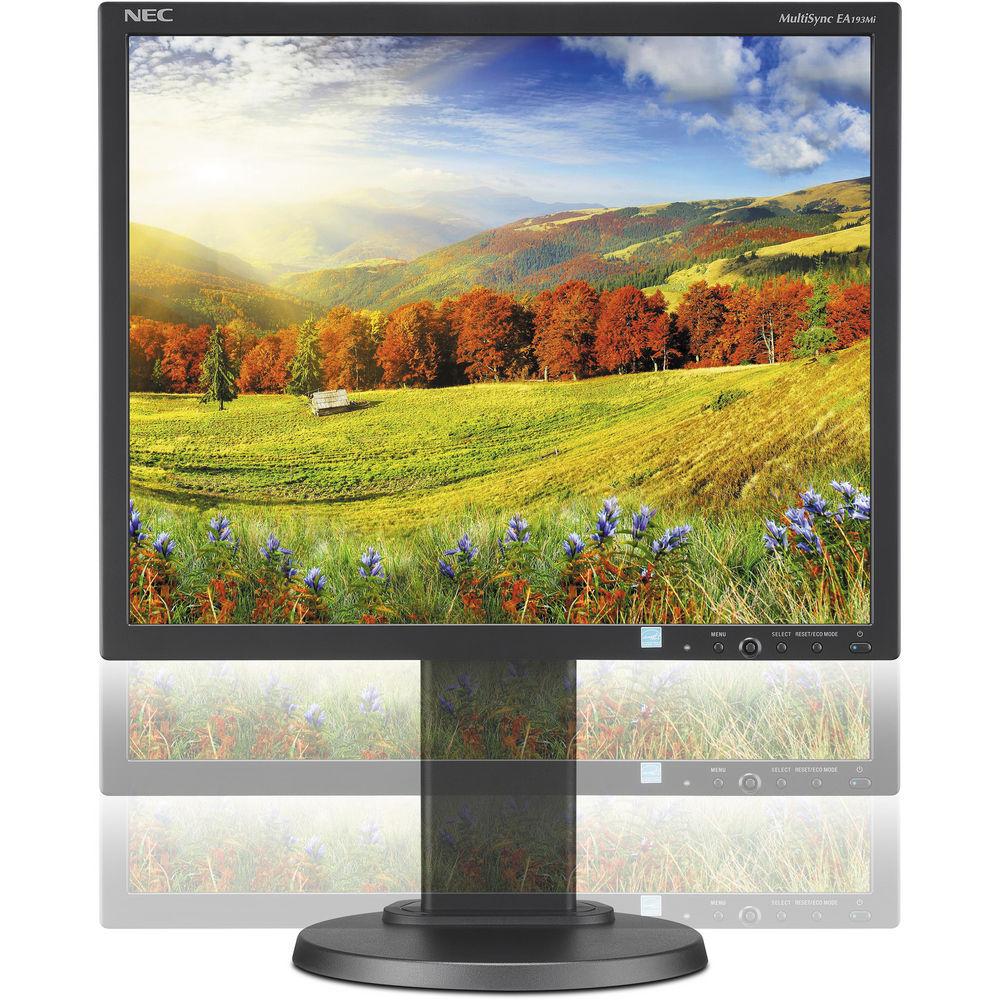

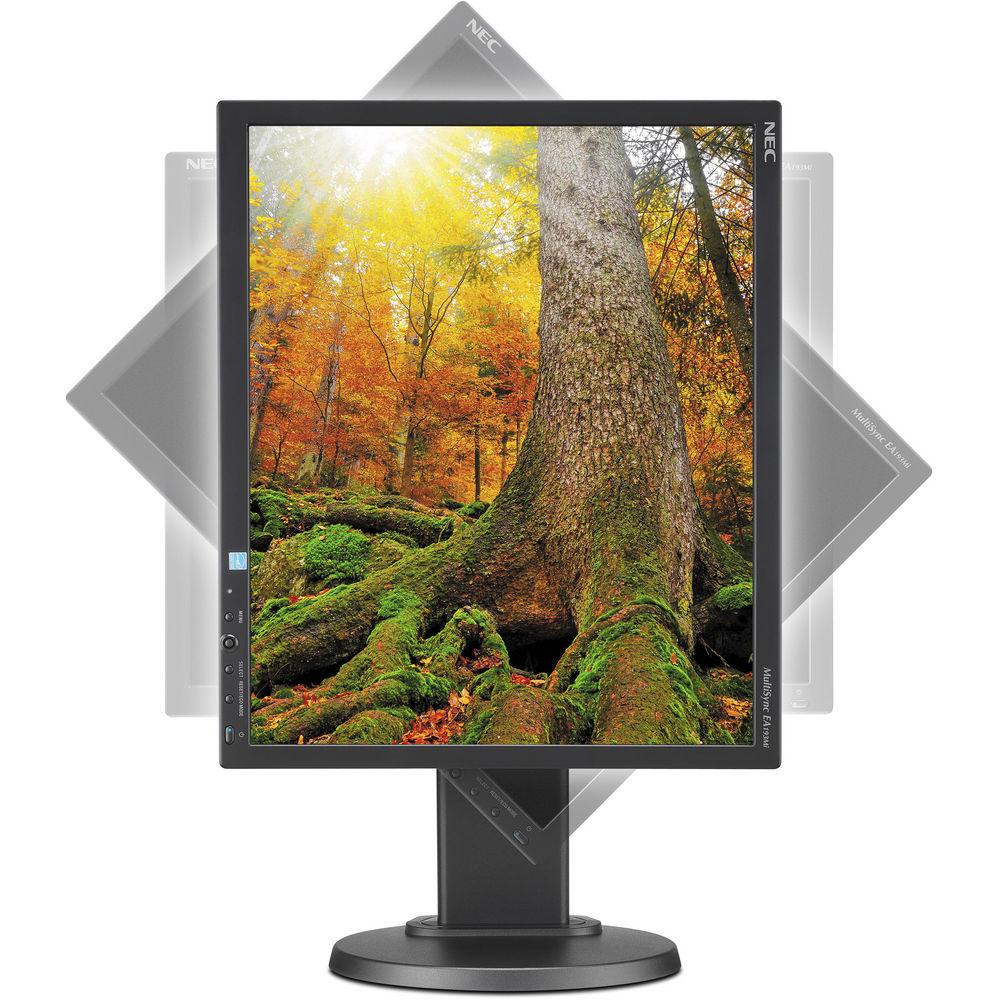

- Flexible Design
- Height-adjust, pivot, tilt, and swivel capabilities add flexibility and comfort to your viewing preferences

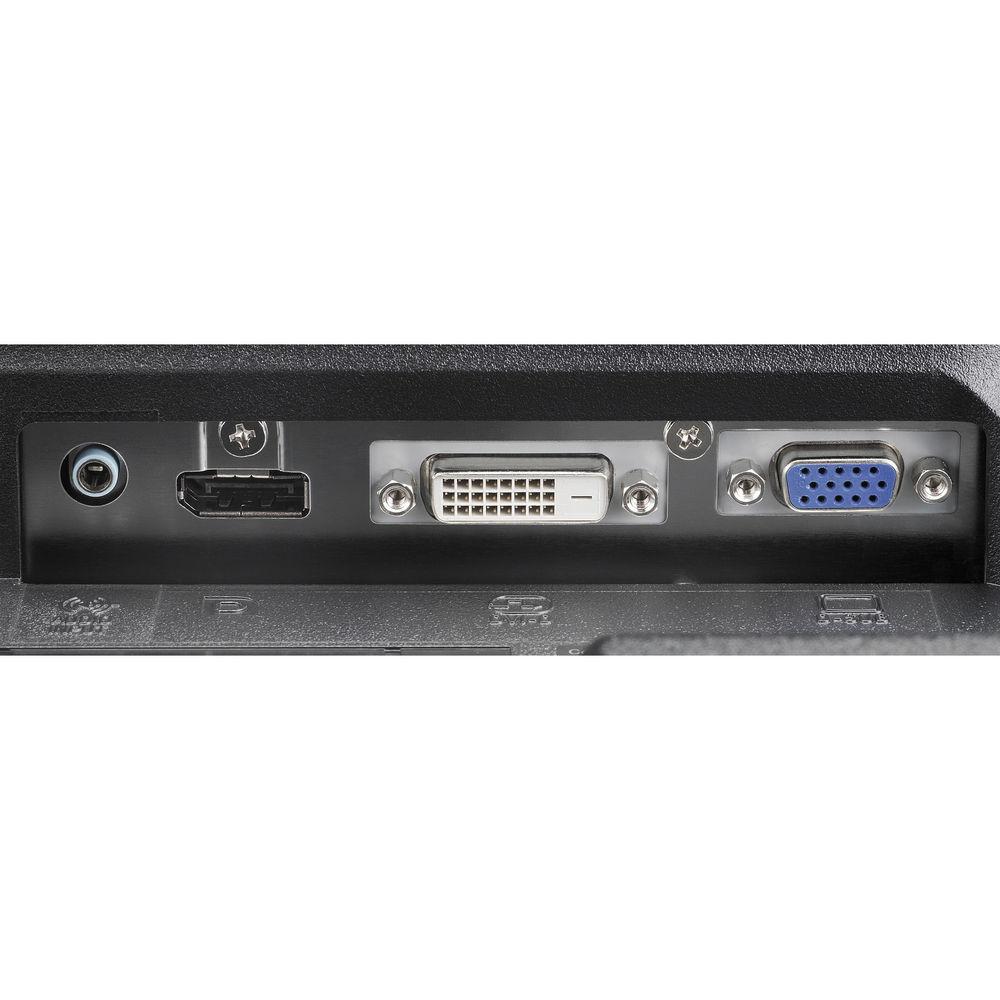

- Input Ports
- DisplayPort, DVI-D, and VGA D-Sub inputs provide expanded connectivity with advanced technology

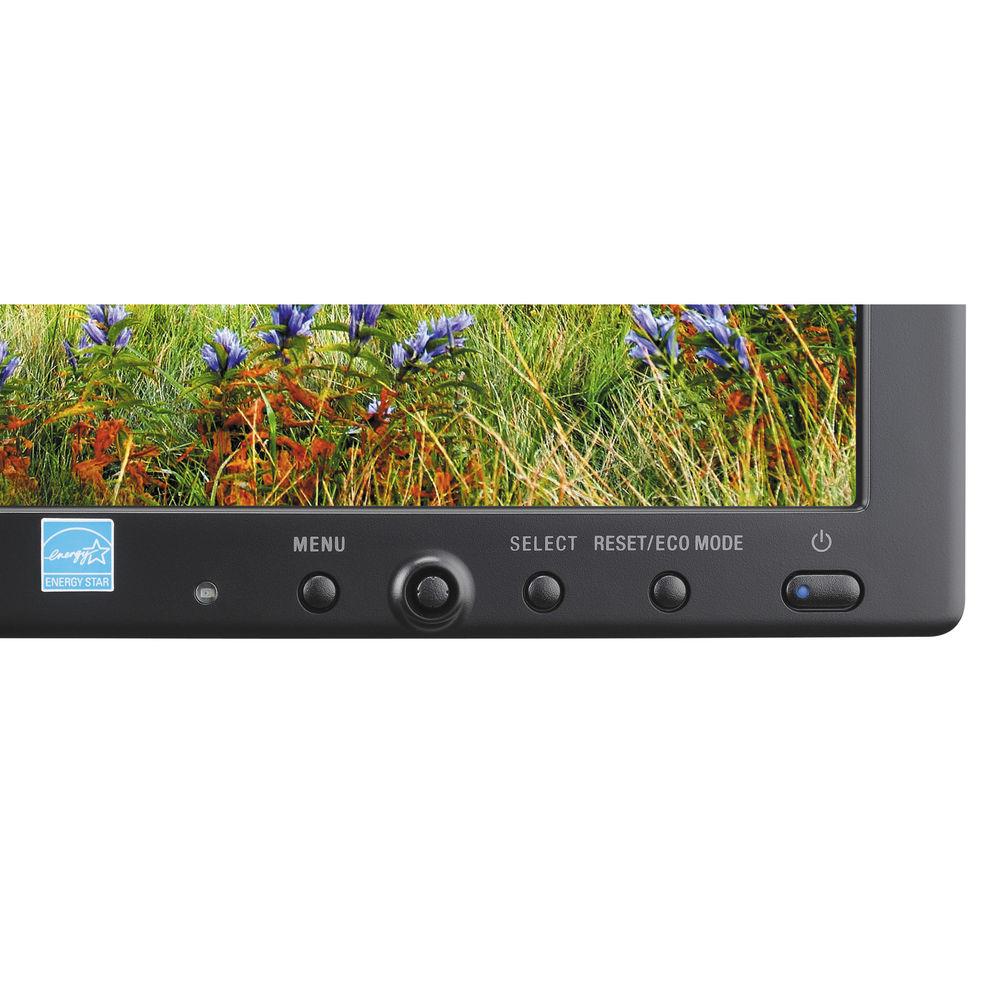

- ECO Mode
- Allows you to manually adjust the display's brightness to your preference, saving power and reducing your energy costs
- 25,000:1 Dynamic Contrast Ratio
- Delivers amazingly detailed images and text
- Dynamic Visual Mode
- Enhances video and images with real-time optimization of brightness, color, and contrast
- NaViSet Administrator
- NaViSet Administrator 2 is a free software solution that greatly eases administration and management of larger display device installations
- XtraView+
- Delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left, and right) with less color shift and without any glare, reflection, or distortion
- Rapid Response
- Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
- No Touch Auto Adjust
- Allows the monitor to be automatically adjusted to optimal image settings when initially turned on
- Carbon Footprint Meter
- Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time
- Ambix3
- Allows up to three inputs (VGA, DVI-I, and DVI-D) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button
UPC: 805736047509 In the Box NEC EA193MI 19" LED Backlit IPS LCD Monitor Power Cord 15-Pin D-Sub Cable DVI Cable Audio Cable Limited 3-Year Warranty User Manual PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA193MI 19" LED Backlit IPS LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EA193Mi Specs | | | Size | 19" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Pixels Per Inch (ppi) | 86 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81.1 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.29 x 0.29 mm | | | | Connectivity | 1 x DVI-D
1 x DisplayPort Input
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes | | | | Power Consumption | 0.35 W (Standby)
18 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.3" / 10.9 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 16.1 x 32.5 x 8.5" / 40.9 x 82.5 x 21.6 mm (With Stand)
16.1 x 13.3 x 2.6" / 40.9 x 33.8 x 6.6 mm (Without Stand) | | Weight | 13.2 lb / 6 kg (With Stand)
8.8 lb / 4 kg (Without Stand) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 22.4 x 15.8 x 9.0" |
