User Manual for NEC EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

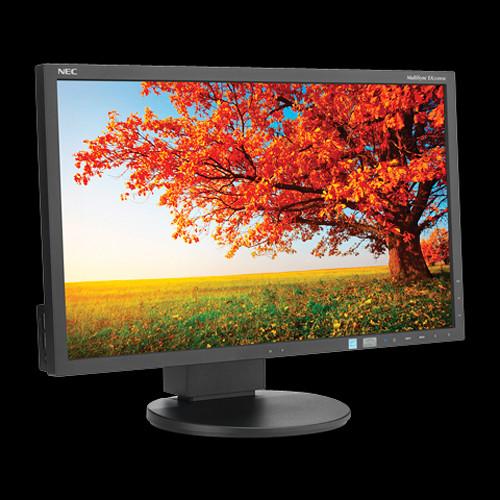

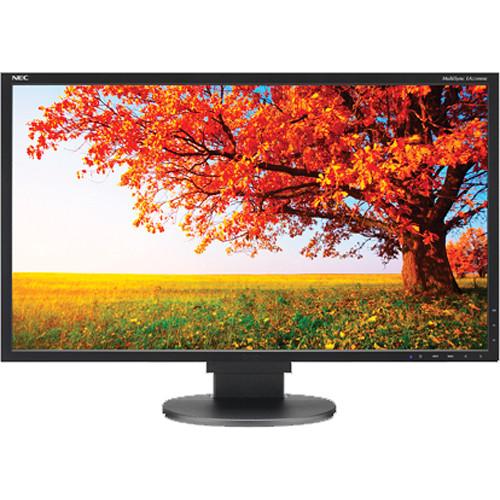

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More fasyczxfzcbe The EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor from NEC is an IPS panel providing wide viewing angles, color consistency, and image accuracy. With LED backlight technology you can take advantage of a thinner, lighter design. The EA224WMI-BK comes equipped with DisplayPort, HDMI, DVI-D, and VGA D-Sub inputs as well as an integrated 4-port USB 2.0 hub. With touch-sensitive controls you can make necessary adjustments to the picture quality of your display, or take advantage of smart sensing technology including ambient light and human sensors to automatically determine the proper display brightness. For multi-screen configurations you can utilize the ControlSync feature allowing setup of up to six MultiSync EA Series monitors. - LED backlight technology provides for lower power consumption and less hazardous materials
- IPS module boasts enhanced color accuracy, and minimal viewing angle shift

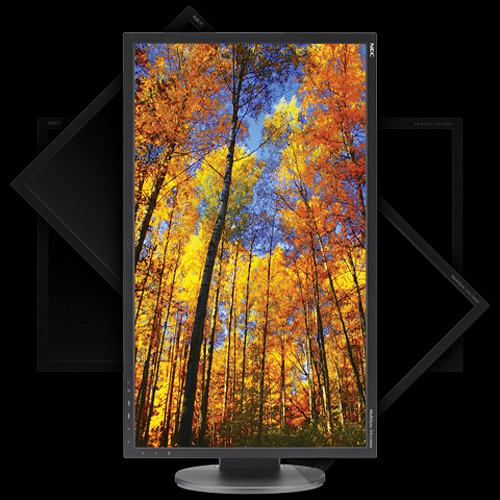

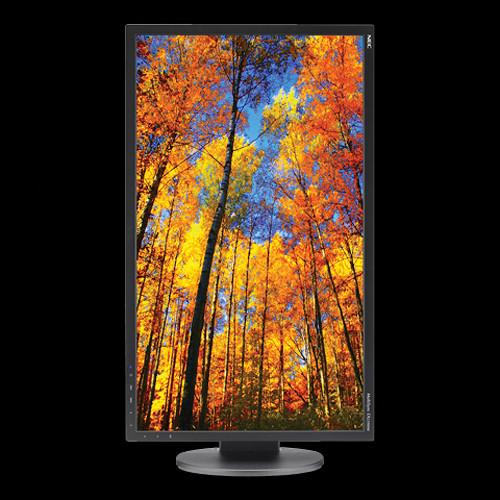

- Four-way ergonomic stand boasts pivot, tilt, swivel and height adjustment up to 130mm to maximize your viewing comfort
- Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever

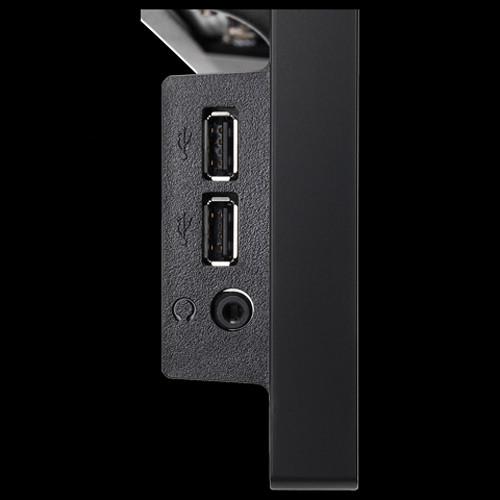

- Integrated 4-port USB 2.0 hub easily connects you to your peripherals

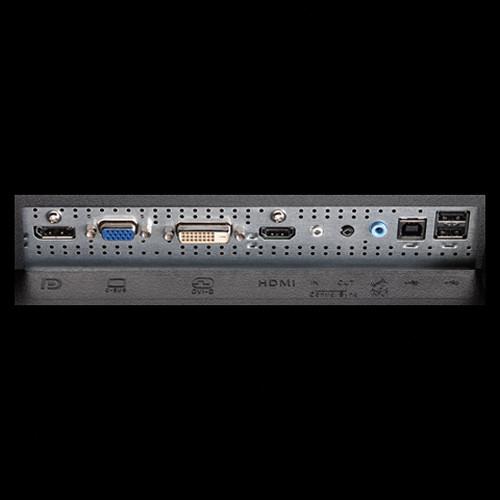

- Comprehensive input panel, including DisplayPort, HDMI, DVI-D, and 15-pin VGA, provides a variety of connection options to your computer
- Hidden multimedia speakers enhance your computing experience (headphone jack also included)
- ControlSync enables multi-monitor setups of up to six monitors and controls up to 26 settings
- Customize setting allows both users and IT administrators to set and restore preferred settings with just one touch
- Smart sensing technology includes ambient light and human sensors, which considerably reduce power consumption by automatically detecting your work conditions and adjusting to the proper display brightness or entering Power Saving Mode
- Carbon footprint meter helps track and calculate the reduction of green gas emissions, while the resettable cost meter (via On Screen Display) indicates electricity cost savings based on currency settings.
- EPEAT Silver/Gold compliance ensures the display reduces hazardous waste and electricity usage, resulting in lower energy costs and increased protection for the environment
- ENERGY STAR compliance reduces electrical costs and lowers total cost of ownership
UPC: 805736041019 In the Box NEC EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor Power Cable USB Cable ControlSync Cable Limited 3-Year Warranty User Manual PDF 2.7mbfasyczxfzcbe Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EA224WMi Specs | | | Size | 21.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 6 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.25 x 0.25 mm | | | | Connectivity | 1 x 3.5 mm Output
4 x USB Type-A 2.0
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes | | | | Power Consumption | 0.4 W (Standby)
26 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Dimensions (W x H x D) | 20.0 x 14.6 x 8.6" / 50.7 x 37.0 x 21.8 mm (With Stand)
20.0 x 11.9 x 2.4" / 50.7 x 30.1 x 6.1 mm (Without Stand) | | Weight | 13.2 lb / 6 kg (With Stand)
8.2 lb / 3.7 kg (Without Stand) | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 23.0 x 18.0 x 11.0" |
