User Manual for NEC EA234WMI 23" LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA234WMI 23" LED Backlit LCD
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA234WMI 23" LED Backlit LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

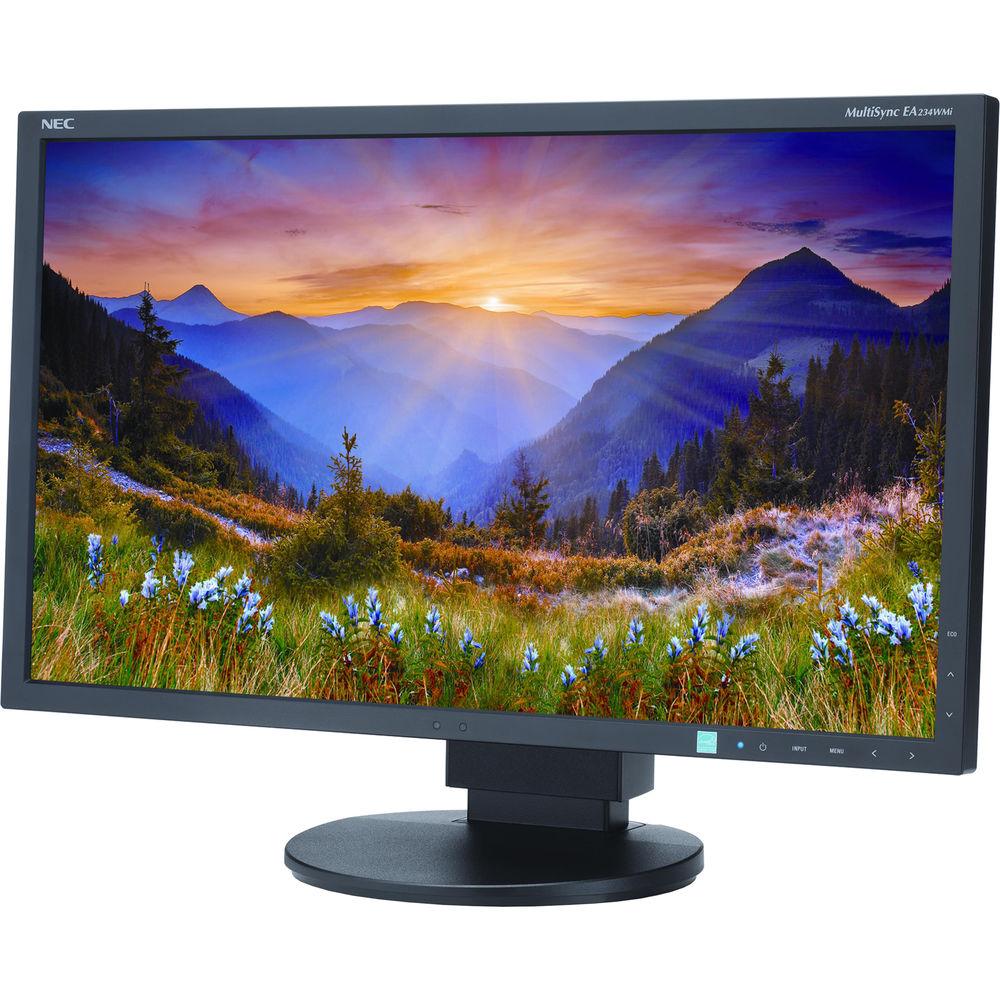

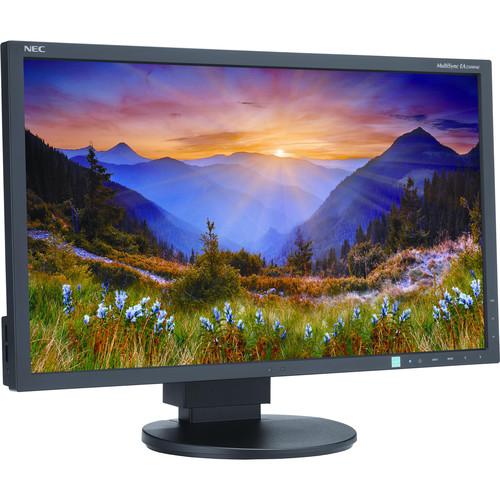

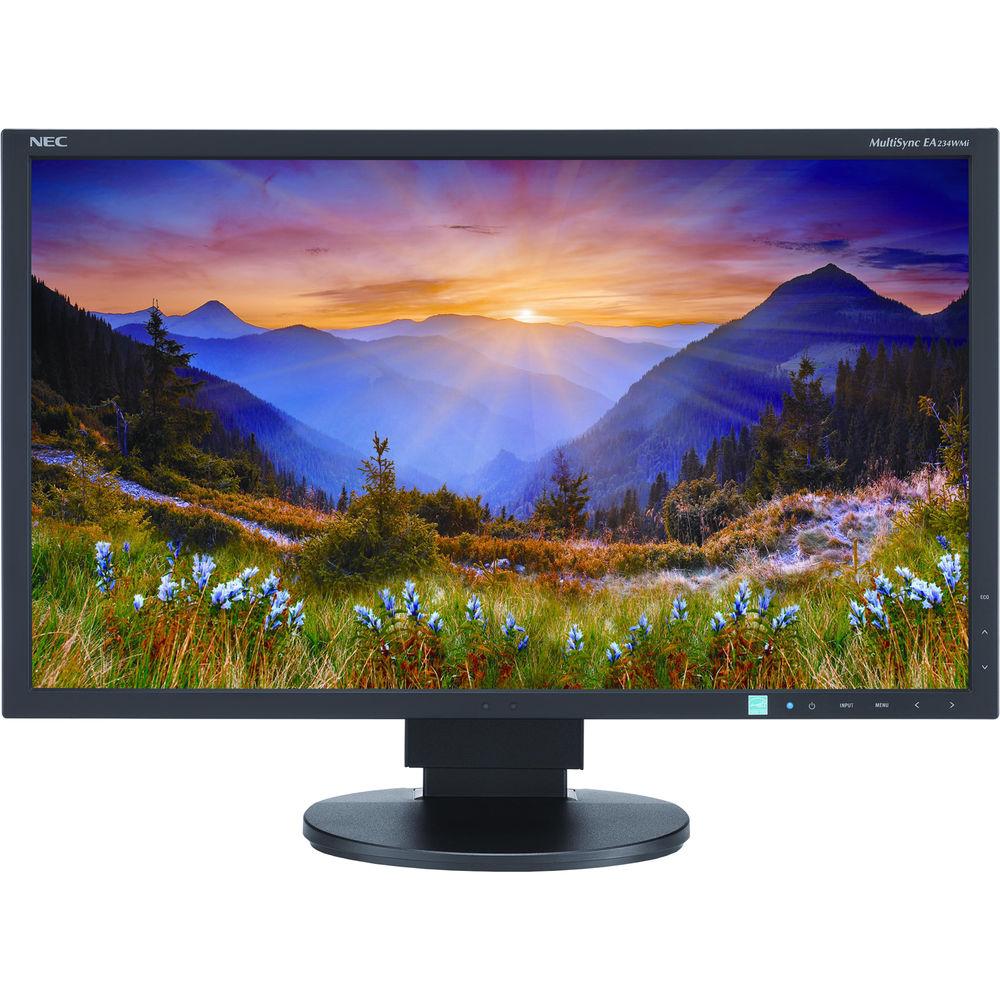

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More wtabrdszcbxsxz The EA234WMI 23" LED Backlit LCD Monitor from NEC is an LED-backlit desktop monitor ideal for corporate environments. Designed to enhance work performance, the widescreen monitor features IPS panel technology with wide viewing angles, 4-way ergonomic adjustability and 25000 : 1 dynamic contrast ratio. It delivers a completely redesigned chassis with a host of enhanced features, advanced technologies, future-proof connectivity and environmentally friendly benefits. The monitor boasts excellent color accuracy and minimal viewing angle shift. The LED backlighting of the monitor allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. The LED backlight technology not only reduces power by up to 52% compared to their predecessors, but also leads to a 30% thinner and 25% lighter chassis. The ControlSync technology allows users to control up to six EA234WMI displays in a multi-monitor configuration. The Smart Sensing technology automatically detects your work conditions and adjusts display brightness with ambient light and human sensors, while a comprehensive input panel, including HDMI, DisplayPort, DVI-D, VGA and 4-port USB hub, connects users to up-to-date peripherals and future-proofs your investment. Other green features include Eco Mode, a carbon footprint meter and an ambient light sensor that automatically adjusts the brightness to the optimal setting depending on ambient lighting, screen content or both, conserving power up to 87% compared to typical energy consumption. In addition, the human sensor detects user activity in front of the monitor and reduces display power up to 95% with inactivity. - Four-Way Ergonomic Stand

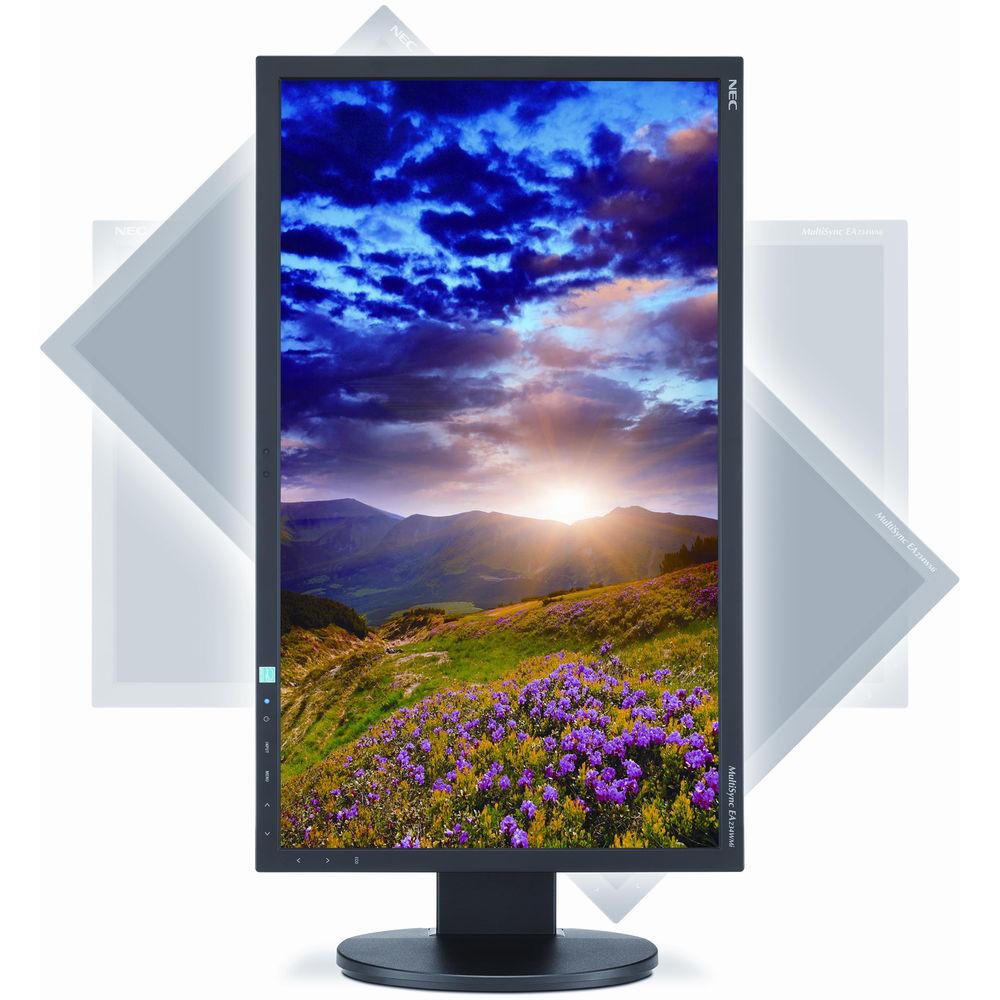

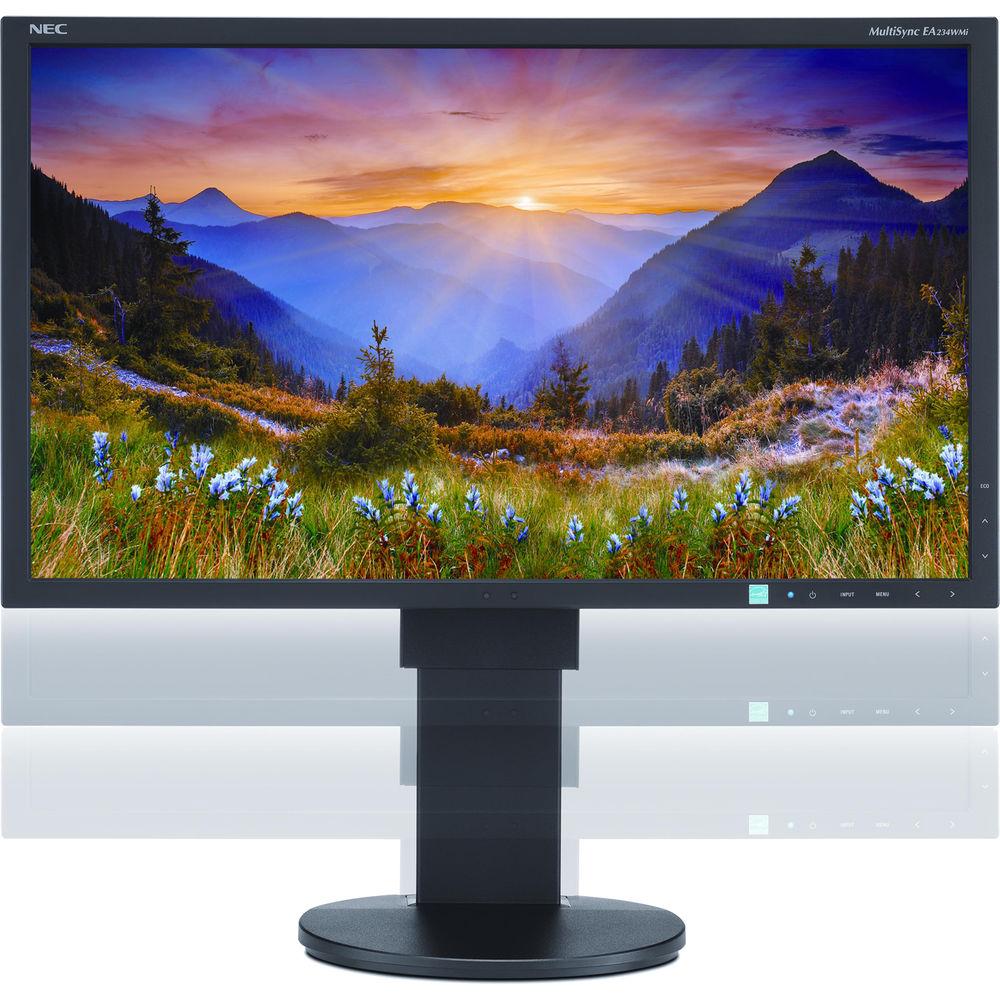

- Boasts pivot, tilt, swivel and height adjustment up to 5.1" (130mm) to maximize your viewing comfort

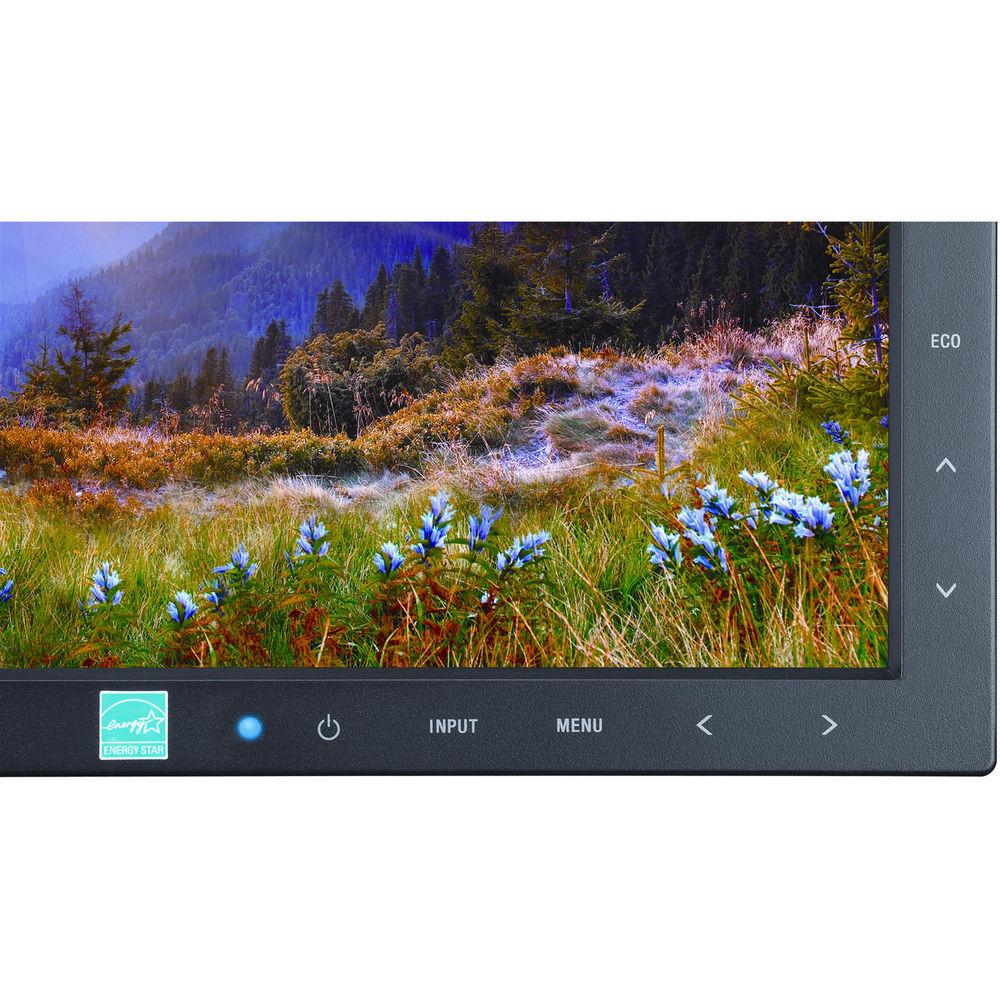

- Touch-Sensitive On-Screen Display Controls
- The controls are integrated into the bezel, making display adjustments easier than ever

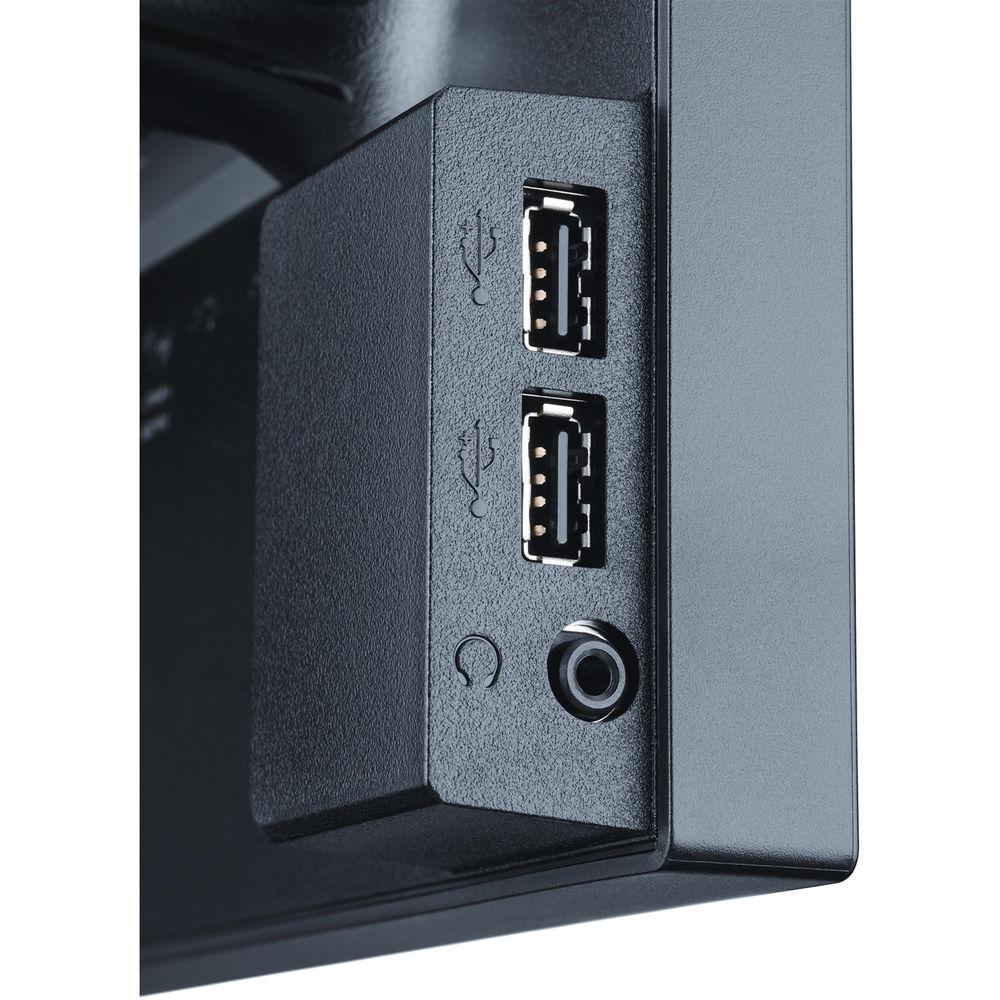

- Integrated 4-Port USB 2.0 Hub
- Connects to your peripherals easily

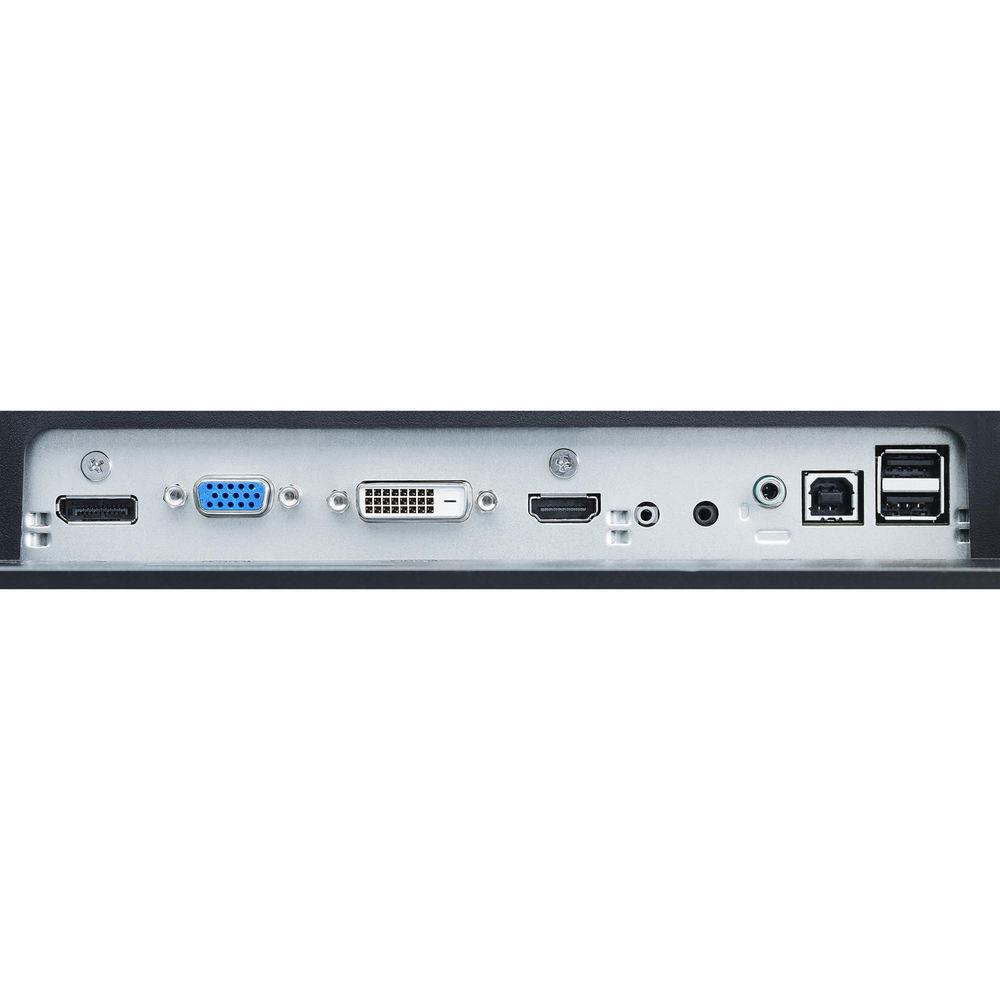

- Comprehensive Input Panel
- The panel includes DisplayPort, HDMI, DVI-D and 15-pin VGA connectors, which connect you to up-to-date peripherals and future-proofs your investment
- Space-Saving Multimedia Speakers
- Enhance your computing experience; speakers are hidden to maintain the monitor's aesthetic appeal (headphone jack also included)
- Customize Setting
- Allows you and IT administrators to set and restore preferred settings with just one touch, contributing to a free-seating business environment
- Smart Sensing Technology
- Includes ambient light and human sensors, which considerably reduce power consumption by automatically detecting your work conditions and adjusting display brightness or entering Power Saving Mode
- NaViSet Software
- Offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and keyboard. NaViSet administrator provides all the advanced controls to remotely located IT professionals
- EPEAT Gold Compliance
- Ensures that the displays reduce hazardous waste and electricity usage, resulting in lower energy costs and increased protection for the environment
- Energy Star
- Reduces electrical costs and lowers total cost of ownership
Technologies - ControlSync
- Allows you to control up to six units in a multi-monitor configuration. Upon establishing one unit as the master, it enables you to control many performance attributes of a multi-monitor setup in unison through the master monitor
- Ambix
- Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button
- Rapid Response
- Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
- XtraView+
- Delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left and right) with less color shift and without any glare, reflection or distortion
- No Touch Auto Adjust
- Allows the monitor to be automatically adjusted to optimal image settings when initially turned on
- LED Backlight
- Provides for industry-leading low power consumption and less hazardous materials
- Carbon Footprint Meter
- Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real-time
UPC: 805736045963 In the Box NEC EA234WMI 23" LED Backlit LCD Monitor Power Cord 15-Pin D-Sub Cable DVI Cable USB Cable Audio Cable 3-Year Limited Warranty for Parts and Labor User Manual PDF 2.3mbwtabrdszcbxsxz Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA234WMI 23" LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EA234WMi Specs | | | Size | 23" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 25,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | | | Power Consumption | 0.4 W (Standby)
27 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.4 x 15.0 x 8.6" / 54.4 x 38.1 x 21.8 cm
21.4 x 12.7 x 2.4" / 54.4 x 32.3 x 7.0 mm (Without Stand) | | Weight | 14.1 lb / 6.4 kg (With Stand)
8.8 lb / 4 kg (Without Stand) | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 23.3 x 18.1 x 10.4" |
